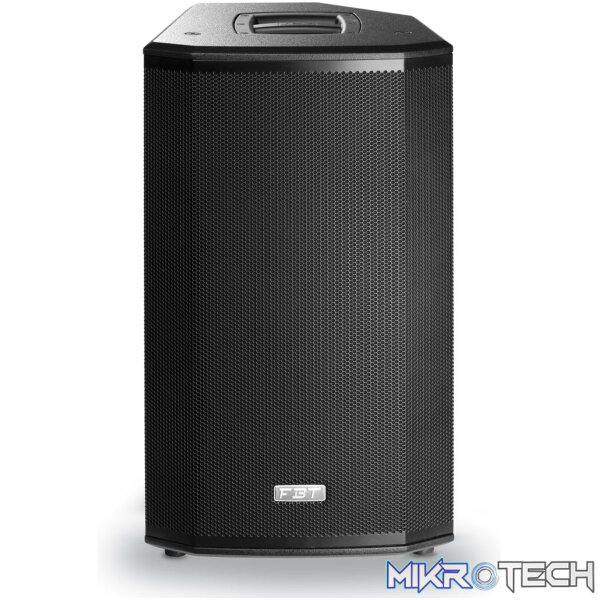

Fbt Ventis112A Active Speaker
R31,629.99 incl. VAT
2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
320mm (12) LF woofer with 64mm (2.5) voice coil, custom made for FBT
25mm (1) exit throat B&C HF compression driver with 36mm (1.4) voice coil
Frequency response from 48Hz to 20 kHz
80°H x 50°V Constant Directivity Rotatable Horn
6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8) top-hat

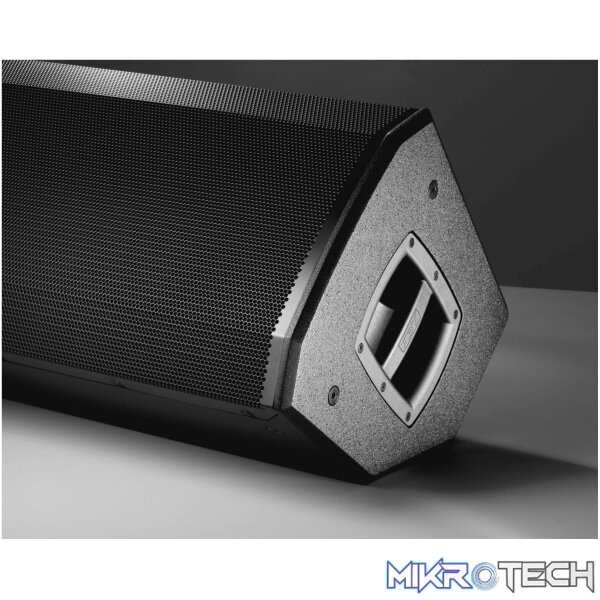

Speaker stand socket, two aluminium handles
45° monitor taper
VN-C112 SPEAKER COVER FOR VENTIS112 (407.210FB)
Out of stock

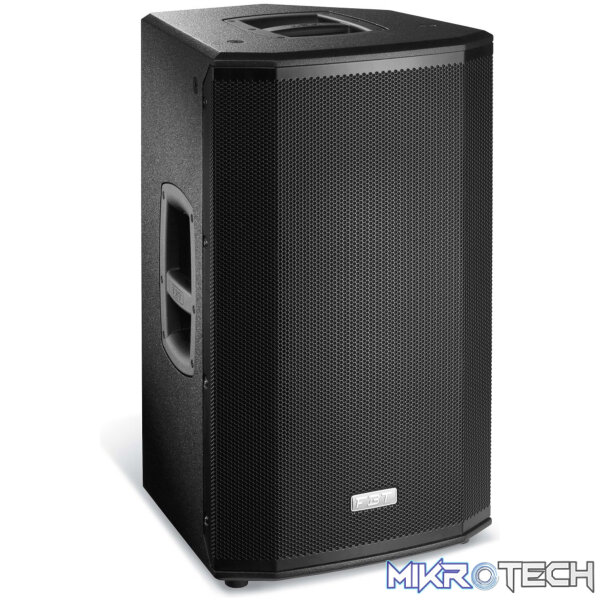

Comprising four versatile loudspeaker enclosures for either portable use or fixed installation, FBT is debuting the VENTIS range at Pro Light + Sound 2016. Available in either passive or bi-amplified versions, each of the models the VENTIS 115, 112, 110, and 206 has been designed to meet the highest standards in both performance and aesthetic appeal.
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBTs own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
2 way
Built-in amplifier LF/HF:
700/200 W RMS
Built-in amplifier peak LF/HF:
1400/400 W
Frequency response:
42Hz – 20KHz -6dB
Low Frequency woofer:
12 – 2.5 coil inch
High Frequency driver:
1 – 1.4 coil inch
Maximum SPL cont/peak:
126/133 dB
Dispersion:
80° x 50° rotatable HxV
Input impedance:
22 Kohm
AC Power requirements:
640 VA
Input connector:
XLR with loop, RCA ST
Power cord:
5 m
Net Dimension (WxHxD) :
387x665x380 mm
Net Weight:
20.6 Kg
Transport Dimension (WxHxD) :
500x765x470 mm
Transport Weight:
23.1 Kg
| Weight | 20.6 kg |
|---|---|
| Dimensions | 38.7 × 66.5 × 380 cm |
