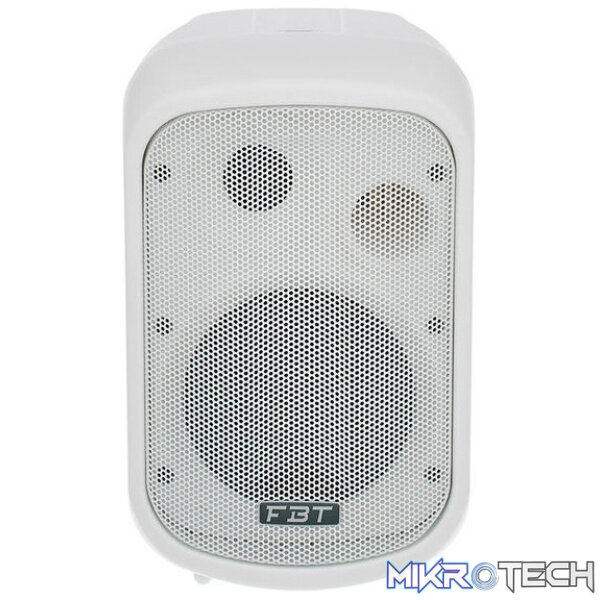

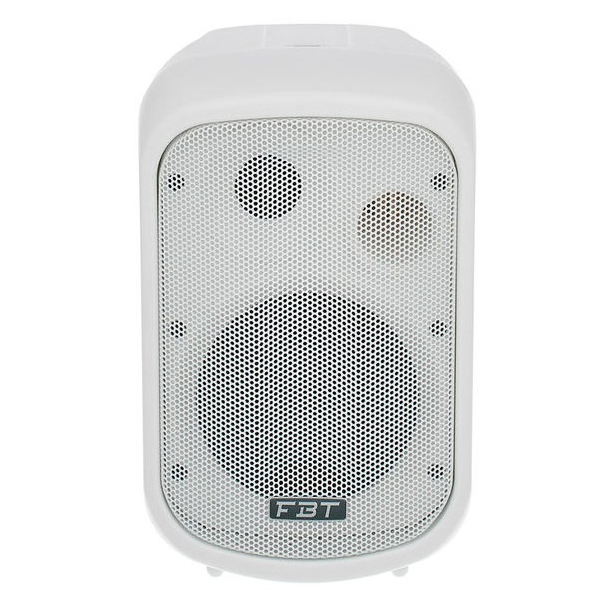

Fbt – J5Aw Active Speaker

The FBT J5A series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.

FEATURES:

• 2-way processed active system
• Polypropylene enclosure
• 1 x 5″ custom woofer
• 1 x 1″ neodymium silk dome tweeter
• 60W/30W built-in amplifier cont. RMS LF/HF
• 80W/40W built-in amplifier max. RMS LF/HF
• 160W/80W built-in amplifier max. peak LF/HF
• 2 x M6 suspension points
• Low noise toroidal transformer power supply
• Available in white color
• Completely manufactured in Italy

SPECIFICATIONS:

• Configuration:
  2 Way
•
  Built-in amplifier LF/HF:
  80/40w RMS
•
  Built-in amplifier peak LF/HF:
  160/80w
•
  Frequency response:
  80Hz – 20 kHz
•
  Low Frequency woofer:
  5″ with 1″ VC
•
  High Frequency driver:
  1″ Dome Tweeter
•
  Maximum SPL cont/peak:
  113 / 117 dB
•
  Dispersion:
  90 x 90 (HxV)
•
  Input impedance:
  22 Kohm
•
  Crossover Frequency:
  3.5kHz
•
  AC Power requirements:
  75VA
•

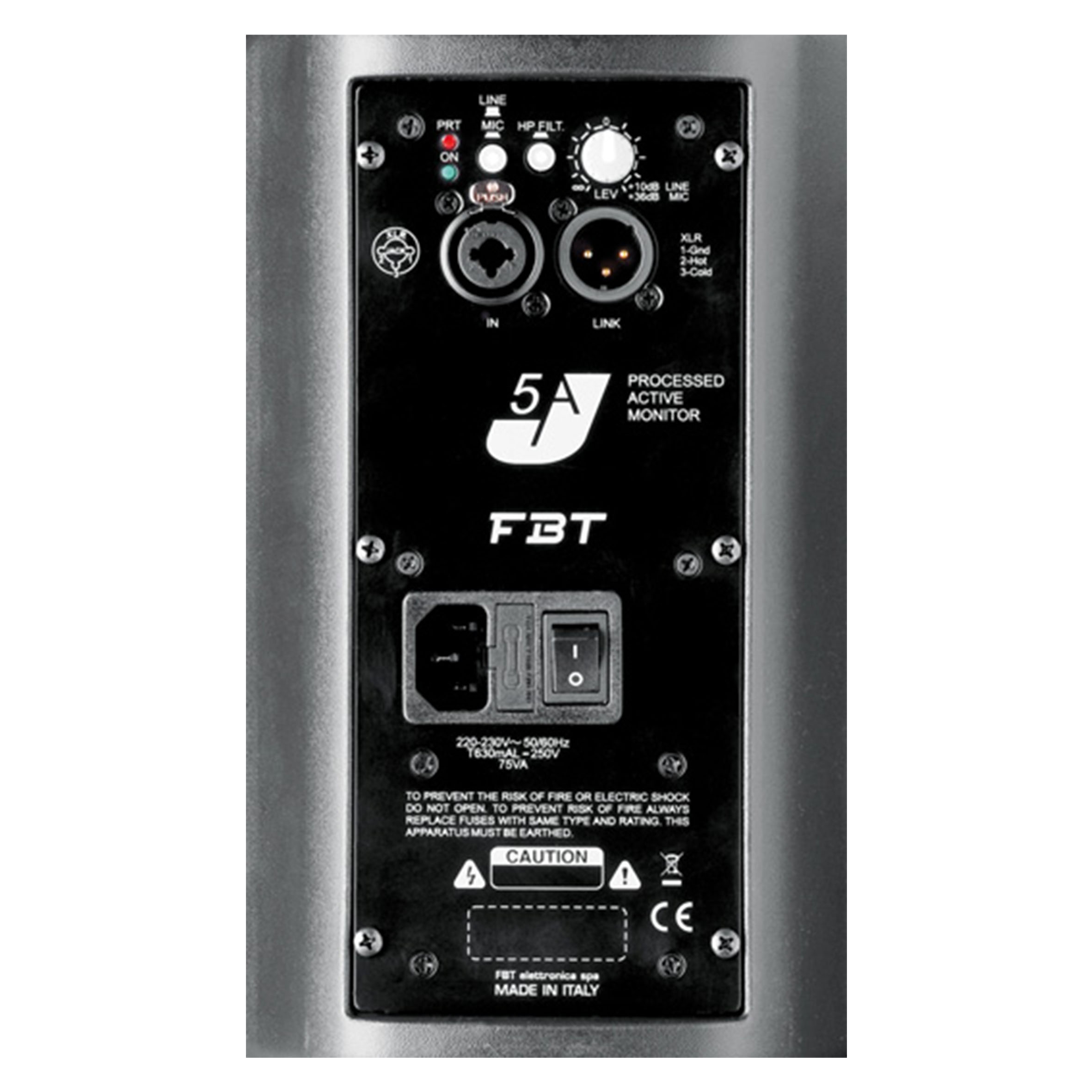

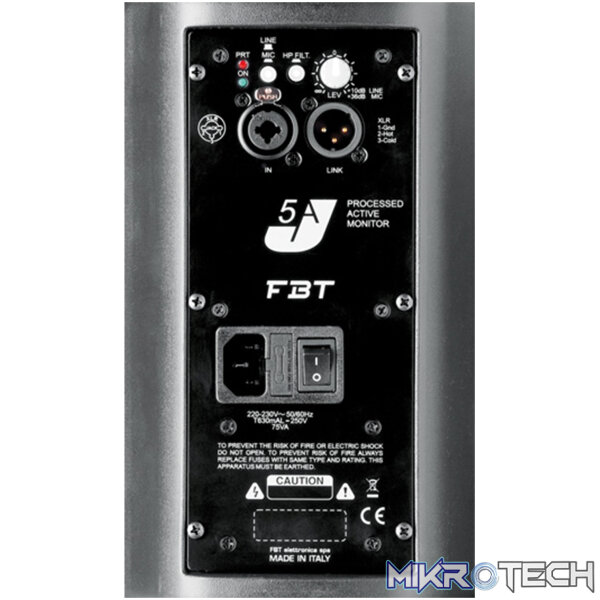

  Input connector:
  XLR/Jack Combo socket with link out
•
  Power cord:
  5m IEC
  Net Dimension (WxHxD)
•
  Net Weight:
  3.4kg
•
  Transport Dimension (WxHxD):
  240 x 345 x 235mm
•
  Transport Weight:
  4.2kg
