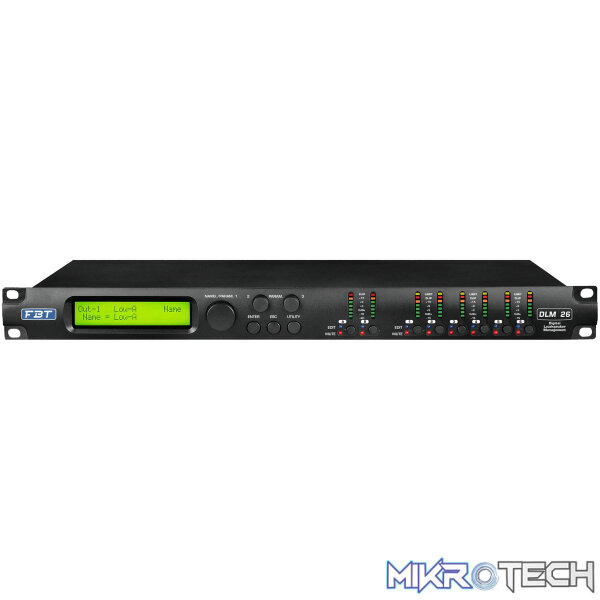

Fbt – Dlm-26 Digital Speaker Management

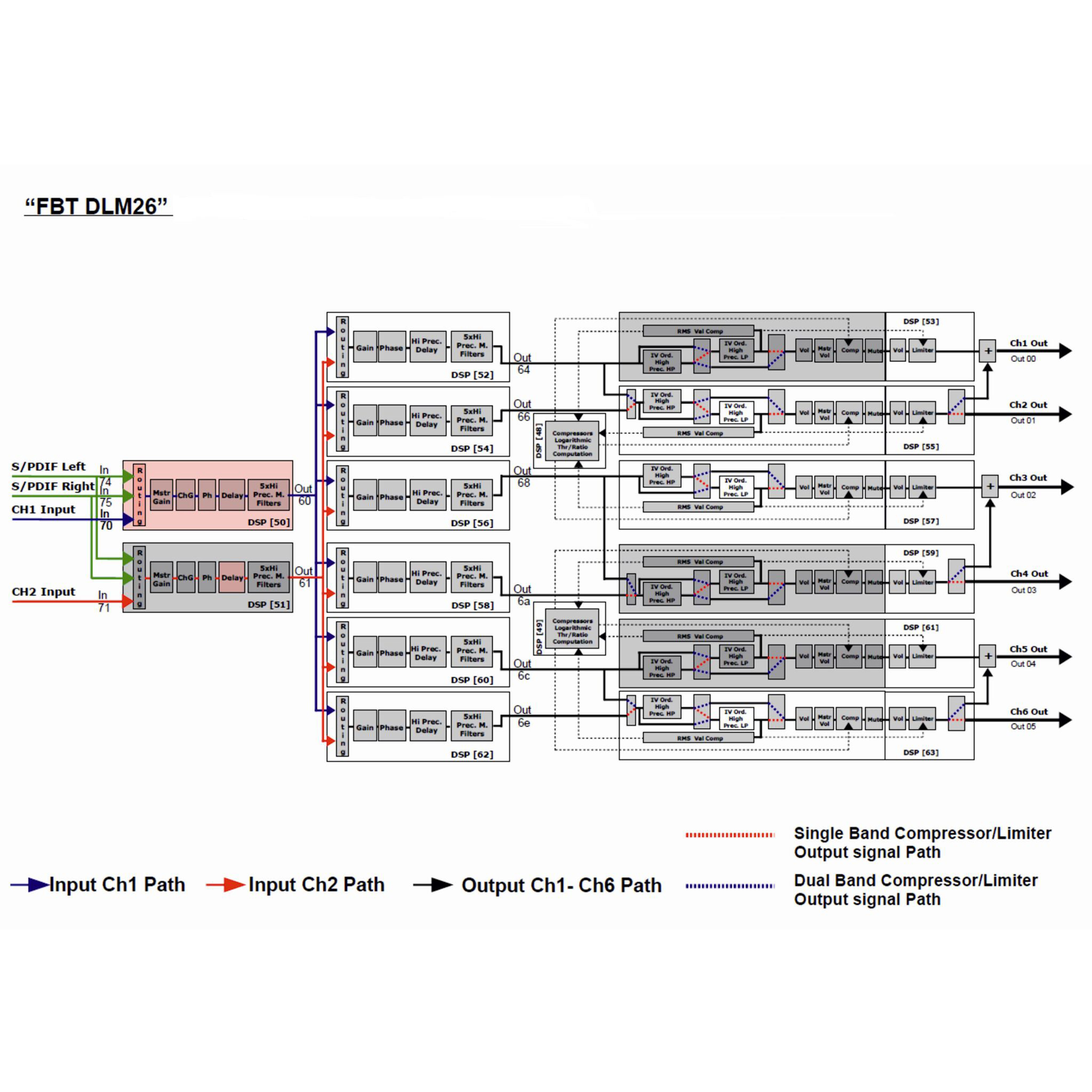

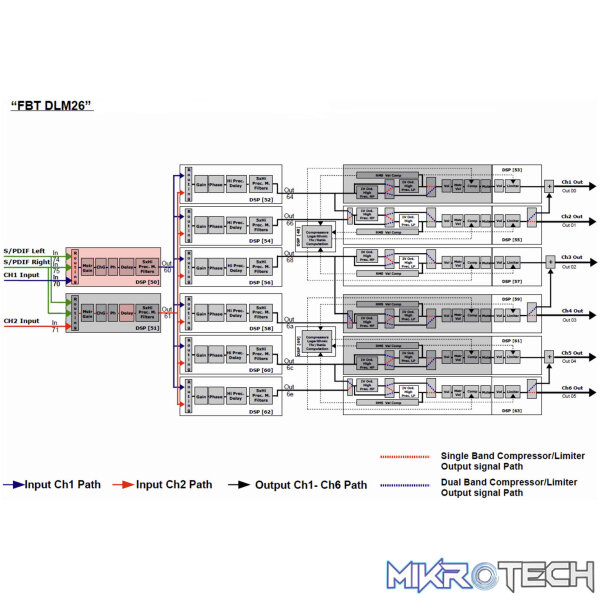

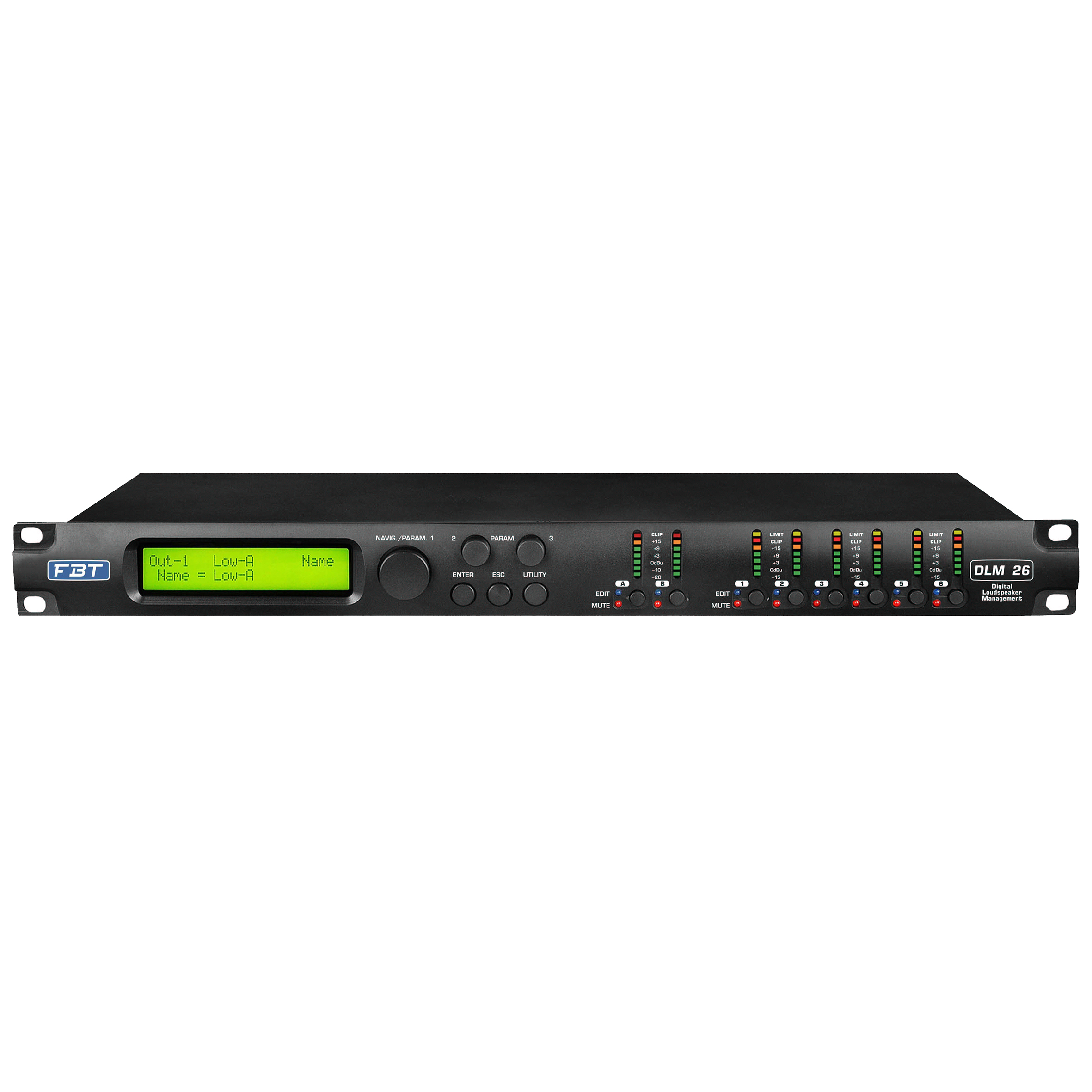

The DLM26 is a DSP based  2 input x 6 output Digital Loudspeaker management processor, ideally suited for fixed installations and live events. It combines the functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities.

FEATURES:

• Hi-pass/Lo-pass/Shelving custom Q second order filters
• RMS compressor and PEAK limiter on each output channel with time constant and algorithm optimized for speaker thermal and mechanical protection while maximizing the output with no audible distortion
• Input channel L, R or L + R freely assignable to each output channel
• Double Compressor Limiter Mode (DCL) with two band RMS compressor and Peak limiter with adjustable HP / LP split frequency and separate parameter adj. This is an exclusive and very useful feature in general purpose digital processors
• ALL PASS first and second order filters useful for Cardioid SUB configurations, very precise phase crossover alignment, special pattern control array, alignment between different speakers and systems
• Each output has 4 fully configurable filters, a delay of 288.66ms max in step of 6.8us, gain, phase, LO-pass/Hi-pass crossover from 6 to 24db/Oct with standard or custom Q, RMS compressor with soft knee and peak limiter.

SPECIFICATIONS:

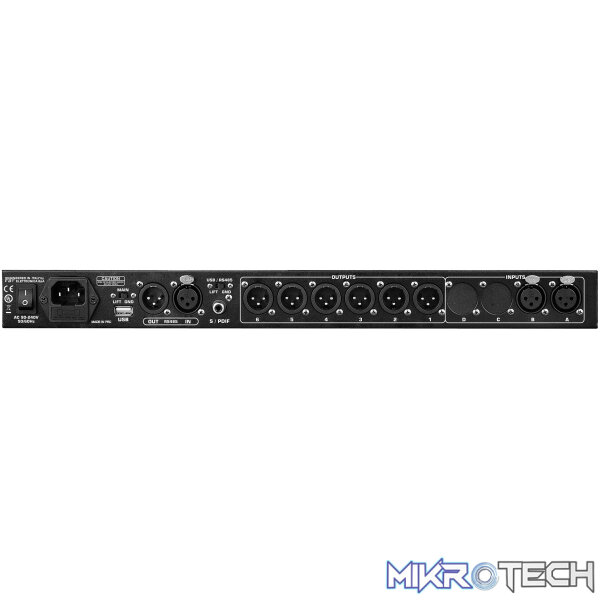

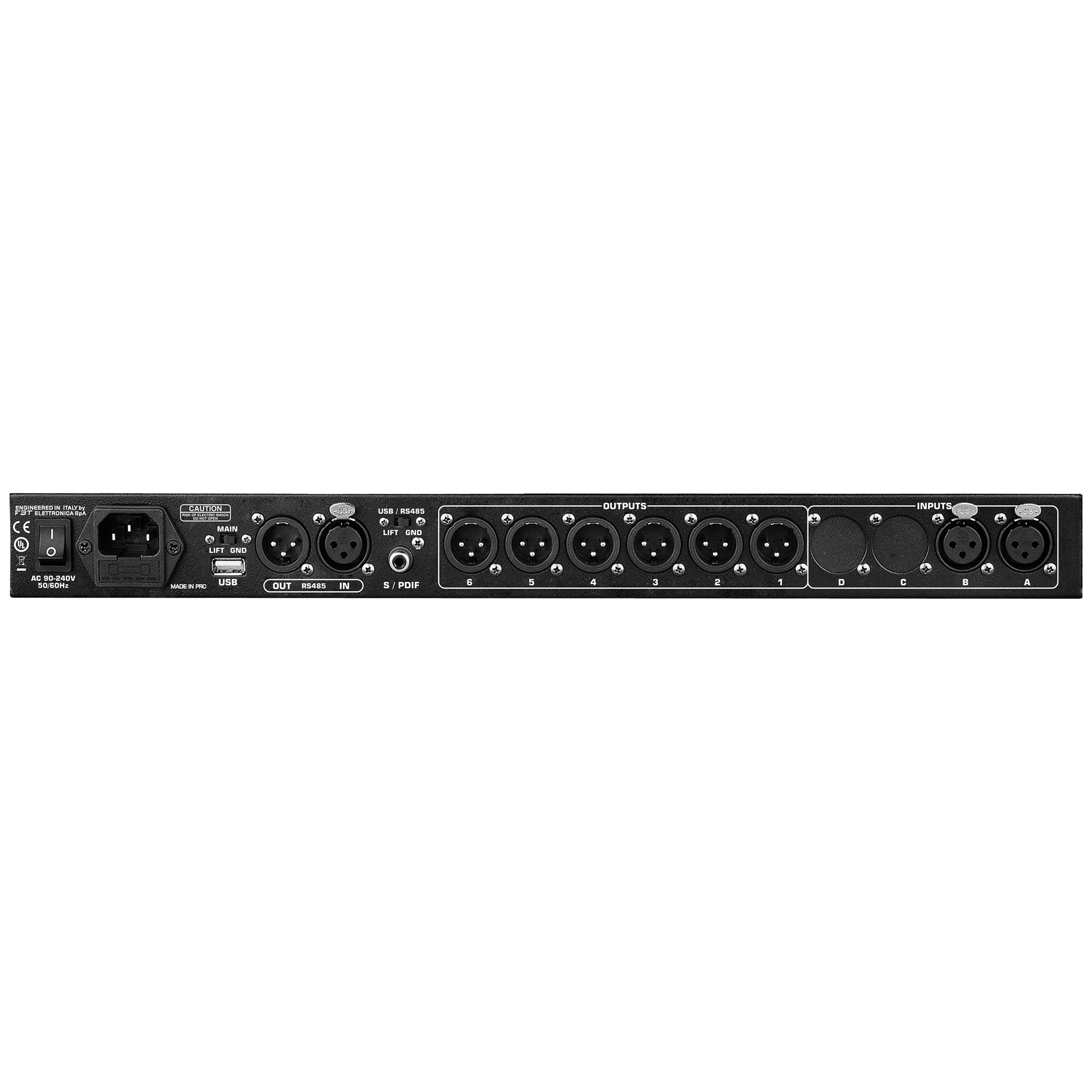

• Analog Input Signal:
  ChA/ChB, Bal. Female XLR
•
  Maximum Input Level:
  +20dBu
•
  Analog Output Signal:
  Ch1/Ch2/Ch3/Ch4/Ch5/Ch6 Bal. Male XLR
•
  Maximum Output Level:
  +20dBu
•
  Digital Processing (DSP):
  SAM3716, 24bits (data) x 96 bits (coeff.)
•
  A/D Converters:
  AKM5392, 24bits
•
  D/A Converters:
  AKM4396, 24bits
•
  Sampling Frequency:
  48kHz
•
  S/PDIF Stereo Digital Input:
  32kHz, 44.1kHz and 48kHz Sources Accepted
•
  S/N:
  110dBA
•
  THD+N:
  0.005%
•
  Frequency Response (Bypass):
  20Hz – 20kHz (+- 1 dB)
•
  Power Supply:
  Switching Power Supply
•

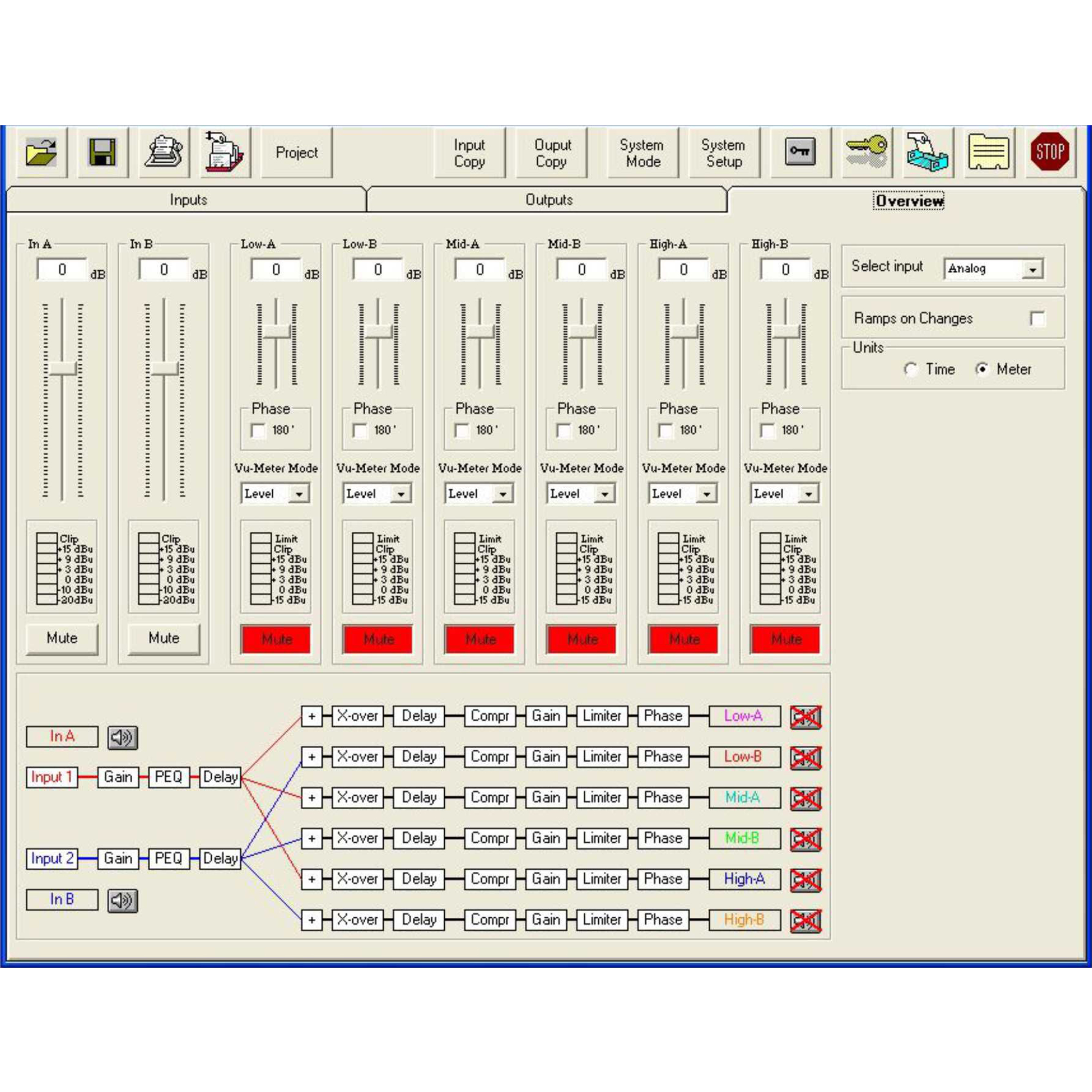

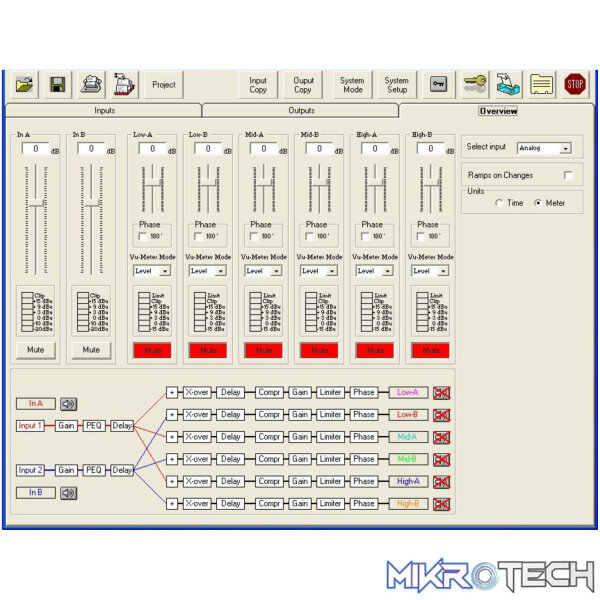

  Remote Control:
  USB, RS485
