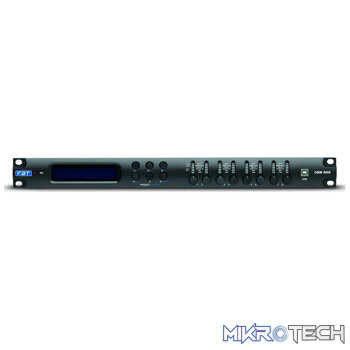

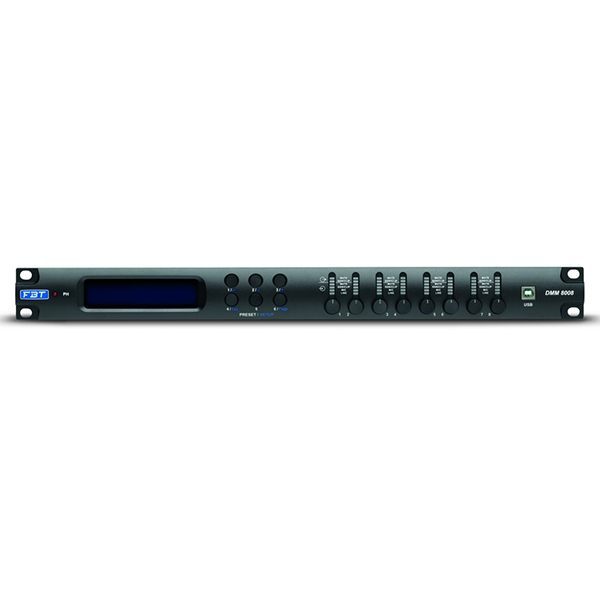

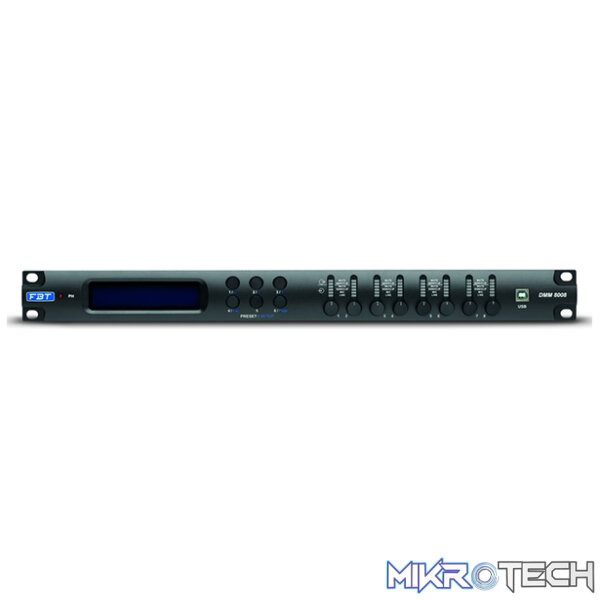

Fbt – Ac Dmm8008 Digital Matrix Mixer

The DMM 8008 is a high performance 8 input x 8 output digital matrix mixer Specially designed for commercial and professional application such as Conference rooms, Auditoriums, Sport utility buildings, House of worship, Pubs and Disco. It includes 8 independently switchable Line/ Mic inputs with Phantom power supply, 8 Line outputs, managed by a powerful 48kHz 24 Bit DSP engine, in addition to high performance 24 Bit AD/DA converters.

FEATURES:

• Excellent audio performance with 24 bit converters coupled with 48kHz sample rate
• 8 Mic/Line inputs, 8 outputs with full matrix mixing, 3 band parametric equalization and Low/High pass filters per input channel
• 5 band parametric equalization per output channel each band can be switched to peaking, Low/High shelving with variable Q response
• Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley
• Gain control, Noise Gate, Feedback eliminator (Mic input only) per input channel
• Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee
• Auto mixing functions include: Configurable NOM attenuation, Gain sharing algorithm, Priority Ducking
• Adjustable Delay time up to 380mS per output channel
• Front panel interactive LCD display for local access and configuration
• Front panel 6-led status indicators per In/Out channel
• 8 front knobs available for Mic input Gain control
• 4 input contacts for additional 4 preset selections with priority configuration
• 4 digital output ports for triggering external devices
• Simultaneous control up to 32 units via PC software – iPad®
• Security lockout
• TCP/IP, RS 485 and USB connection for remote controls

SPECIFICATIONS:

• AC Power requirements:
  90-240Vac (50/60Hz) – 40W
•
  Net Dimension (WxHxD):
  483 x 44 x 229mm (1U)
