ENHANCED ANALOG MIXING FLEXIBILITY

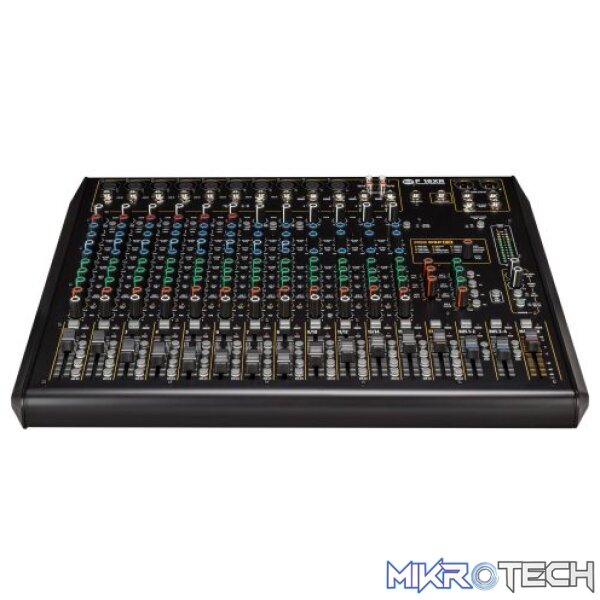

Name: RCF F-16XR 16-Channel Mixer with Multi-FX and Stereo USB Interface - MikroTech
SKU: F16XR

Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors to limit signal peaks and a modern sounding EQ.

STATE OF THE ART EQ

State-of-the-art 3 band EQ on mono channels with semi parametric mid-band EQ,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.

MORE HEADROOM, LESS NOISE

F Series Mixers feature high-quality preamplifiers with phantom power, offering superior sound and dynamics. With a separate line input, line level signals are less noisy than other consoles. F-16XR and F-12XR models feature Hi-Z input level control for musical instruments such as acoustic instruments with piezo transducers, electric bass or guitars with stomp boxes.

Learn more about all the features and characteristics of the series.

SPECIFICATIONS

Electrical specifications

FREQUENCY RESPONSE:

20 Hz ? 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):

<0,02% A-Weighted

POWER SUPPLY:

Internal

VOLTAGE REQUIREMENTS:

100 V 240 V

POWER CONSUMPTION (W):

30 W

Inputs

GAIN RANGE:

0 dB ? -50 dB

GAIN SELECTION:

20 dB ? -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):

1 Mohm

HI-Z LINE INPUTS:

1

INPUT NOISE LEVEL (DBU A-WEIGHTED):

-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):

14 kohm

LINE:

8

LINE INPUT IMPEDANCE (KOHM):

21 kohm

LOW CUT:

80 Hz

MIC:

10

PHANTOM POWER +48V:

Yes

STEREO LINE:

4

STEREO LINE GAIN SELECTION:

20 dB ? -30 dB

STEREO LINE INPUT IMPEDANCE:

14 kohm

Outputs

MAIN MIX:

1

CONTROL ROOM:

Yes

FX SEND:

1

AUX SEND:

3

AUX OUTPUT:

4

GROUP OUT:

4

PHONES:

1

Outputs specifications

MAIN OUT LEVEL (DBU):

28 dBu

AUX OUT LEVEL (DBU):

28 dBu

GROUP OUT LEVEL (DBU):

28 dBu

PHONES OUT IMPEDANCE (OHM):

150 ohm

PHONES OUT LEVEL (DBM):

10 dBm

Compressors

RCF COMPRESSORS:

n?6 Single Control Compressors on Channels 1 to 6

EQ

INPUT CHANNELS EQ:

1 Semi Parametric / 2 Shelving

DESCRIPTION:

High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

AUX:

2 PRE / 1 PRE/POST

FX POST:

1

Internal Effects

SEND EFFECTS:

1

USB audio

TYPE:

B

PLAY TRK:

2

REC TRK:

2

SUPPORTED SAMPLE RATE (KHZ):

44.1, 48.0 kHz

Other features

FOOTSWITCH:

Yes

Standard compliance

CE MARKING:

Yes

Physical specifications

CABINET/CASE MATERIAL:

Metal

COLOR:

Black

Size

DEPTH:

406 mm / 15.98 inches

HEIGHT:

107 mm / 4.21 inches

WEIGHT:

6.4 kg / 14.11 lbs

WIDTH:

479 mm / 18.86 inches

Shipping informations

PACKAGE DEPTH:

523 mm / 20.59 inches

PACKAGE HEIGHT:

150 mm / 5.91 inches

PACKAGE WEIGHT:

7.4 kg / 16.31 lbs

PACKAGE WIDTH:

453 mm / 17.83 inches
