Description

Specifications

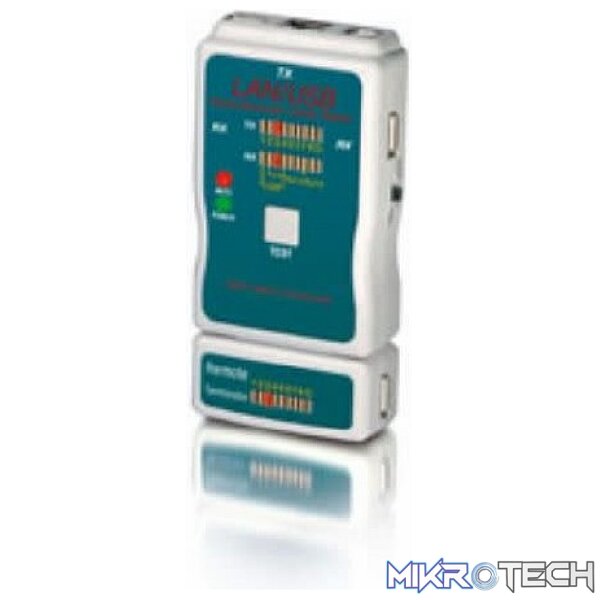

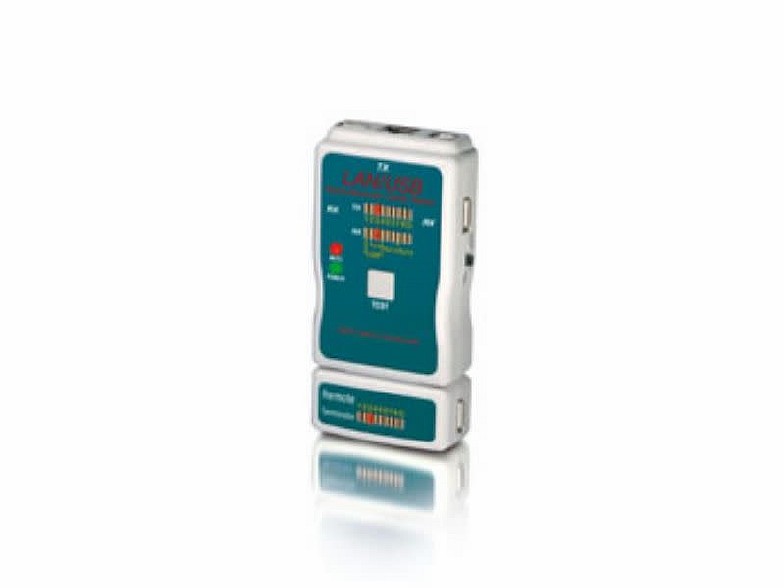

¦ Correctly and quickly read the cable configuration
of RJ45 (UTP/STP), USB (A/A, A/B), RJ11/RJ12, BNC,
COAXIAL, RCA and modular cables
¦ Standards: EIA/TIA 568A/568B, AT&T 258A, ISDN,
10 Base-T, 100 Base-TX, 1000 Base-TX, Token Ring
¦ Tests short circuit, shielding and wiring errors
¦ Operation with AUTO SCAN or step by step with
TEST mode
¦ Tests patch cords (RJ11/12/45) with 4/6/8 pins as
well as istalled cables up to 100m
¦ Easy and clear LED display on main unit and
remote unit
¦ LED for power on/off
¦ LED for Auto Scan mode
¦ Battery: 9V E-Block, 6LR61, 6AM6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TX RJ45 Jack
TX USB A Type Jack
TX USB B Type Jack
RX RJ45 Jack
RX USB A Type Jack
LED display for TX
LED display for RX
Off / Test / Auto Switch
Test Switch for Step Scan
Auto Scan Mode Flash LED
Power on LED
Battery compartment
Remote RX RJ45 Jack
Remote RX USB A Type Jack
Remote LED display for RX
Package Contents
¦ 1x Cable Tester
¦ 1x RJ45 (M/M) cable
¦ 2x RJ45 BNC (F) adapter
¦ 2x RJ45 RJ11/RJ12 adapter
¦ 1x Leather pouch
Battery not included
