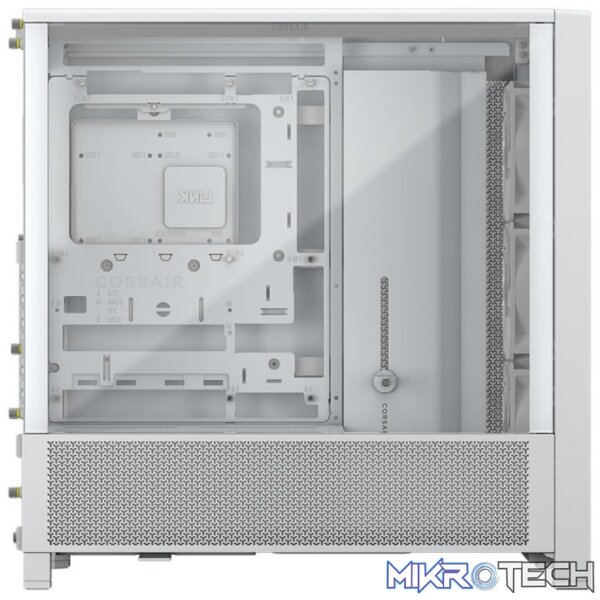

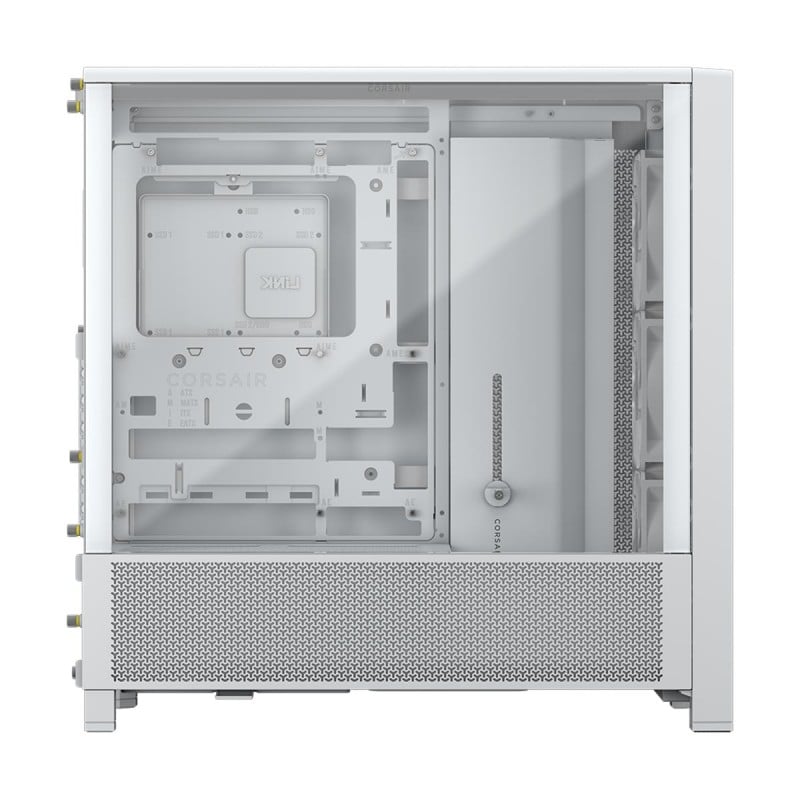

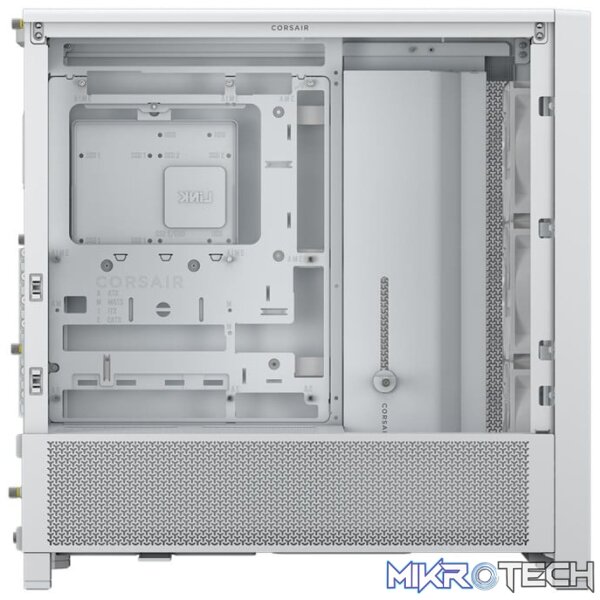

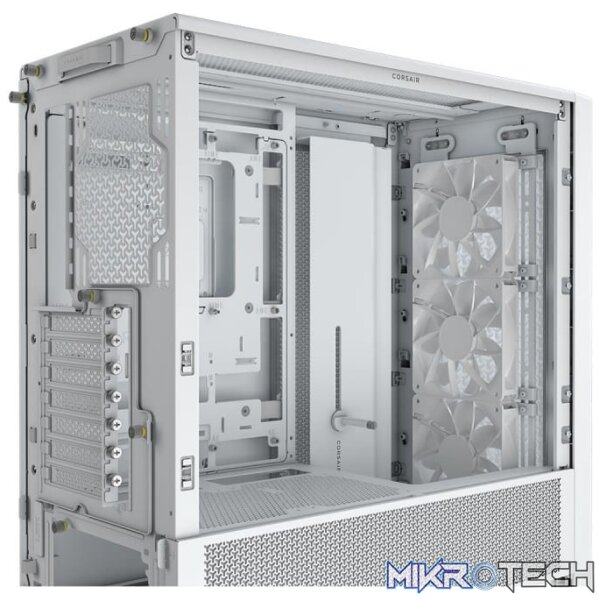

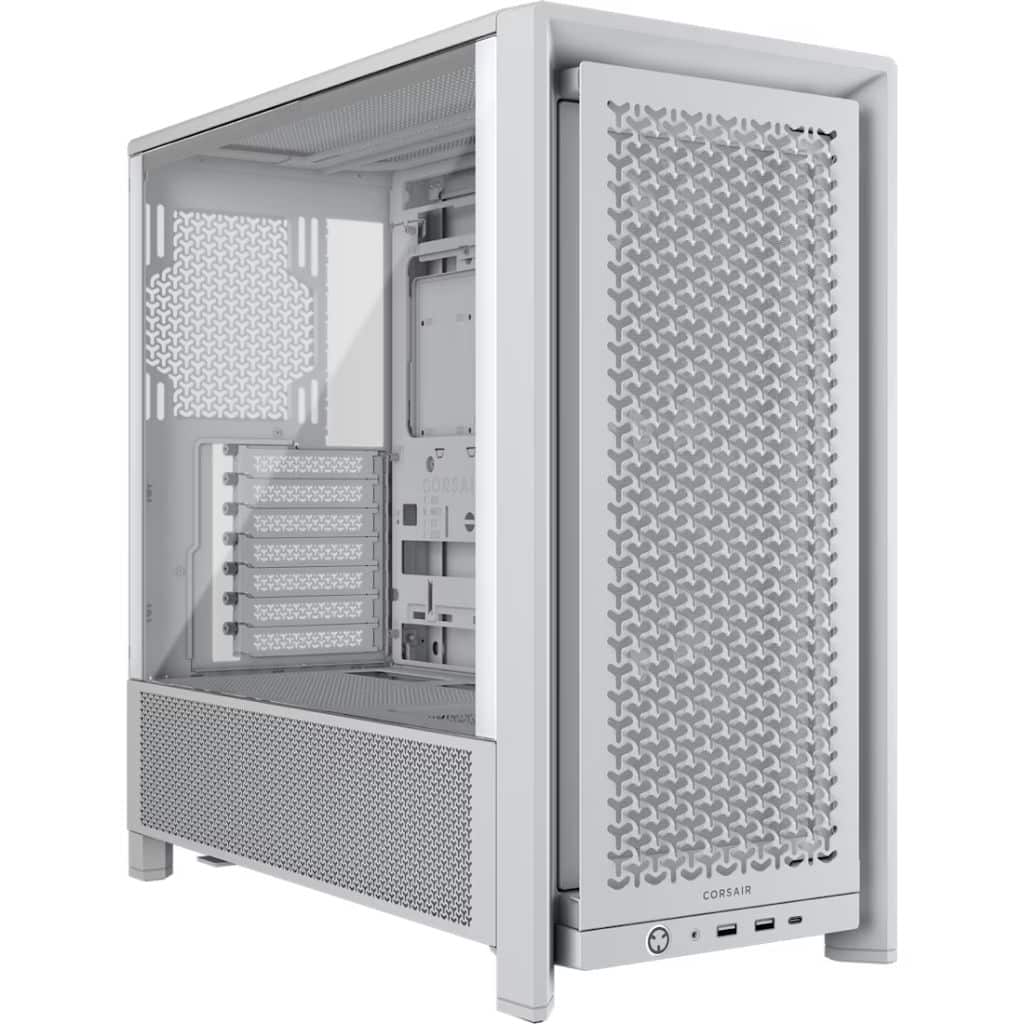

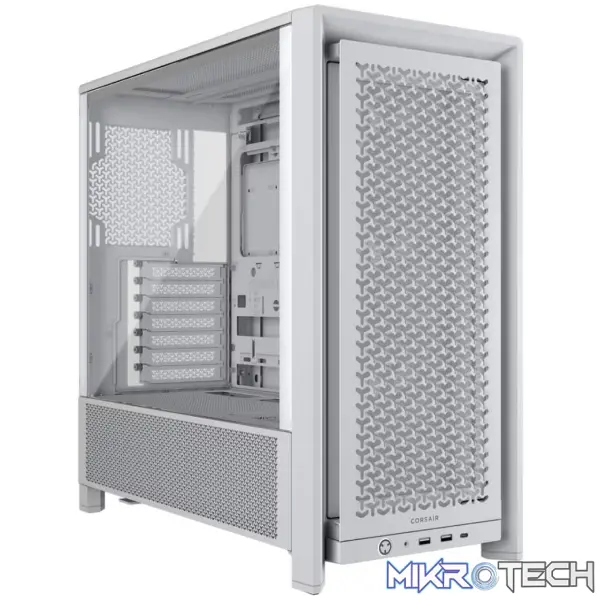

Corsair FRAME 4000D RS Tempered Glass White Steel Modular ATX Mid-Tower Gaming Chassis

R1,809.99 incl. VAT

KEY FEATURES:

– Modular FRAME Design with INFINIRAIL Fan Mounts
– 3D Y-Pattern Airflow Front Panel
– Mid-Tower ATX Form Factor
– Integrated GPU Support Arm
– Ventilated Bottom PSU Chamber
– Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
– Supports Reverse Hidden Connector Motherboards
– 4x 2.5? Drive Bays (Removable)
– 2x 3.5? Drive Bays (Removable)
– 1x USB 20Gbps Type-C Port (Front Panel)
– 2x USB 5Gbps Type-A Ports (Front Panel)
– 1x 3.5mm Combination Audio Jack
– 7x Horizontal PCI Slots
– Supports Up to 12x 120mm Fans
– Supports Dual 360mm Radiators

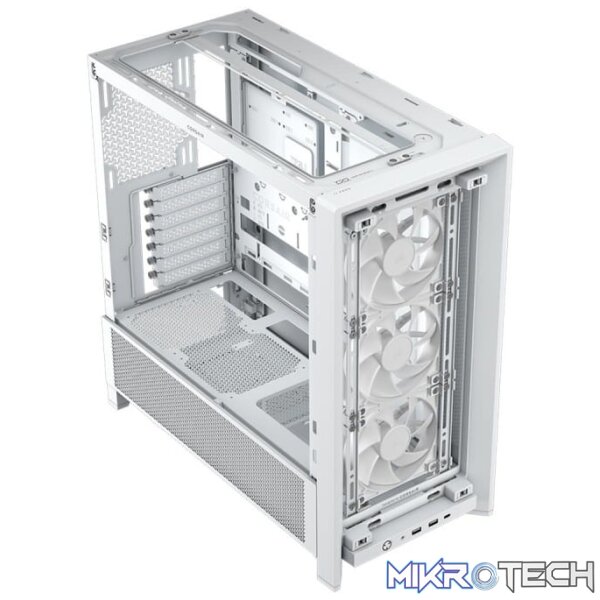

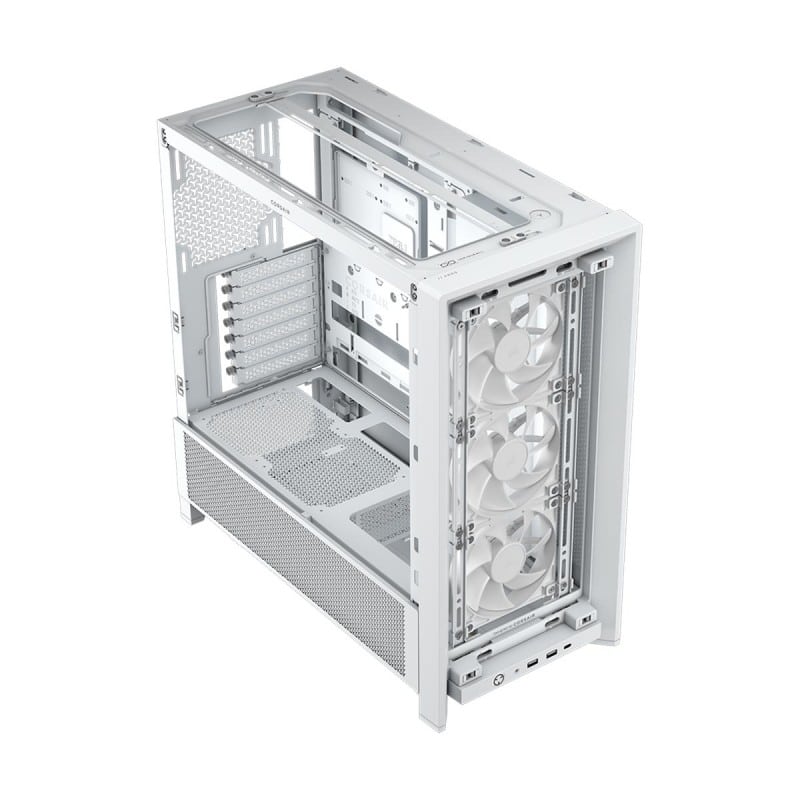

– 3x Pre-Installed Corsair RS120 PWM White Fans (Front Intake)
– GPU Clearance: Up to 370mm
– CPU Cooler Clearance: Up to 170mm
– PSU Depth Clearance: Up to 220mm
– Compatible with Corsair Shift PSU Series
– Customisable Top Fan Mounting Rail
– 2 Year Warranty

In stock

Product ID: 1376208 Category:
Product Description

Description

Corsair FRAME 4000D RS Tempered Glass White Steel Modular ATX Mid-Tower Gaming Chassis

CC-9011313-WW

Includes

  • Fully-modular design for next-level customization
  • InfiniRail™ Fan Mounting System for easier building
  • Includes three RS120 performance fans
  • Dual 360mm radiator support
  • GPU anti-sag stabilization arm
  • Compatible with reverse connector motherboards

ENDLESS MODULAR POSSIBILITIES

The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.

This case evolves with your needs, offering near limitless options for upgrades and changes.

INFINIRAIL FAN MOUNTING SYSTEM

This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

UP TO 12% MORE AIRFLOW

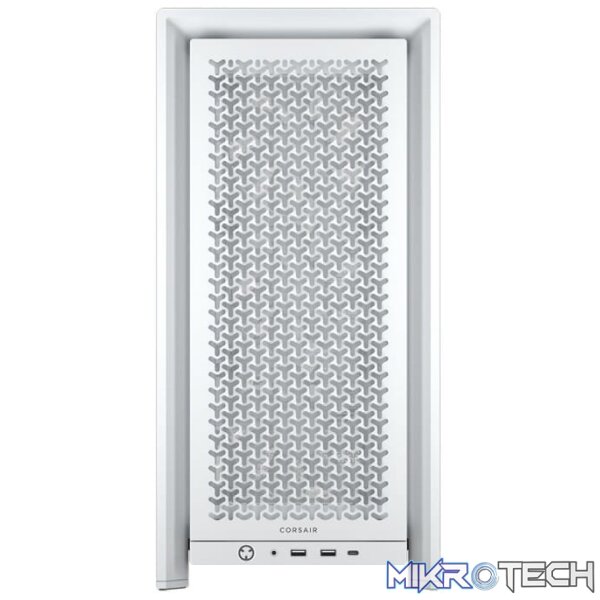

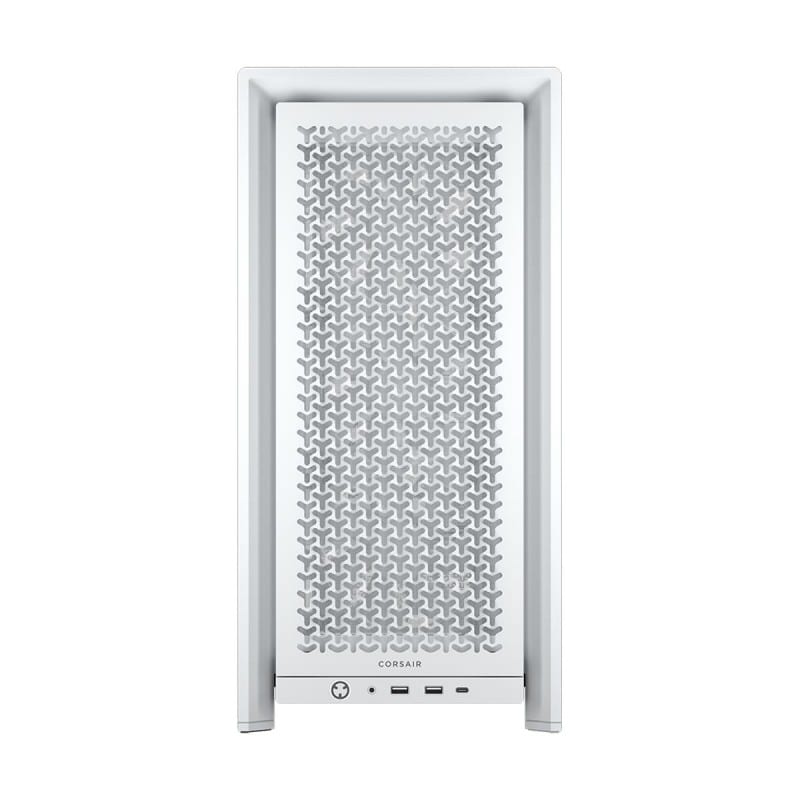

Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.

DUAL 360mm RADIATOR SUPPORT

Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

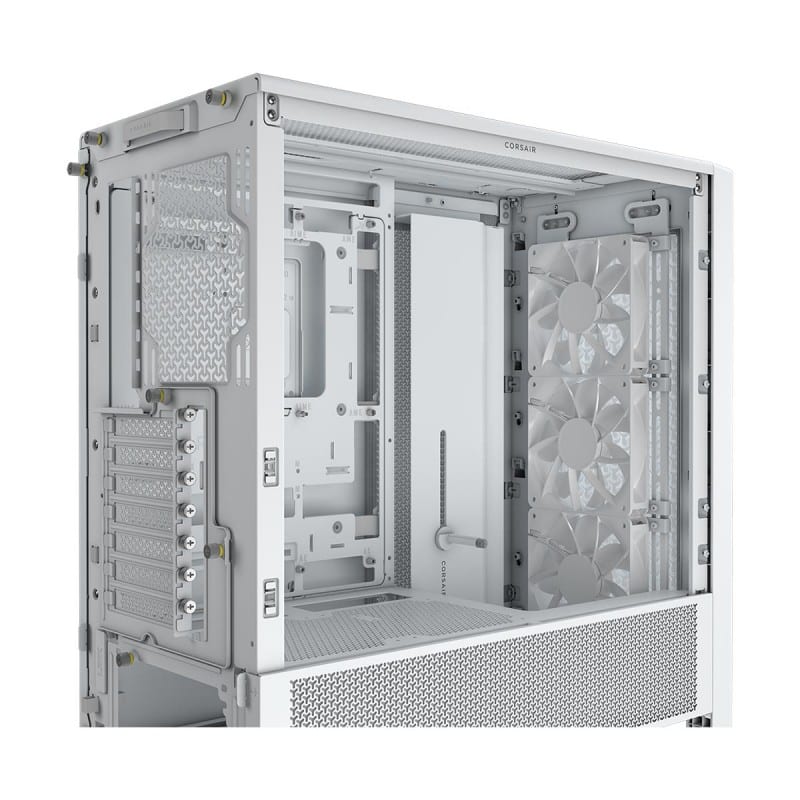

THREE RS120 FANS INCLUDED

RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.

WIDE COOLING FLEXIBILITY

Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

SPECIFICATIONS

BrandCorsair
Series4000D Series
ModelFRAME 4000D RS Modular White (CC-9011313-WW)
Physical Details
ColourWhite
MaterialsAluminium
Steel
Tempered Glass
Side PanelEasy Slide-On Tempered Glass, bottom mesh vented intake
Front I/O1x USB 20Gbps 3.2 Gen 2 Type-C Port
2x USB 5Gbps 3.1 Gen 1 Type-A Ports
1x 3.5mm Combination Audio Jack
Motherboard SupportE-ATX (305 x 277mm), ATX, Micro-ATX, Mini-ITX

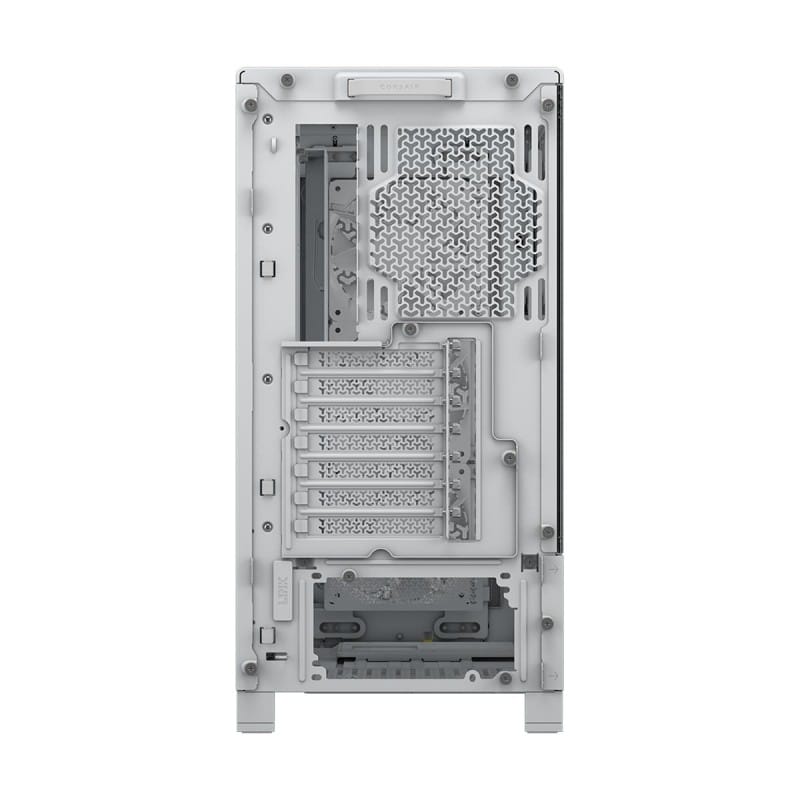

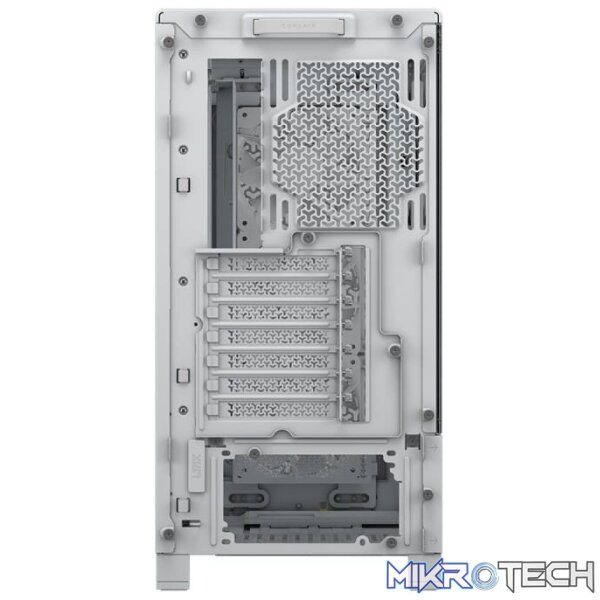

Expansion Slots7x Horizontal PCI Slots
Drive Bays2x 3.5? Drive Bays
4x 2.5? Drive Bays
PSU SupportATX, Up to 220mm
Dimensions490 x 486 x 239mm (D x H x W)
Weight10kg
Pre-Installed Fans
Front3x Pre-Installed Corsair RS120 PWM White Fans (Front Intake)
SideN/A
TopN/A
BottomN/A
RearN/A
Fan Support
Front3x 120mm or 2x 140mm or 2x 200mm Fans
Side3x 120mm or 2x 140mm Fans (Optional)
Top3x 120mm or 2x 140mm Fans
Bottom2x 120mm Fans
Rear1x 120mm or 1x 140mm Fan
Radiator Support
Front360mm, 280mm, 240mm support
Side360mm, 280mm, 240mm support
Top360mm, 280mm, 240mm support
BottomN/A
Rear140mm, 120mm support
Clearance
CPU Cooler Height LimitationUp to 170mm
GPU Length LimitationUp to 370mm
PSU Length LimitationUp to 220mm
Cable ManagementYes, Corsair RapidRoute Cable Management with 37mm clearance
General
Dust FiltersFront, bottom, side fine mesh filters
Chassis LightingN/A
Warranty Information
Warranty2 Year Limited Warranty
