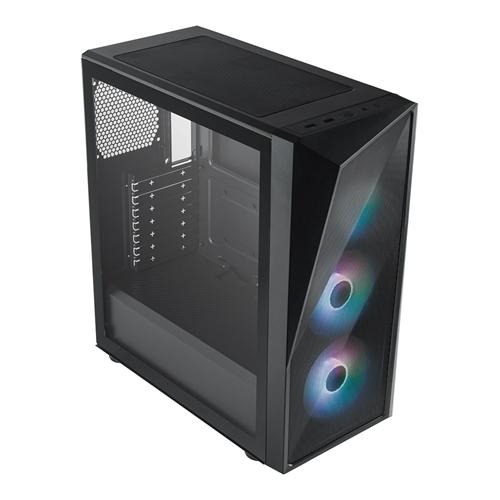

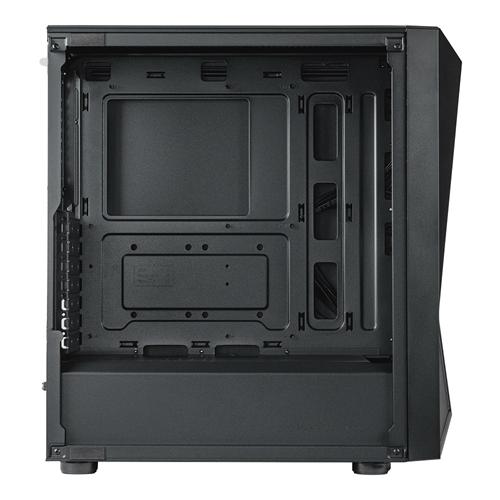

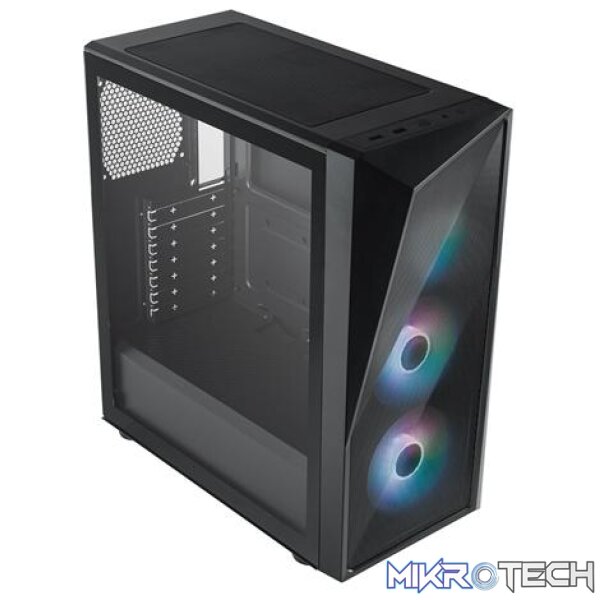

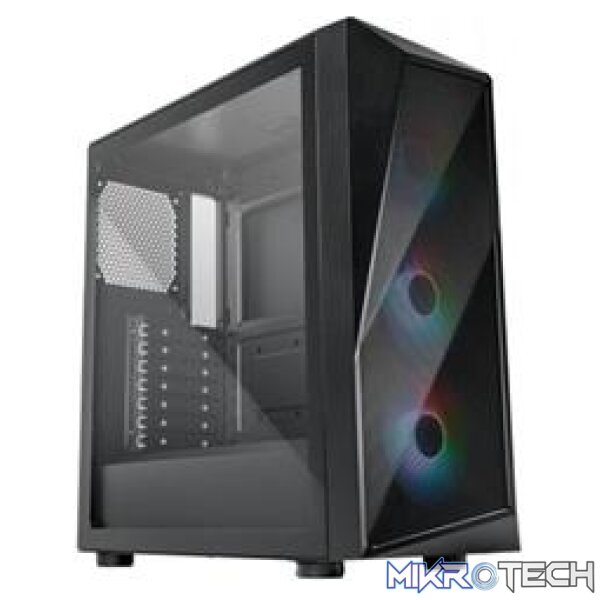

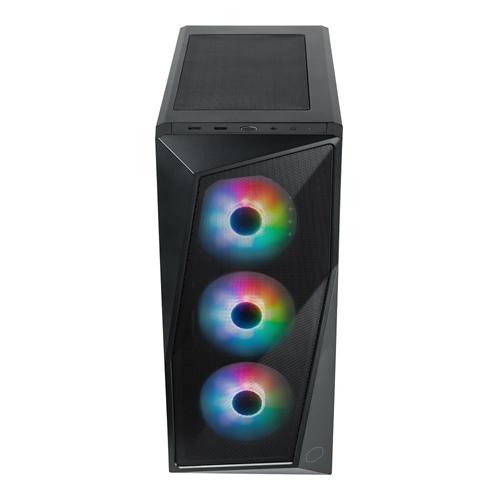

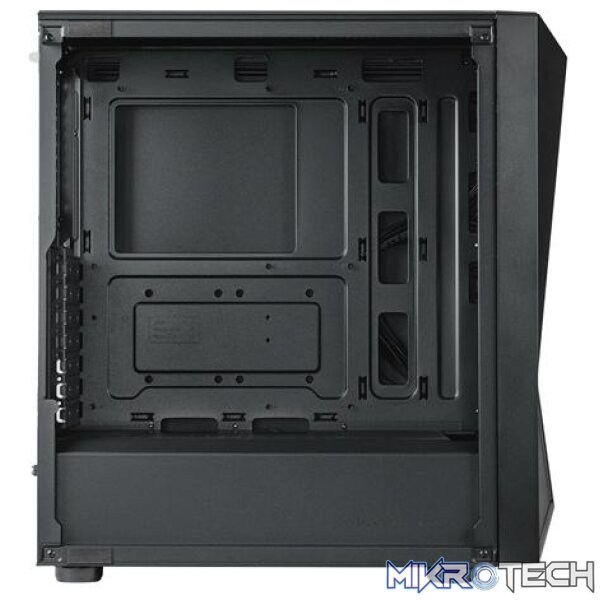

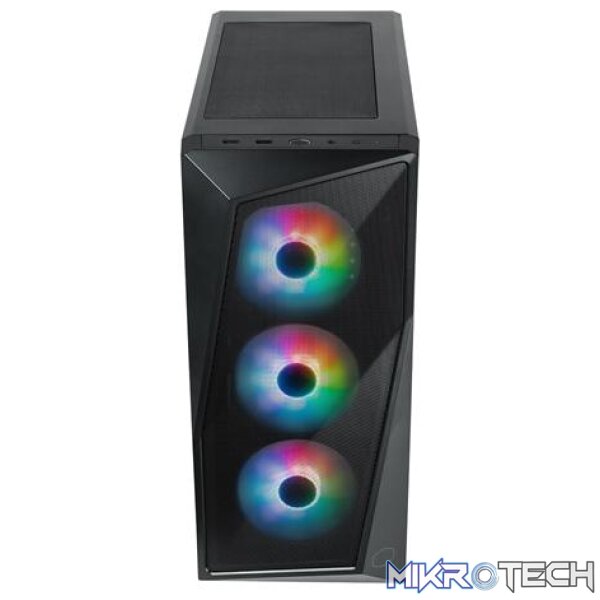

Cooler Master 520 ARGB Windowed Black Mesh ATX Mid-Tower Chassis & Elite NEX 600W PSU Combo
R2,159.99 incl. VAT
KEY FEATURES:
– ARGB Mesh Front-Panel Mid-Tower Chassis
– Clear Tempered Glass Side Panel Window
– Supports ATX, Micro-ATX, Mini-ITX Motherboards
– Includes RGB & PWM Fan Control Hub
– 1x Front-Panel USB 5Gbps Type-A Port
– 1x USB 2.0 Type-A Port
– 2x 2.5? HDD/SSD Drive Bays
– 2x 3.5? HDD Drive Bays
– Top & Bottom Dust Filters
– Supports Up to 6x 120mm Chassis Fans
– 3x Pre-Installed Cooler Master CF120 ARGB LED Fans (Intake)
– Radiator Support Up to 280mm
– Radiator Width Clearance: Up to 55mm
– CPU Cooler Clearance: 161mm
– GPU Cooler Clearance: 350mm
– PSU Length Clearance: 160mm (With HDD Cage)
– Includes Cooler Master NEX Elite 600W Black Non-Modular PSU
– 2 Year Warranty
Out of stock
Description
Cooler Master 520 ARGB Windowed Black Mesh ATX Mid-Tower Chassis & Elite NEX 600W PSU Combo
CP520-KGNN60-S00 CMP
| CHASSIS SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | CMP Series |
| Model | CMP 520 (CP520-KGNN60-S00) |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x Front-Panel USB 5Gbps Type-A Port |
| 1x Front-Panel USB 2.0 Type-A Port | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports ATX, Micro-ATX, Mini-ITX Motherboards |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 2x 2.5? HDD/SSD Drive Bays |
| 2x 2.5? / 3.5? Combo Drive Bays (Removable) | |
| PSU Support | ATX |
| Dimensions | 439 x 204 x 463 mm (D x W x H) |
| Weight | 6.0kg |
| Pre-Installed Fans | |
| Front | 3x Cooler Master CF120 ARGB PWM Fans (Intake) |
| Top | N/A |
| Rear | N/A |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 1x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan |
| PSU Shroud | N/A |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280mm Radiator |
| Top | 120 / 240mm Radiator (240mm support with max 35mm height RAM) |
| Rear | 120mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 161mm |
| GPU Length Limitation | 350mm (no front radiator & fans* |
| Radiator Height Limitation | Up to 55mm |
| Cable Management | Yes |
| PSU Length Limit | Up to 160mm (with drive cage installed) |
| Up to 200mm (with drive cage removed) | |
| General | |
| Dust Filters | Yes, Bottom & Top removable filters |
| Chassis Lighting | Yes, ARGB & PWM Fan Hub supports up to 4x ARGB fans |
| Supports MSI Mystic Light, ASUS AURA, Gigabyte RGB Fusion, ASRock Polychrome, Razer Chroma, etc. | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| PSU SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | NEX Elite Series |
| Model | ELITE NEX PN600 230V PEAK (MPW-6001-ACBK-P) |
| ATX Version | ATX12V 2.x |
| Modularity | Non-Modular |
| Continuous Power | 600W |
| Power Good Signal | 100-500ms |
| Hold Up Time | N/A |
| Expected Lifetime | Up to 100,000 Hours |
| Power | |
| Rated Efficiency | > 75% efficiency with typical load (50% Loading) |
| Certifications | N/A |
| Protections | OVP, OPP, SCP, UVP, OTP, Inrush Protection |
| Multi-GPU Ready | Yes |
| Cables | 1x 24-Pin ATX 12V Cable (550mm) |
| 1x 8-Pin (4 4) EPS 12V CPU Cable (550mm) | |
| 1x 8-Pin (6 2) PCIe Twin-Head Cable (500 120mm) | |
| 5x SATA Connectors | |
| 3x Molex Connectors | |
| Fan | |
| Fan Size | 120mm |
| Bearing Technology | Sleeve Bearing |
| Zero RPM Quiet Mode | N/A |
| General | |
| Form Factor | ATX |
| Dimensions | 140 x 150 x 86mm (D x W x H) |
| Weight | 1.39kg |
| Colour | Black |
