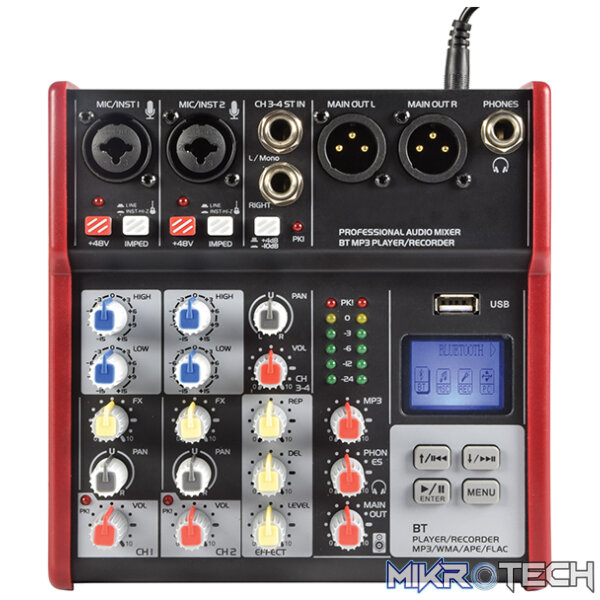

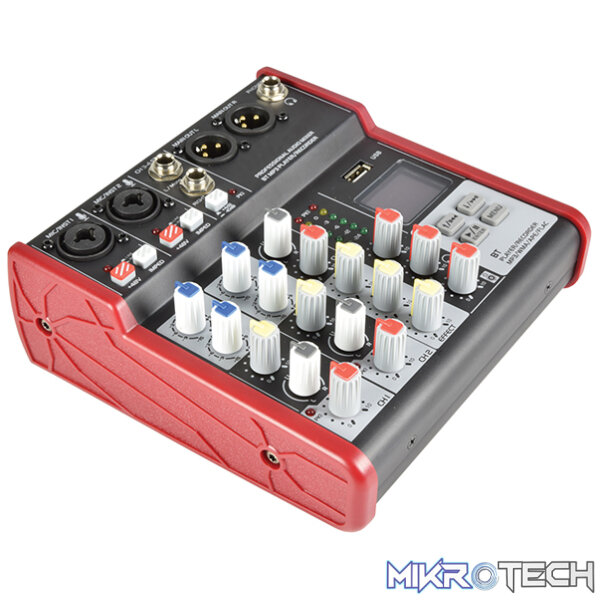

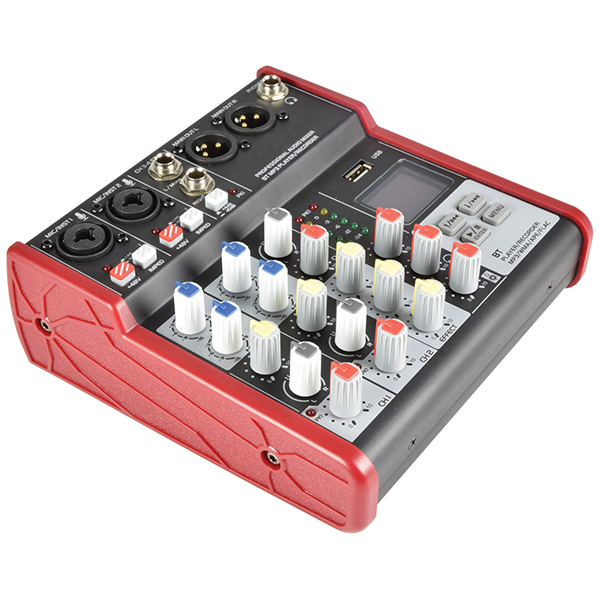

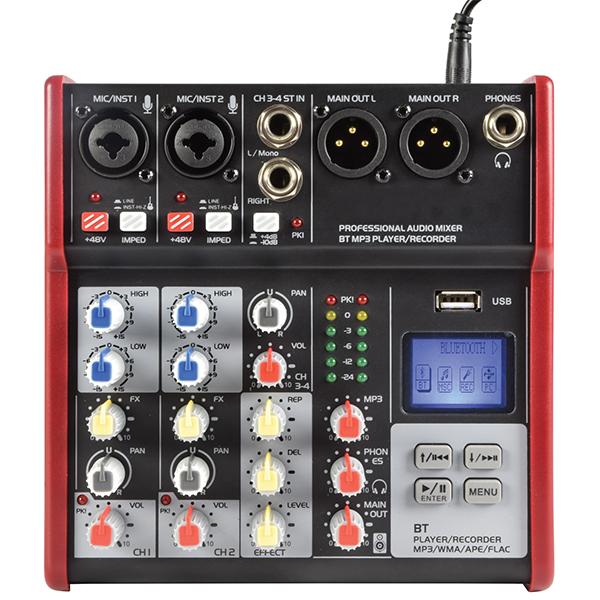

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
2 x combo XLR/jack + stereo jack

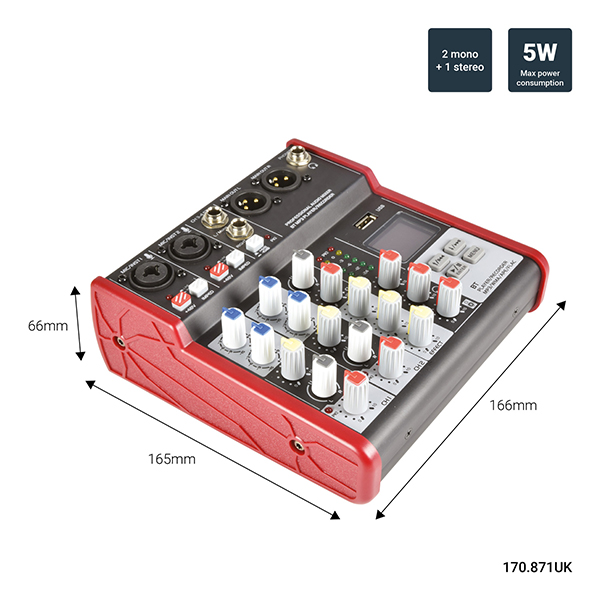

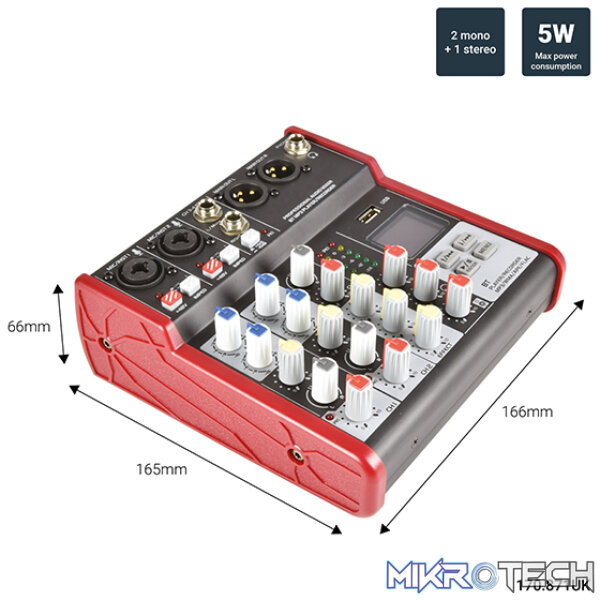

Dimensions:
166 x 165 x 66mm

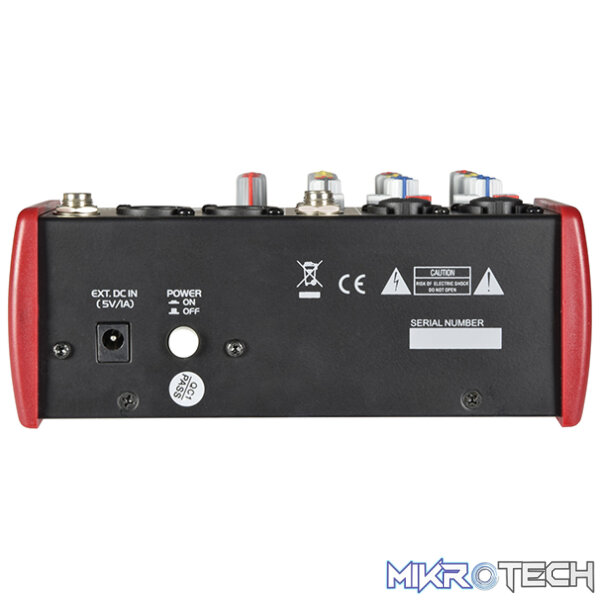

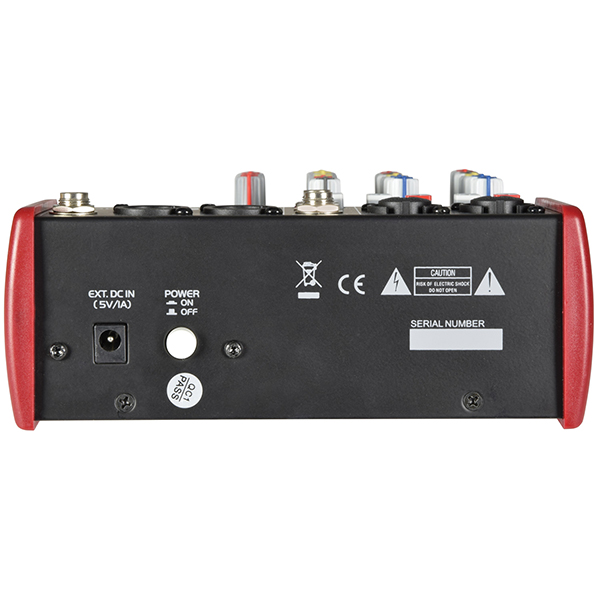

Power supply:
5Vdc 1A (adaptor included)
Power consumption:
max.5W
Gain:
-14 to +40dB
EQ: low:
±15dB @ 80Hz
EQ: high:
±15dB @ 12kHz
Phantom power:
+48V individually switchable (XLR inputs only)
Input impedance :
mic2k Ohms
Input impedance :
instrument1M Ohms
Input impedance :
line20k Ohms
Audio source:
Internal USB player/recorder & BT receiver
Audio format:
USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version:
2.1 + EDR
Frequency response:
20Hz – 20kHz (±0.5B)
THD +N<0.03% :
@ 1kHz
Dynamic range:
102dB
Crosstalk : stereo:
92dB
OutputLeft + Right balanced:
XLR
Output impedance:
120 Ohms
Max. output level:
3Vrms
Weight:
0.89kg
