Citronic – Casa-12Ba Active Sub 12In 400W Rms

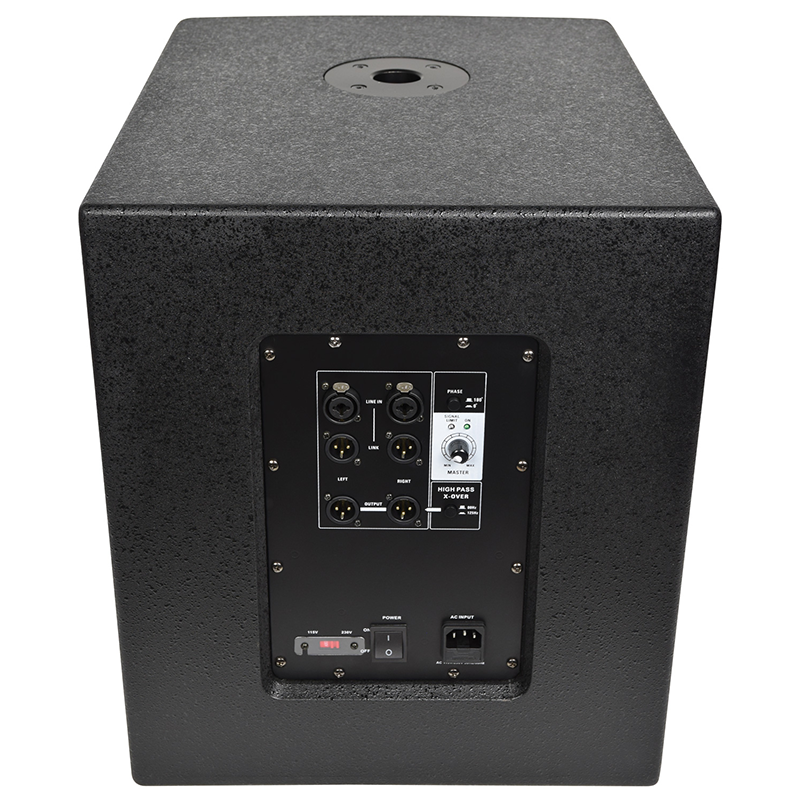

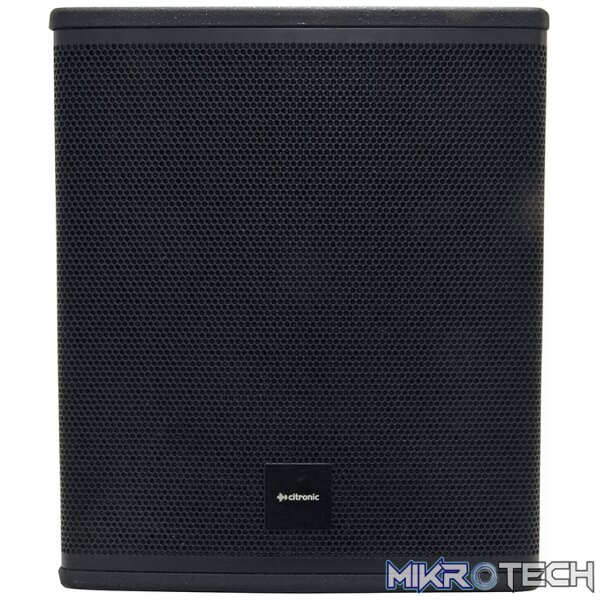

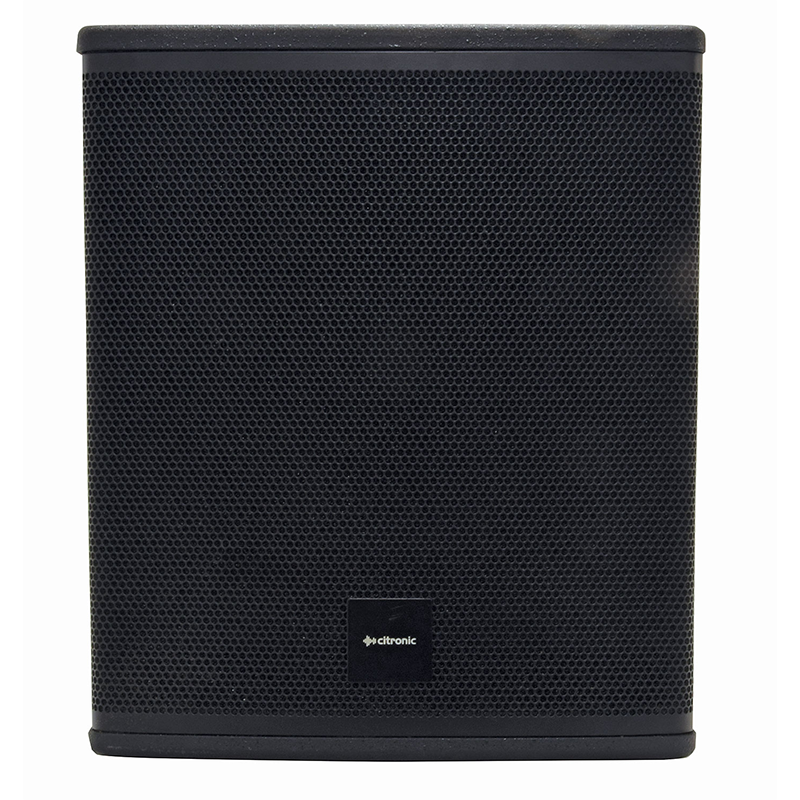

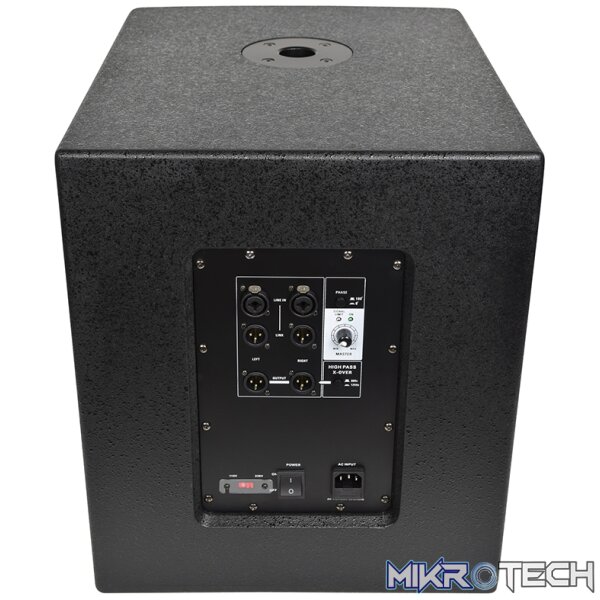

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

FEATURES:

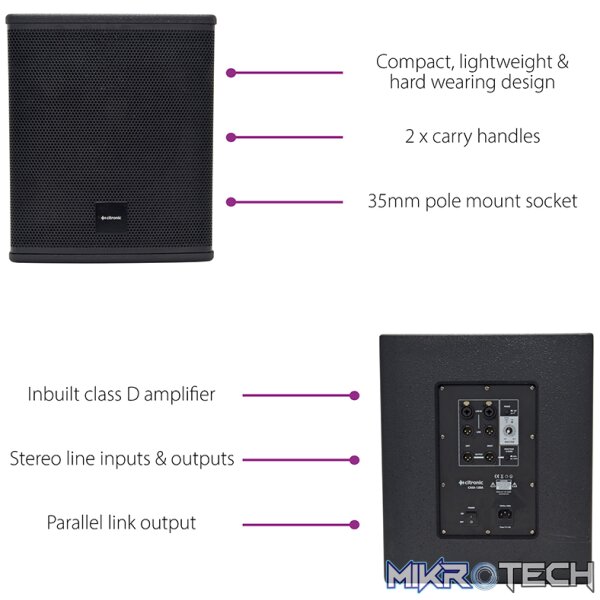

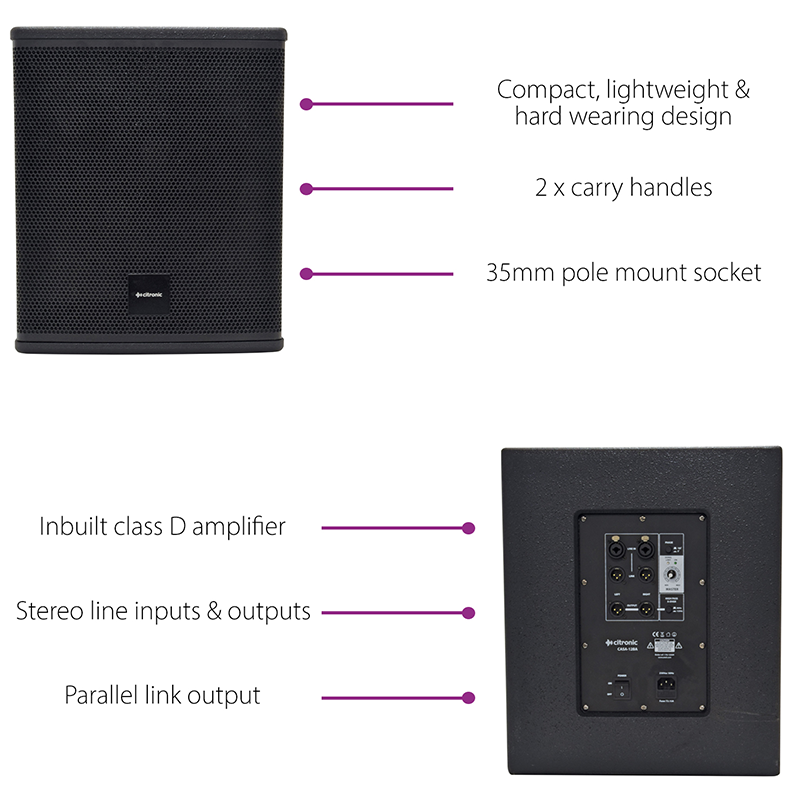

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish

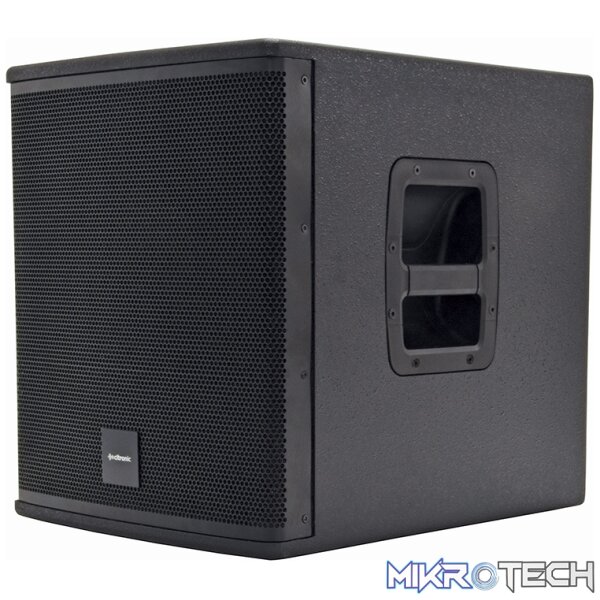

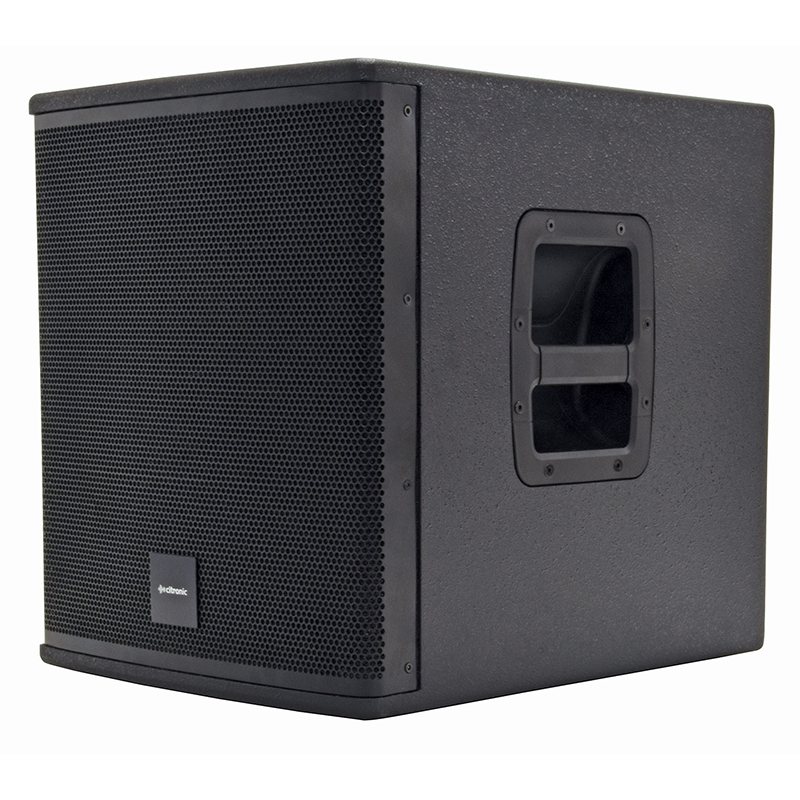

• 2 x side carry handles

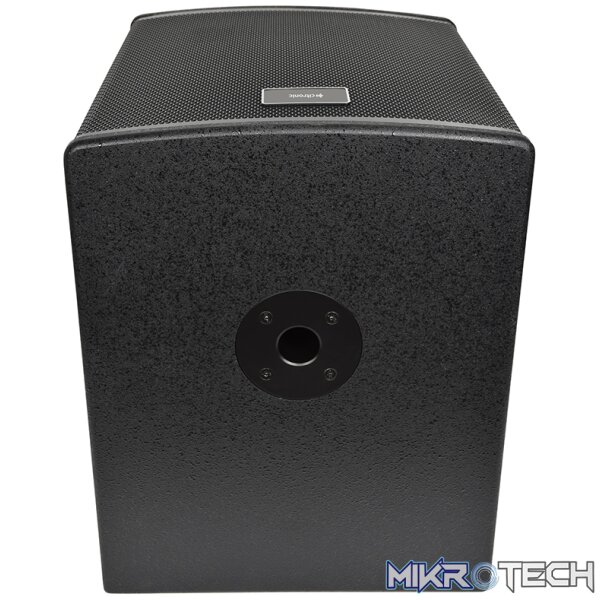

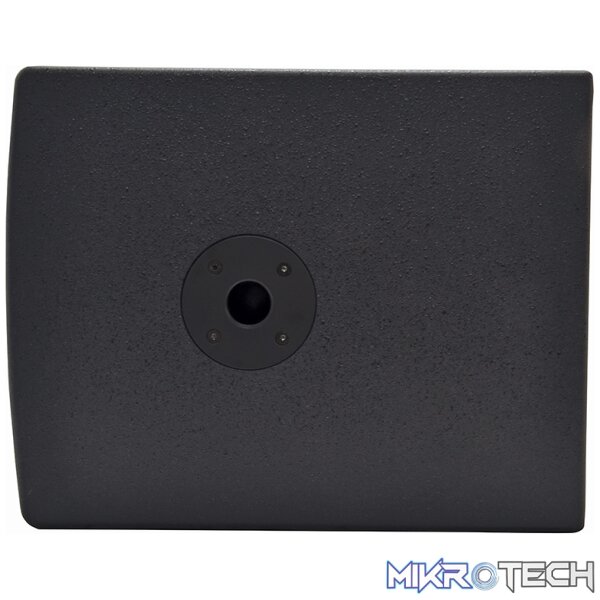

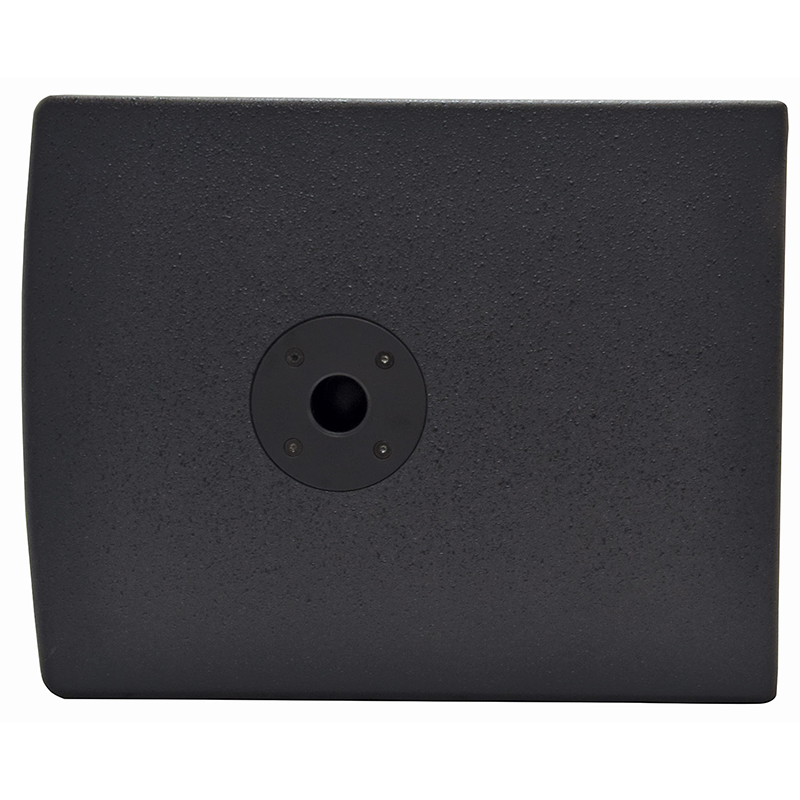

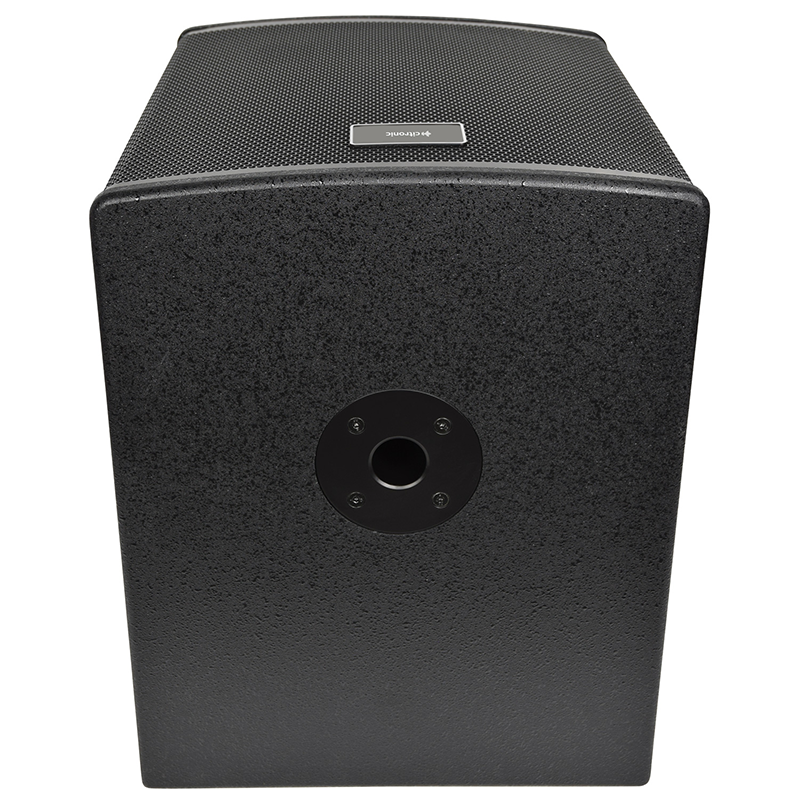

• 35mm pole mount socket

SPECIFICATIONS:

• Power supply:
  230Vac, 50Hz (IEC)
•
  Construction:
  15mm MDF with durable texture paint finish
•
  Hardware:
  2 x side carry handles + 35mm pole mount socket
•
  Amplifier : construction:
  Class D
•

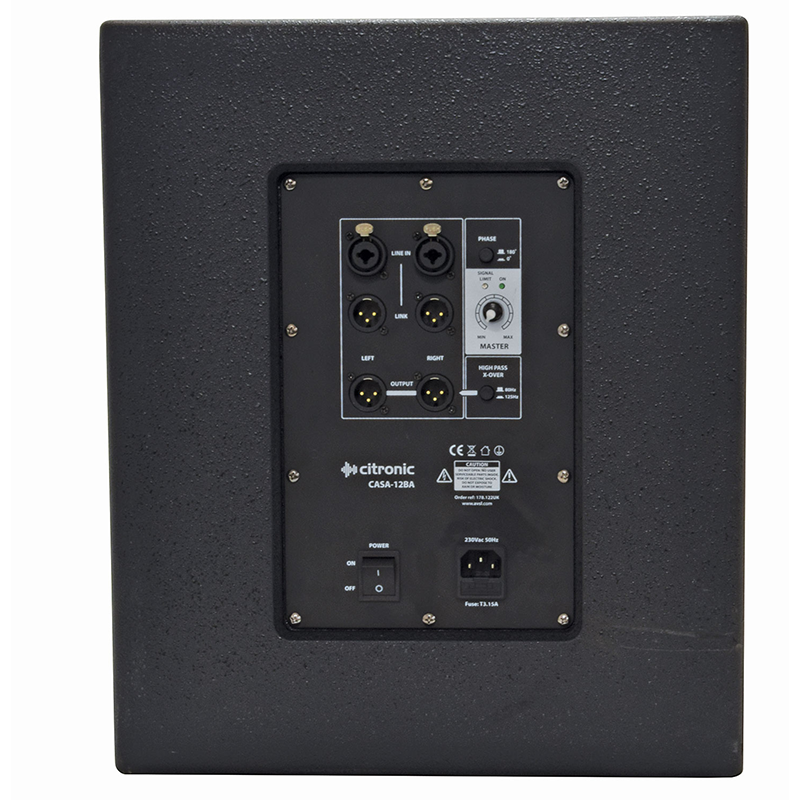

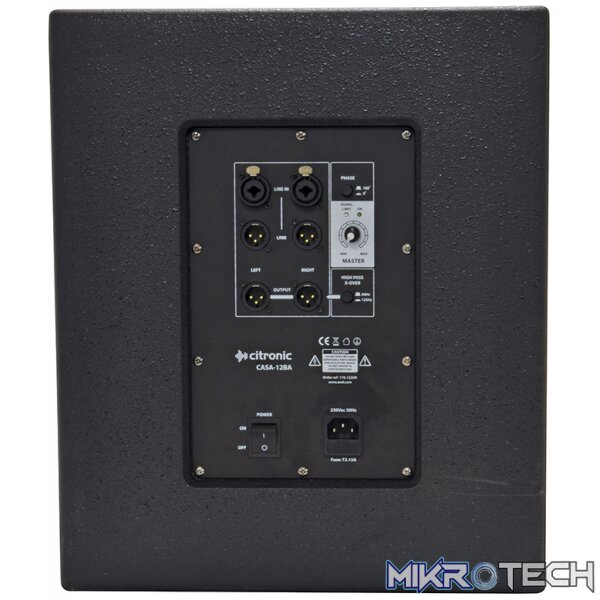

  Line inputs:
  L+R balanced XLR
•
  Line outputs:
  L+R balanced XLR & L+R link XLR
•
  Controls:
  Output level, phase switch, high pass x-over (output)
•
  Sub driver :
  300mmØ (12″)
•
  Voice coil 62mmØ :
  (2.5″)
•
  Output power : rms :
  400W
•
  Output power : max:
  700W
•
  Peak output :
  1400W
•
  SPL max. :
  122.0dB
•
  Frequency response :
  55 – 150Hz
•
  Dimensions :
  480 x 450 x 380mm
•
  Weight :
  18.86kg
