Chord – Uhf Wireless Handheld Microphone System

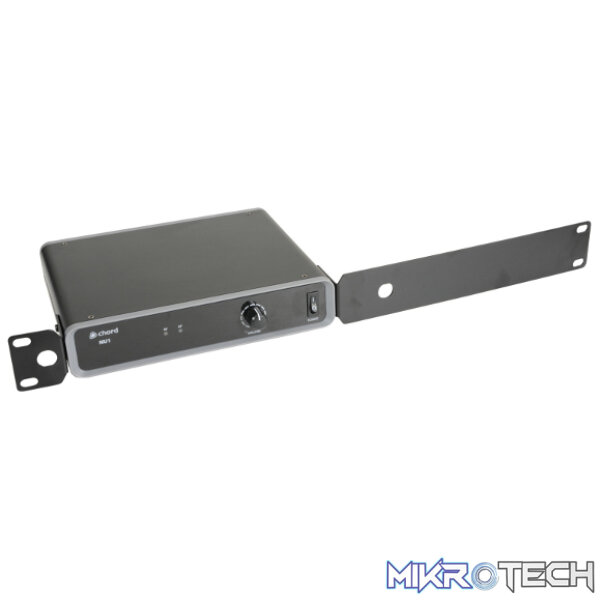

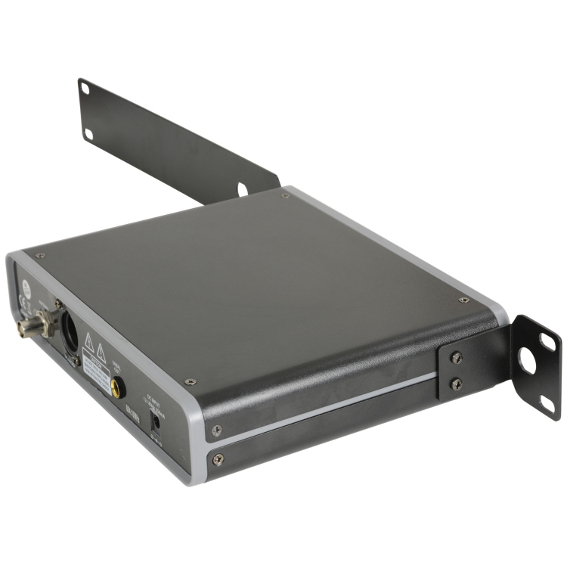

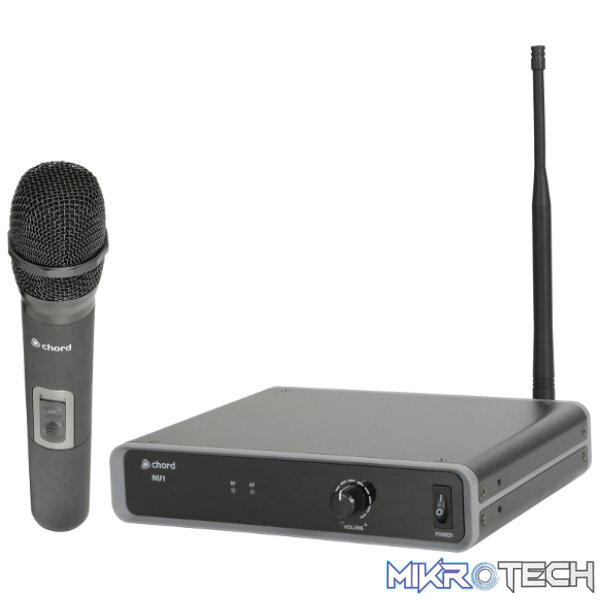

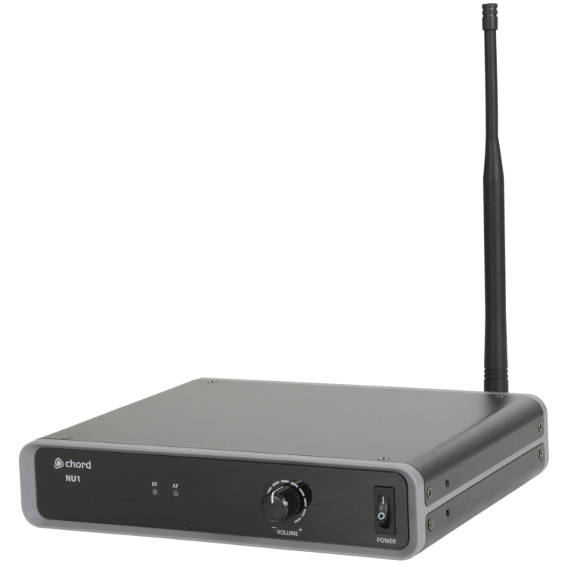

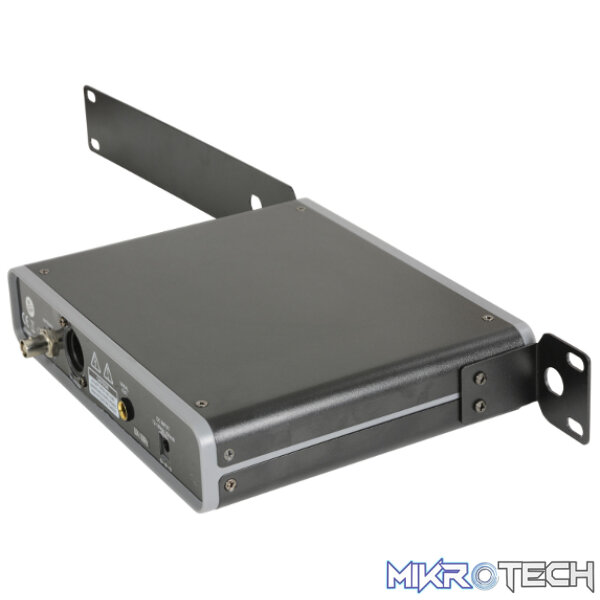

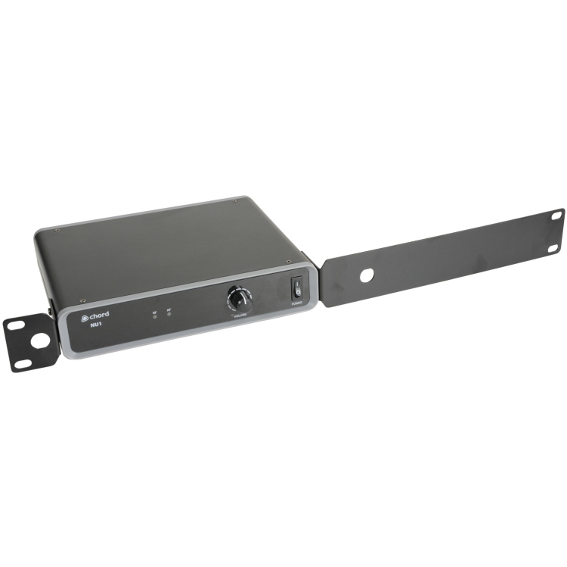

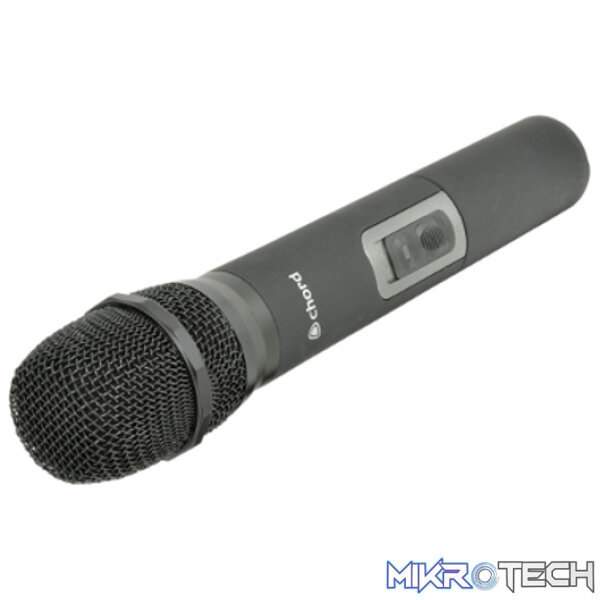

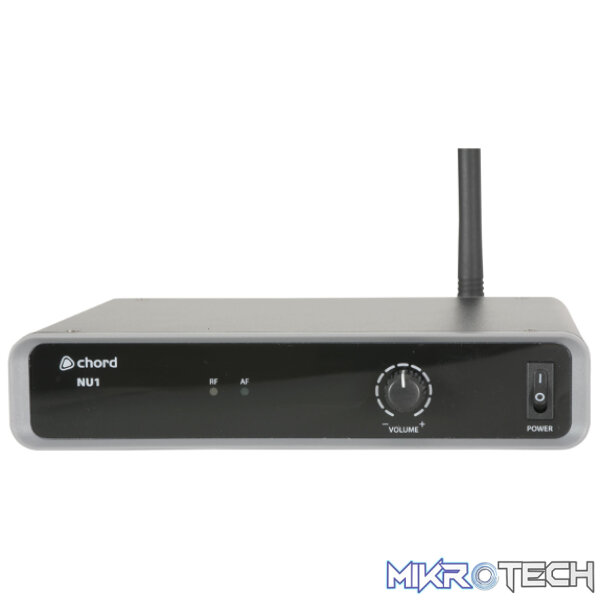

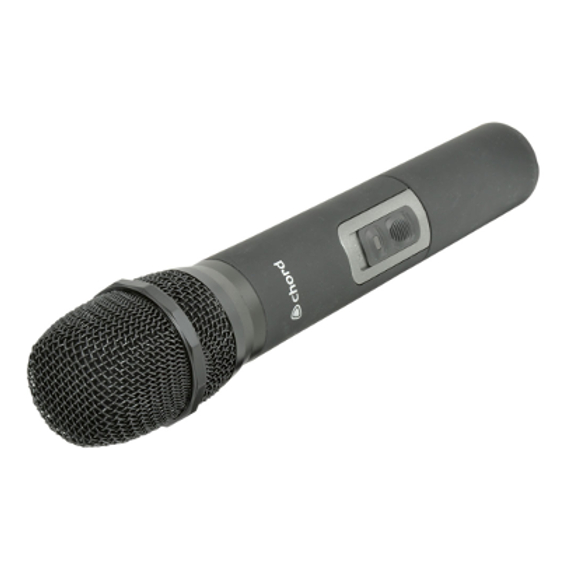

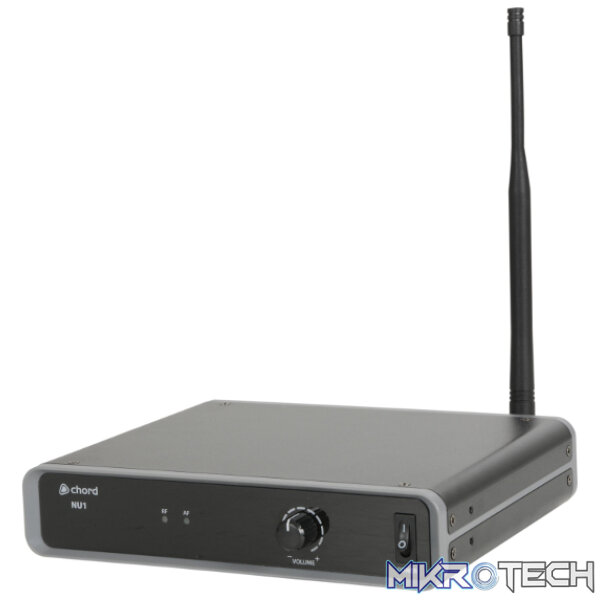

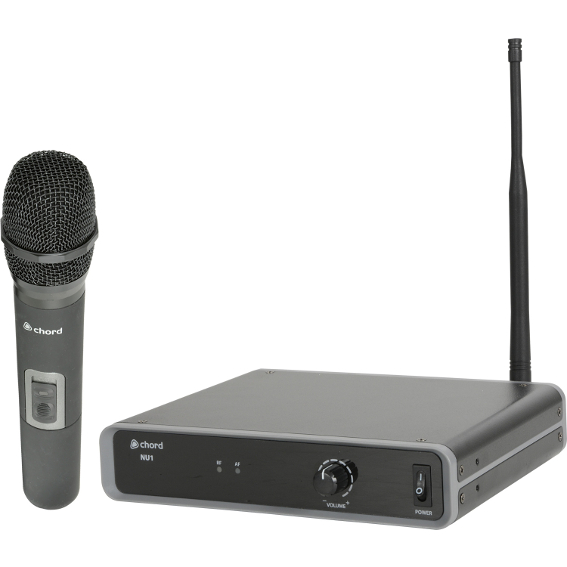

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19? racks using the included rack ears and front mounting antenna accessories.

FEATURES:

• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries
• Pilot tone & mute circuit for stable signal
• Licence free operation in EU

SPECIFICATIONS:

• Power supply:
  12-18Vdc, 350mA (mains adaptor included)
• Batteries:
  2 x AA (for transmitter – included)
• Range:
  60m
• Signal to noise ratio:
  >105dB
• THD:
  <0.5% @ 1kHz
• Frequency response:
  50Hz-18KHz ±1 dB
• Image rejection:
  >85dB
• Output impedance:
  2.2k Ohms
• Dimensions : receiver:
  44 x 198 x 190mm
• Weight : receiver:
  710g
• Output level:
  400mV (balanced), 200mV (unbalanced)
• Dimensions : transmitter:
  243 x 48mmØ
• Weight : transmitter:
  238g (no battery)Carrier frequency
