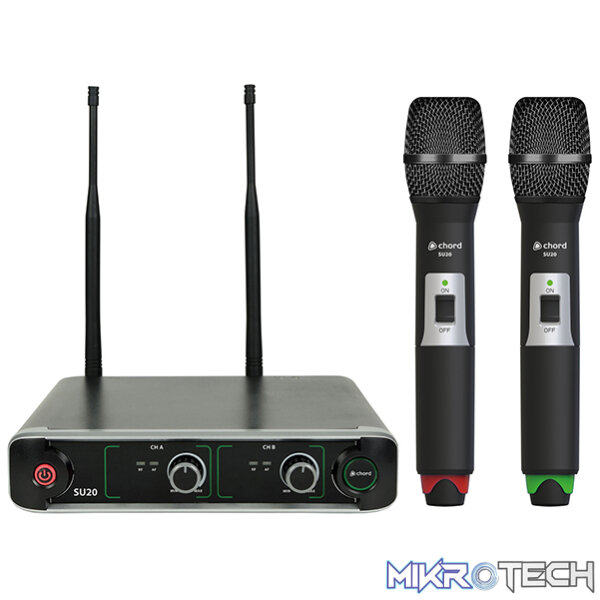

Chord – Su20-H-Rg Compact Dual Handheld Uhf Microphone Sets

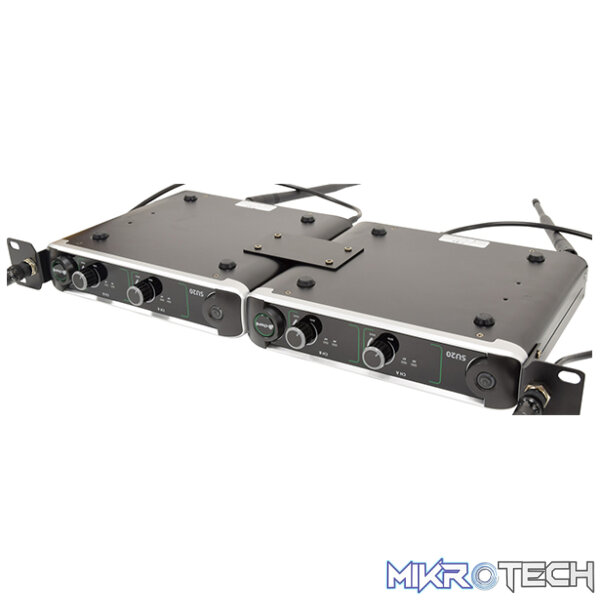

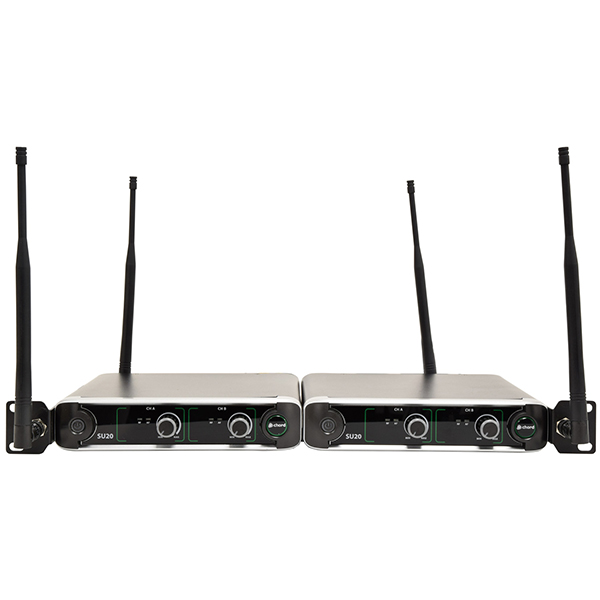

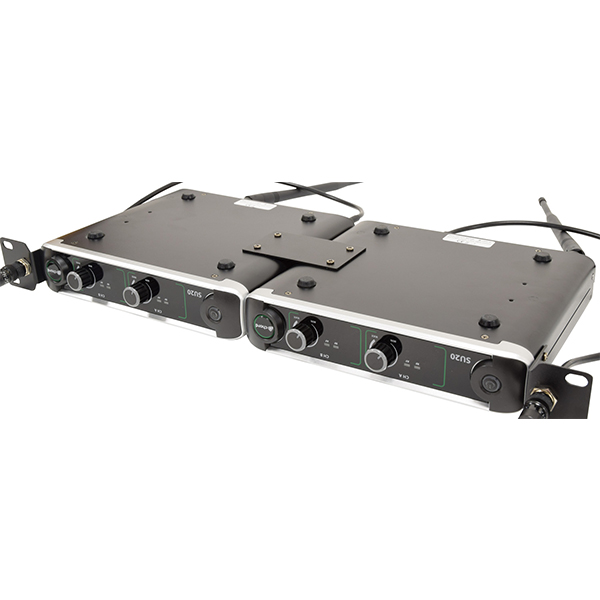

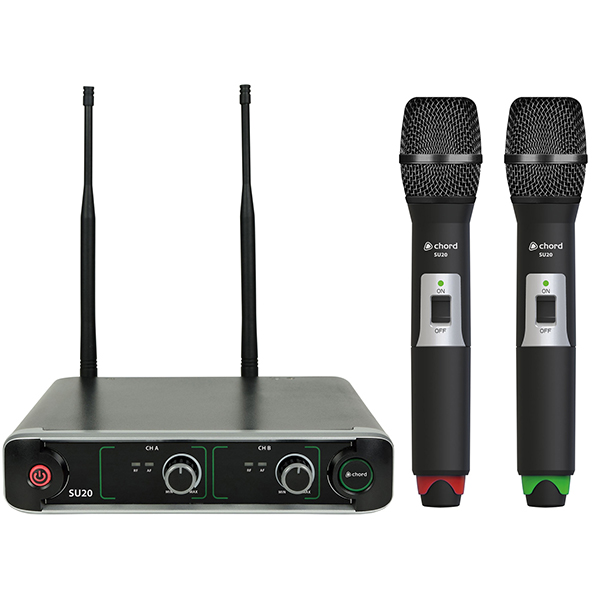

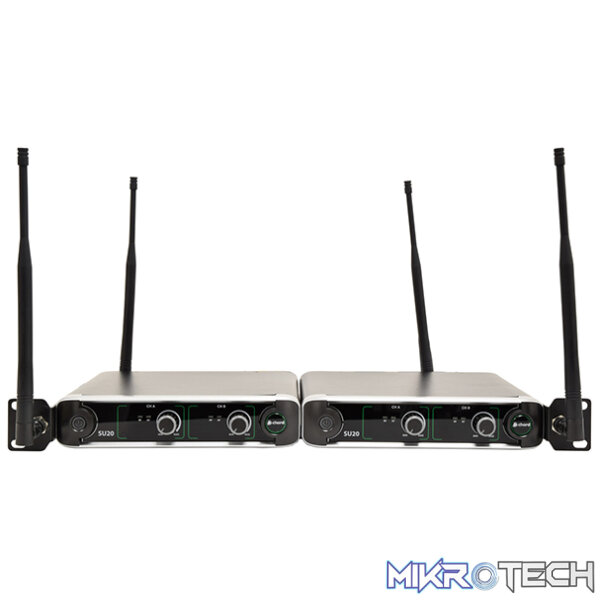

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19? rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

FEATURES:

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options
• Compact half-rack receiver

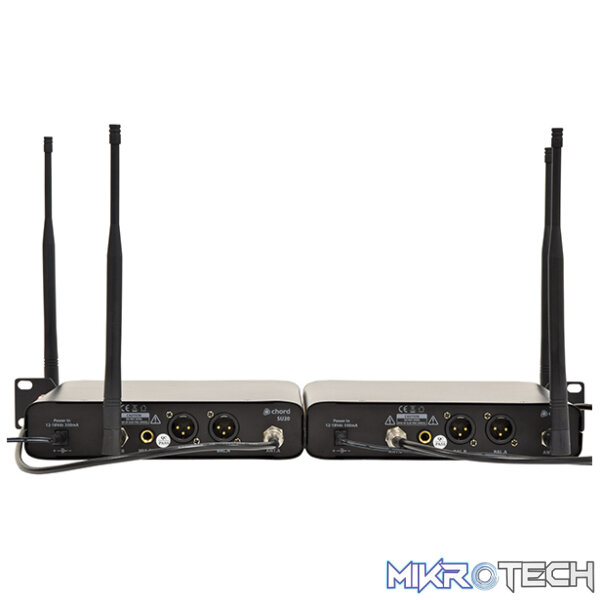

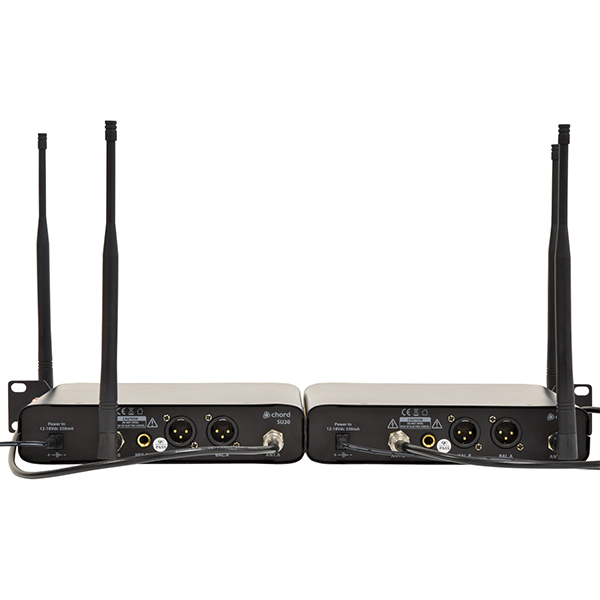

• Front or rear mountable antennas
• Supplied with power adaptor and 4 x AA batteries

SPECIFICATIONS:

• Power supply:
  14Vdc 350mA (adaptor supplied)
•
  Antenna connection:
  BNC
•
  Batteries:
  4 x AA (2 per transmitter) included
•
  Range:
  60m
•
  Microphone : polar pattern:
  Cardioid (handheld, neckband or lavalier)
•
  Output connections:
  2 x balanced XLR, 1 x unbalanced 6.3mm jack
•
  Output impedance:
  2.2k Ohms
•
  Output level:
  400mV (balanced), 200mV (unbalanced)
•
  Frequency response:
  50Hz – 18kHz (±3dB)
•
  S/N ratio:
  >80dB
•
  THD:
  <0.5% @ 1kHz
•
  Dimensions : receiver:
  203 x 187 x 42mm
•
  Weight : receiver:
  845g
•
  Dimensions : handheld transmitter:
  250 x 47mm
•
  Weight : handheld transmitter:
  231g (no battery)br]
  Dimensions : beltpack transmitter
•
  Weight : beltpack transmitter:
  74g N/A
•
  Carrier frequencies:
  863.42MHz (Red) + 864.3MHz (Green) (Green)
