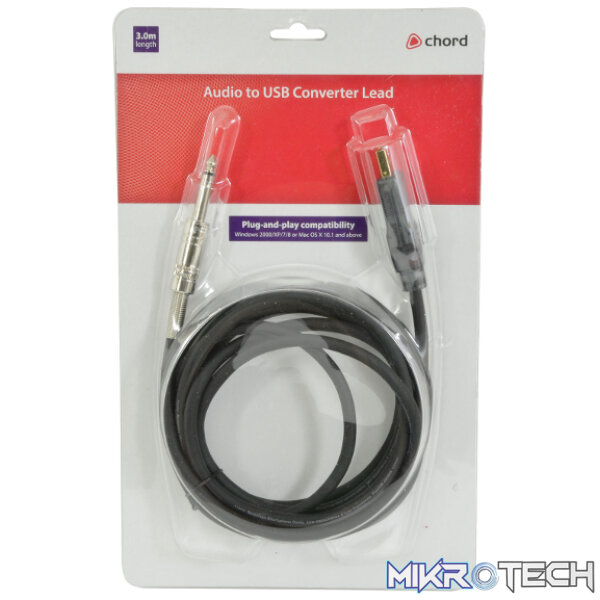

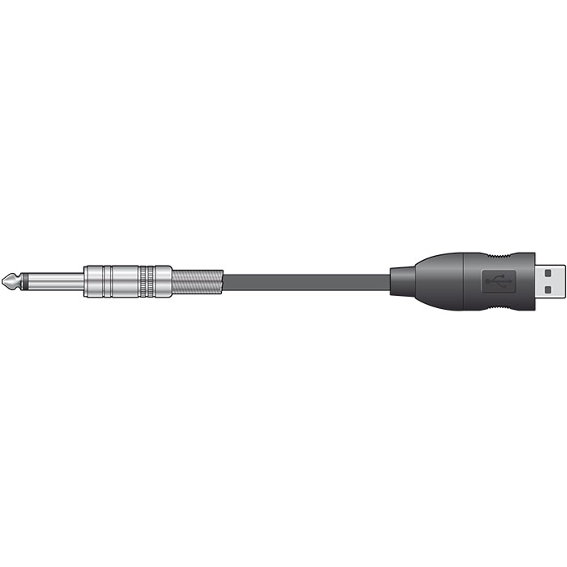

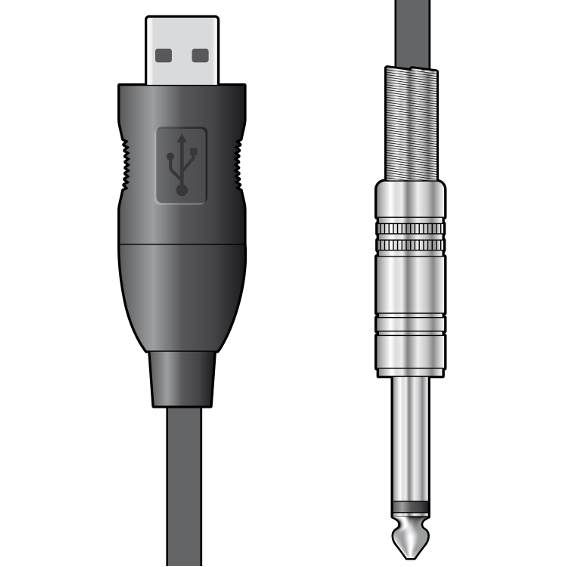

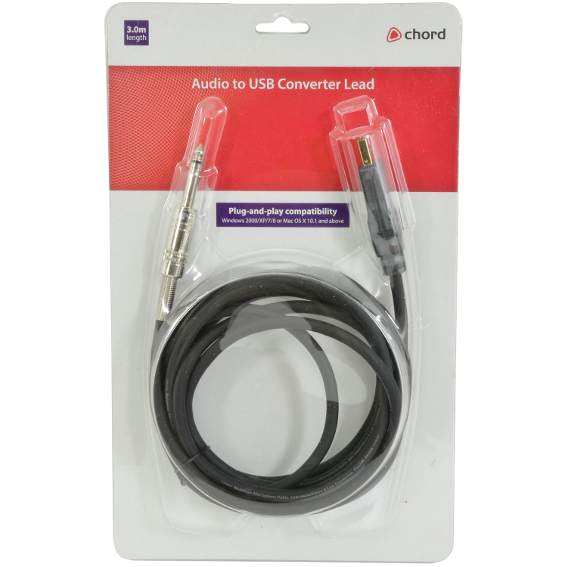

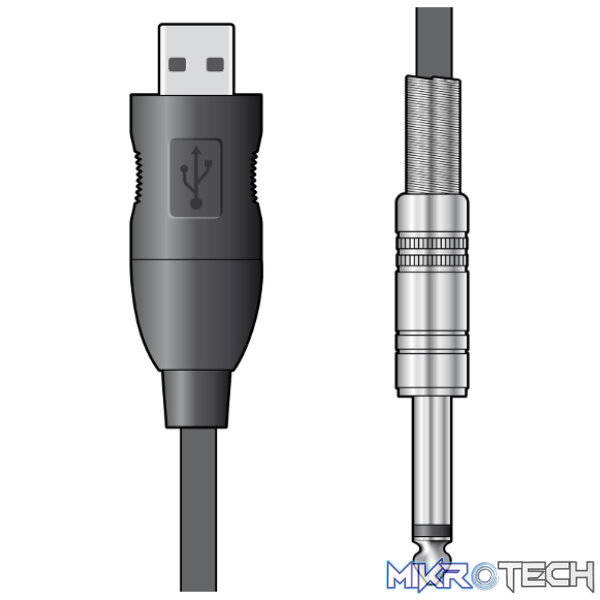

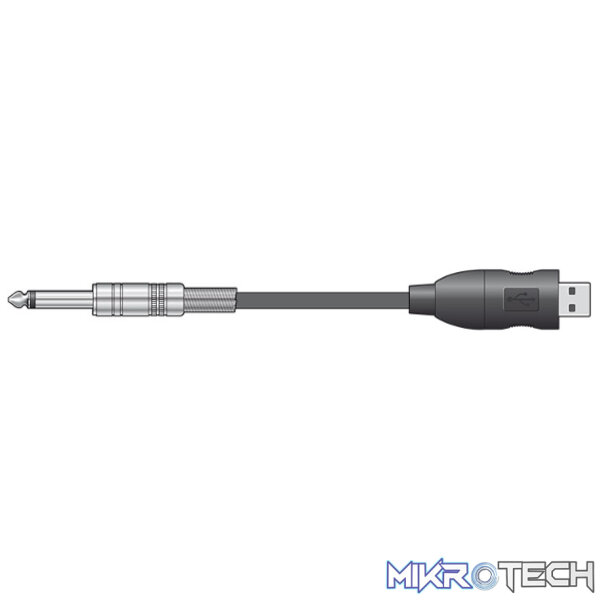

Chord – Jack – Usb Converter Lead

Analogue to digital conversion lead with 6.3mm jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac computer. An easy and efficient solution for digital recording of vocal lines, instruments and podcasts.

FEATURES:

• Plug-and-play solution
• Up to 48kHz A/D conversion
• USB bus powered
• Compatible with Windows 2000/XP/7/8 or Mac OS X 10.1 and above

SPECIFICATIONS:

• Sampling format:
  16bit @ 48/44.1kHz
• THD +N:
  -76dB (-3dBr)
• S/N ratio:
  83dB
• Dynamic range:
  80dB
• Input impedance:
  1M Ohms
• Frequency response:
  20Hz-19kHz (@48kHz)
• Input level:
  0-2.8Vpp
• Gain:
  +20dB
• Lead length:
  3.0mConnectors
• Weight:
  153g
