Overview:

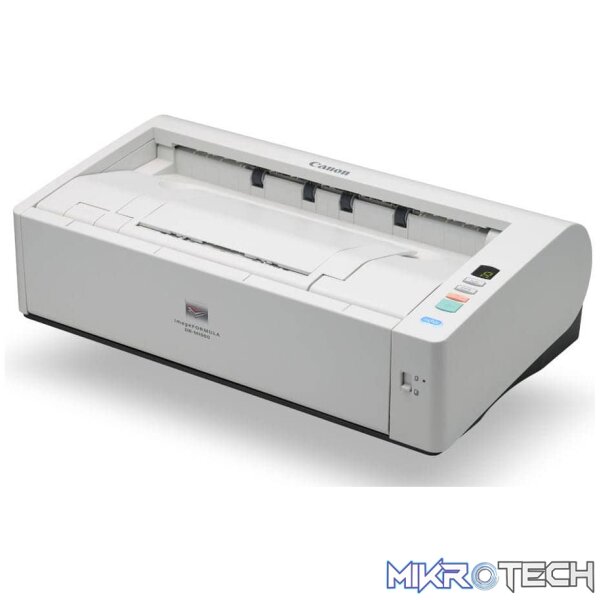

A versatile and ultra-compact A3 scanner with a U-turn and selectable straight-through paper path. The DR-M1060 is perfect for reliably scanning various document types up to A3 size, while keeping footprint low.
Features:
Extremely compact
The DR-M1060 is a uniquely compact A3 scanner – ideal in corporate office departments or decentralised branch offices that have limited desktop space but require A3 scanning. Users will appreciate the comfortable and convenient operation of the front document feed and exit design.
Reliable and versatile paper handling
The U-turn and selectable straight paper path with robust feeder mechanism allows for smooth scanning of a variety of media types, including embossed cards, thick and thin media or 3m-long documents. Using Folio mode, it is also possible to scan A1 size documents. The DR-M1060 includes an array of technology for reliable paper handling. Ultrasonic double feed detection helps prevent lost images, while the Double Feed Release (DFR) feature reduces interruptions by allowing users to quickly ignore and continue scanning in special cases.
Highly productive scanning
The DR-M1060 is extremely productive with ultra-fast duplex scanning speeds of up to 120ipm (A4) and a 60-sheet document feeder. Despite its small size, it is built for handling big workloads of up to 7,500 documents a day.
Perfect image processing every time
Enjoy perfect image results with the DR-M1060’s host of advanced image processing features, such as advanced text enhancement that produces clear legible images even from feint text originals. Additional features like Auto Colour Detection, Auto Size and Deskew Correction, Text Orientation Correction and Customised Colour Dropout further enhance image quality and consistency.
Bundled software to improve productivity
Enjoy quick and effortless scanning with CaptureOnTouch software for both ad-hoc and routine tasks. For scanning larger batches of documents, CapturePerfect is ideal, with its multi-window and thumbnail views, plus flexible options like scan-to-folder, email and SharePoint. The DR-M1060 also comes with eCopy PDF Pro Office and Kofax VRS (including AIPE).
Optional extras
The DR-M1060 comes with a host of optional accessories to maintain a high level of productivity. Scan bound books, journals and fragile media with both the A4 and A3 optional Flatbed Scanner units. These USB-connected dual-scanning flatbed units work seamlessly with the DR-M1060, letting you smoothly apply the same image-enhancement features to any scan. A 2D Barcode Module is also available that enables barcode recognition of QR codes, PDF417 and Data Matrix formats through the ISIS/TWAIN drivers.
| Type | A3 Desktop Type Sheet Fed Scanner |
|---|---|
| Scanning sensor unit | CMOS CIS 1 Line Sensor |
| Optical resolution | 600dpi |
| Light source | RGB LED |
| Scanning side | Front/Back/Duplex |
| Interface | High Speed USB 2.0 |
| Dimensions (WxDxH) | Tray Closed: 424 (W) x 246 (D) x 120 (H)mm Tray Opened: 424 (W) x 440 (D) x 210 (H)mm |
| Weight | Approx. 6.1kg |
| Power requirements | AC100-240V (50/60Hz) |
| Power consumption | Scanning: 32.5W or less, Sleep mode: 2.5W or les, Power turned off: 0.5W or less |
| Operating environment | 10 – 32.5 °C (50 – 90.5 °F), Humidity: 20 – 80% RH |
| Environmental compliance | RoHS and ENERGY STAR |
| Black and White | 60ppm / 120ipm – Landscape speed |
| Colour | 60ppm / 120ipm – Landscape speed |
| Output resolution | 100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
| Colour mode | Binary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II, Auto Colour Detection, 8-bit Greyscale:(256-Level), 24-bit colour |
| Suggested Daily Duty Cycle | Approx. 7,500 scans/day |
| Width | 50.8 – 300mm |
| Length | 70 – 432mm |
| Thickness | U-turn: 0.04 – 0.15mm (27 – 128g/m²) Straight Through: 0.04 – 0.3mm (27 – 255g/m²) |
| Long document mode | 3000mm max. (Supported by Straight Feeding) |
| Card scanning | 86 x 54 x 1.4mm (Embossed card scanning is supported) |
| Paper separation | Retard Roller and Pre-separation method |
| Feeder capacity | A4: 60 Sheets (80g/m²) |
| Others | Automatic Page Size Detection, Deskew, 3- Dimentional Colour Correction, Colour Dropout (RGB), Auto Colour Detection, Text Enhancement, MultiStream, Preset Gamma Curve, Prescan, Patch Code, Image Rotation, Skip Blank Page, Folio Mode, Scan Area Setting, Text Orientation, Edge Enhancement, Moire Removal, Prevent Bleed Through/Remove Background, Character Emphasis, Background Smoothing, Shadow Removal, Double Feed Release (DFR), Double Feed Detection (Ultrasonic Sensor / By Length) |
| Windows | ISIS / TWAIN Driver (Microsoft Windows XP Pro / XP Home / VISTA / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012) CaptureOnTouch Pro CapturePerfect Nuance eCopy PDF Pro Office Kofax VRS |
| Brand | Canon |
