Overview:

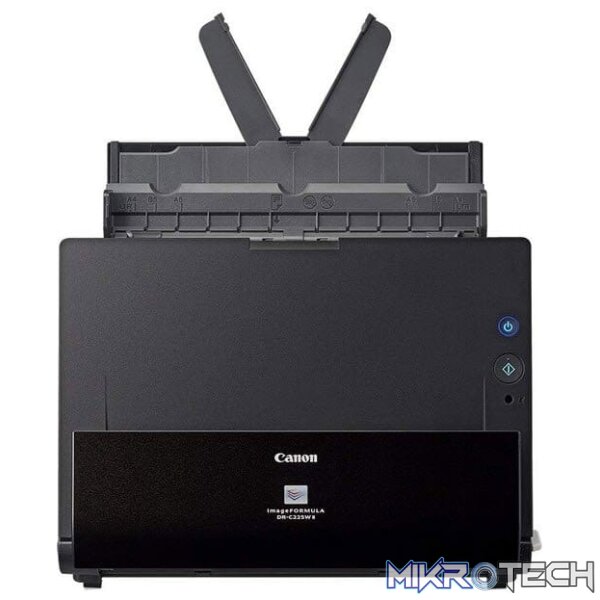

The ultra-slim DR-C225W II has CaptureOnTouch software and integrated Wi-Fi connection for high-speed scanning on small desktops.
Features:
Sleek space-saving design
A perfect match for a small office desktop or customer retail point, a slimline profile ensures the DR-C225W II fits in the smallest space. With powerful CaptureOnTouch software and built-in Wi-Fi, it’s the ultimate space-saver.
A compact fit for tight spaces
Save even more space with the ultra-slim scanner. The innovative J-Path design ensures a small desktop footprint with ‘face up’ document scanning for easy use.
Seamless wireless scanning
Built-in Wi-Fi enables straightforward scanning to mobile, tablet and PC devices, ideal for office use and document capture at point of sale.
Ultra-slim, ultra-fast
Enjoy wireless scanning of up to 50 ipm at 300 dpi and colour speeds of up to 25 ppm. Ultrasonic Double Feed Detection also ensures reliable paper handling for fast scanning.
Outstanding operation
CaptureOnTouch software makes scanning simple. One-touch operation completes tricky tasks in seconds while Full Auto Mode intuitively selects the best settings.
Innovation for intuitive use
Guide your way through the scanning process using the step-by-step icon-based user interface and create searchable PDF documents for straightforward document filing.
| Type | Desktop Type Sheet Fed Scanner |
|---|---|
| Scanning sensor unit | CMOS CIS 1 Line Sensor |
| Optical resolution | 600dpi |
| Light source | RGB LED |
| Scanning side | Simples / Duplex / Folio / Skip Blank Page |
| Interface | High speed USB 2.0 (USB 3.0 compatible) Wi-Fi (Windows, iOS, Android) |
| Dimensions (W x D x H) | Tray Closed : 300 (W) x 156 (D) x 220 (H)mm Tray Opened: 300 (W) x 235 (D) x 339 (H)mm |
| Weight | Approx. 2.6kg |
| Power requirements | AC100 – 240V (50/60Hz) |
| Power Consumption | Scanning: 15.6W or less, Sleep mode: 4.4W or less, Power tuned off: 0.5W or less |
| Operating Environment | 10 – 32.5 °C (50 – 90.5 °F), Humidity: 20 – 80% RH |
| Environmental compliance | RoHS and ENERGY STAR |
| Connection mode | Access Point Mode and Station Mode |
| Wi-Fi Security | Authentication method: Open, Shared, WPA (PSK) WPA2 (PSK) Encryption method: WEP(64/128), TKIP/AES |
| Data Rates | IEEE802.11b: Max 11 Mbps IEEE802.11g: Max 54 Mbps IEEE802.11n: Max 300Mbps |
| Black and White | 25ppm/50ipm |
| Colour | 25ppm/50ipm |
| Output resolution | 150dpi, 200dpi, 300dpi, 400dpi, 600dpi Auto Resolution Setting |
| Colour Mode | Detect Automatically Black and White Error Diffusion Advanced Text Enhancement I Advanced Text Enhancement II (Windows only) 256-Level Grayscale 24-bit Colour |
| Daily duty cycle | Approx 1,500 scans/day”6″ style=”bord |
| Image Processing | Background Smoothing Prevent Bleed Through/Remove Background Erase Shadow Colour Dropout (RGB) Colour Enhancement (Red) Moire Reduction |
| Double Feed Detection | Ultrasonic Sensor / By Length |
| Others | Automatic Page Size Detection MultiStream Prescan Text orientation recognition Deskew Image Rotation Job Setting”6″ style=”bord |
| Windows | ISIS /TWAIN Driver (Windows 2000/XP Pro/XP Home/Vista/7/8/10) CaptureOnTouch Nuance eCopy PDF Pro Office CardIris Plug-in: SharePoint, GoogleDocs, SugarSync, Dropbox, OneDrive EMC Captiva Cloud Runtime controls |
| Mac | ISIS / TWAIN Driver CaptureOnTouch Plug-in: SharePoint, GoogleDocs, SugarSync, Dropbox |
| Brand | Canon |
