Overview:

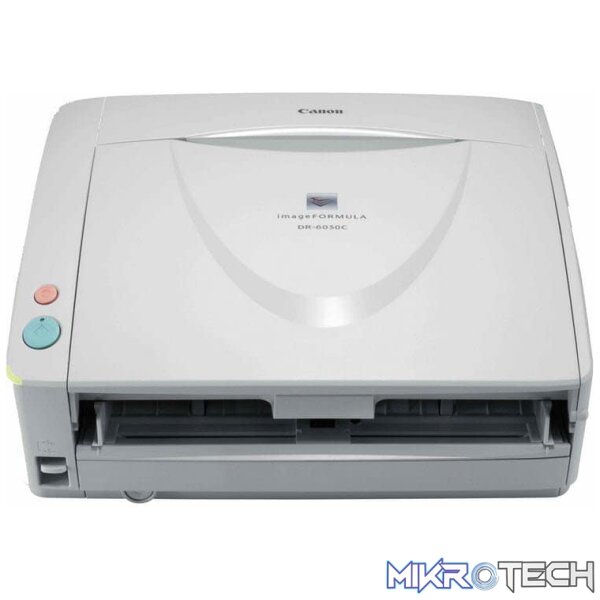

Canon’s imageFORMULA DR-6030C ultra-compact high-speed A3 production scanner offers excellent reliability and flexibility: ideal in centralized or remote offices or specialist scanning bureaus.
Features:
Exceptional speed and efficiency
Busy working environments will quickly raise their productivity with the DR-6030C’s rapid colour scanning speeds. Canon’s advanced 3-line CMOS CIS sensor technology and JPEG-compression image file transfer process enable colour scanning speeds of up to 80ppm (landscape.)
Compact by design
The DR-6030C is among the most compact A3 production scanners – ideal in corporate office departments or smaller branch offices that have limited desktop space. Scan operators will appreciate its convenient front document feed and exit design for its convenient and comfortable operation.
Excellent performance and superior image quality
The DR-6030C captures precise high-quality images scan after scan. With three dedicated modes designed to enhance text and remove dark or patterned backgrounds, the DR-6030C reproduces clear legible images optimized for OCR applications or for automated data extraction. Additional features like Auto Colour Detection, Auto Size and Deskew Correction, Text Orientation Correction and Customised Colour Dropout further enhance image quality and consistency.
Trouble-free paper handling
Built on the same reliable paper transport system as its market-leading DR-5010C predecessor, the DR-6030C can reliably handle up to 10,000 scans a day. The high-precision roller system allows for jam-free feeding of a wide range of documents: from A3 media and plastic cards to documents up to 3m long. A selectable straight-thru paper path makes it easy to scan items up to 546 g/m² thick.
Leading energy efficiency
The DR-6030C is the most energy-efficient production scanner in its class, using just 46W of power when scanning – saving you money and helping you become more eco-friendly.
Powerful Software
The DR-6030C comes bundled with Canon’s CapturePerfect and CapturePerfect Software Developers Kit (SDK) for easy custom integrations. Kofax VRS – the industry’s leading image processing software – is also included for added image quality assurance.
Flatbed option
For extra versatility, the DR-6030C is fully compatible with the optional Flatbed Unit 101 for scanning bound and fragile documents.
| Type | Desktop Type Sheet Fed Scanner |
|---|---|
| Scanning sensor unit | CMOS CIS 3 Line Sensor |
| Optical resolution | 600dpi |
| Light source | RGB LED |
| Scanning side | Front / Back / Duplex |
| Interface | High speed USB 2.0 & SCSI-3 |
| Dimensions (WxDxH) | Tray Closed: 398 (W) x 312 (D) x 191 (H) mm Tray Opened: 398 (W) x 668 (D) x 194 (H) mm at U-turn path |
| Weight | Approx. 10.5 kg |
| Power requirements | AC220 – 240V (50/60Hz) |
| Power consumption | Scanning: 46.5W, Sleep Mode:3.7W, Power Turned Off: 0.04W |
| Operating environment | 10 – 32.5°C (50 – 90.5°F), Humidity 20 – 80% RH |
| Environmental compliance | RoHS and ENERGY STAR |
| Black and White | 80ppm / 160ipm – Landscape speed |
| Colour | 80ppm / 160ipm – Landscape speed |
| Output resolution | 100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
| Colour mode | B&W, Error Diffusion, High speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit (256 level) Greyscale, 24-bit colour |
| Suggested Daily Duty Cycle | Approx: 10,000 scans/day |
| Width | 53 – 300mm |
| Length | 70 – 432mm |
| Thickness | Separation On: (U-turn/Straight Through) 52 – 128g/m² (0.06 – 0.15mm)Separation Off: (U-turn) 42 – 157g/m² (0.05 – 0.20mm)(Straight Through) 42 – 546g/m² (0.05 – 0.66mm) |
| Long document mode | 3000mm Max (Selectable in MS Windows control panel) |
| Paper separation | Retard Roller |
| Feeder capacity | 100 Sheets (80g/m²) |
| Others | Deskew, Auto Page Size Detection, Skip Blank Page, Text Orientation Recognition, Preset Gamma Curve, Colour Dropout (RGB/Custom Colour) / Enhancement (RGB/Custom Colour), Erase Dot, Border Removal, Punch Hole Removal, Batch Separation, Edge Enhancement, Prescan, Scan Area Setting, MultiStream, Patch Code, Separate Front/Back settings, Ultrasonic Double Feed Detection, User Registration |
| Windows | ISIS/TWAIN Drivers (Windows 2000/XP Pro/XP Home/Vista/7/8/10), CapturePerfect, Kofax VRS |
| Brand | Canon |
