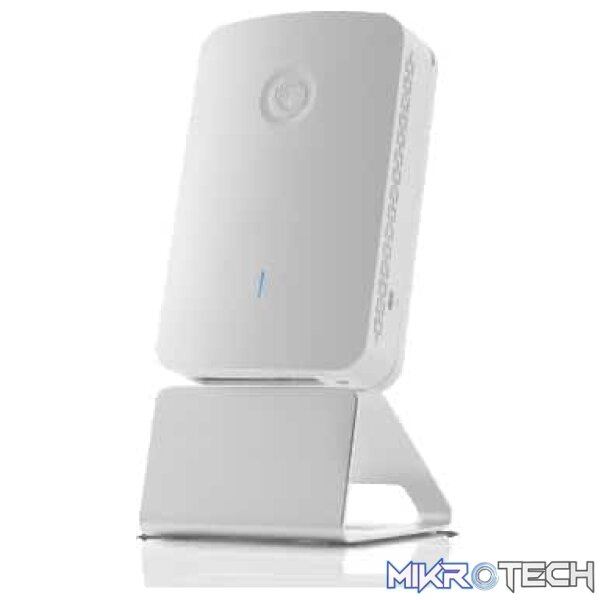

CAMBIUM cnPilot E430H AC Wave 2 indoor wall plate Access Point
R4,939.99 incl. VAT
In stock
Product Description
Overview:
The Cambium Networks cnPilot e430H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
Product Specifications
| Weight | 0.60 kg |
|---|---|
| Dimensions | 19.000000 × 13.000000 × 7.000000 cm |
| Operating RF Frequency | 2.4 GHz to 2.4835 GHz 5.15 GHz – 5.875 GHz |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max Phy Rate | 2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps |
| BLE | Integrated BLE radio |
| RJ45 Ports | Four IEEE Gigabit Ethernet auto sensing Two pass-through shielded ports |
| Antenna | Integrated dual polarized, omni 3.57 dBi (2.4 GHz), 4.96 dBi (5 GHz) |
| Max EIRP | 2.4 GHz: 25.57 dBm 5 GHz: 25.96 dBm EIRP may be limited by individual country regulation |
| Controller Mode | Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM |
| WLAN | 256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x, 802.11i 802.11w PMF, client isolation |
| Captive Portal | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging |
| Authentification | Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Accounting | RADIUS accounting, multiple AAA |
| Scheduled W | On/off by day, week, time of day |
| Guest Access | Vouchers Rate Limit Splash page hosted on AP or cnMaestro Client isolation per SSID, per network |
| Data Limit | Client rate limit per SSID |
| Subscriber | WMM client profiles. |
| A capacity of and 16 SSIDs | 256 max concurrent client associations, along with dual on-board Active/Standby |
| memory bank with high avai LOW TOTAL LICENSE FR | s ensure the e430H combines high density lability. EE COST OF OPERATIONS (TCO) OPTION |
| All cnPilot acc The e430H ca from an on-pr accessed cnM | ess points offer total management flexibility. n emises aestro be managed as a standalone access point cnMaestro controller, or a cloud account. cnPIlot access points even |
| support Auto controller for controller and ACCESSORI | Pilot, allowing one access point to become a a ZE small network with all the advantages of a none of the effort, time or cost. The e430H package comes with a |
| Physical | 147mm x 94mm x 34mm |
| Environmental | 390 g Kensington lock slot Tri color status LED 0C – + 45C ambient op temp -20C – + 70C storage temperature 95% RH non-condensing |
| Power | PoE In: 802.3at compliant. PSE port enabled PoE In: 802.3af compliant. PSE port enabled Auxiliary 48VDC input power, 2.5mm Typical: 9.6w Max: 25.5w at max duty with full load 802.3af compliant PSE port GE4 |
| Certifications | WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043 |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Channel Selection | autoTune: Manual, or automatic Selectable off-channel scan |
| Auto TX Power | AutoRF: controller-less transmit power |
| Network | NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user |
| Band Steer Load Balancer | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Tools | Remote Packet capture Channel/noise/interference analyzer auto logging ZapD performance test tool rogue AP detection |
| Services | NTP Syslog SNMP traps DNS proxy auto-off on WAN failure |
| API | RESTful management and statistics API Presence location APIs PoE Powered IP Phone |
