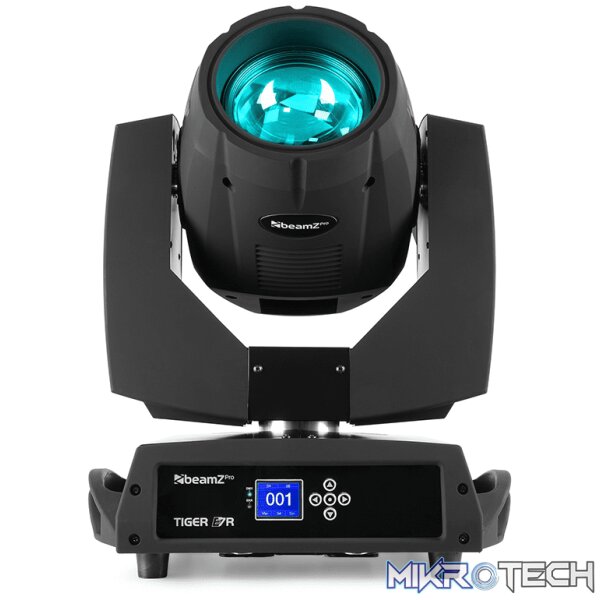

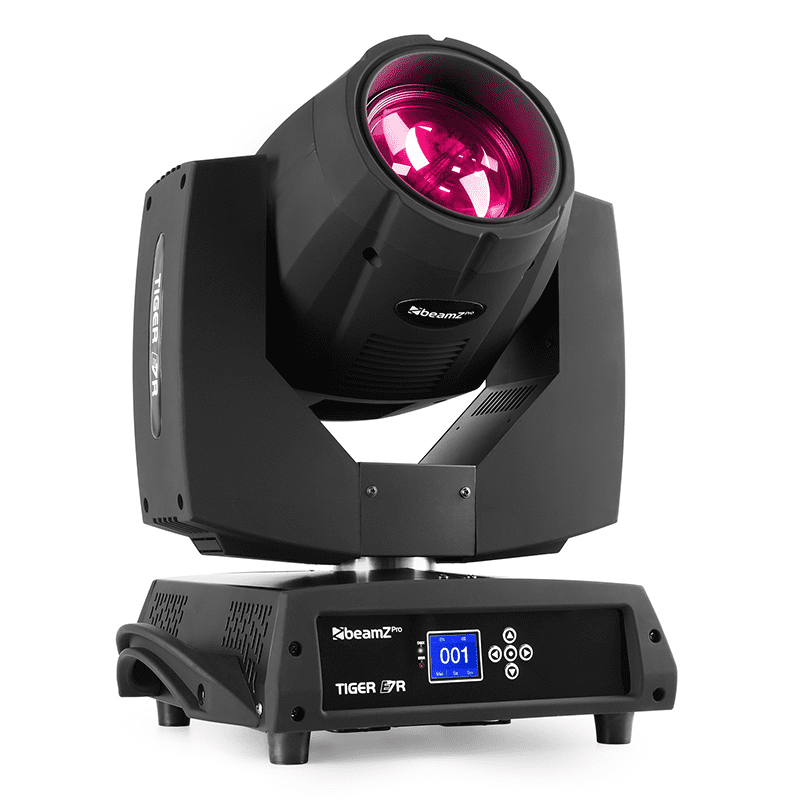

Beamzpro Tiger E7R Mkiii Moving Head Beam 230W
R15,129.99 incl. VAT
Out of stock

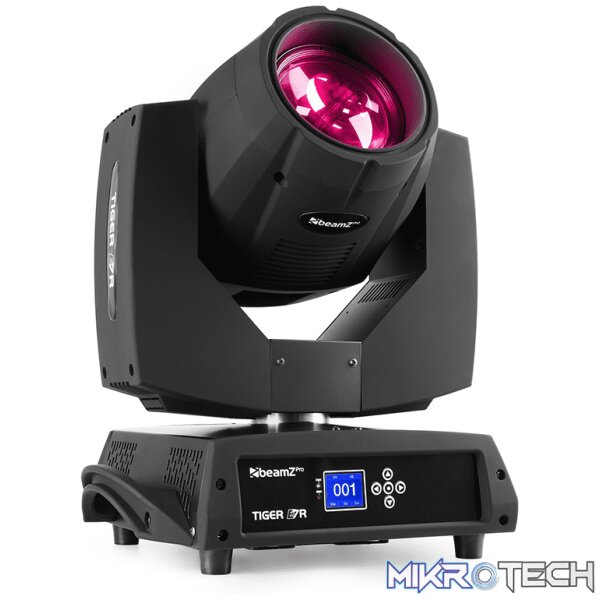

The Tiger E 7R moving head MKIII has a very bright output due to the use of the 7R 230W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 17 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized 16-facet rotating prism it can create a wide range of spectacular light effects. The Tiger E 7R moving head MKIII works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 15 or 19 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
FEATURES:
- 230W 7R High Intensity discharge bulb (included)
- Beam angle 1°
- 17 Gobos + open beam
- 14 Colours + open
- Gobo shake effect
- Frost effect lens
- Rotatable 16 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect
- Mechanical dimmer
- 15 or 19 DMX channels
- DMX and Stand-alone mode
-
Automatic pan/tilt correction

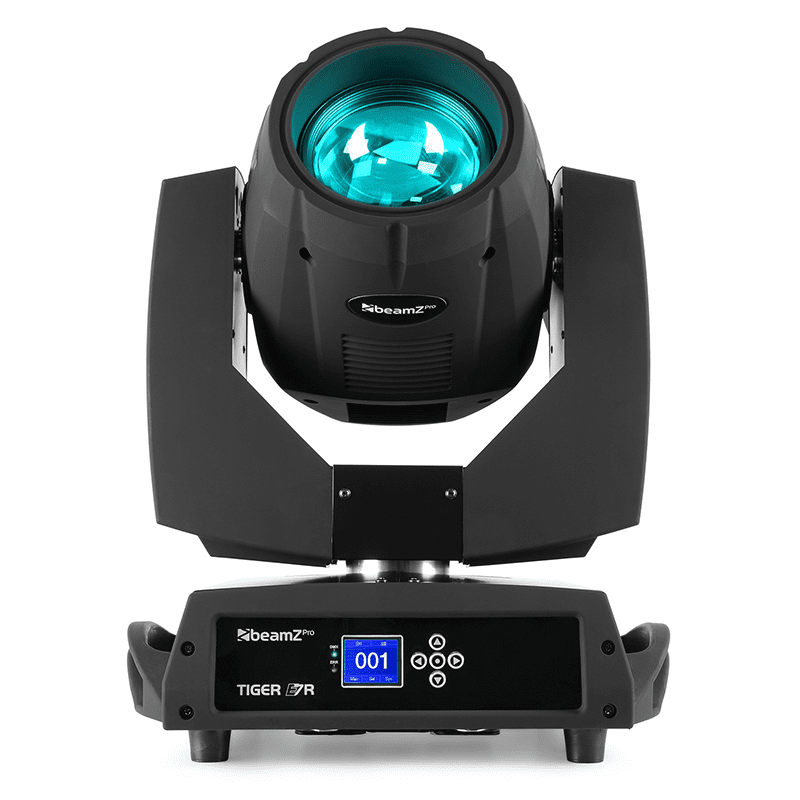

Reset function - Control panel with LCD display

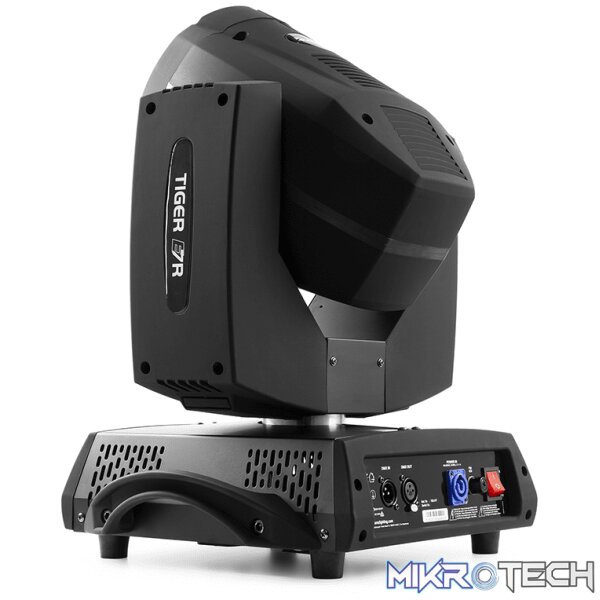

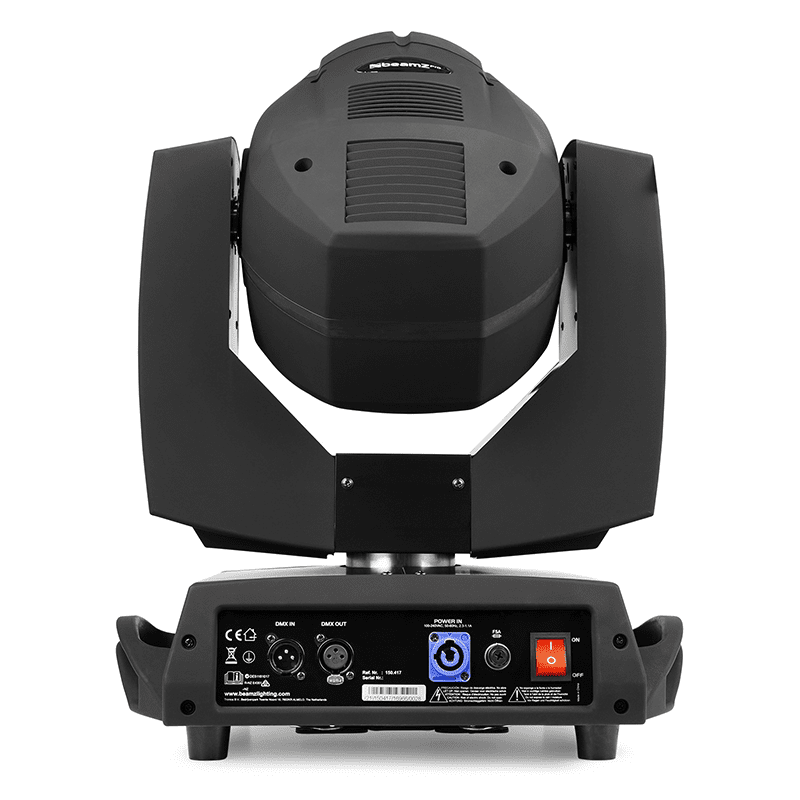

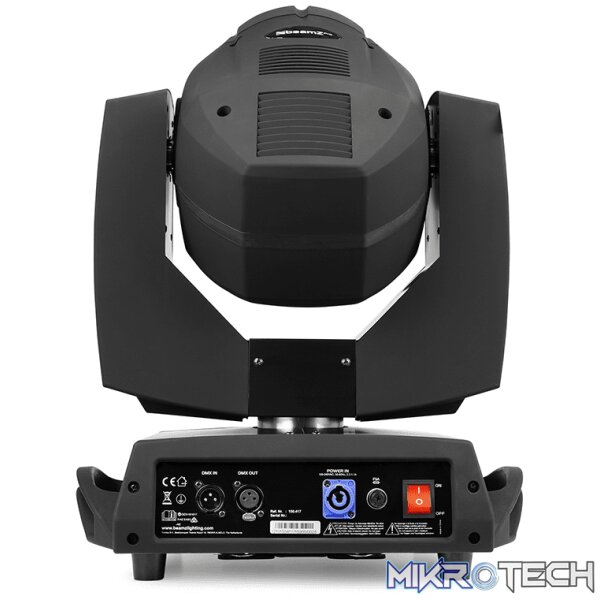

- DMX in/output via 3-pin XLR
- Powerconnector input

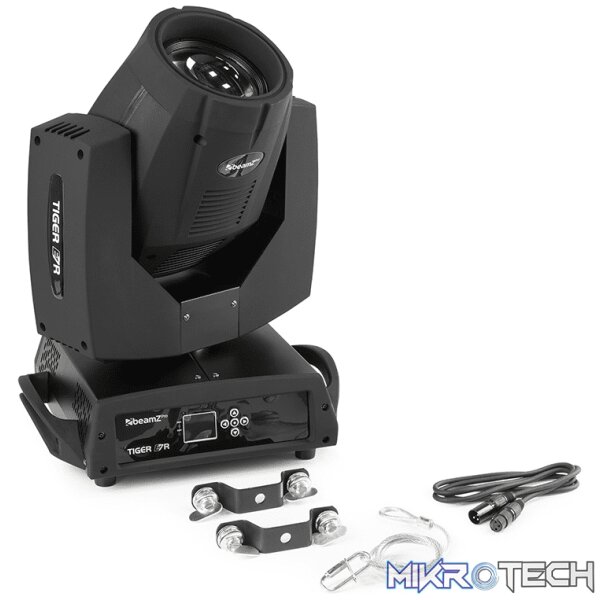

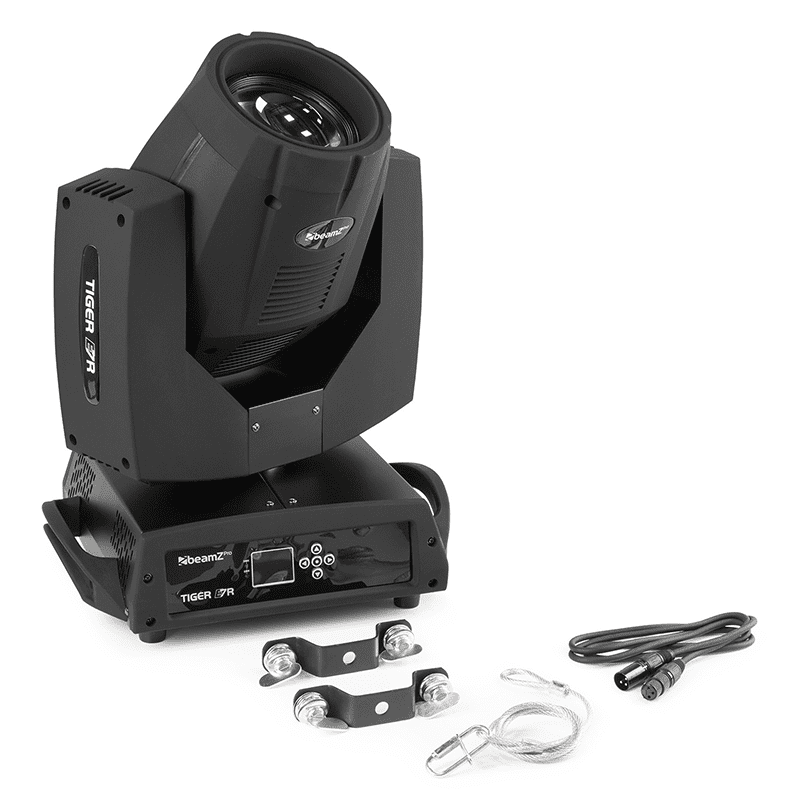

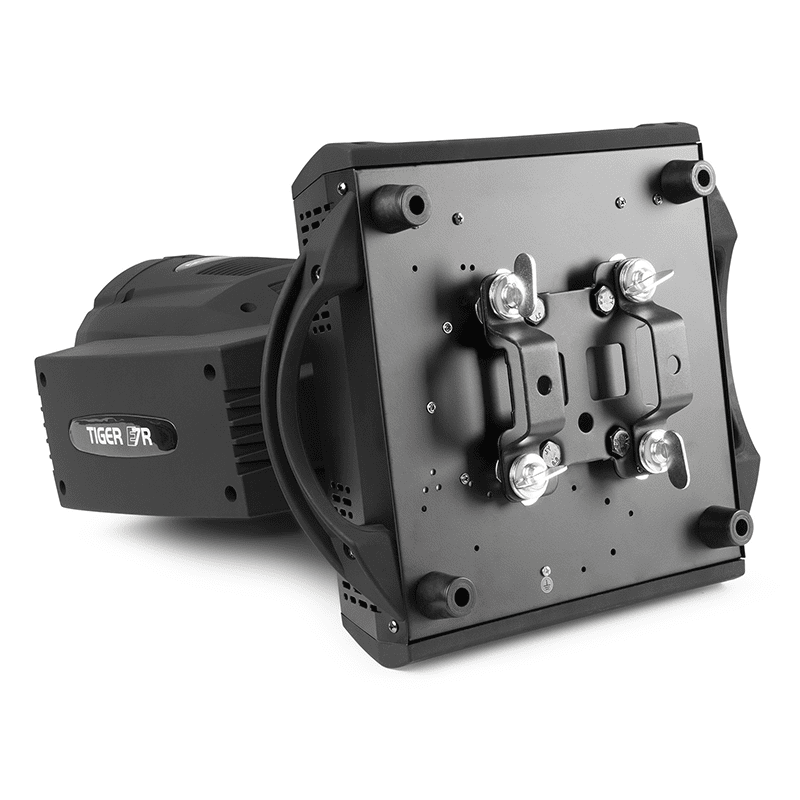

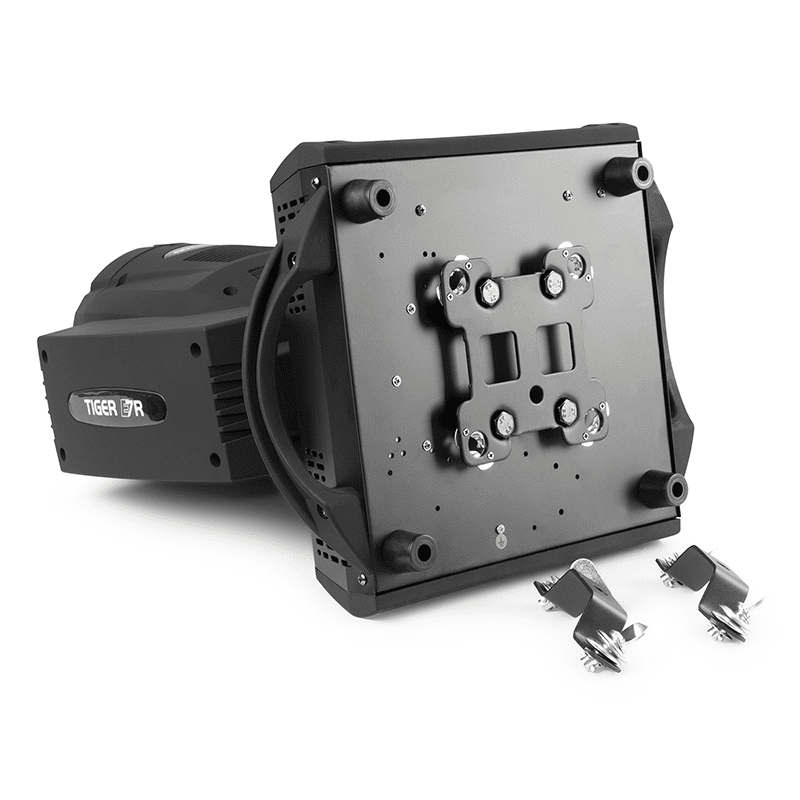

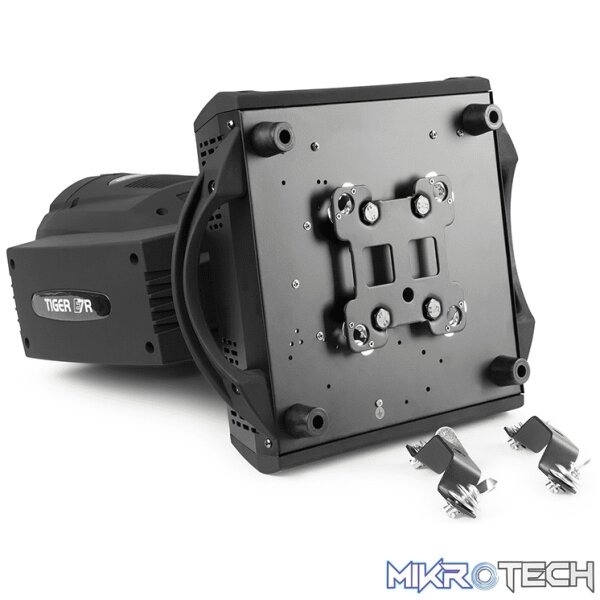

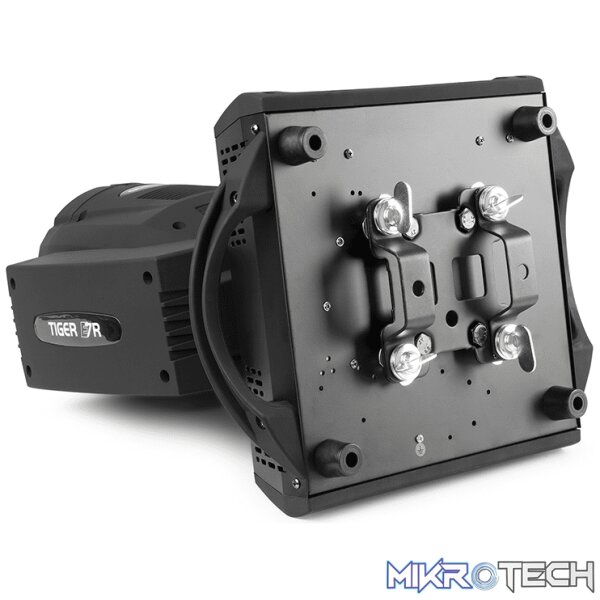

- Quick lock omega clamp included (2x)
- DMX cable included
- Powerconnector cable included
SPECIFICATIONS:
- Colour temperature:
8000K
Light source :
MSD 7R 230W bulb
Colour wheel:
14 colours + open
Beam angle :
1°
Field angle :
3°
Illuminance :
186.695 lx @ 7m
Head movement:
Pan 540
Head movement:
Tilt 180
Static gobo:
Quantity 17
Gobo shake :
Yes
Prisma 1 :
16 Facet
Frost filter:
Yes
Flash rate per second 0 – 10Hz:
Modes :
Automatic programs, DMX, Manual, Master/Slave
Sound to light mode:
Yes
DMX channels :
15, 19
DMX connection:
3-pin XLR
Display :
LCD
IP rating :
IP20
Cooling :
Temperature controlled fan
Power plug:
Power-connector
Power consumption:
1.3 – 2.75A
Power supply :
100-240VAC 50/60Hz
Dimensions :
(L x W x H) 325 x 395 x 515mm
Weight (kg) :
16.55
Included accessories :
Mounting bracket, Power cable, DMX cable
| Dimensions | 32.5 × 39.5 × 515 cm |
|---|
