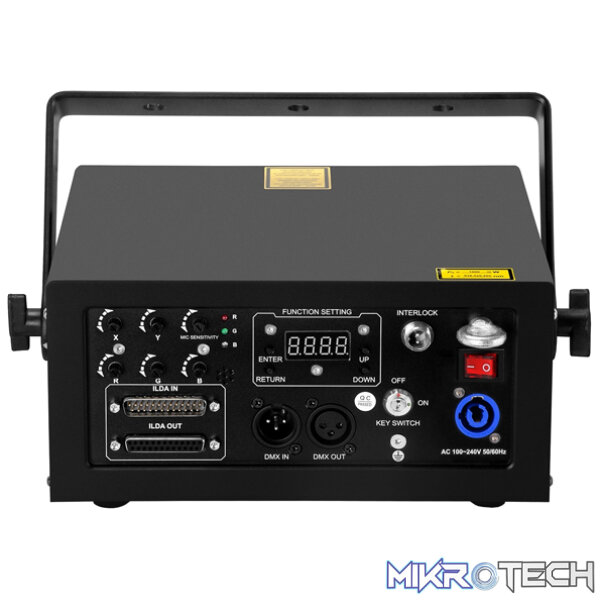

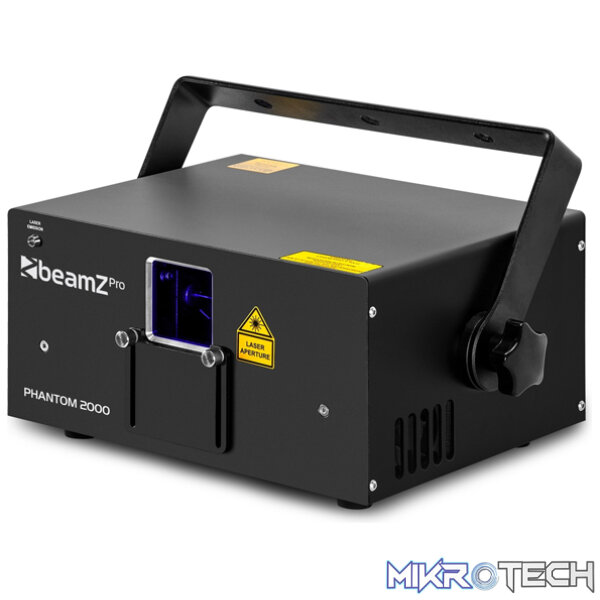

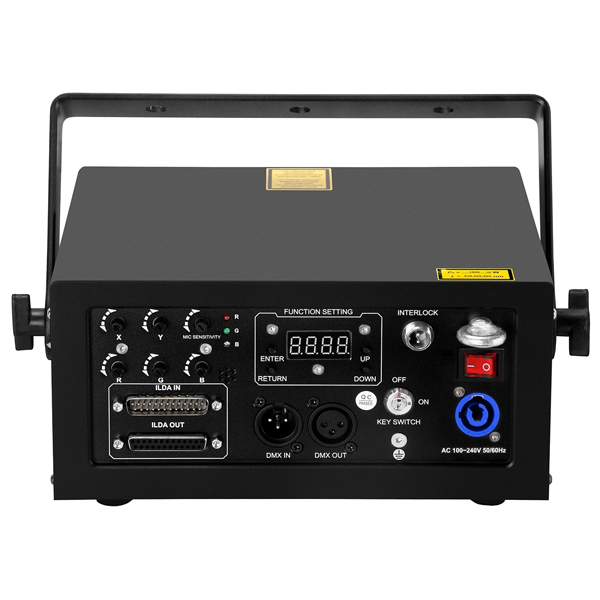

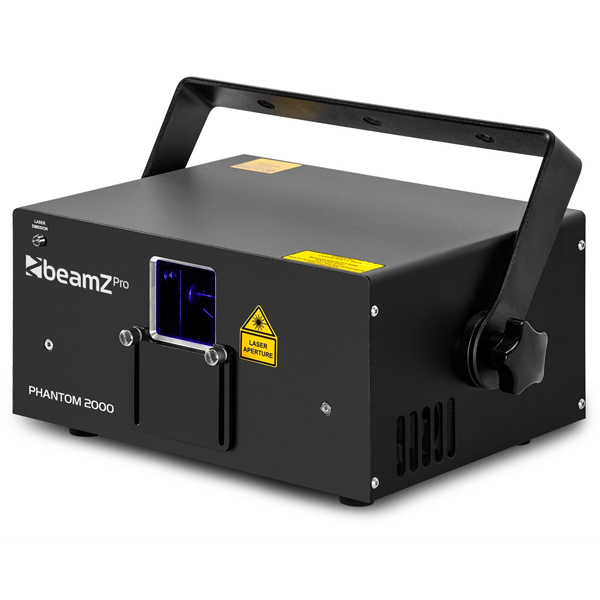

Beamz Pro – Phantom2000 Pure Diode Laser

The Phantom Laser Series are characterized by the compact design and the guaranteed output power. These show lasers provides an analogue modulation what results in a better colour fading and a much broader colour. The lasers can be controlled over ILDA and DMX or run stand-alone in auto or sound activated mode. You can produce the exact effect you want with the DMX and ILDA control. Ideal for any kind of application – fixed installations, mobile use, multimedia projects, long distance outdoor applications and extra precise graphics projections.

FEATURES:

• Red (500mW), Green (500mW) and Blue (1000mW) Powerful laser
• Guaranteed 2W output
• Analog RGB colour modulation
• 25K @ 8° high speed optical scanner system
• X- and Y-Size inverter
• DMX and Stand-alone mode
• 12 or 23 DMX channels
• Master/slave function
• Sound activated or auto mode
• Pre-programmed shows
• DMX in/output via 3-pin XLR
• Ilda in/output
• Control panel with LED display
• Interlock
• Powerconnector in/output

SPECIFICATIONS:

• Input Connections:
  XLR (3-pin)
•
  Output Connections:
  XLR (3-pin)
•
  DMX Channels:
  12, 23
•
  DMX Connector:
  3-pin XLR
•
  ILDA Connector:
  DB25
•
  Laser Red 500mW:
  @ 638nm
•
  Laser Green:
  500mW @ 520nm
•
  Laser Blue:
  1000mW @ 455nm
•
  Scanner system:
  25kpps @ 8°
•
  Maximum Scanner Angle:
  60 degrees
•
  Guaranteed output:
  2W
•
  Power Supply:
  100-240VAC 50/60Hz
•
  Dimensions:
  (L x W x H) 238 x 192 x 114mm (without bracket)
•
  Weight:
  4.2kg
