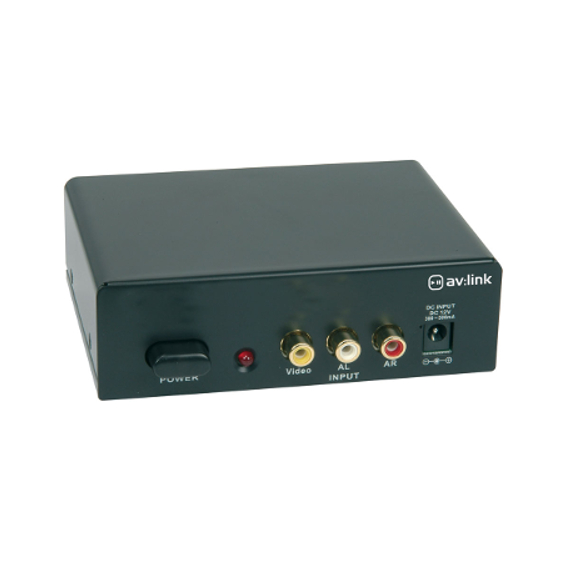

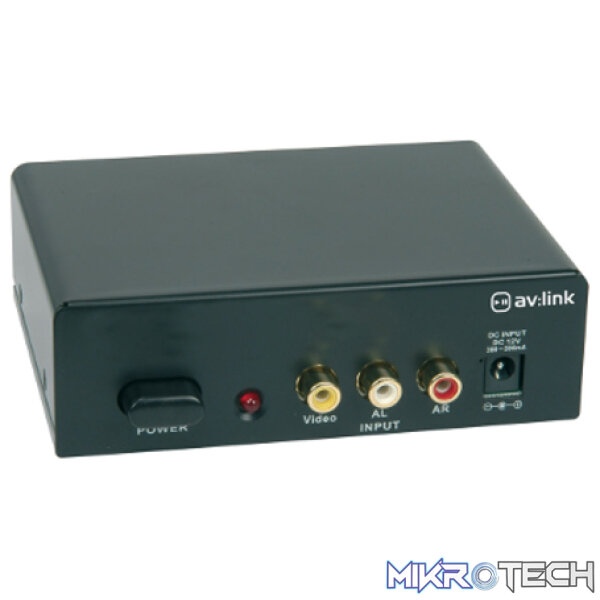

Avlink – Ad-Av14 4 Way/V Distribution Ampilifier

A compact composite video/stereo audio signal distribution amplifier with 1 input to 4 outputs.

FEATURES:

• Ideal for distributing signals from VCR, DVD, video game console, satellite receiver, etc. to up to 4 screens
• Gold plated RCA phono sockets
• Non-slip feet
• Supplied with mains adaptor and a 2m, 3 x RCA to 3 x RCA lead
• Push On/Off switch and LED power ON indicator

SPECIFICATIONS:

• Power supply:
  12Vdc, 420mA
• Audio input:
  -20dB, 25k ohms
• Audio output:
  4 x -20dB, 25k ohms
• Channel separation:
  >50dB
• Distortion : audio:
  <0.6dB
• Distortion : video:
  <1.2dB
• Signal to noise ratio:
  >50dB
• Video bandwidth:
  >10MHz
• Video input:
  1 – 2V (p-p), 75 ohms
• Video output:
  1V (p-p), 75 ohms
• Dimensions:
  130 x 109 x 42mm
• Weight:
  418g
