ATW-3212/510
Audio-Technica?s fourth-generation 3000 Series wireless system
Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica?s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.
With a class-leading 60 MHz tuning range ? more than twice that offered by the previous versions ? the new 3000 Series systems are available in 6 frequency bands – DE2 (470?530 MHz), EE1 (530?590 MHz), EF1 (590?650 MHz), FG1 (650?700 MHz), GH2 (795 ? 806 MHz) and HH2 (821 ? 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter?s multifunction button in the event of unexpected interference.

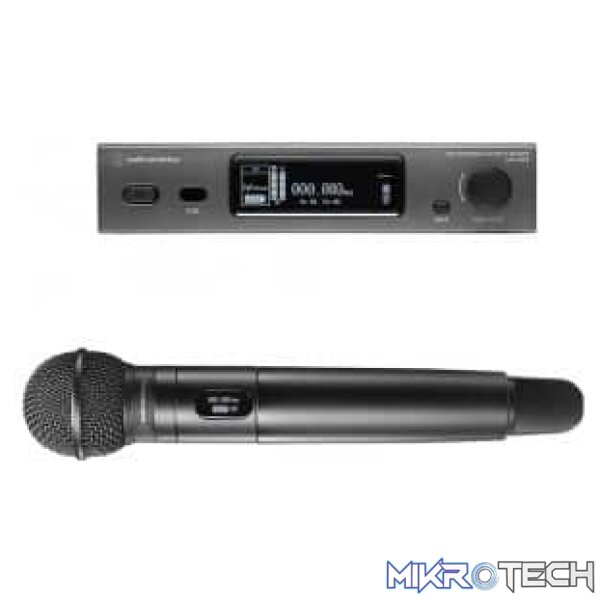

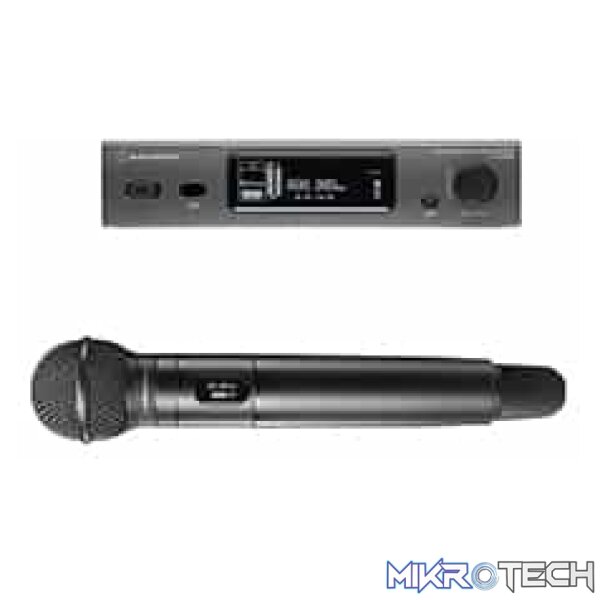

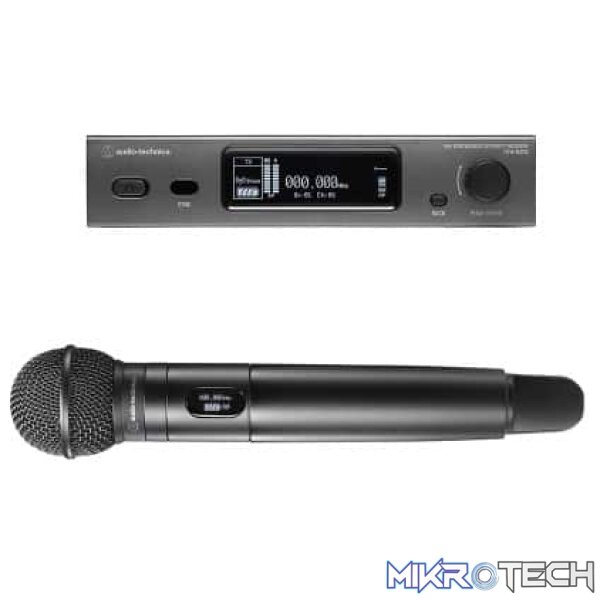

This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C510 interchangeable capsule. The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands: DE2 (470?530 MHz), EE1 (530?590 MHz), EF1 (590-650 MHz) and FG1 (650-700 MHz).
- Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
- ATW-C510 dynamic interchangeable cardioid capsule
?60 MHz tuning range?
With a class-leading 60 MHz tuning range ? more than twice that offered by the previous versions ? the new 3000 Series systems are available in 6 frequency bands – DE2 (470?530 MHz), EE1 (530?590 MHz), EF1 (590?650 MHz), FG1 (650?700 MHz), GH2 (795 ? 806 MHz) and HH2 (821 ? 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter?s multifunction button in the event of unexpected interference.
?Backup Frequency?
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
?interchangeable cardioid capsule?
The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules
Â
multifunction button
Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
Â

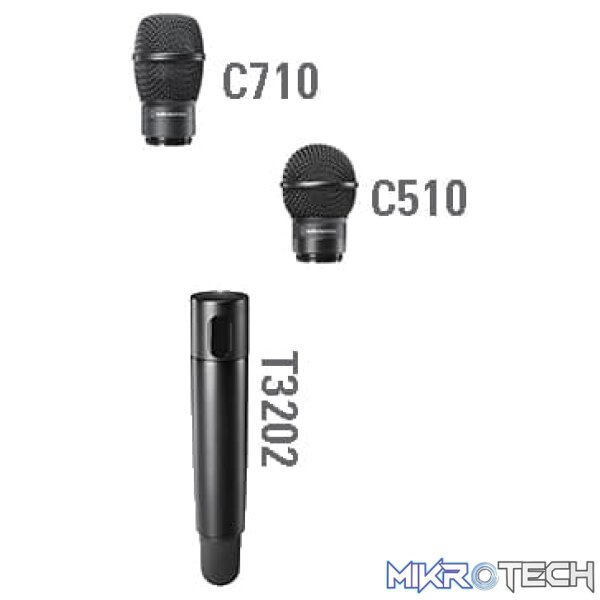

interchangeable cardioid capsule
The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules.
Â

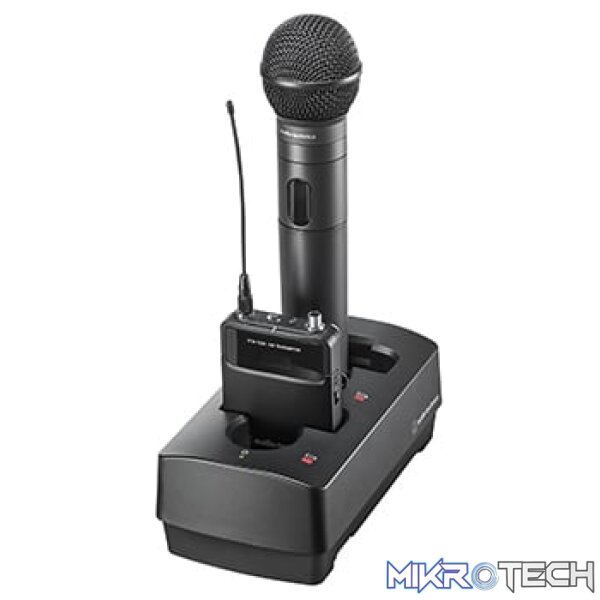

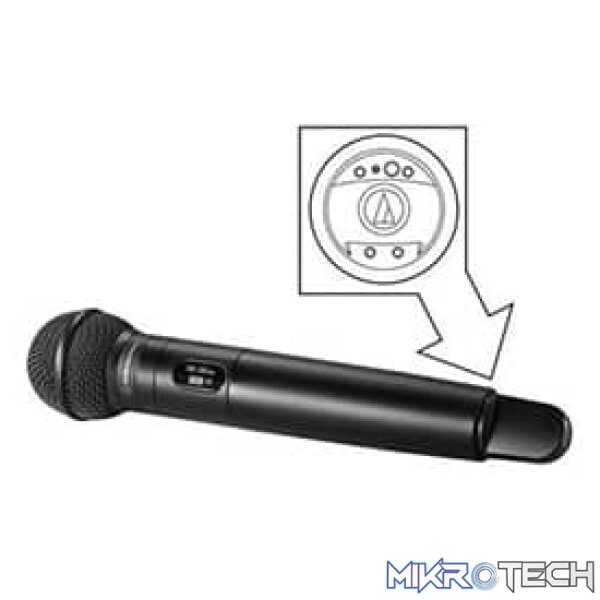

Charging terminals
Charging terminals on each transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries
Â

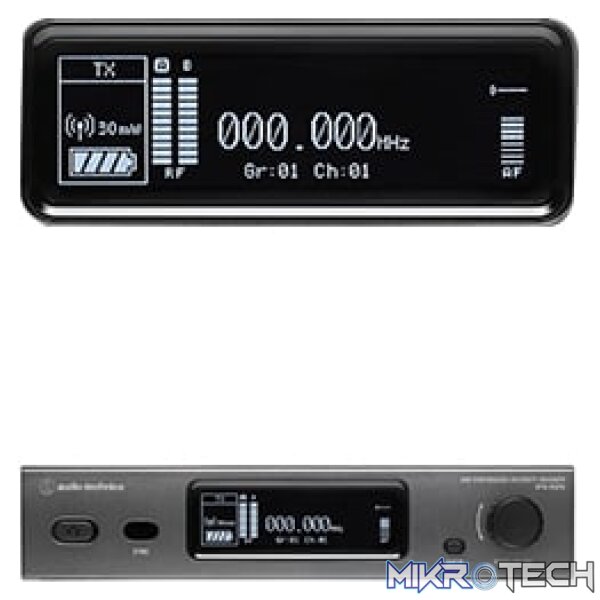

OLED screens
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
SPECIFICATIONS
Microphone | |
---|---|
Element | Dynamic |
Polar Pattern | Cardioid |
Frequency Response | 90 – 12000 Hz |
Impedance | 50 Ohms |
Weight | 129 g |
Dimensions | 78.5 mm long, 53.7 mm max. diameter |
Output Connector | Interchangeable industry-standard thread |
Overall System | |
---|---|
Operating Frequencies | Band DE2: 470.125 to 529.975 MHz Band EE1: 530.000 to 589.975 MHz Band EF1: 590.000 to 649.975 MHz Band FG1: 650.000 to 699.875 MHz Band GH2: 794.100 to 805.900 MHz Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations. |
Minimum Frequency Step | 25 kHz |
Modulation Mode | FM |
Maximum Deviation | ATW-T3201: ?38 kHz (THD:10%) ATW-T3202: ?36 kHz (THD:10%) |
Simultaneous Use | 40 Channels per band For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. Region and band dependent |
Frequency Response | ATW-T3201: 31 Hz to 15500 Hz ATW-T3202: 25 Hz to 16700 Hz |
Operating Range | 100 m |
Dynamic Range | ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical |
Total Harmonic Distortion | <1.0% (at 1 kHz, ?17.5 kHz deviation) |
Operating Temperature Range | -5 ?C to +45 ?C |
Receiver | |
---|---|
Receiving System | True Diversity |
Sensitivity | 20 dBuV at 60 dBA S/N ratio (50? termination) |
Maximum Output Level | XLR / Balanced: +14 dBV 6.3 mm (?””) / Unbalanced: +8 dBV |
Antenna Input | BNC-type, 50 ? |
Power Output | 12 V DC, 160 mA (combined) |
Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x H x D) |
Weight | 1100 g, without accessories |
Accessories Included | Two Flexible UHF antennas AC adapter (country dependent) Rack Mount Adaptors |
Handheld Transmitter | |
---|---|
RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ? |
Spurious Emissions | Following Federal and National Regulations |
Microphone Element | Interchangeable industry-standard thread |
Battery Type | Two 1.5V AA, not included |
Battery Life | High: 8.0 hours / Low: 9.0 hours (alkaline) High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage and environmental conditions. |
Dimensions | 193.0 mm long, 37.0 mm maximum diameter |
Net Weight | 200 g |
Accessories Included | AT8456a Quiet-Flex? stand clamp; ?”-27 male to ?”-16 female threaded screw adapte |
