The versatile ATLANTIS Series speaker operates in five unique modes. With
Switchable EQ, the system updates to maintain optimum
tonal balance for each position. Use the examples below to quickly
identify the best mode for your application.
System Configurations
Elevated Surface
Position the speaker on a surface or on a Speaker stand. This projects sound clearly and evenly throughout the audience, and ensures that audience members enjoy the full frequency range of the system.

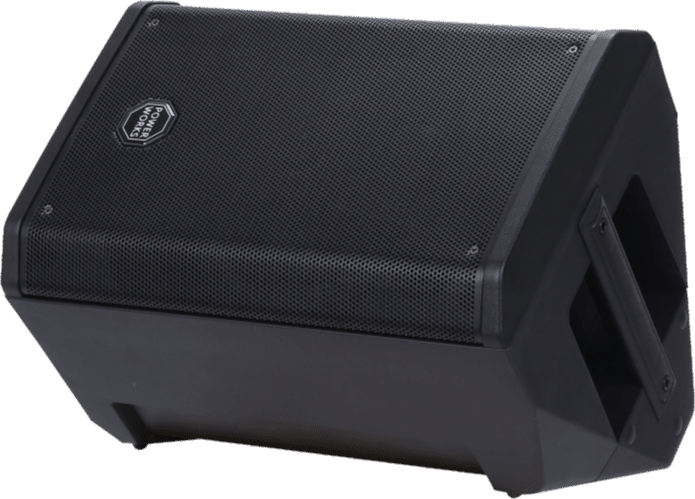

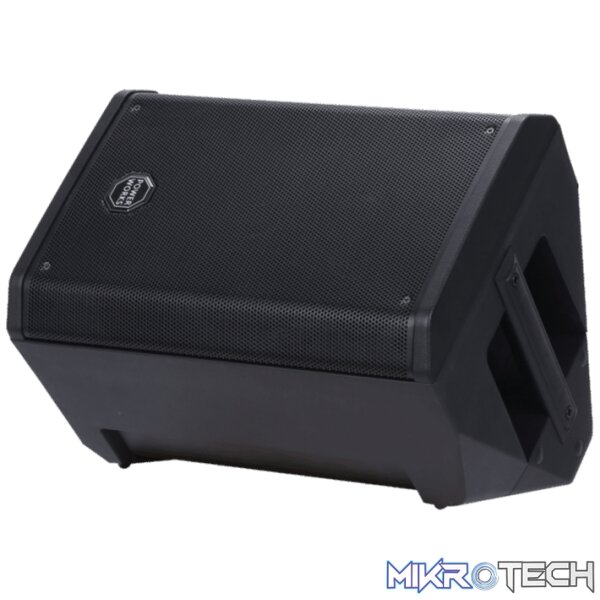

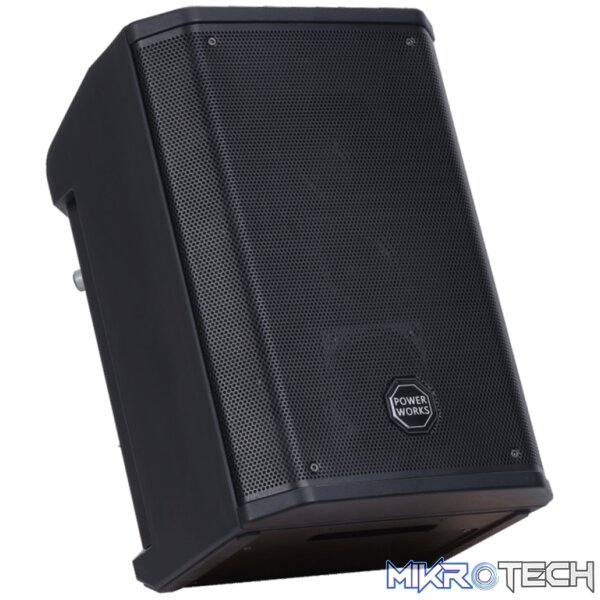

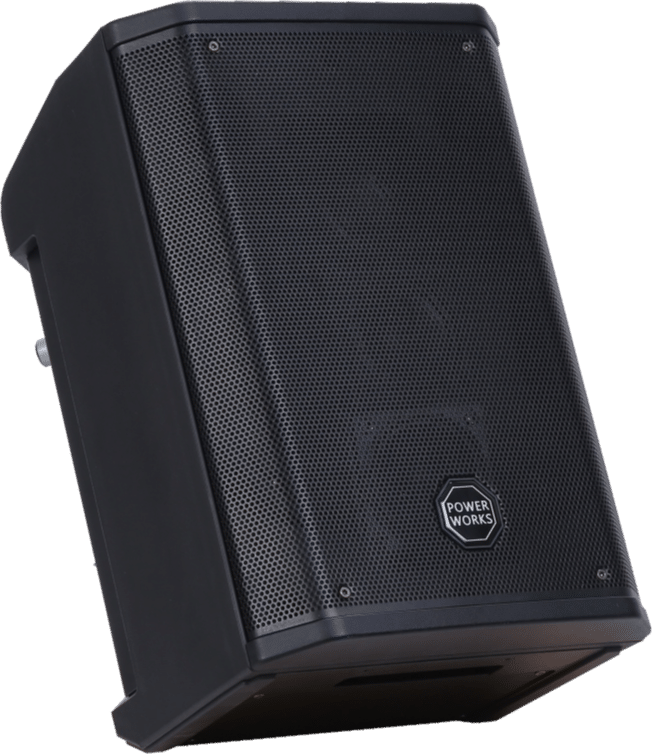

Tilt-Back
For performances where your audience is close to you, tilt the ATLANTIS speaker onto its back edge. For best results, the performer should stand or sit to one side of the loudspeaker to avoid blocking sound from the audience.
Monitor
To use the ATLANTIS speaker as a personal floor monitor, place it on the ground horizontally, in front of and pointing toward the performer. Tilt the loudspeaker onto its side edge.

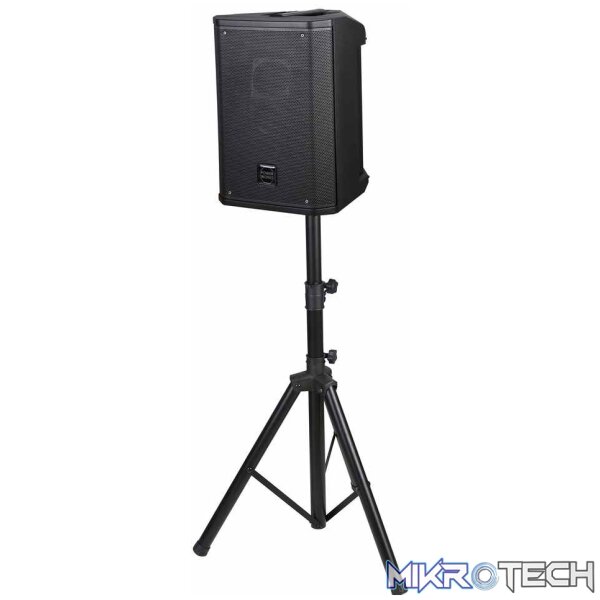

Speaker Stand
Place one or two ATLANTIS speakers on speaker stands (sold separately) for general-purpose sound reinforcement.
Wall Mount
Thanks to the wall mount optional accessories (standard ?35), the ATLANTIS speaker can be mounted on a wall for permanent installations for home and movie theatres, churches, meeting halls.
BATTERY
The system includes a Rechargeable? Lithiumion battery 5200mAH 7 Hours 100% power / 12 hours 50% power.? Battery Status indicator shows Charge, Low, 50%, 75% & 100%.
High-quality, wireless Bluetooth streaming from your mobile device, with one-touch pairing to one or two Atlantis systems.
SOUND LIKE A PRO

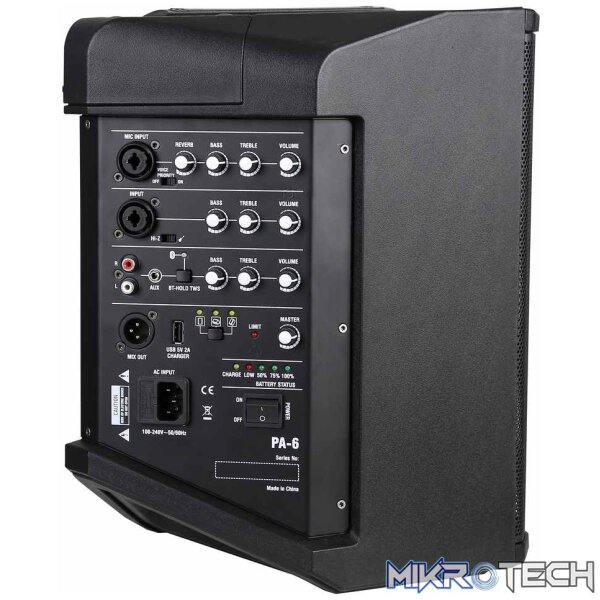

System includes a 3-channel mixer, reverb and 2 Bank EQ control on 3 channels and dedicated volume control on each channel.
Channel 1 is a Mic Combo XLR/Jack Input which includes Reverb, Bass, Treble & Volume controls.? There is a voice priority on this channel which can be switched on or off.
Channel 2 is an Auxiliary Hi-Z or Guitar Combo XLR/Jack with separate Bass, Treble & Volume controls.
Channel 3 has 2 x RCA Inputs and AUX input channel for either wired (3.5 mm) or? wireless music sources via BlueTooth.
OUTPUT
A XLR mix output
USB CHARGER
System also includes a USB 5V 2A Charger for mobile devices.
There is a switchable DSP for Elevated/Pole mount, Monitor & Tilt back
SPECIFICATIONS
| Model No. | ATLANTIS-PA6 | ATLANTIS-PA8 |
| Type | An Unbeatable Active Multi-position PA System All-in-One Battery |
| Transducer LF | 1 6.5? subwoofer, 1? voice coil | 1 8? subwoofer, 1? voice coil |
| | | |
| Transducer HF | 3 2.75?, neodymium magnet, 1? voice coil |
| | | |
| Frequency Response | (-6dB) 65 Hz 18 kHz | (-6dB) 50 Hz 19 kHz |
| | | |
| SPL (1W/1m) | (1m, free space) 93 dB | (1m, free space) 95 dB |
| | | |
| Max. SPL | (1m, free space) 110 dB | (1m, free space) 120 dB |
| | | |
| Protection Circuits | Short Circuit overdrive protection |
| | | |
| Impedance | 4Ohms |
| | | |
| Amplification | 2 x Class D |
| | | |
| Power Output (RMS) | (RMS) 100W | (RMS) 120W |
| | | |
| Power Output (Peak) | (RMS) 200W | (RMS) 240W |
| | | |
| Number of Mixer Channels | 3 | 3 |
| | | |
| Number of Mic Preamps | 2 | 2 |
| | | |
| EQ | 2-Band Channel EQ |
| | | |
| Effects | Reverb |
| | | |
| Inputs | 2 XLR / 6 .3mm Combo , / 1 RCA Line in |
| | | |
| Outputs | 1 XLR line out |
| | | |
| Bluetooth | Yes |
| | | |
| Enclosure Material | Polypropylene |
| | | |
| Mounting Options | 35mm pole mount, Tilt-back, Floor Monitor |
| | | |
| Power Supply | 110~240V 50/60HZ |
| | | |
| Battery | Rechargeable? Lithiumion battery 5200mAH 7 Hours 100% power / 12 hours 50% power |
| | | |
| Dimensions (WxHxD) | 220 X 320 X 205mm | 327 x 505 x 415mm |
| | | |
| Gross Weight | 7,2Kg | 8,6Kg |
