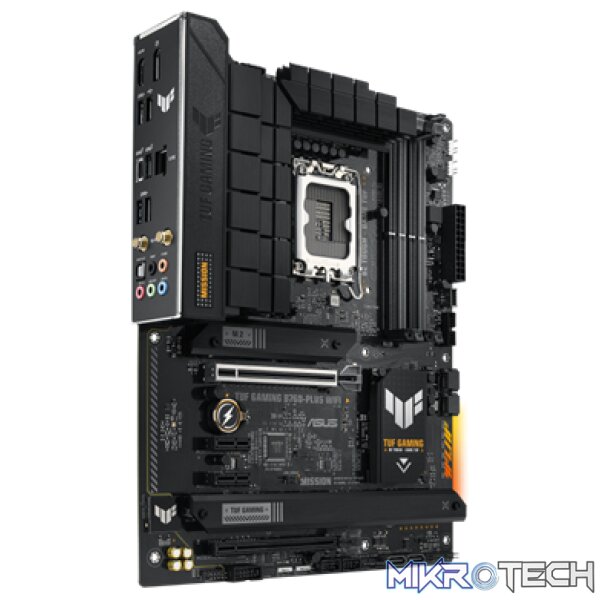

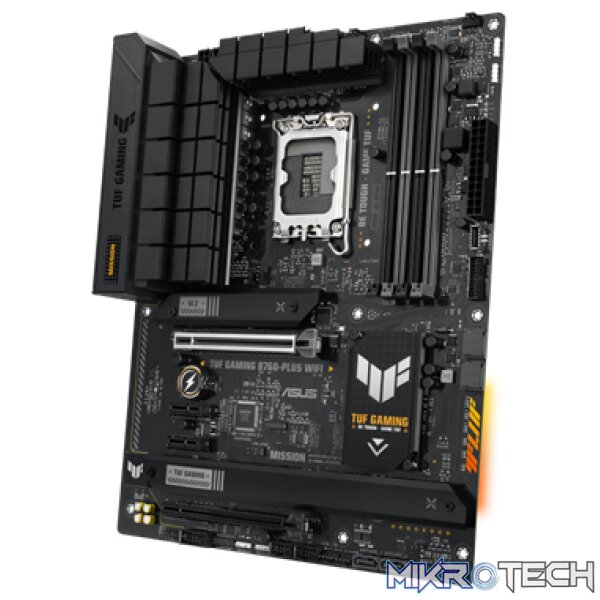

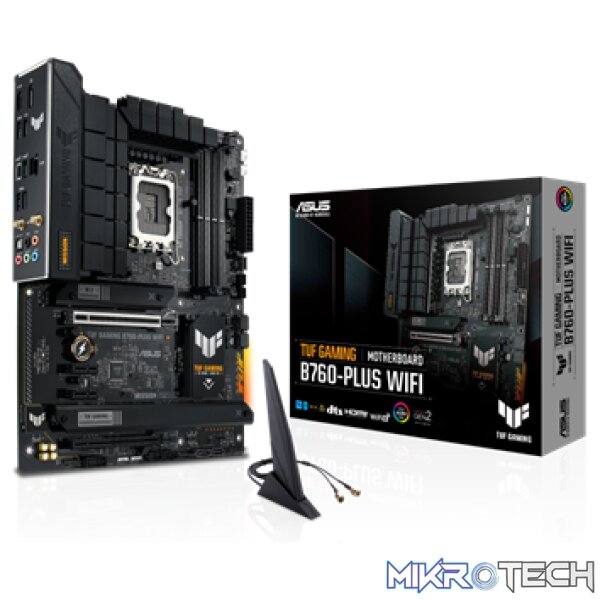

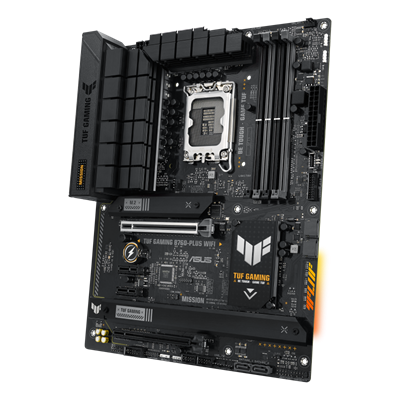

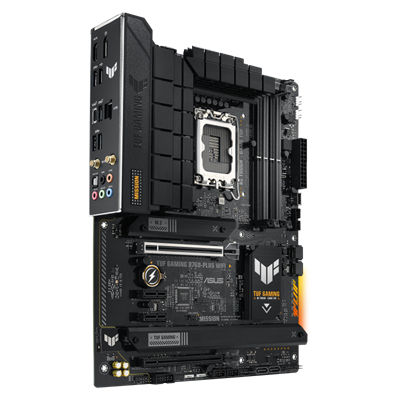

ASUS TUF GAMING B760-PLUS WIFI LGA1700 DDR5 ATX Motherboard

KEY FEATURES:
– ATX Form Factor
– Intel B760 Chipset
– Socket LGA 1700
– 4x DDR5 DIMM Slots, Supports Up To 192GB
– Supports DDR5 7200(OC)
– Dual Channel, OptiMem II
– Supports Intel XMP Memory Profiles
– 1x PCIe 5.0 X16 Slot
– 1x PCIe 4.0 x16 Slot (Supports X4 Mode)
– 2x PCIe 3.0 x1 Slot
– 3x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 6.0Gbps Ports
– 1x USB 3.2 Gen 2×2 Type-C Port, 1x USB 3.2 Gen 2 Type-A port
– 3x USB 3.2 Gen 1 Type-A Ports, 1x USB 2.0 Type-A Port
– Realtek 2.5Gb Ethernet RJ-45 LAN
– 802.11ax 2×2 Dual-band WiFi 6E Adapter
– Bluetooth v5.3
– 12+1 DrMOS Power Stages
– ASUS Armoury Crate
– 3 Year Warranty

Join the waitlist to be emailed when this product becomes available

By ticking this box you agree to an account being created using the given email address and to receive waitlist communications by email

Enter your email address to join the waitlist for this product

Product ID: 1376000 Category: Uncategorized

Share This Product On:

Facebook X LinkedIn Reddit Pinterest WhatsApp Messenger Threads Telegram Bluesky Mastodon Tumblr Email

Description

ASUS TUF GAMING B760-PLUS WIFI LGA1700 DDR5 ATX Motherboard

TUF GAMING B760-PLUS WIFI

90MB1ER0-M0EAY0

SPECIFICATIONS
Brand	ASUS
Series	TUF GAMING Series
Model	ASUS TUF GAMING B760-PLUS WIFI
CPU	Intel Socket LGA1700 For 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold And Celeron Processors*
	Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0**
	* Refer To www.asus.com For CPU Support List.
	** Intel Turbo Boost Max Technology 3.0 Support Depends On The CPU Types.
Chipset	Intel B760 Chipset
Memory	4x DIMM, Max. 192GB, DDR5 Up to 7200(OC) Non-ECC, Un-Buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	OptiMem II
	* Supported Memory Types, Data Rate (Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Please Refer To CPU/Memory Support Under The Support Tab Or Visit https://www.asus.com/support/
Graphics	1x DisplayPort**
	1x HDMI Port***
	* Graphics Specifications May Vary Between CPU Types. Please Refer To www.intel.com For Any Updates.
	** Supports Max. 4K@60Hz As Specified In DisplayPort 1.4.
	*** Supports 4K@60Hz As Specified In HDMI 2.1.
Expansion Slots	Intel 13th & 12th Gen Processors
	1x PCIe 5.0 X16 Slot
	Intel B760 Chipset
	1x PCIe 3.0 X16 Slot (Supports X4 Mode)*
	2x PCIe 3.0 X1 Slots*
	* PCIEX16(G3) Shares Bandwidth With PCIEX1(G3)_1 And PCIEX1(G3)_2 . When PCIEX1(G3)_1 Or PCIEX1(G3)_2 Runs At PCIe X1 Mode, PCIEX16(G3) Will Only Run At PCIe X2 Mode.
	– To Ensure Compatibility Of The Device Installed, Please Refer To https://www.asus.com/support/ For The List Of Supported Peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	Intel B760 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 6
	2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth v5.2*
	*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
USB	Rear USB (Total 6 Ports)
	1x USB 3.2 Gen 2×2 Port (1 X USB Type-C)
	1x USB 3.2 Gen 2 Port (1 X Type-A)
	3x USB 3.2 Gen 1 Ports (3 X Type-A)
	1x USB 2.0 Port (1 X Type-A)
	Front USB (Total 7 Ports)
	1x USB 3.2 Gen 2 Connector (Supports USB Type-C)
	1x USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports
	2x USB 2.0 Headers Support 4 Additional USB 2.0 Ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
Audio Features	– Audio Shielding
	– Rear optical S/PDIF out port
	– Premium audio capacitors
	– Dedicated audio PCB layers
	– Audio cover

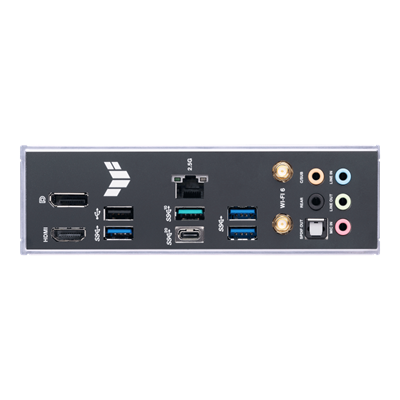

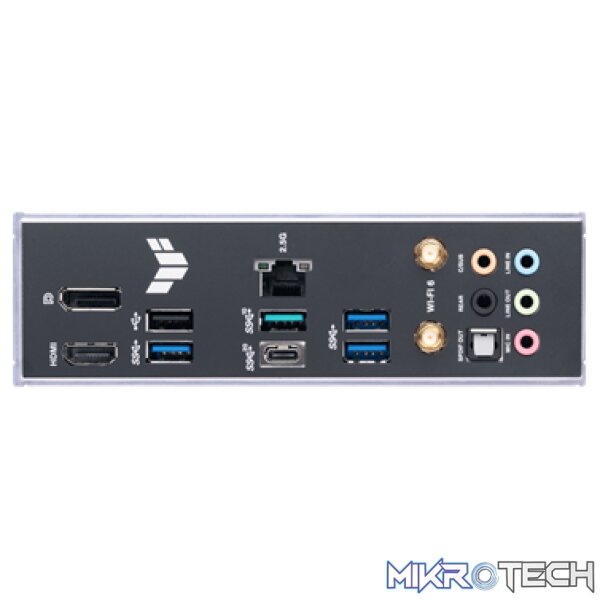

Back Panel I/O Ports	1x USB 3.2 Gen 2×2 Port (1 X USB Type-C)
	1x USB 3.2 Gen 2 Port (1 X Type-A)
	3x USB 3.2 Gen 1 Ports (3 X Type-A)
	1x USB 2.0 Port (1 X Type-A)
	1x DisplayPort
	1x HDMI Port
	1x Wi-Fi Module
	1x Realtek 2.5Gb Ethernet Port
	5x Audio Jacks
	1x Optical S/PDIF Out Port
Internal I/O Connectors	Fan And Cooling Related
	1x 4-Pin CPU Fan Header
	1x 4-Pin CPU OPT Fan Header
	1x 4-Pin AIO Pump Header
	4x 4-Pin Chassis Fan Headers
	Power Related
	1x 24-Pin Main Power Connector
	1x 8-Pin 12V Power Connector
	1x 4-Pin 12V Power Connector
	Storage Related
	3x M.2 Slots (Key M)
	4x SATA 6Gb/S Ports
	USB
	1x USB 3.2 Gen 2 Connector (Supports USB Type-C )
	1x USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports
	2x USB 2.0 Headers Support 4 Additional USB 2.0 Ports
	Miscellaneous
	3x Addressable Gen 2 Headers
	1x Aura RGB Header
	1x Clear CMOS Header
	1x COM Port Header
	1x Front Panel Audio Header (AAFP)
	1x 20-3 Pin System Panel Header With Chassis Intrude Function
	1x Thunderbolt (USB4) Header
Special Features	ASUS TUF PROTECTION
	– DIGI VRM (- Digital Power Design With DrMOS)
	– ESD Guards
	– TUF LANGuard
	– Overvoltage Protection
	– SafeSlot Core
	– Stainless-Steel Back I/O
	ASUS Q-Design
	– M.2 Q-Latch
	– Q-DIMM
	– Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green])
	– Q-Slot
	ASUS Thermal Solution
	– M.2 Heatsink
	– VRM Heatsink Design
	ASUS EZ DIY
	– CPU Socket Lever Protector
	– ProCool
	– Pre-Mounted I/O Shield
	– SafeSlot Core
	– SafeDIMM
	Aura Sync
	– Aura RGB Header
	– Addressable Gen 2 Headers
BIOS	128 Mb Flash ROM
BIOS	UEFI AMI BIOS
Operating System	Windows 11, Windows 10 64-bit
Form Factor	ATX Form Factor
Form Factor	30.5 cm x 24.4 cm
Warranty Information
Warranty	3 Year Warranty
