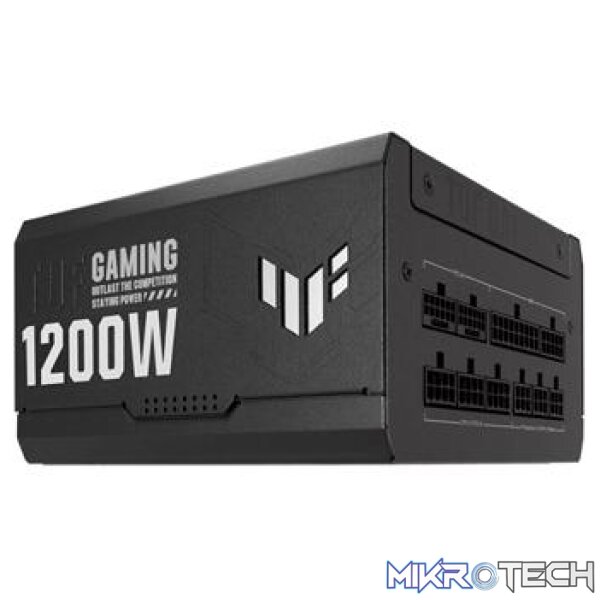

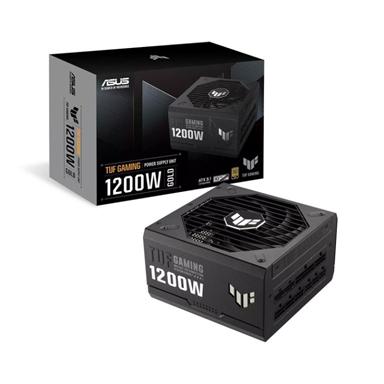

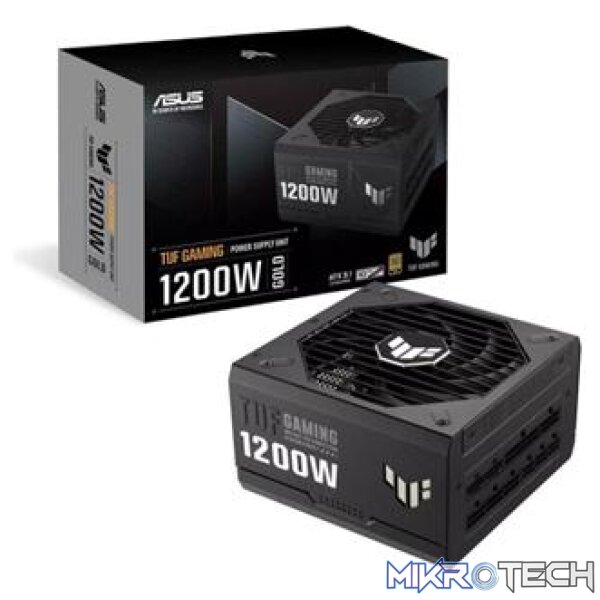

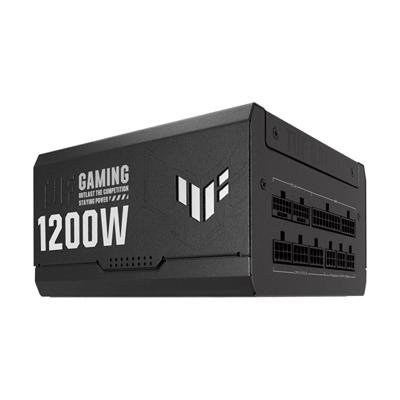

ASUS TUF-GAMING-1200G TUF Gaming 1200W 80+ Gold Fully-Modular ATX 3.0 Power Supply
KEY FEATURES:
– 1200W Maximum Power
– Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
– 80 Plus Gold Certified
– 135mm Axial-tech Fan Design
– Dual ball fan bearings
– 0dB Fan Technology
– Fully Modular Design
– OPP, OVP, UVP, SCP, OCP, OTP
– Lead-free Green Materials with RoHS Compliance
– High-Performance Copper Pins
– ATX 3.0 Compatible
– 8 Year Manufacturer Warranty
Description
ASUS TUF-GAMING-1200G TUF Gaming 1200W 80+ Gold Fully-Modular ATX 3.0 Power Supply
90YE00S0-B0NA00
Built for The Long Haul
The ASUS TUF Gaming 1200W Gold packs military-grade strength, a flagship fan design, and PCB protection for maximum efficiency and durable, trustworthy power delivery. The result is an 80PLUS Gold fully modular PSU that will reliably fuel your rig for years to come.?
Designed to Last
TUF Components
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1200W Gold empowers you to build in confidence.?
Double the Bearings Double the Lifespan
Dual Ball Fan Bearings

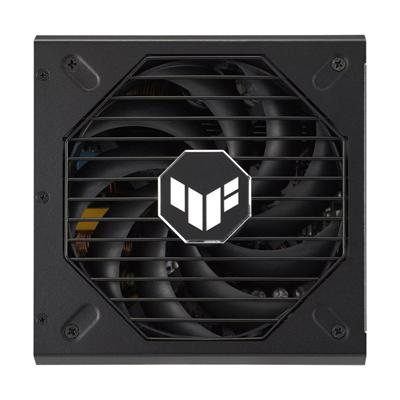

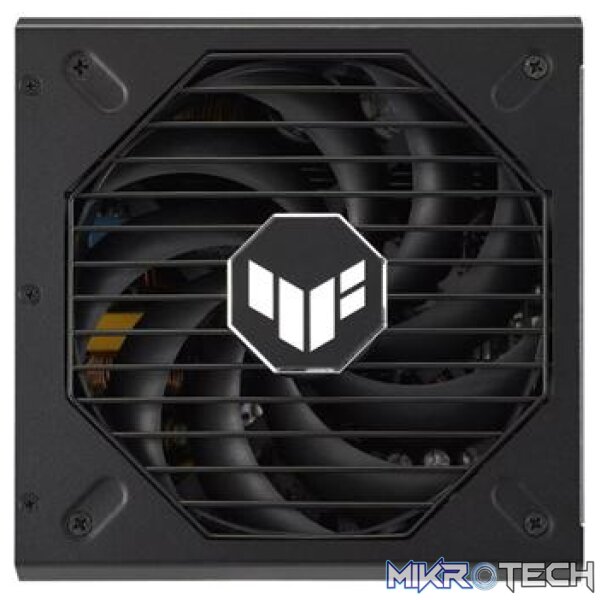

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.?
Protective PCB Coating
Protected against short circuits
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.?
80 PLUS Gold Certification
Heart of Gold
The TUF Gaming 1200W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation – affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.?
Take a Step into the Future
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and TUF Gaming 1200W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.?

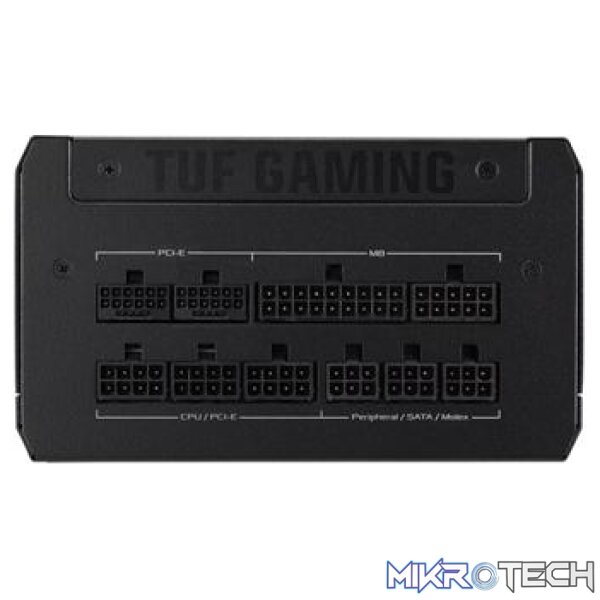

Fully Modular Etched Cables
Supply Ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.?
SPECIFICATIONS | |
| Brand | ASUS |
| Series | TUF Gaming |
| Model | TUF-GAMING-1200G |
| Maximum Power | 1200W |
| 80 Plus Efficiency | 80 Plus Gold Certified |
| Colour | Black |
| Fan | 135mm Axial-tech Fan Design |
| Dual ball fan bearings | |
| 0dB Fan Technology | |
| Modular Design | Fully Modular |
| Connectors | |
| 24 Pin ATX | 1x 610mm Cable |
| EPS (CPU) | 2x 650mm Cables |
| PCI-E Gen 5 16-pin | 2x 675mm Cables |
| PCI-E (16-pin to 8-pin-8-pin) | 1x 675mm |
| PCI-E 1-to-1 8-pin | 1x 675mm |
| SATA 1-to-2 Cable | 1x (400mm + 120mm) |
| SATA 1-to-3 Cable | 1x (400mm + 120mm + 120mm) |
| Peripheral 1-to-4 | 1x (400mm + 150mm + 150mm + 150mm) |
| Input | |
| Input Voltage | 100Vac – 240Vac |
| Output | |
| Rail | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A, 25A, 99A, 0.8A, 3A |
| Combined Load | 130W, 130W, 1188W, 9.6W, 15W |
| General | |
| Hazardous Materials | ROHS |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Dimensions | 150mm x 150mm x 86mm |
| Weight | 2.66Kg |
| ATX Standard | ATX 3.0 |
| Warranty Information | |
| Warranty | 8 Year Warranty |
