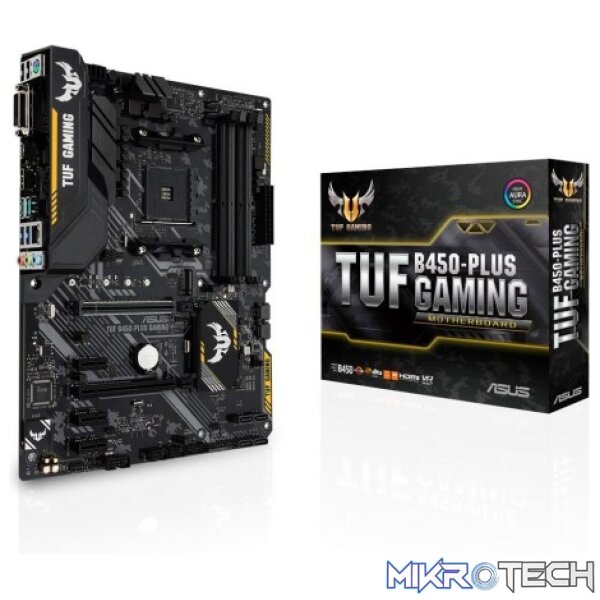

Asus TUF B450-PLUS Gaming AMD B450 AM4 ATX Desktop Motherboard

R2,549.99

Out of stock

Notify me when this item is back in stock.

‘- ATX Form Factor
– AMD B450 Chipset
Socket AM4 Ryzen
– 4x DDR4 DIMM Slots, Supports Up to 64GB
– 2x PCIe 3.0/2.0 x16 (x16), 3x PCIe 2.0 x1 Slots
4x SATA 6Gb/s Ports, 1x M.2 Slots
– 2x USB 3.1 Type-A Gen 2, 2x USB 3.1 Type-A Gen 1, 1x USB Type-C
– 2x USB 2.0, 1x HDMI, 1x DVI-D, 3x Audio Jacks
– Realtek ALC887-VD2 8-Channel HD Audio CODEC
– Realtek RTL8111H
– Supports AMD CrossFireX Technology
2 Year Warranty

Compare
SKU: MB-AB450TPG Categories: , , Brand:

Asus TUF B450-PLUS Gaming AMD B450 AM4 ATX Desktop Motherboard Asus TUF B450-PLUS Gaming AMD B450 AM4 ATX Desktop Motherboard

SPECIFICATIONS
Brand Asus
Series TUF Gaming
Model TUF B450-PLUS Gaming
CPU AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors Supports CPU Up to 8 Cores
Chipset AMD B450
Memory AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
4x DIMM, Max. 64GB, DDR4 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-Buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC Mode) Support Varies by CPU
Graphic Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA Output Support: HDMI/DVI-D Ports
Supports HDMI 2.0b with Maximum Resolution of 4096 x 2160 @ 60 Hz
Supports DVI-D with Maximum Resolution 1920 x 1200 @ 60 Hz
Multi-GPU Support Supports AMD CrossFireX Technology
Expansion Slots AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors:
1x PCIe 3.0/2.0 x16 (x16 Mode)
AMD Ryzen with Radeon Vega Graphics Processor:
1x PCIe 3.0/2.0 x16 (x8 Mode)
AMD B450 Chipset:
1x PCIe 2.0 x16 (Max at x4 Mode)
3x PCIe 2.0 x1
Storage AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors:
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) *1
2x SATA 6Gb/s Ports
AMD B450 Chipset:
4x SATA 6Gb/s Ports
Support Raid 0, 1, 10
LAN Realtek RTL8111H
TUF LANGuard
Audio Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *2
Audio Feature:
Exclusive DTS Custom for Gaming Headsets
Audio Shielding: Ensures Precision Analog/Digital Separation and Greatly Reduced Multi-Lateral Interference
Dedicated Audio PCB Layers: Separate Layers for Left and Right Channels to Guard the Quality of the Sensitive Audio Signals
Premium Japanese-Made Audio Capacitors: Provide Warm, Natural and Immersive Sound with Exceptional Clarity and Fidelity
Audio Cover: Effective Shielding Preserves the Integrity of Audio Signals to Ensure Best Quality
USB Ports AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation:
2x USB 3.1 Gen 1 Ports (2 at Back Panel, Type-A)
1x USB 3.1 Gen 1 Port (1 at Back Panel, USB Type-C)
AMD B450 Chipset:
2x USB 3.1 Gen 2 Ports (2 at Back Panel, Type-A)
2x USB 3.1 Gen 1 Ports (2 at Mid-Board)
6x USB 2.0 Ports (2 at Back Panel, 4 at Mid-Board)
Back I/O Ports 1x PS/2 Keyboard/Mouse Combo Port
1x DVI-D
1x HDMI
1x LAN (RJ-45) Port
1x 5Gb/s Port USB Type-C
2x USB 3.1 Type-A Gen 2 (Teal Blue)
2x USB 3.1 Type-A Gen 1 (Blue)
2x USB 2.0
3x Audio Jacks
Internal I/O Ports 1x Aura RGB Strip Header
1x USB 3.1 Gen 1 (Up to 5Gbps) Connector Supports Additional 2 USB 3.1 Gen 1 Ports (19-pin)
2x USB 2.0 Connectors Supports Additional 4 USB 2.0 Ports
1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode)
6x SATA 6Gb/s Connectors
1x CPU Fan Connector (1x 4-pin)
3x Chassis Fan Connectors (3x 4-pin)
1x AIO_PUMP Connector (1x 4-pin)
1x S/PDIF Out Header
1x 24-pin EATX Power Connector
1x 8-pin ATX 12V Power Connector
1x Front Panel Audio Connector (AAFP)
1x System Panel
1x Clear CMOS Jumper
1x COM Port Header
Accessories User Manual
ASUS Q-Shield
2x SATA 6Gb/s Cables
1x M.2 Screw Package
1x Supporting DVD
1x TUF Gaming Sticker
1x TUF Certification Card
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-Language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified Log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor ATX Form Factor
30.5 x 24.4 cm
Notes *1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Warranty Information
Warranty 2 Year Warranty
