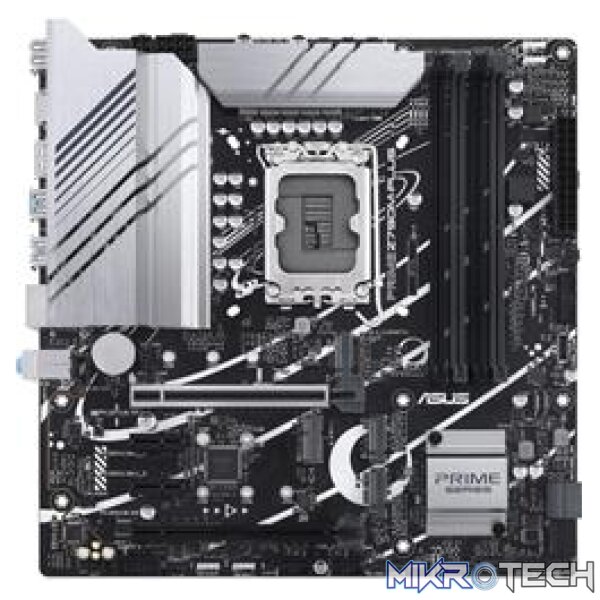

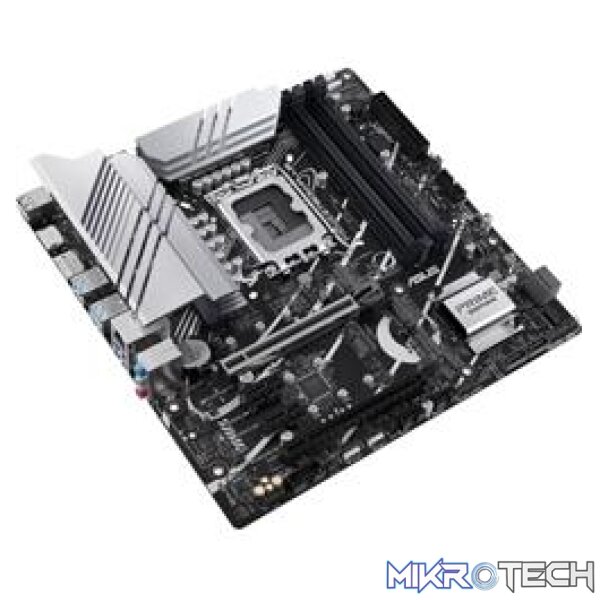

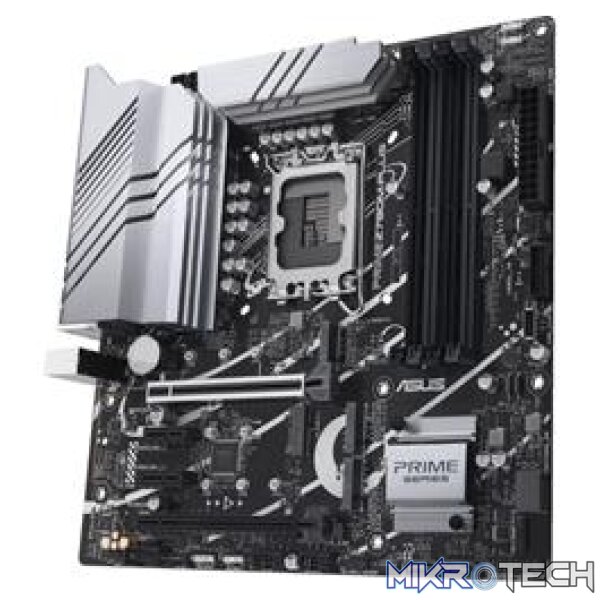

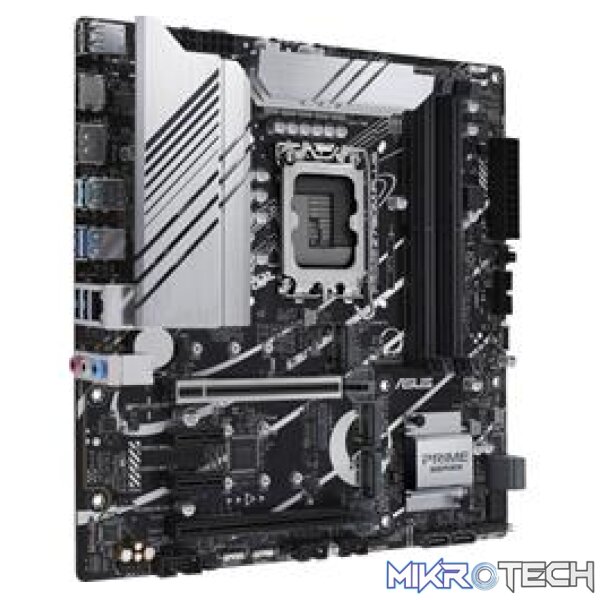

ASUS PRIME Z790M-PLUS LGA 1700 DDR5 Micro-ATX Motherboard
KEY FEATURES:
– Micro-ATX Form Factor
– Intel Z790 Chipset
– Socket LGA 1700
– 4x DDR5 DIMM Slots, Supports Up To 192GB
– Supports Up to DDR5-7200 (OC)
– Supports Intel XMP 3.0 Memory Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 2x PCIe 4.0 x1 Slots
– 3x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 6.0Gbps Ports
– Supports Front-Panel USB Type-C Ports
– 1x USB 20Gb/s Type-C Port
– 1x USB 10Gb/s Type-A Port
– 4x USB 5Gb/s Type-A Ports
– 2x USB 2.0 Type-A Ports
– 1x HDMI 2.1, 1x DisplayPort 1.4 Port
– 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
– Intel Gigabit Ethernet RJ-45 LAN
– Realtek High Definition Audio Codec
– 10+1 Power Stages with DIGI+ VRM Solution
– ASUS Q-Design including Q-Slot
– ASUS Aura RGB Sync
– ASUS Q-LED Core Diagnostic Patterns
– ASUS Armoury Crate Software
– 3 Year Warranty
Description
ASUS PRIME Z790M-PLUS LGA 1700 DDR5 Micro-ATX Motherboard
PRIME Z790M-PLUS
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | PRIME Series |
| Model | PRIME Z790M-PLUS DDR5 (90MB1E70-M0EAY0) |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4x DIMM, Max. 192GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel Z790 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| 2x PCIe 4.0 x1 Physical, x1 Electrical slots | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel Z790 Chipset | M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Intel Gigabit LAN 10/100/1000 |
| WiFi | N/A, M.2 Key E Slot supports Key E CNVi or PCIe WiFi Modules |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | Audio Shielding |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |

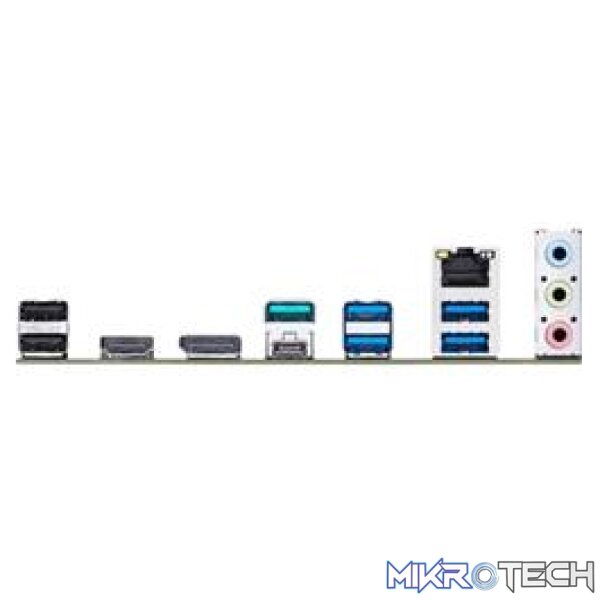

| Connectivity | |
| Ports | 1x USB 20Gb/s Type-C Port |
| 1x USB 10Gb/s Type-A Port | |
| 4x USB 5Gb/s Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 | |
| 1x DisplayPort 1.4 Port | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x Intel Gigabit Ethernet RJ-45 LAN Port | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 3x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| 3x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 3x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x M.2 slot (Key E) | |
| 1x S/PDIF Out header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| 1x Thunderbolt (USB4) header | |
| Buttons | N/A |
| LED Displays | ASUS Q-LED Core Diagnostic Pattern (via Power LED) |
| BIOS | 192Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x I/O Shield | |
| 2x Screw packages for M.2 SSD | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
