Product Description

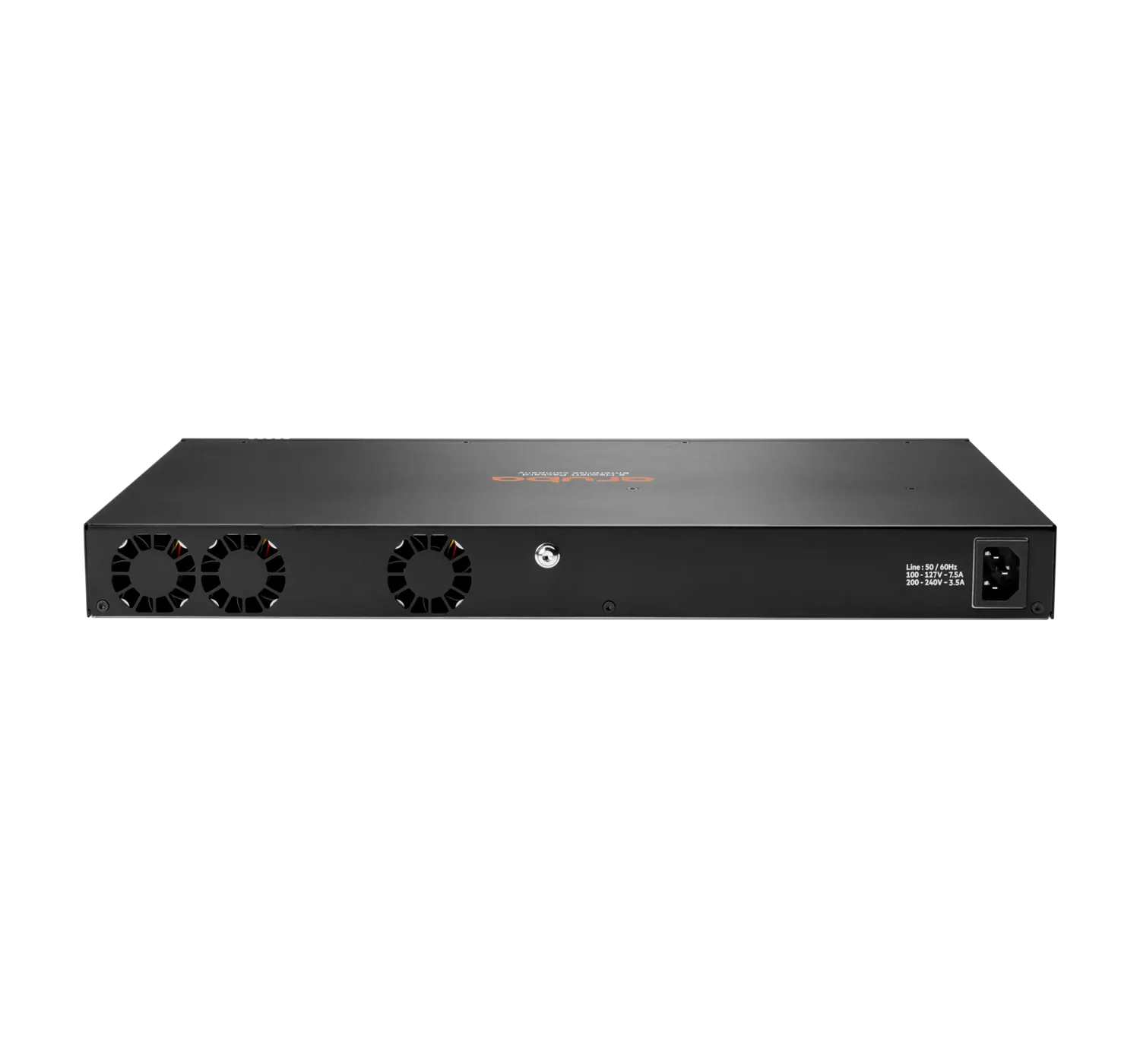

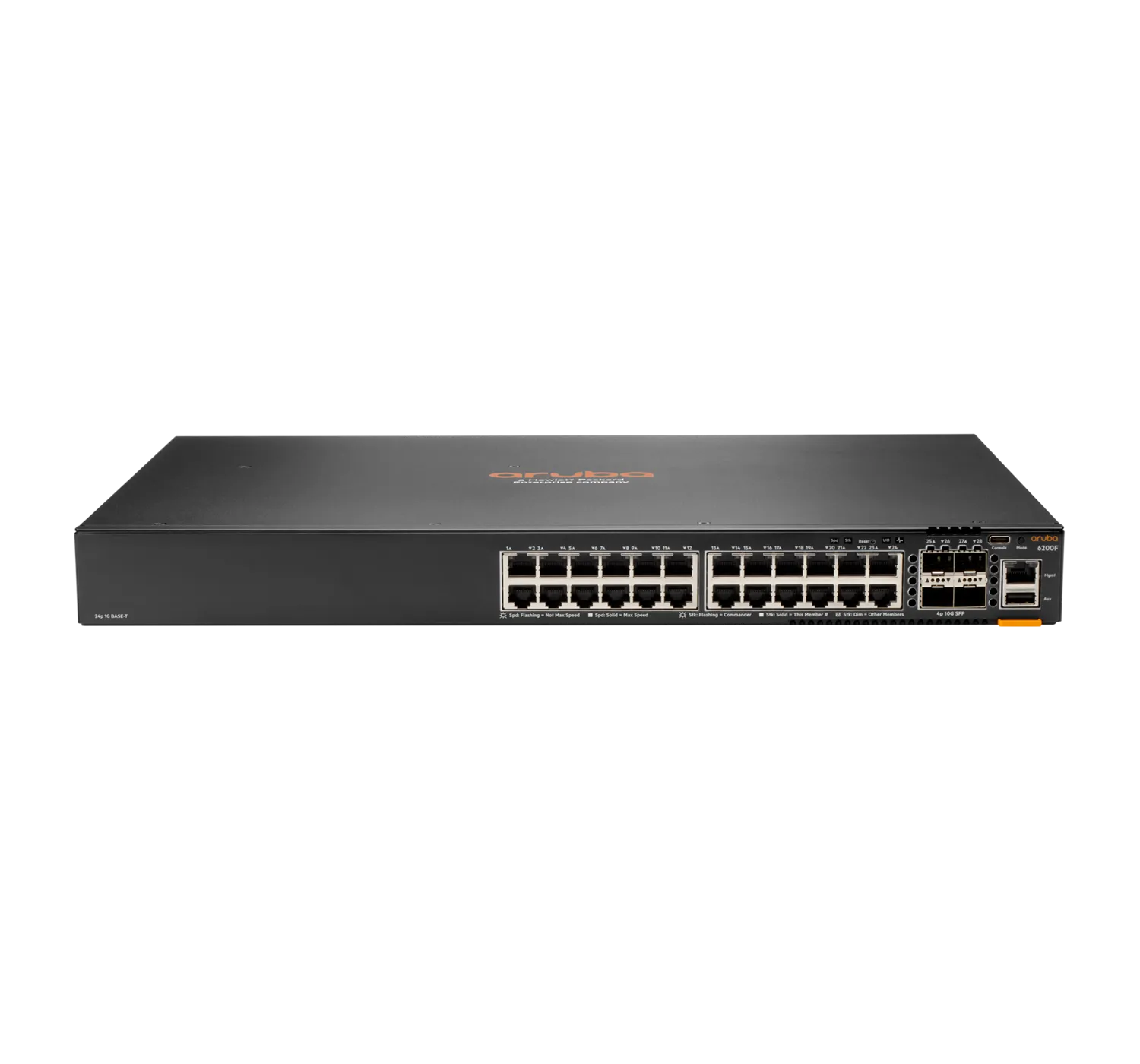

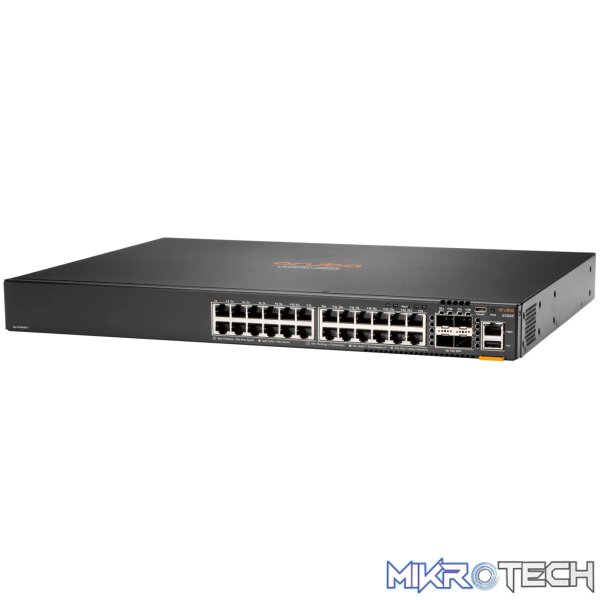

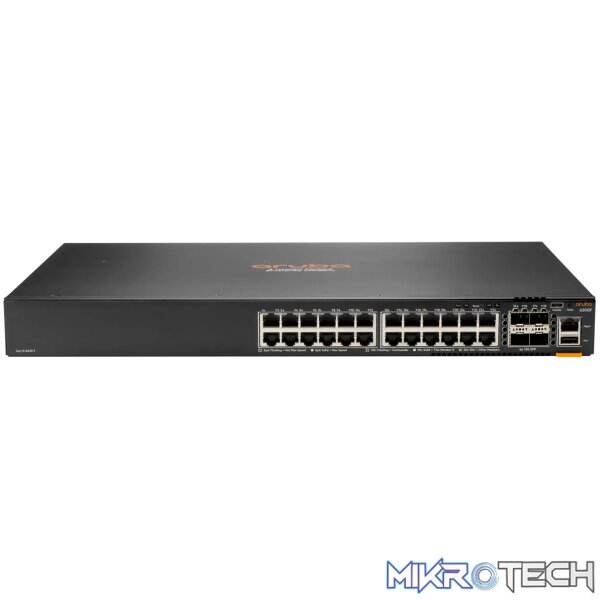

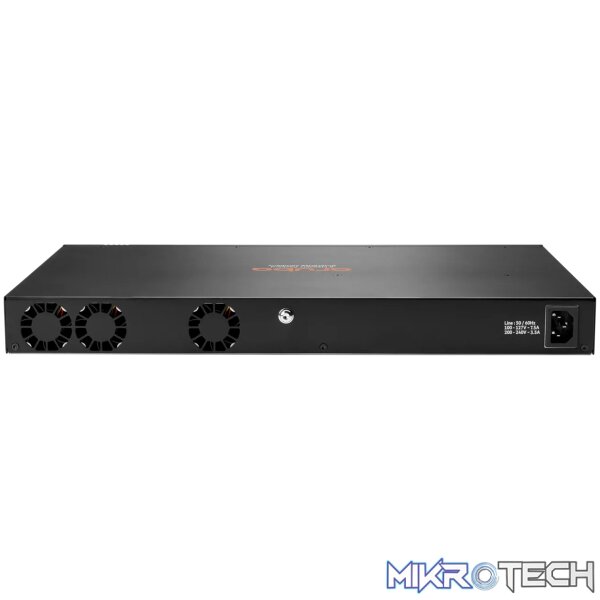

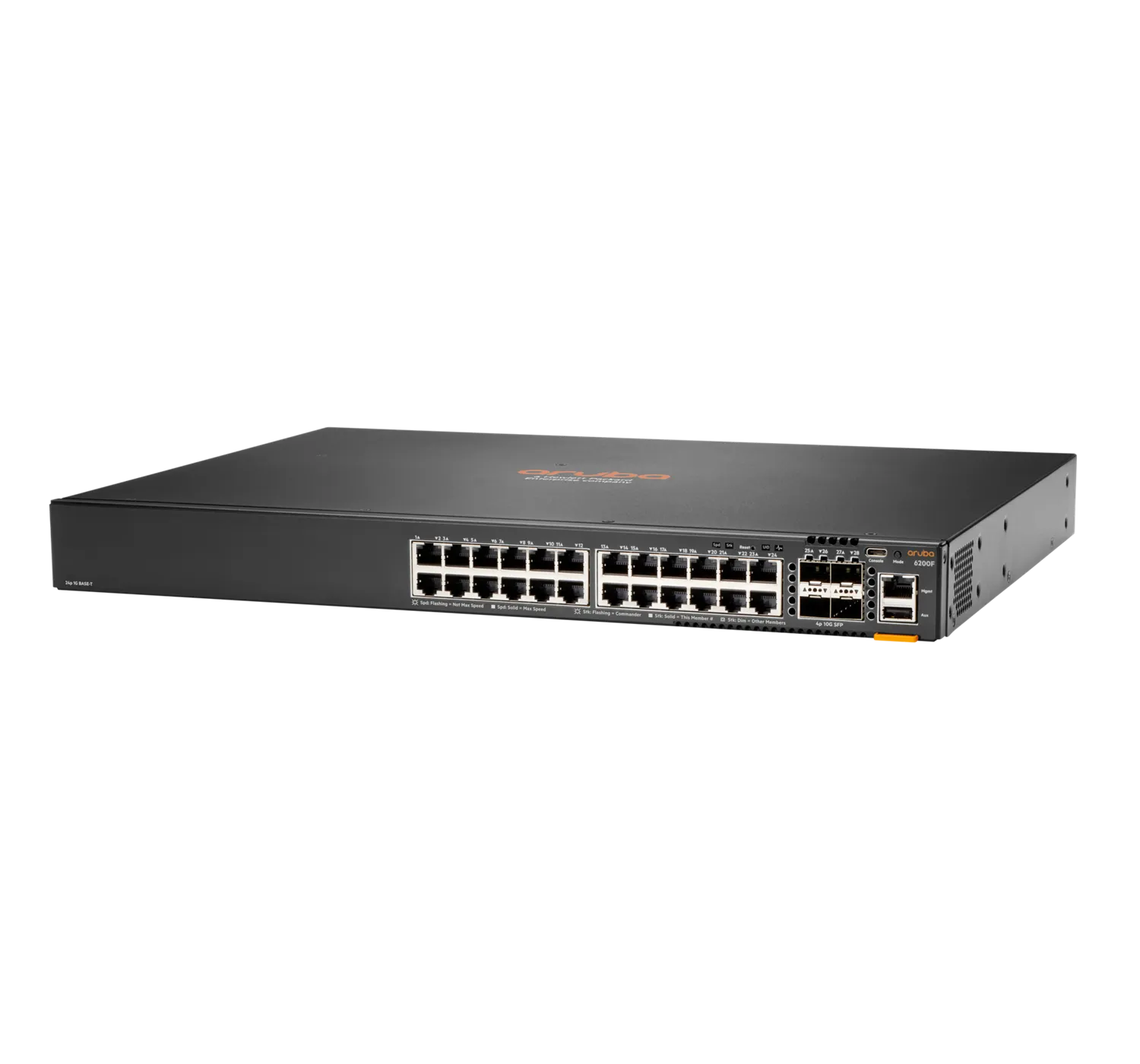

ARUBA 6200F 24G 4SFP+ SWCH
| Harmonized System (HS) code | 85176990 |
|---|---|
| Weight | 4360 |
| Power source | AC |
| Storage relative humidity (H-H) | 15 – 90 |
| Power supply included | Y |
| Physical stacking (units) | 8 |
| SFP+ module slots quantity | 4 |
| Port mirroring | Y |
| Authentication | MAC-based authentication,Web-based authentication |
| Switching capacity | 128 |
| 10G support | Y |
| MAC address table | 16000 |
| VLAN support | Y |
| Spanning tree protocol | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| Flow control support | Y |
| Throughput | 95.2 |
| Jumbo frames support | Y |
| Access Control List (ACL) | Y |
| Console port | RJ-45/USB Type-C |
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| IGMP snooping | Y |
| Multicast support | Y |
| Width | 442 |
| Height | 43.9 |
| Built-in processor | Y |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Y |
| Rack mounting | Y |
| AC input frequency | 50 – 60 |
| AC input voltage | 100 – 240 |
| Operating temperature (T-T) | 0 – 45 |
| Power over Ethernet (PoE) | N |
| Storage temperature (T-T) | -40 – 70 |
| Operating relative humidity (H-H) | 15 – 95 |
| Flash memory | 16384 |
| Authentication type | RADIUS,TACACS+ |
| Internal memory | 8192 |
| Access Control List (ACL) ingress | 5120 |
| Access Control List (ACL) egress | 22048 |
| Transmission distance (max) | 10 |
| Processor model | ARM Cortex-A72 |
| Latency (10 Gbps) | 1.46 |
| Memory type | DDR4-SDRAM |
| Processor frequency | 1800 |
| Latency (1 Gbps) | 2.28 |
| Packet buffer memory | 8 |
| Power consumption (typical) | 59 |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3x,IEEE 802.3z |
| Depth | 327 |
Product Specifications
| Weight | 6.5200 kg |
|---|---|
| Dimensions | 59.0000 × 50.0000 × 19.0000 cm |
