Product Description

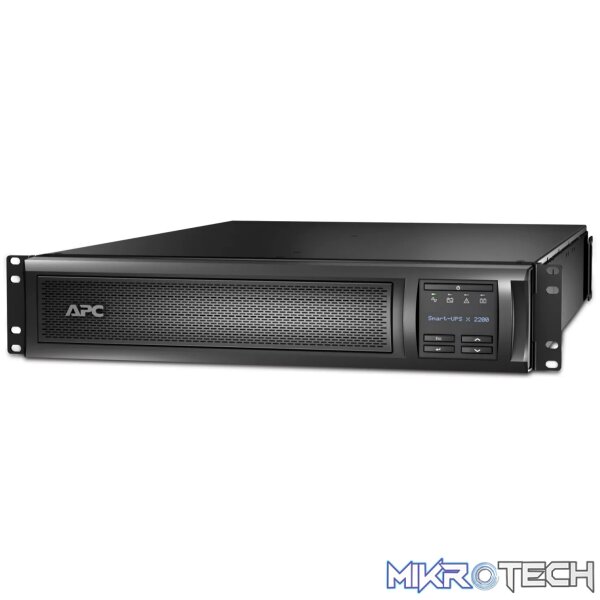

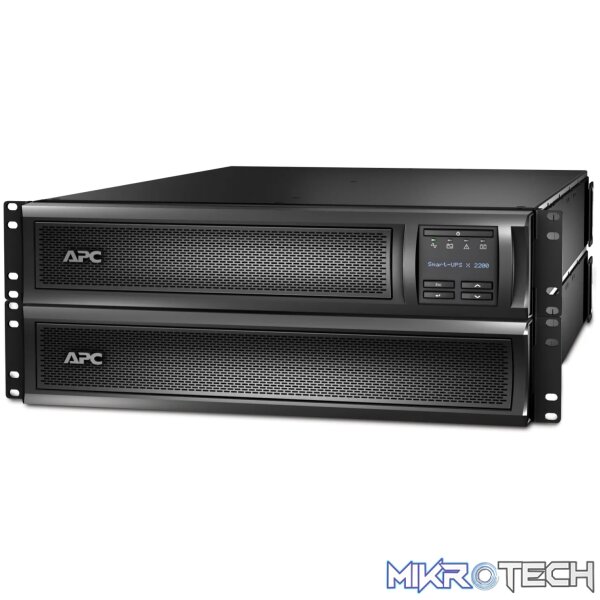

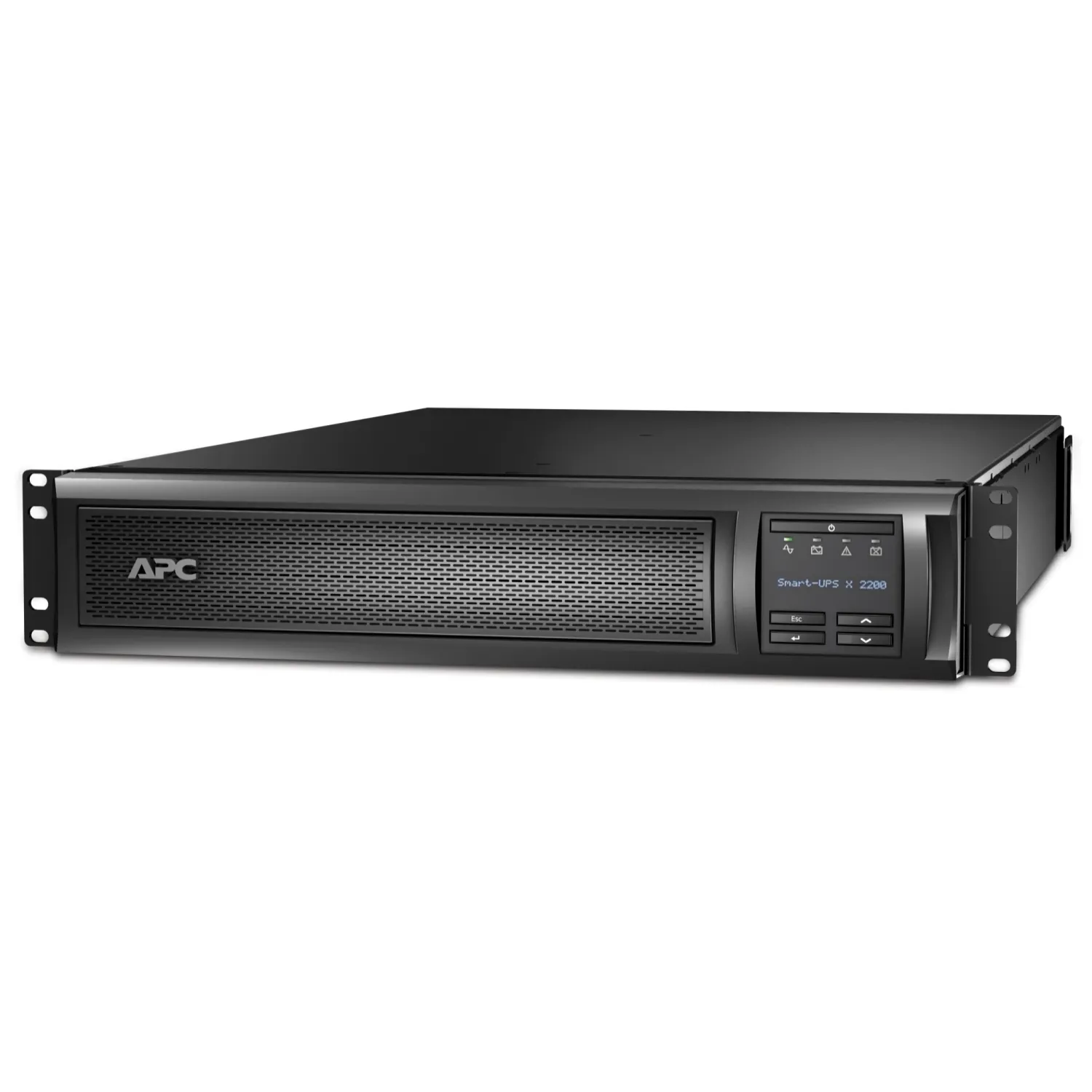

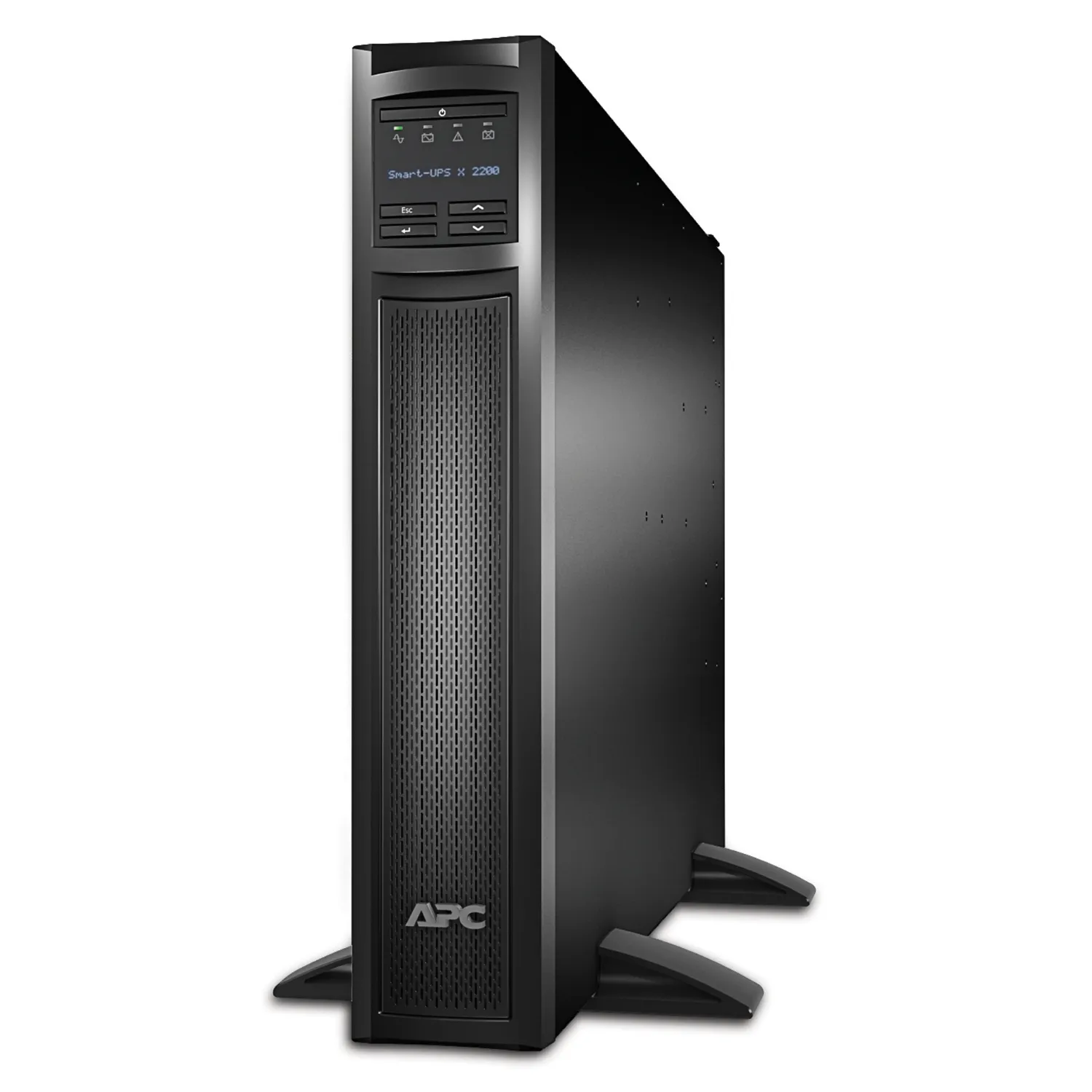

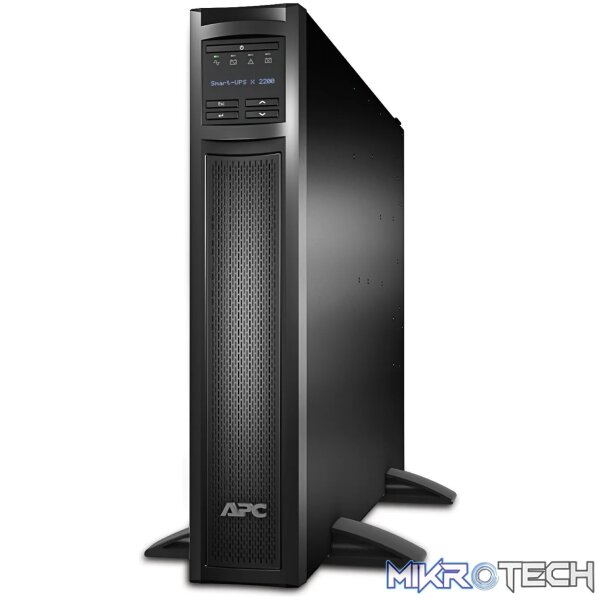

APC SMART-UPS X 2200VA RACK/TOWER LCD 200-240V
| Battery recharge time | 3 |
|---|---|
| Battery life (max) | 5 |
| Audible alarm(s) | Y |

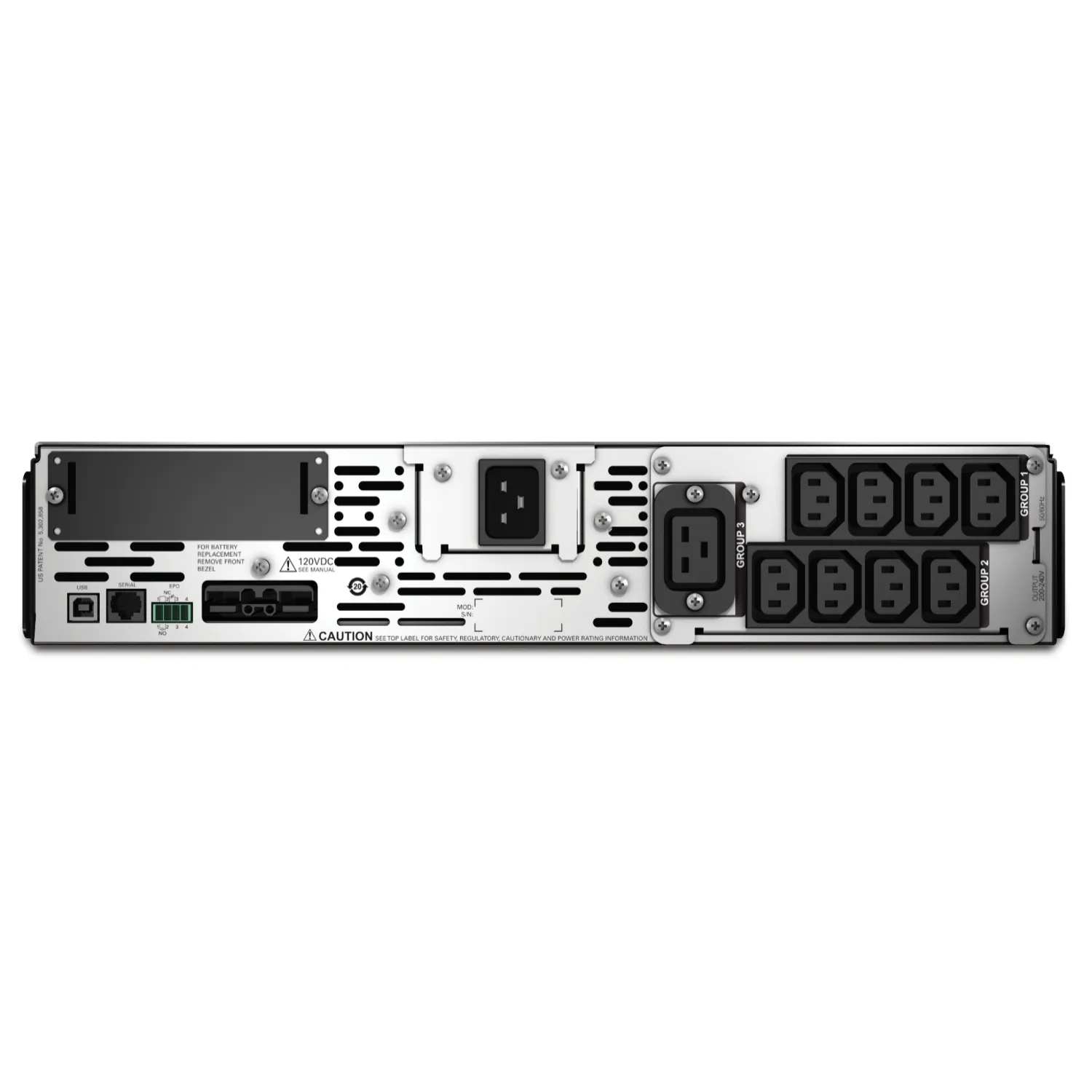

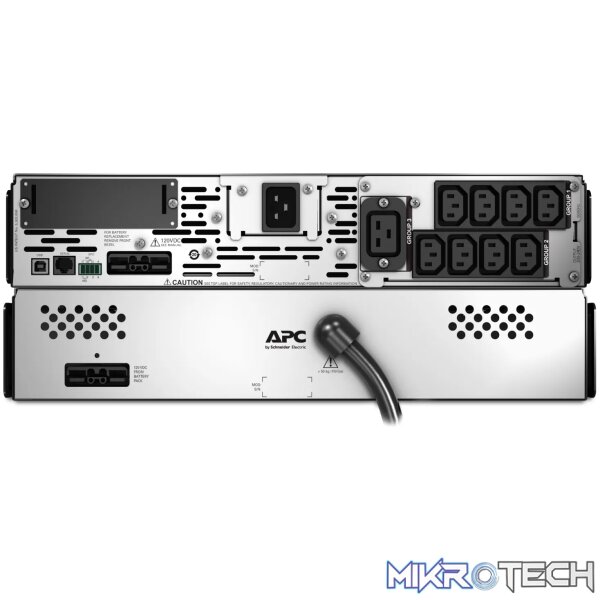

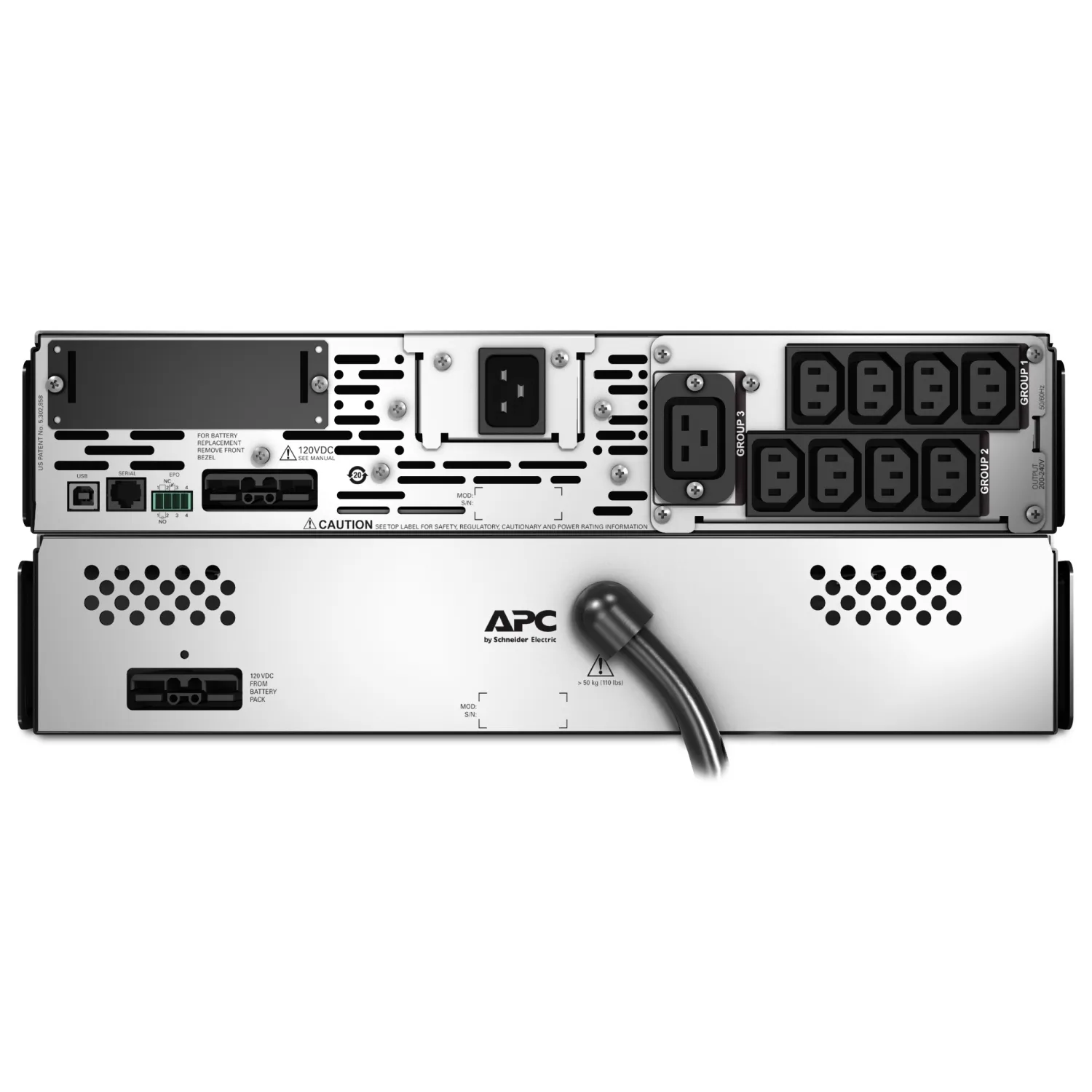

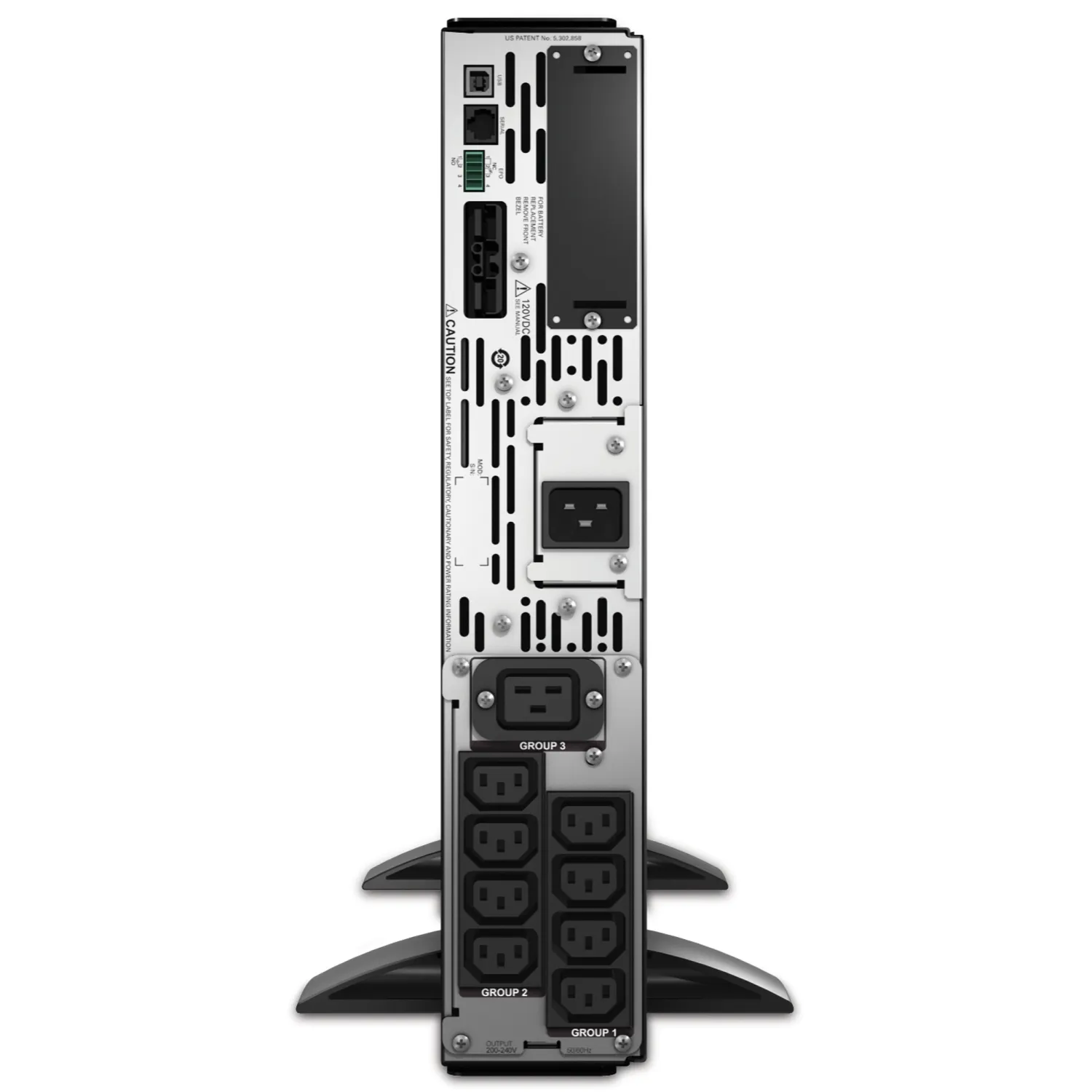

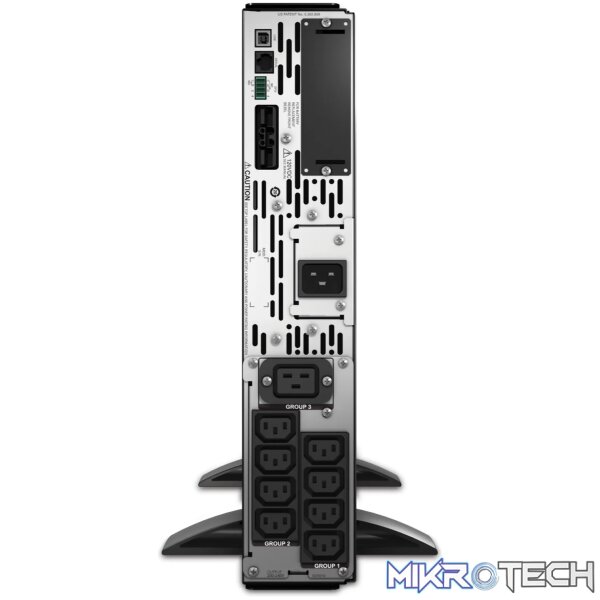

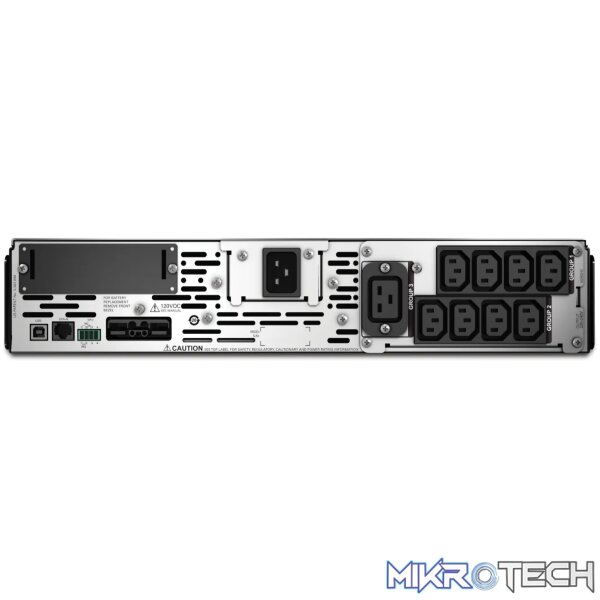

| AC outlet types | C13 coupler,C19 coupler |
| Surge protection | Y |
| Hold time (max) | 10 |
| Hold time (min) | 2 |
| Number of output IEC jumpers | 2 |
| AC outlets quantity | 9 |
| Power plug | C20 coupler |
| Automatic battery test | Y |
| Cable length | 1.83 |
| Nominal output voltage | 230 |
| Products per pallet | 8 |

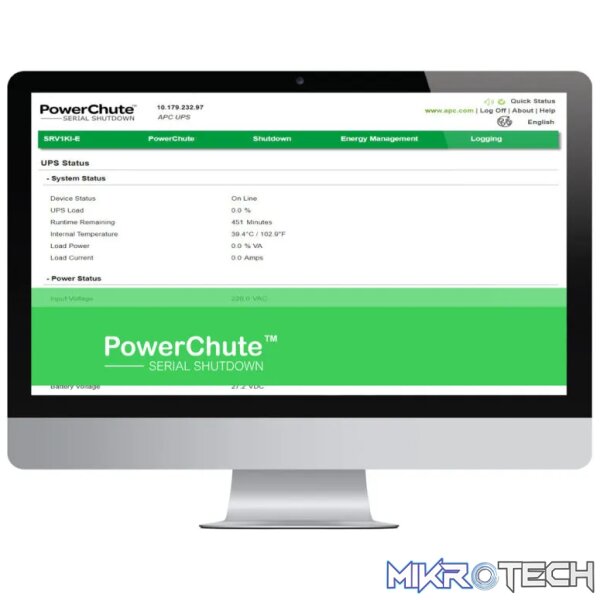

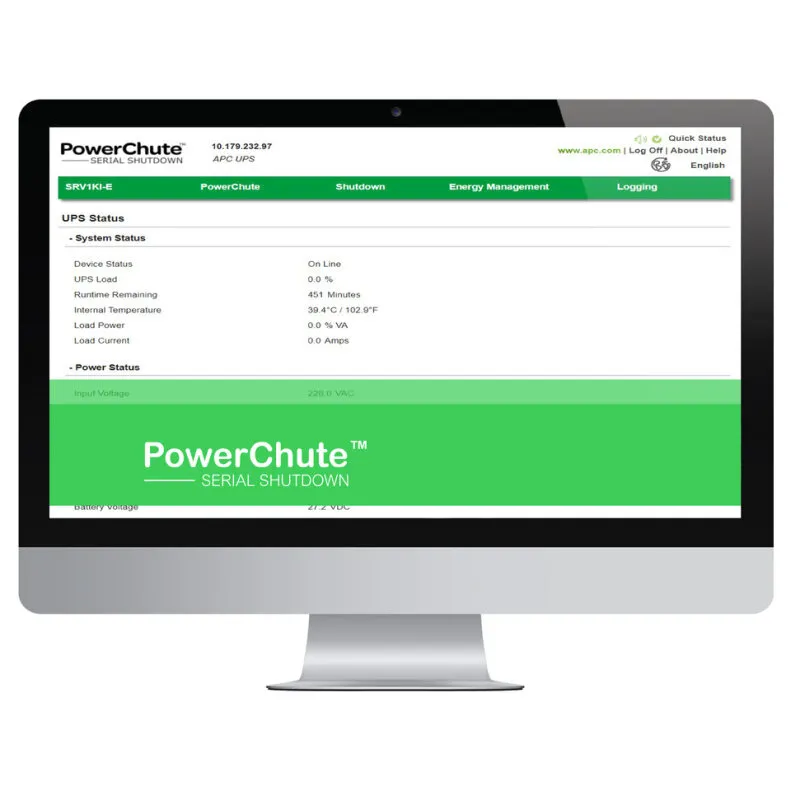

| Software CD | Y |
| LED indicators | Battery replacement |
| Nominal input voltage | 230 |

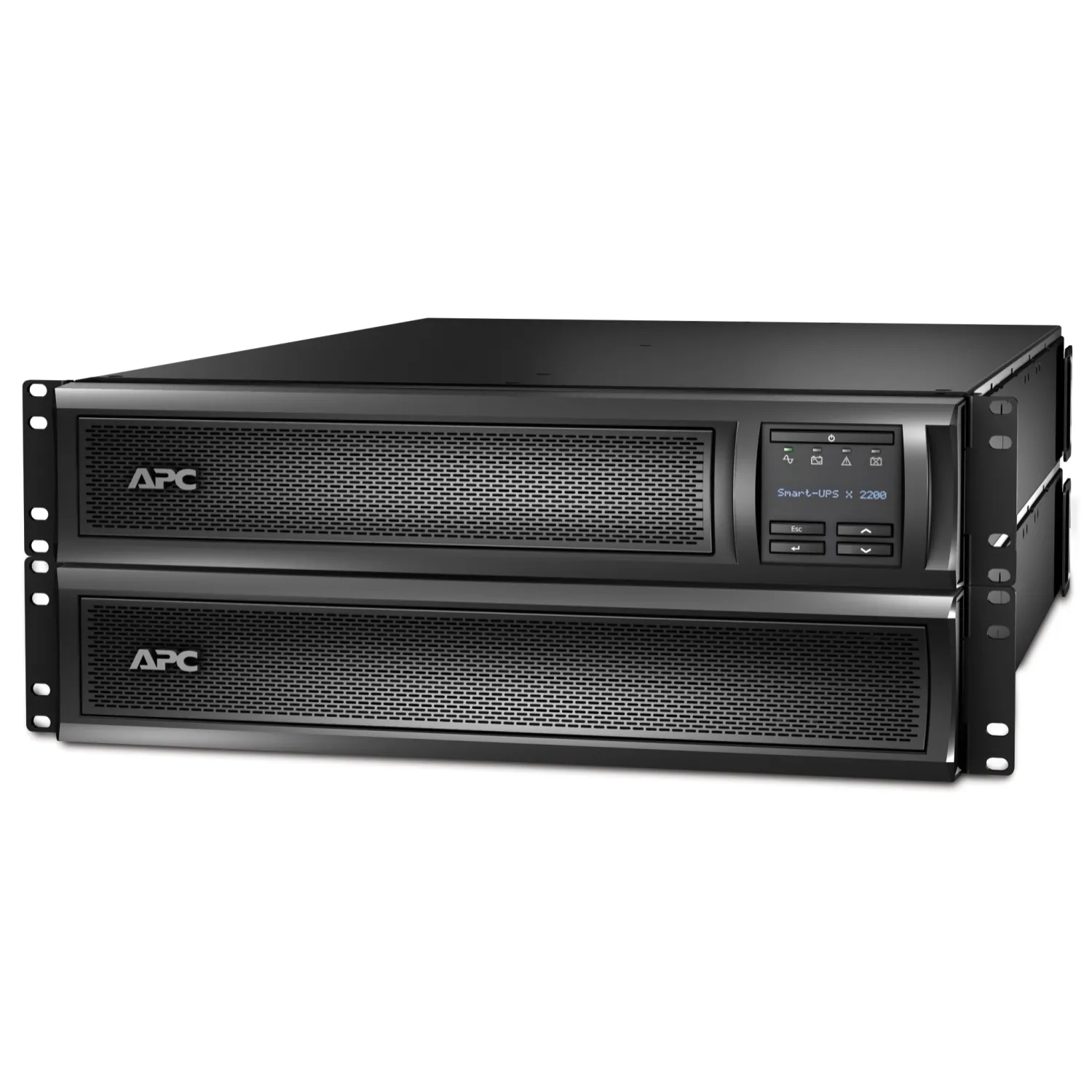

| Rack mount kit | Y |
| SmartSlot | Y |
| Emergency Power Off (EPO) | Y |
| Auto-restart | Y |
| Hot-swap battery | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Width | 432 |
| Non-operating altitude | 0 – 15000 |
| Harmonized System (HS) code | 85078000 |
| Output power capacity | 2.2 |
| Product colour | Black |
| Operating altitude | 0 – 3000 |
| Storage relative humidity (H-H) | 0 – 95 |
| Operating relative humidity (H-H) | 0 – 95 |
| Storage temperature (T-T) | -15 – 45 |
| Operating temperature (T-T) | 0 – 40 |
| Output operation voltage (max) | 240 |
| Output operation voltage (min) | 208 |
| Input frequency | 50/60 |
| Output power | 1980 |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Surge energy rating | 645 |
| Output frequency regulation | 50/60 |
| Manual | Y |
| Cables included | RS-232,USB cable |
| Rack capacity | 2U |
| USB port | Y |
| Noise level | 55 |
| Weight | 37320 |
| Depth | 667 |
| Height | 85 |
| Package weight | 45360 |
| Form factor | Rackmount/Tower |
| Battery technology | Sealed Lead Acid (VRLA) |
| Package width | 596 |
| Package height | 243 |
| Package depth | 869 |
| Response time | 4 |
| Efficiency | 98.1 |
| Battery capacity | 702 |

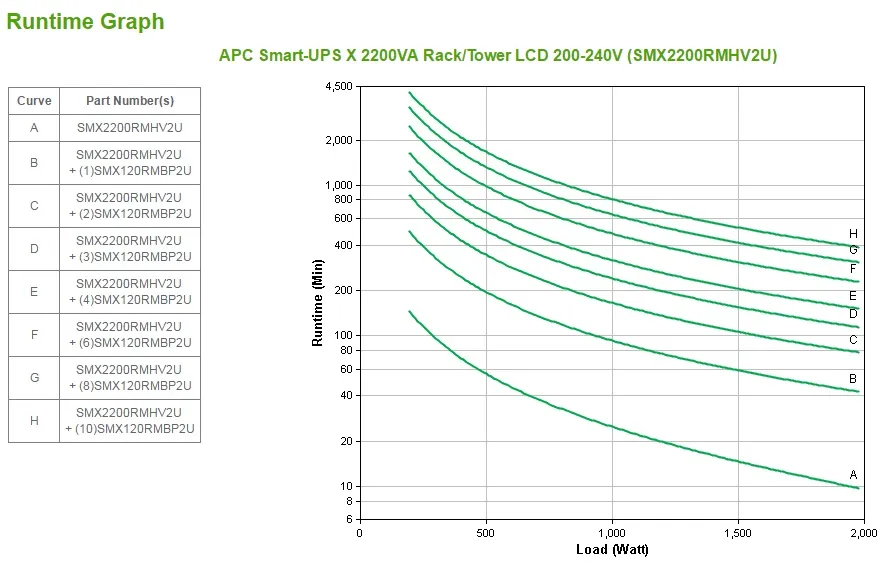

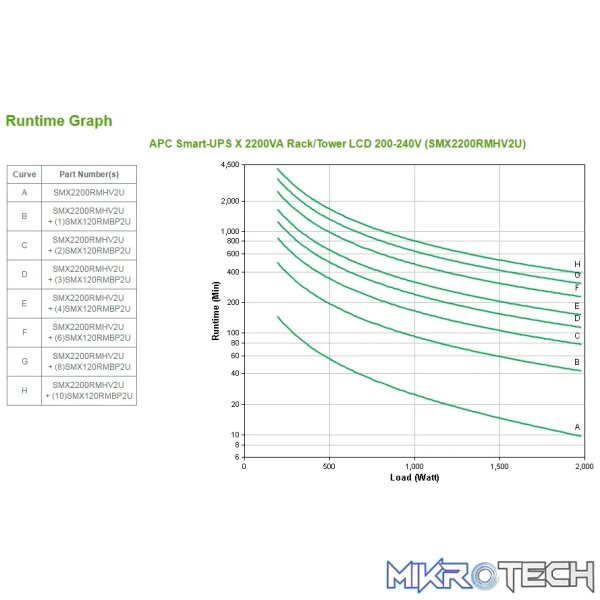

| Typical backup time at full load | 9.8 |
| Typical backup time at half load | 25.3 |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Sustainability certificates | Green Premium,RoHS |
Product Specifications
| Weight | 44.2000 kg |
|---|---|
| Dimensions | 87.0000 × 60.0000 × 25.0000 cm |
