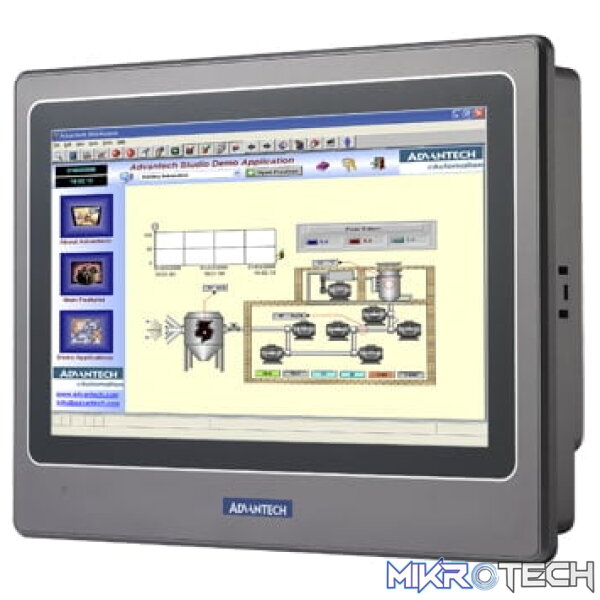

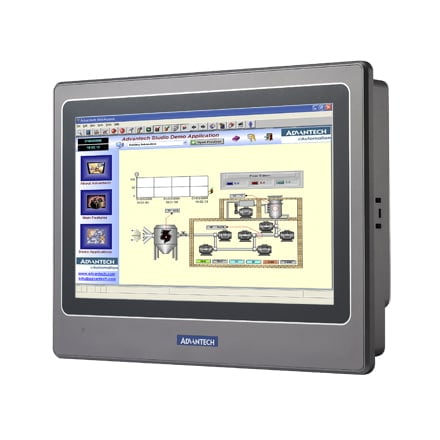

ADVANTECH 7″ WVGA 64MB

ADVANTECH 7” WVGA

Various LCD sizes (4.3, 5.6, 7, 8, 10.1″)
Supports ARM9-based CPUs with 200MHz and 128MB flash memory
Supports RTC, battery backup RAM, and Ethernet-based operator panels
Support runtime data downloads through Serial, Ethernet, USB
Supports adjustable brightness controls via touch panel
Reliable firmware for 24/7 operation
Supports Windows XP/7/Vista-based WebOP Designer development tool
Easy to switch one application to different LCD sizes in second
Supports vertical and horizontal application screen rotation
Supports over 300 PLC industrial communication protocols
Communicates with up to four types of devices
Panel mounting for machinery
Front panel is IP66 compliant

Specifications:
Display:
Size: 7″
Max. Resolution: 800 x 480

General:
Power Consumption: 10 W
Mounting: Panel Mount
Certifications: CE, BSMI, CCC, UL, FCC Class A
Dimensions: 188 x 143.3 x 30 mm (7.4″ x 5.64″ x 1.18″)
Weight (Net): 0.6 kg (1.32 lbs)
OS Support: HMI RTOS, WebOP Designer
Power Supply: 24VDC ±10%

System Hardware:
Battery Backup Memory: 128KB

Environment:
Temperature (Operating): 0 ~ 50°C (32 ~ 122° F)
Temperature (Storage): -20 ~ 60°C (-4 ~ 140° F)
