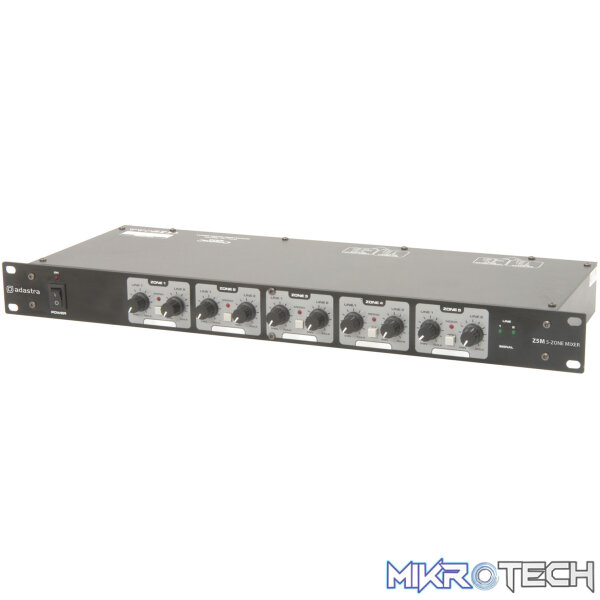

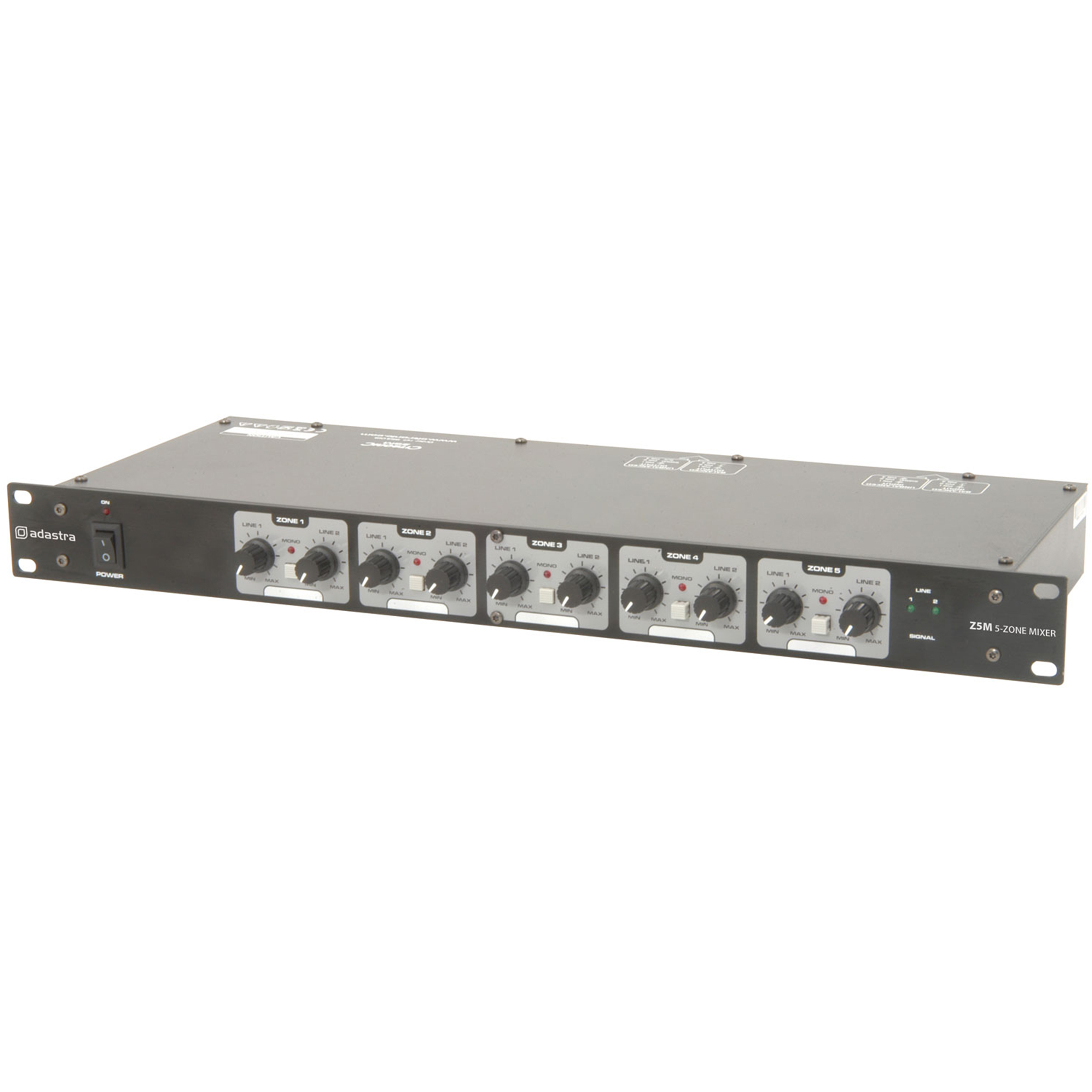

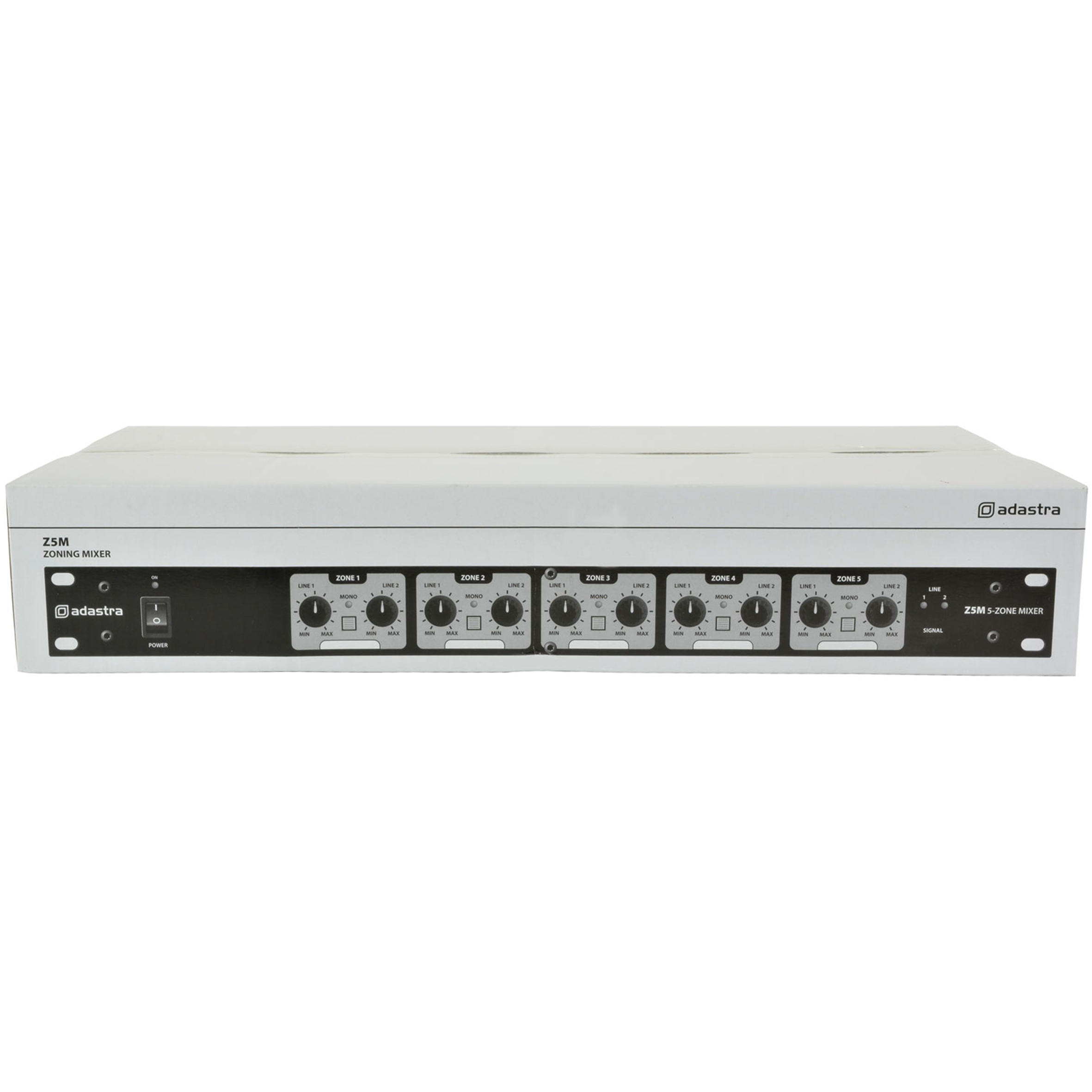

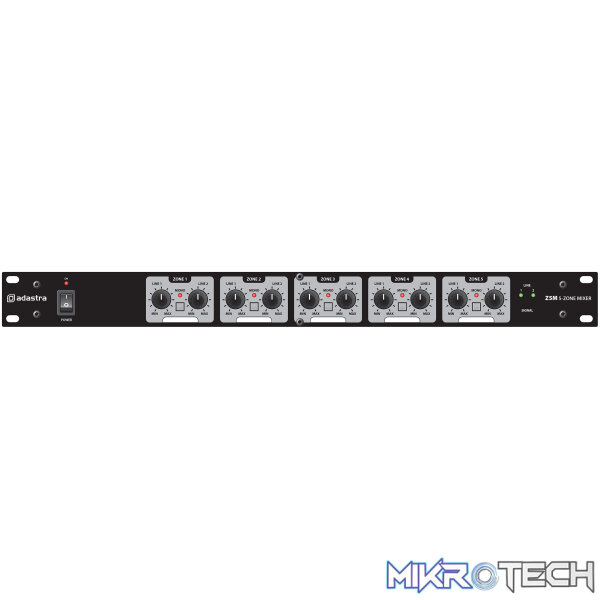

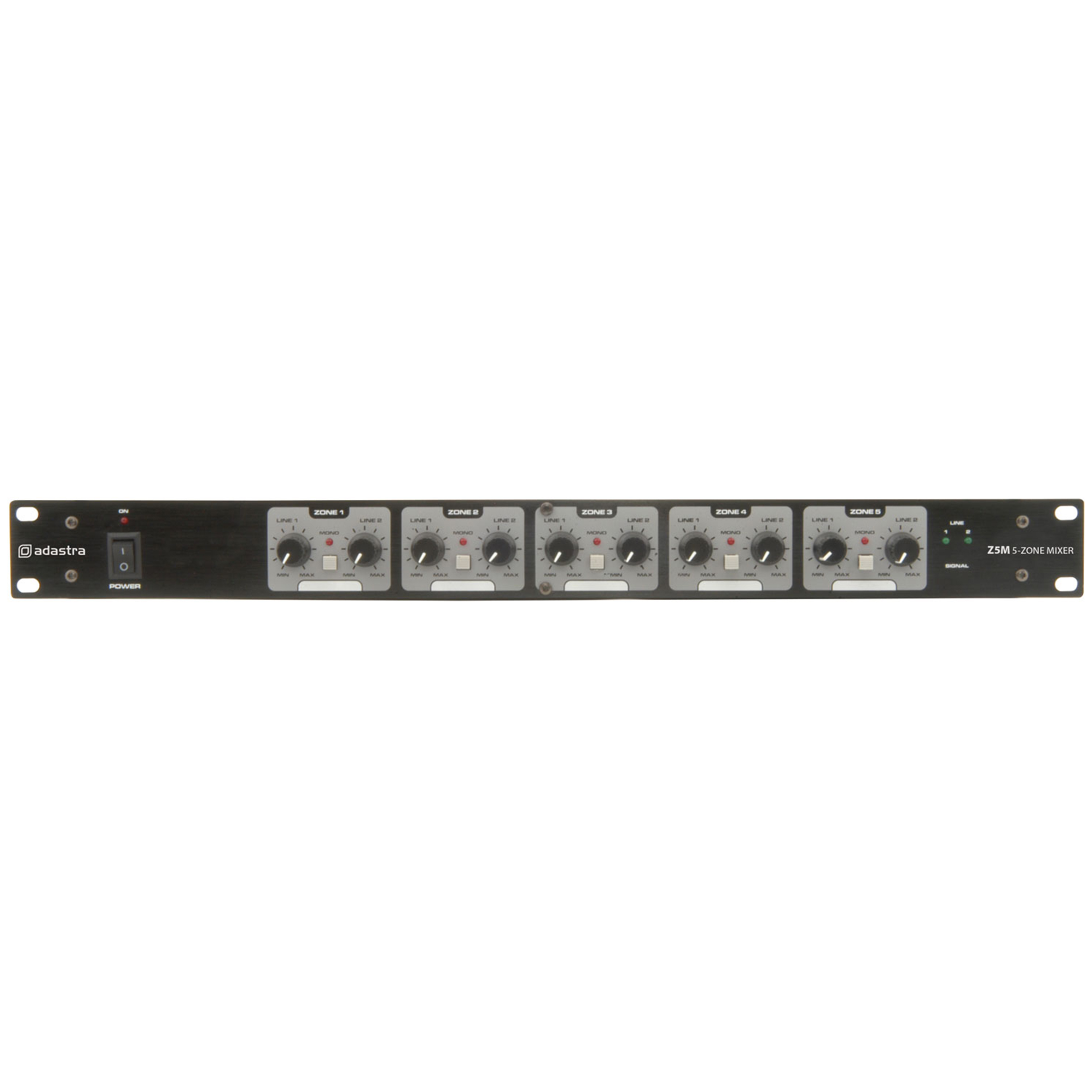

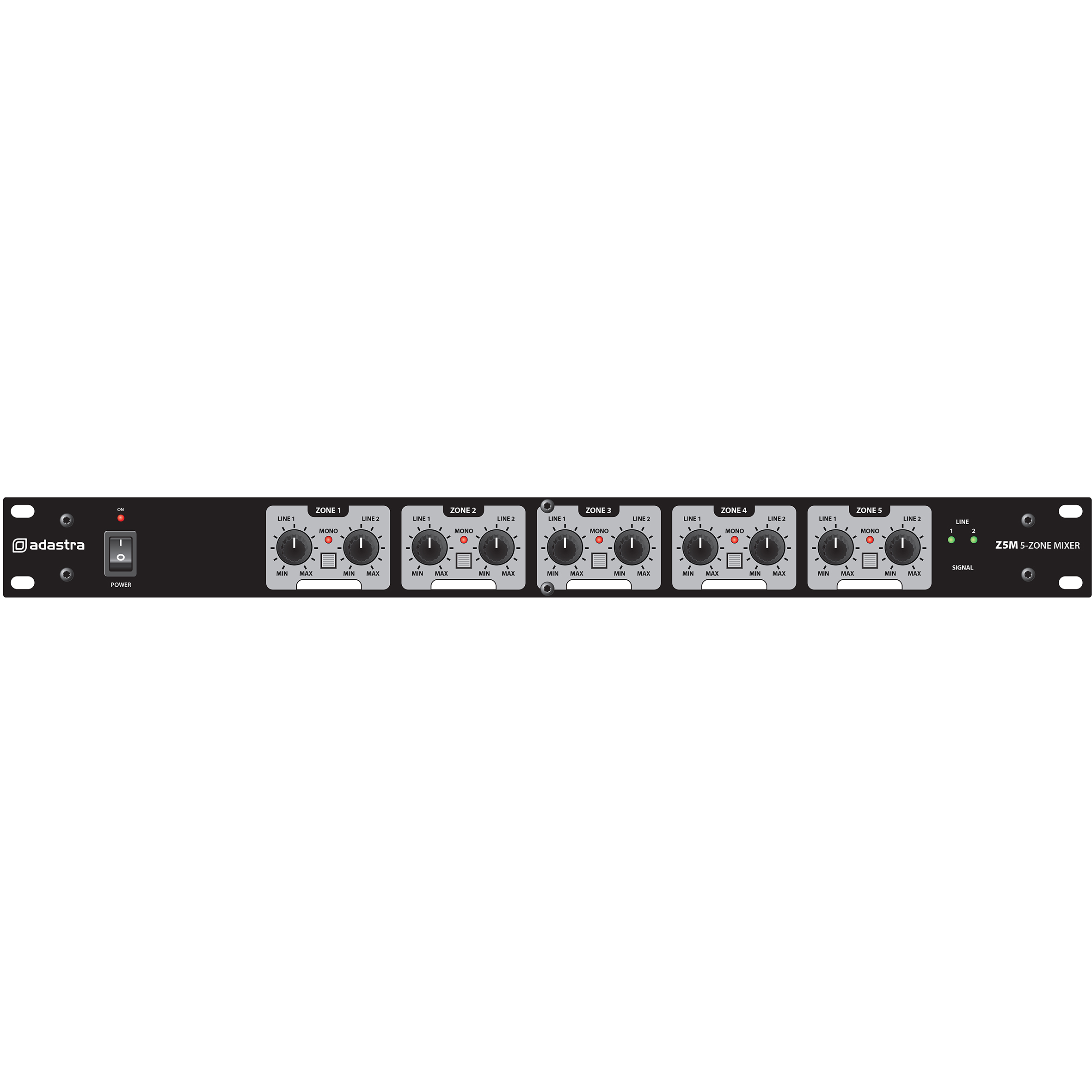

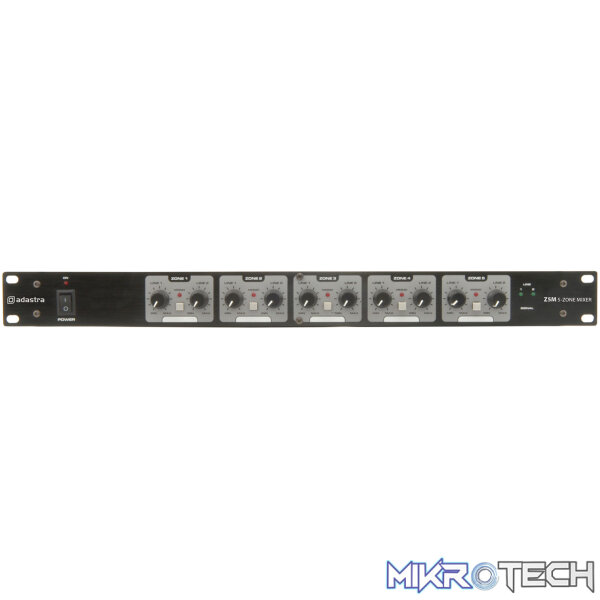

Adastra – Z5M Zoning Mixer

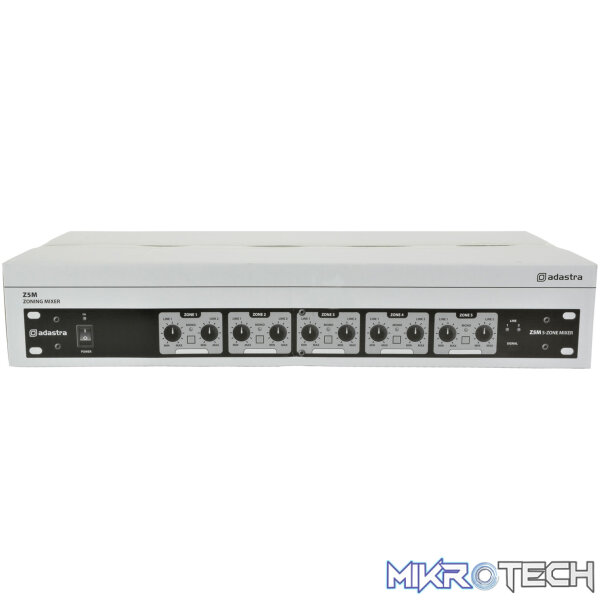

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

FEATURES:

• Fully balanced XLR connections
• 2 inputs to 5 zones
• Mono selectable for each zone

SPECIFICATIONS:

• Power supply:
  115/230Vac 50/60Hz (IEC)
• Inputs:

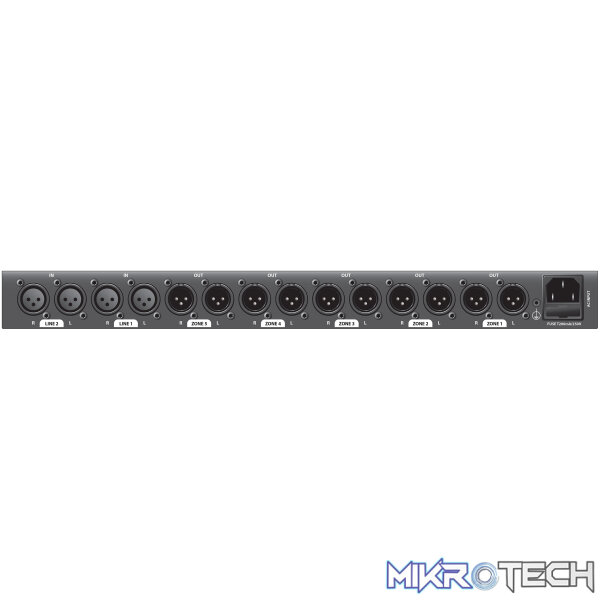

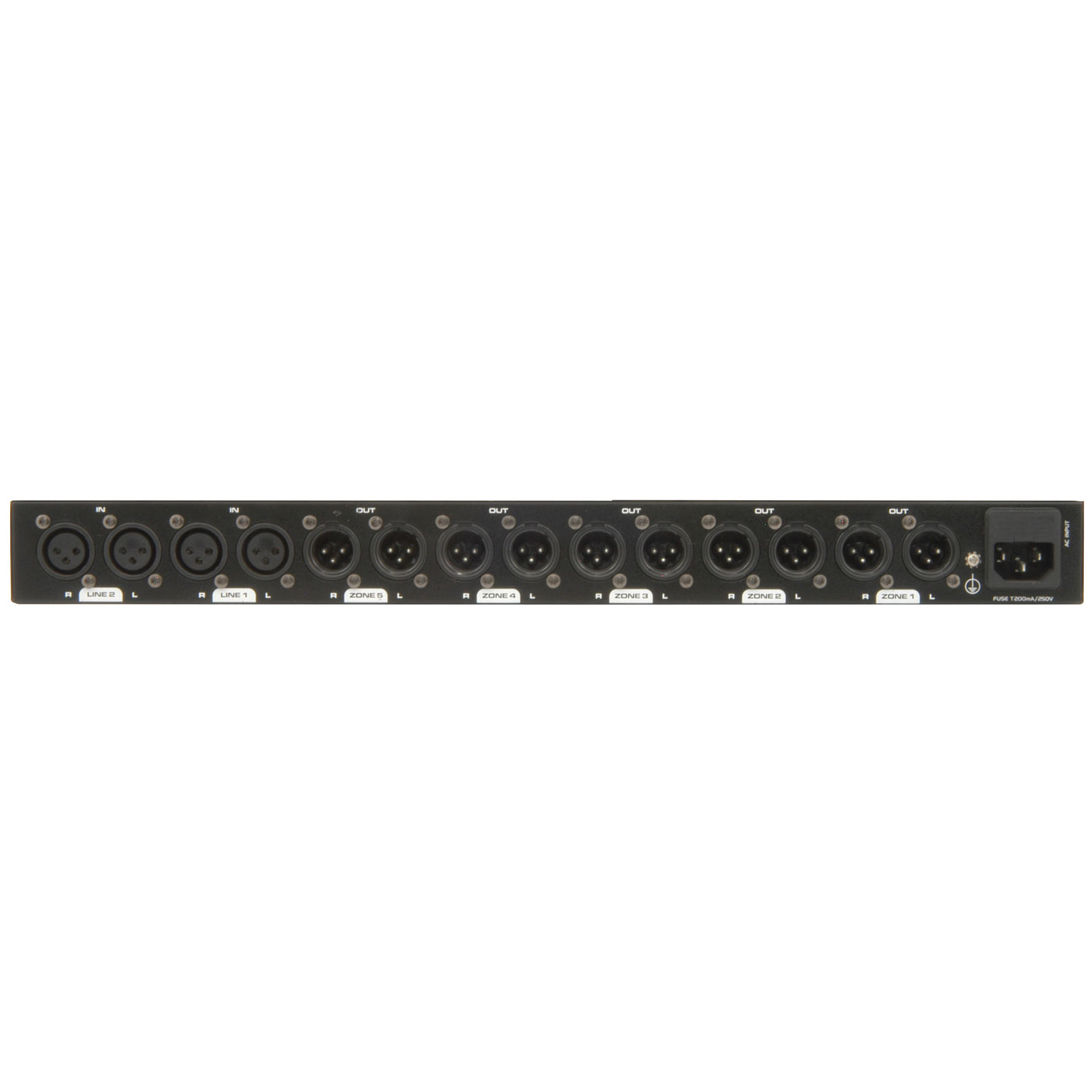

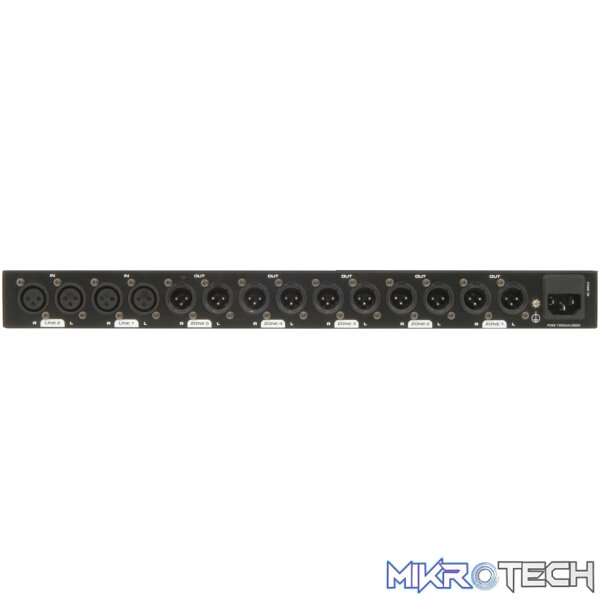

  Line 1 L+R, Line 2 L+R, balanced XLRF

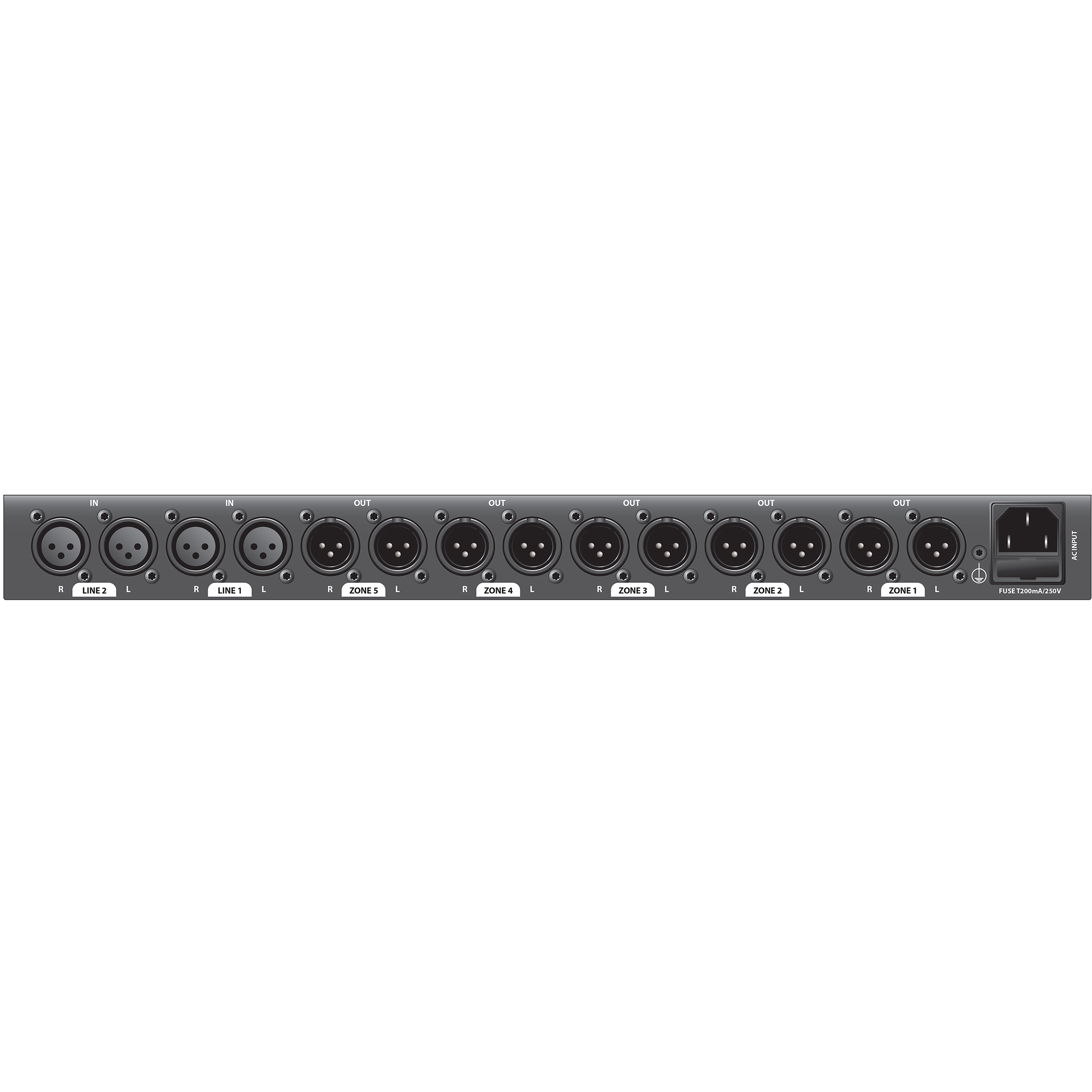

• Outputs:
  Zone 1 to 5 L+R, balanced XLRM
• Input impedance:
  40k Ohms
• Output impedance:
  220 Ohms
• Frequency response:
  20Hz – 25kHz, +0/-1dB
• Signal to noise ratio:
  >100dB
• THD:
  <0.005%
• Dimensions:
  483 x 175 x 44mm
• Weight:
  2.2kg
