Adastra – Rz45 Remote Zone Audio Matrix

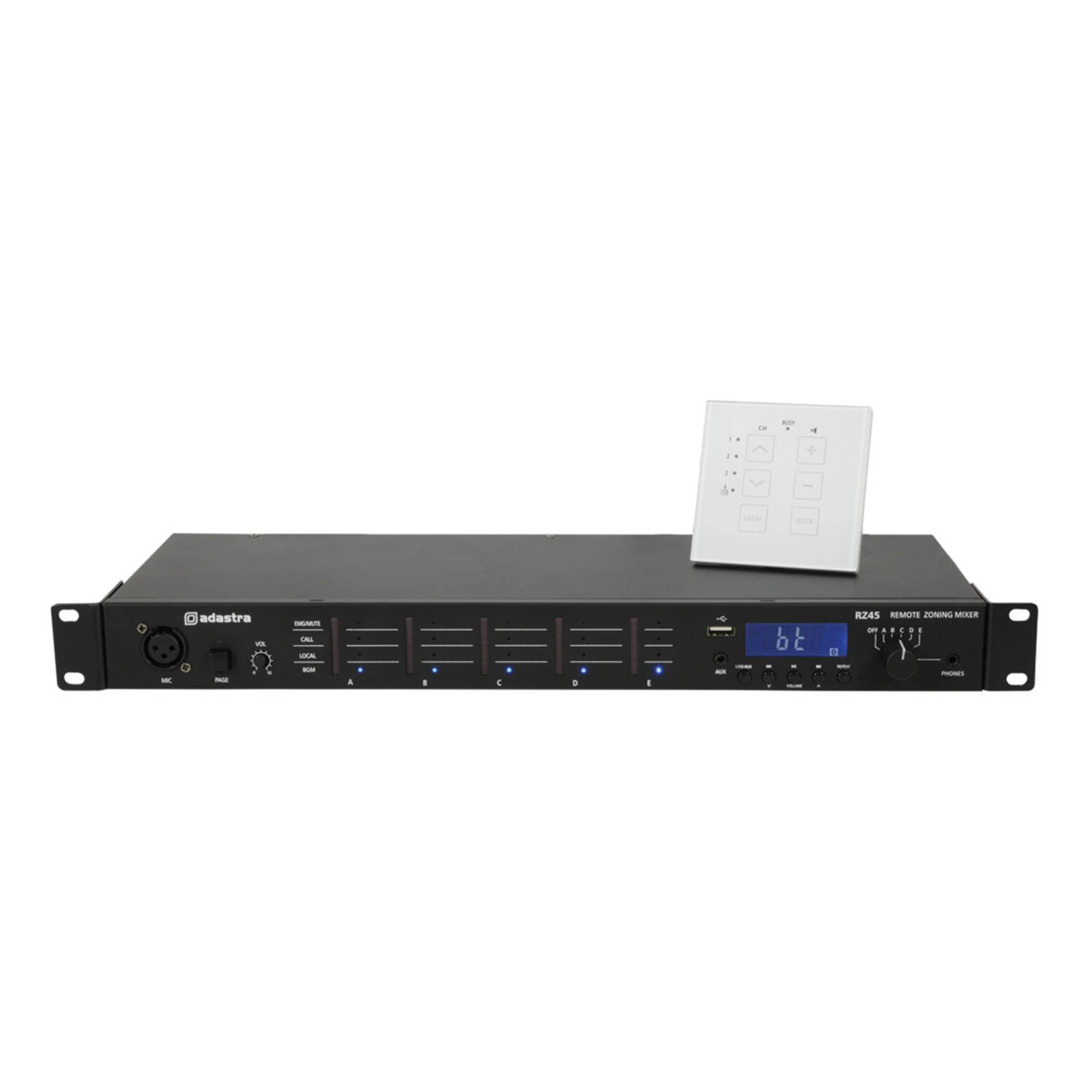

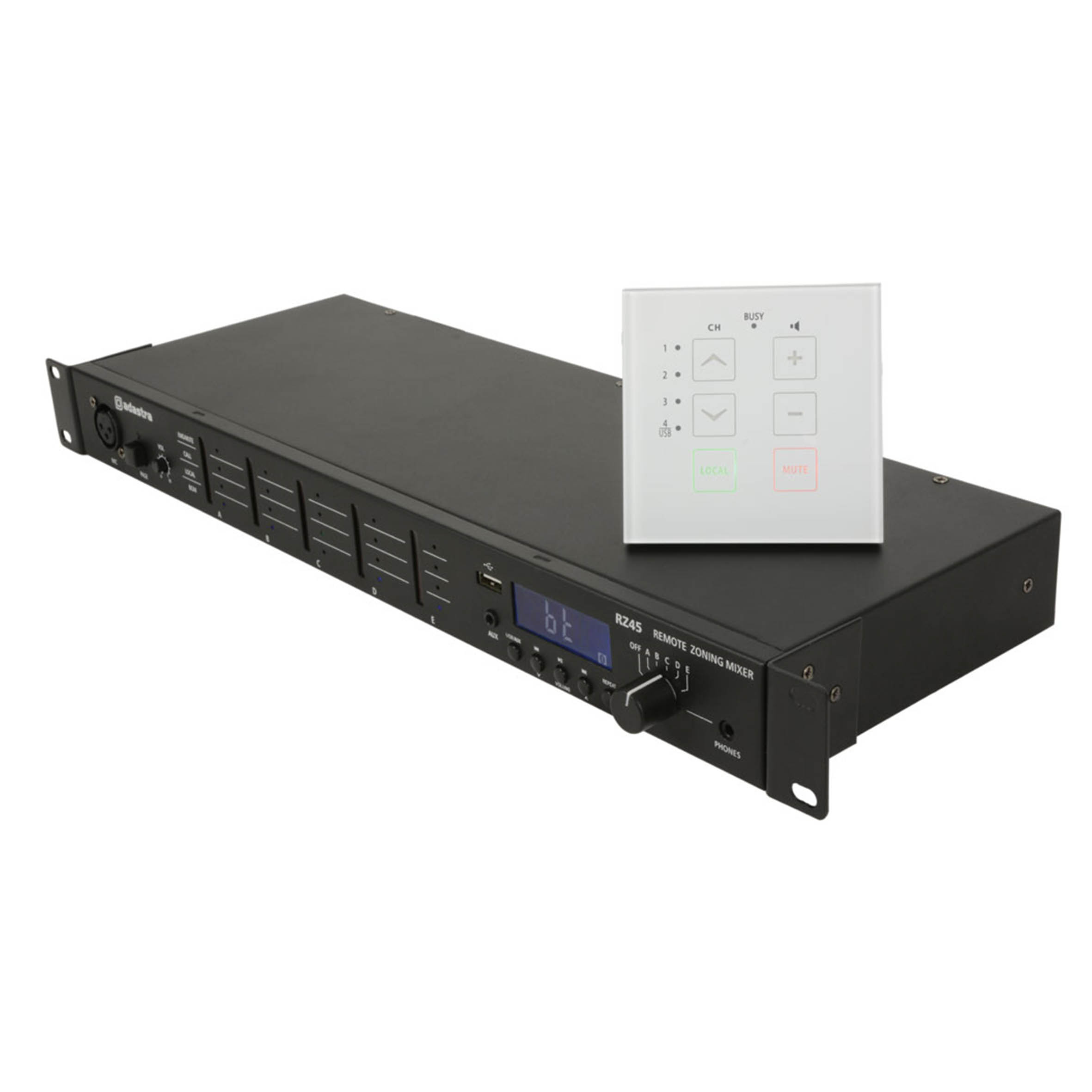

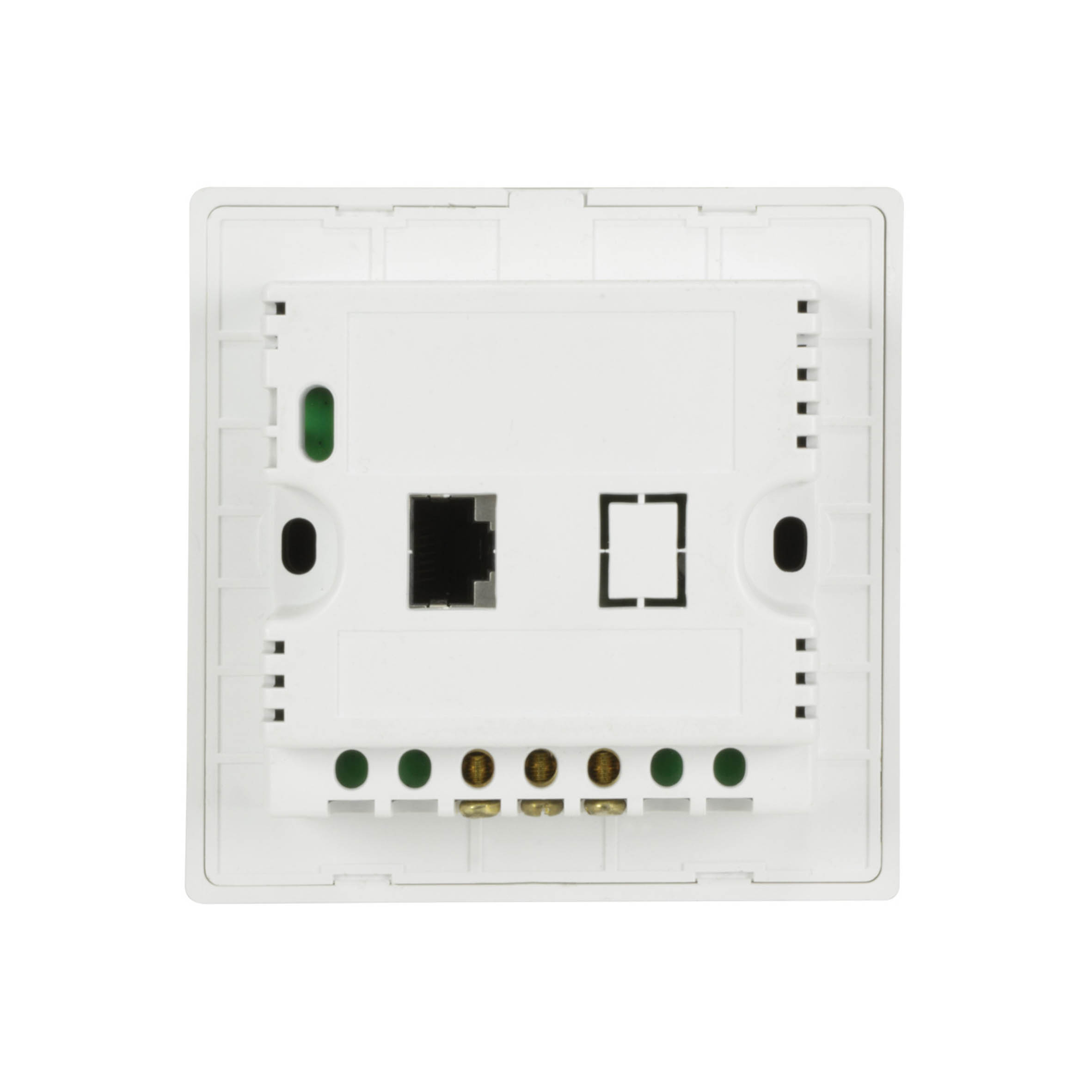

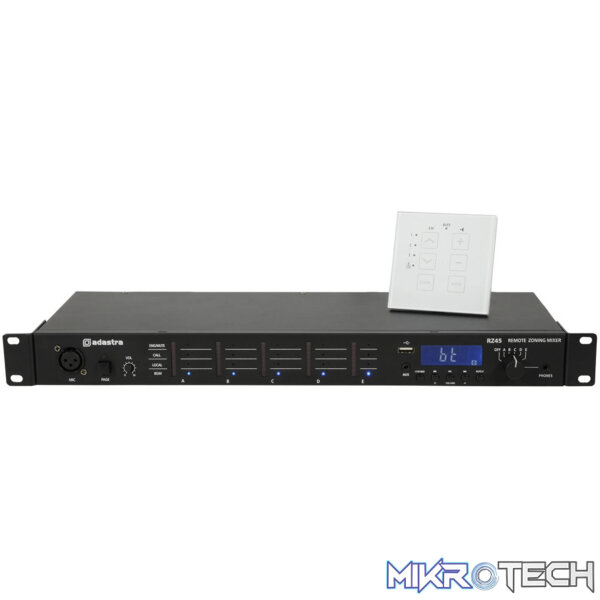

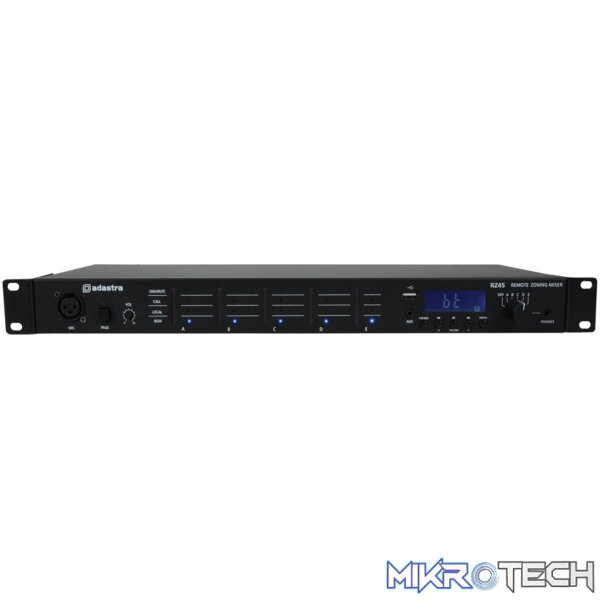

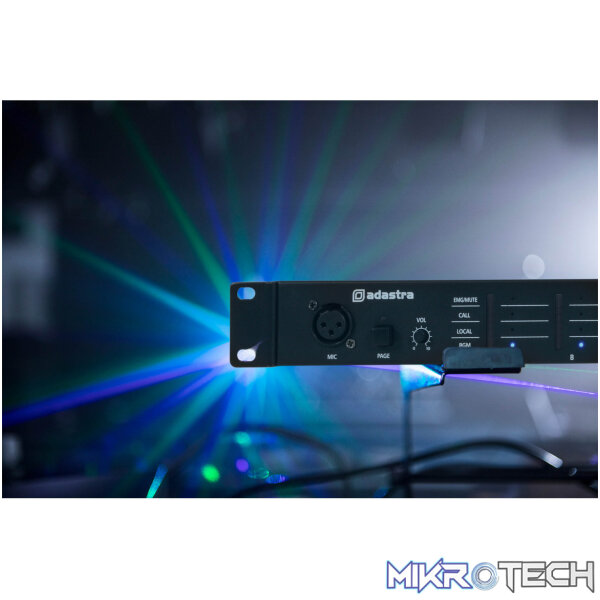

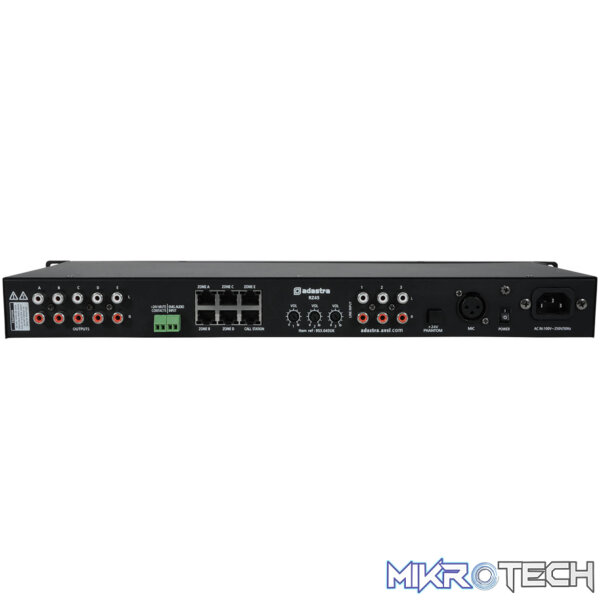

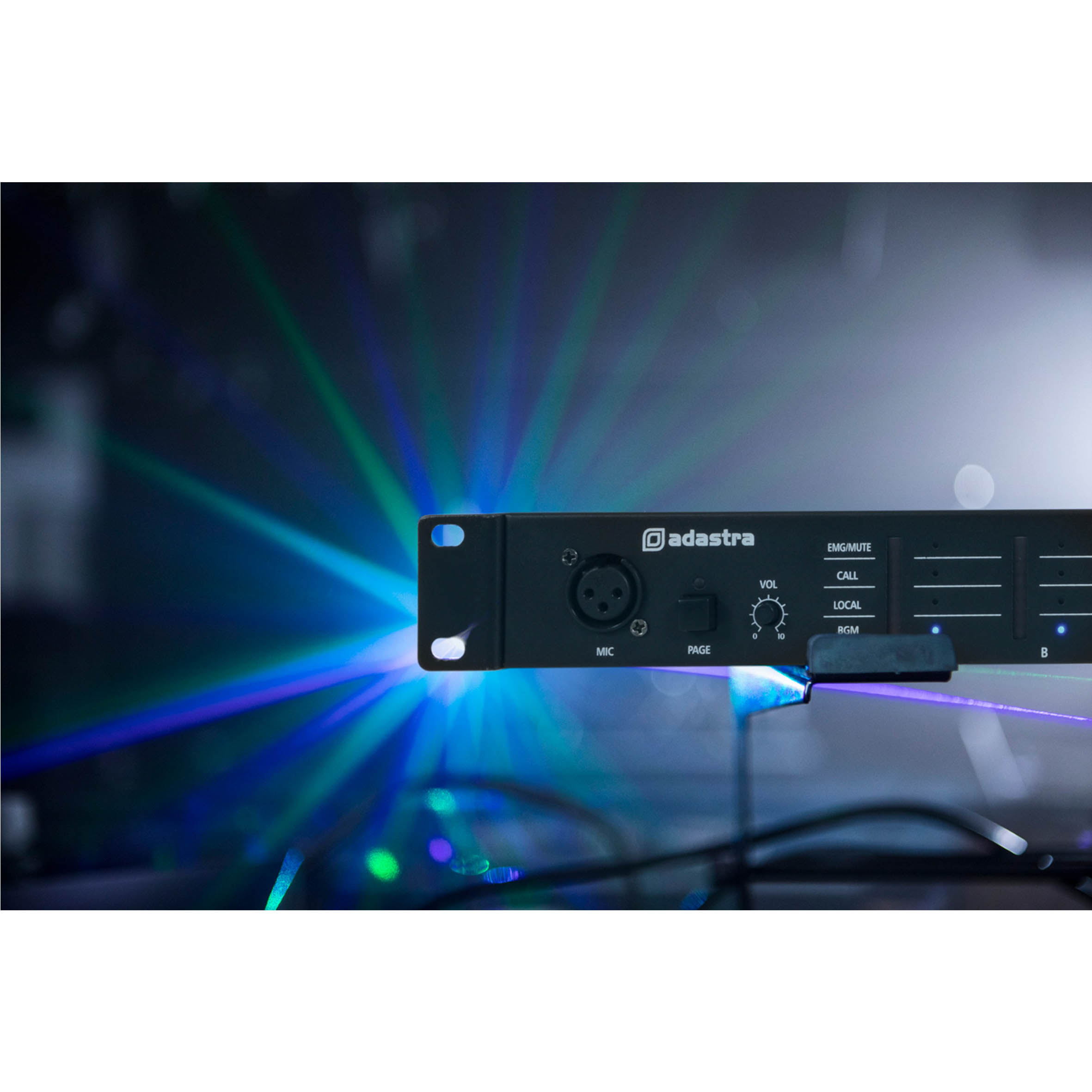

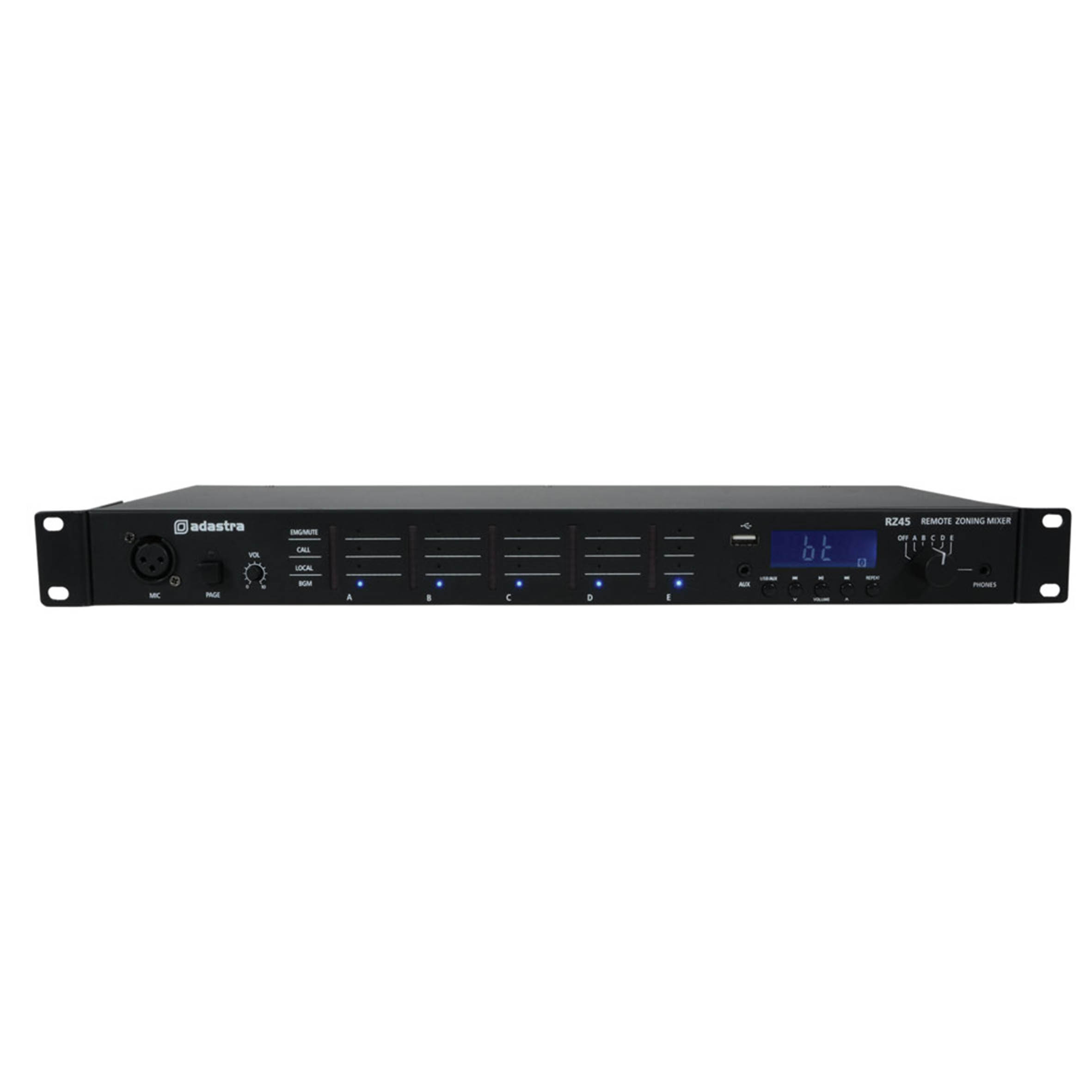

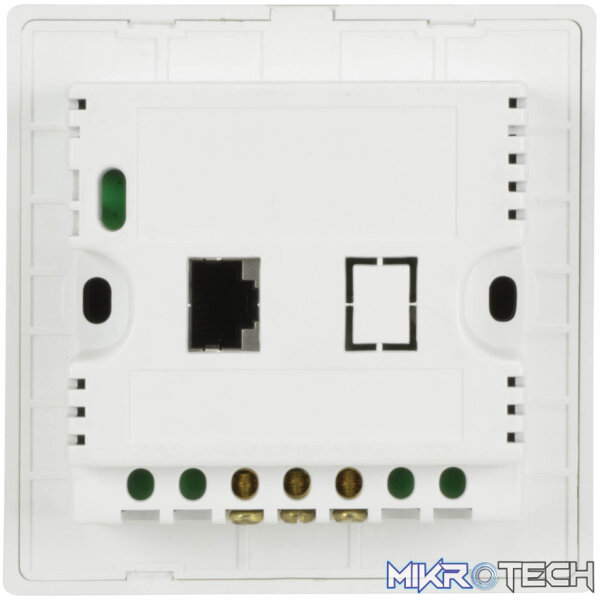

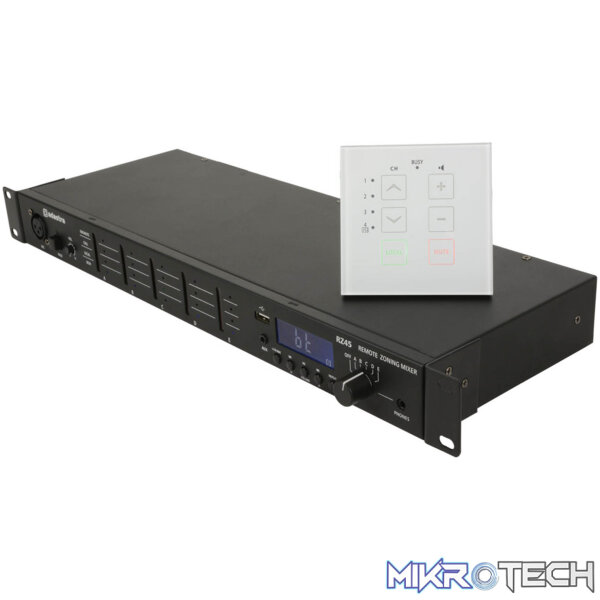

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

FEATURES:

• Up to 5 remotely operated zones
• Remote wiring via standard network type cable
• 4 selectable input sources or local audio to any zone
• Inbuilt USB audio player with Bluetooth
• Emergency mute and audio in contacts
• Supplied with one touch remote wall plate (expandable up to 5)

SPECIFICATIONS:

• Power supply:
  100-240Vac, 50/60Hz (IEC lead included)
•
  Fuse:
  T1AL
•
  Audio source:
  USB/Bluetooth media player
•
  Bluetooth version:
  v2.0
•
  Inputs Paging mic:
  (XLR) + 3 x stereo line (RCA)
•
  Microphone :
  input sensitivity -41dBV
•
  Line input:
  sensitivity -12.5dBV
•
  Call station input:
  sensitivity +4dBV
•
  Emergency control:
  24V mute contacts and emergency audio input
•
  EMG input:
  sensitivity -10dBV
•
  Signal to noise ratio:
  mic 65dB
•
  Signal to noise ratio:
  line 73dB
•

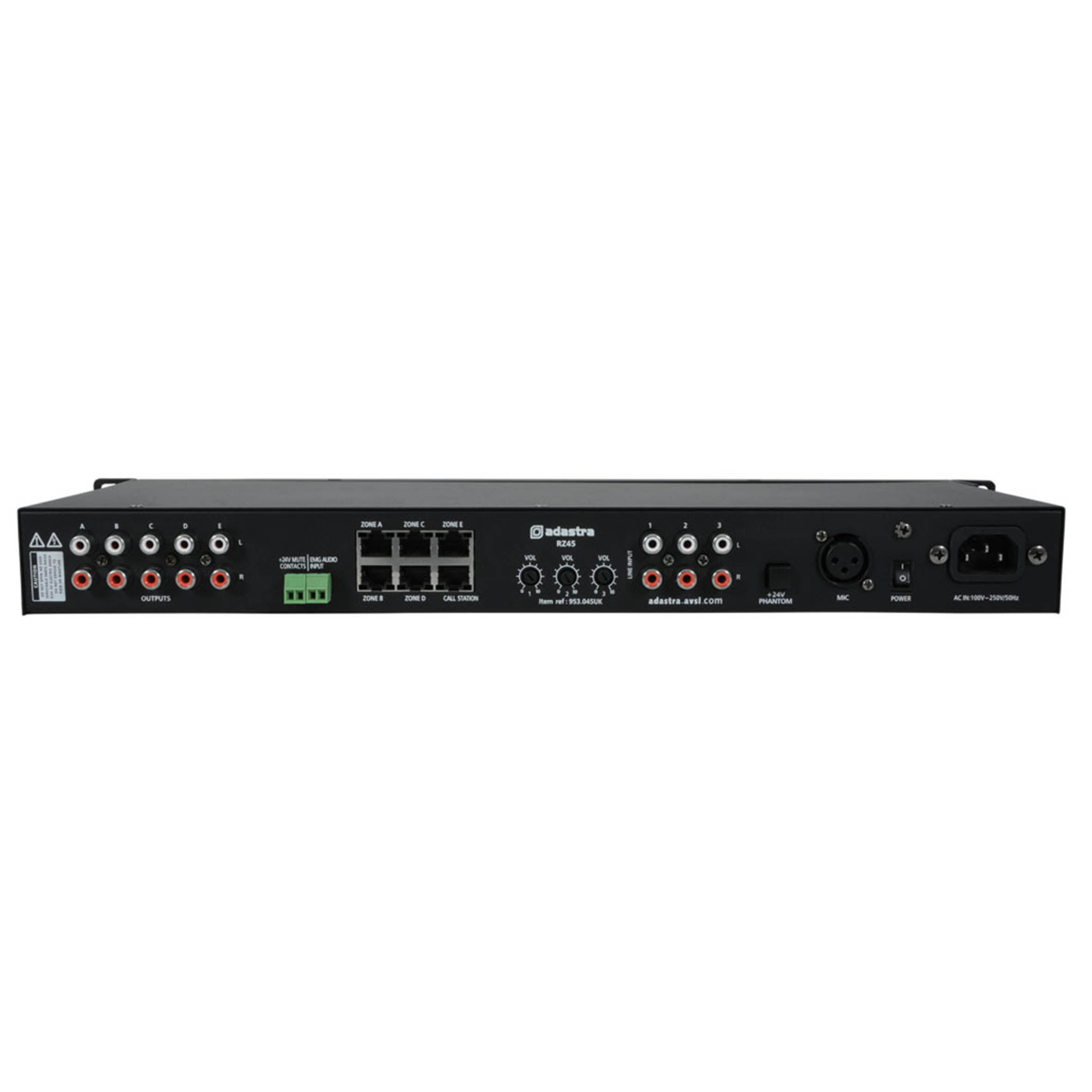

  Outputs 5 x stereo zones:
  (RCA)
•
  Output impedance:
  line 600 ohms
•
  THD +N <0.1% @:
  1kHz
•
  Monitor outputs Stereo:
  3.5mm headphone jack (assignable)
•
  Phantom power :
  +24V switchable for paging mic.
•
  Remote control connection:
  8P8C (RJ45)
•
  Frequency response:
  ±3dB 20Hz – 20kHz
•
  Attenuation:
  -30dB (paging)
•
  Dimensions:
  483 x 177 x 44mm
•
  Weight:
  1.76kg
