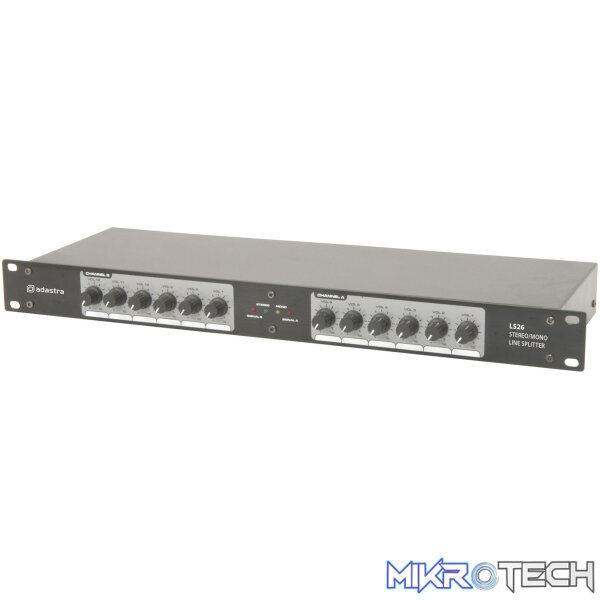

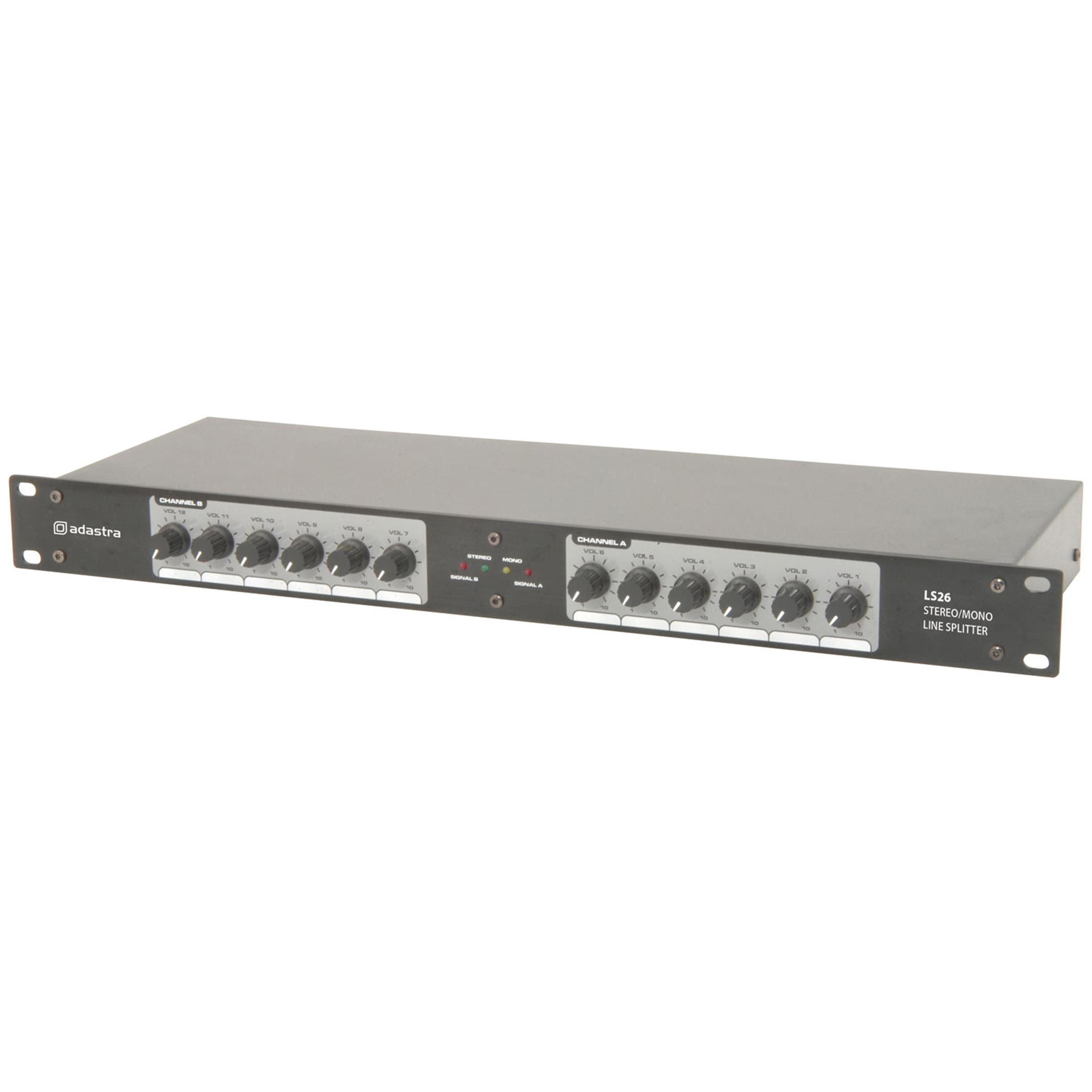

Adastra – Ls26 Line Splitter

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

FEATURES:

• Up to 12 outputs from 1 or 2 inputs

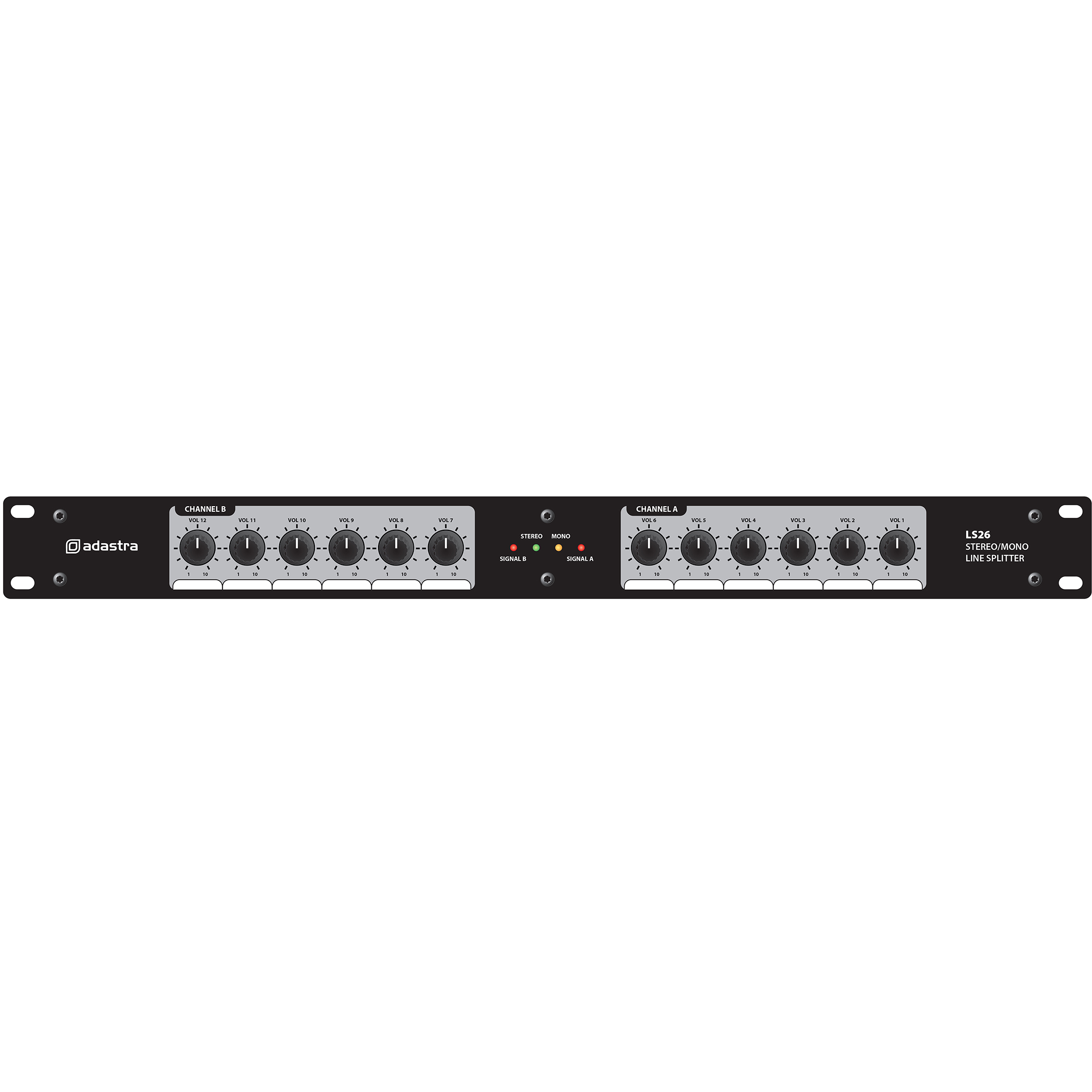

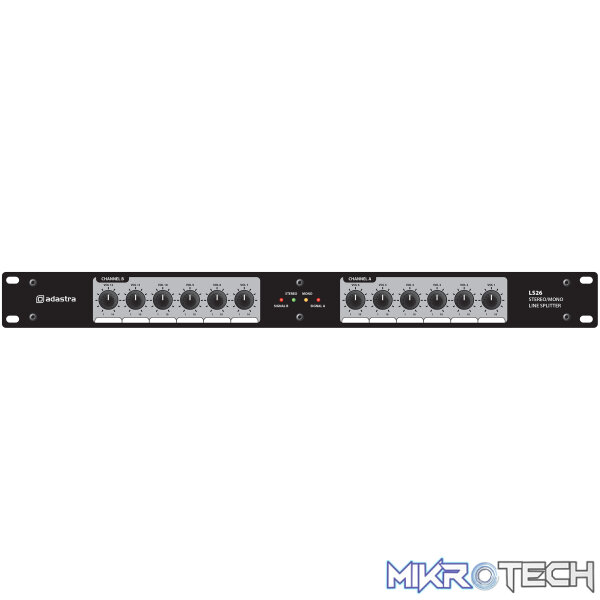

• Individual volume control for each output
• Input peak LEDs

SPECIFICATIONS:

• Power supply:
  115/230Vac, 50/60Hz (IEC)
• Inputs:
  A & B, (6.3mm jack)

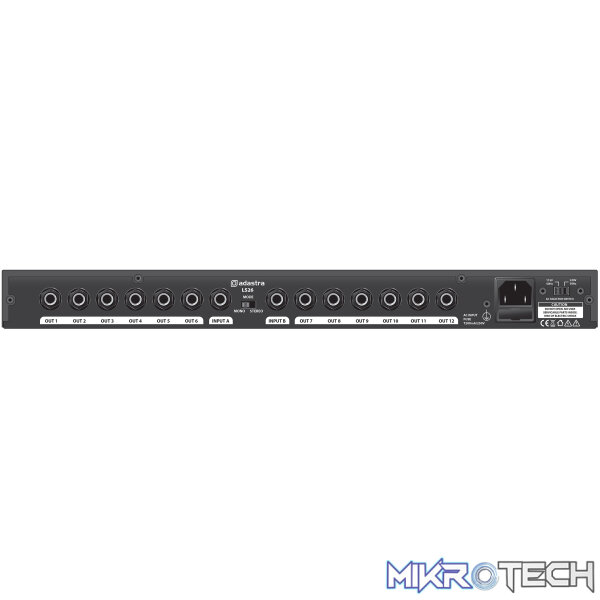

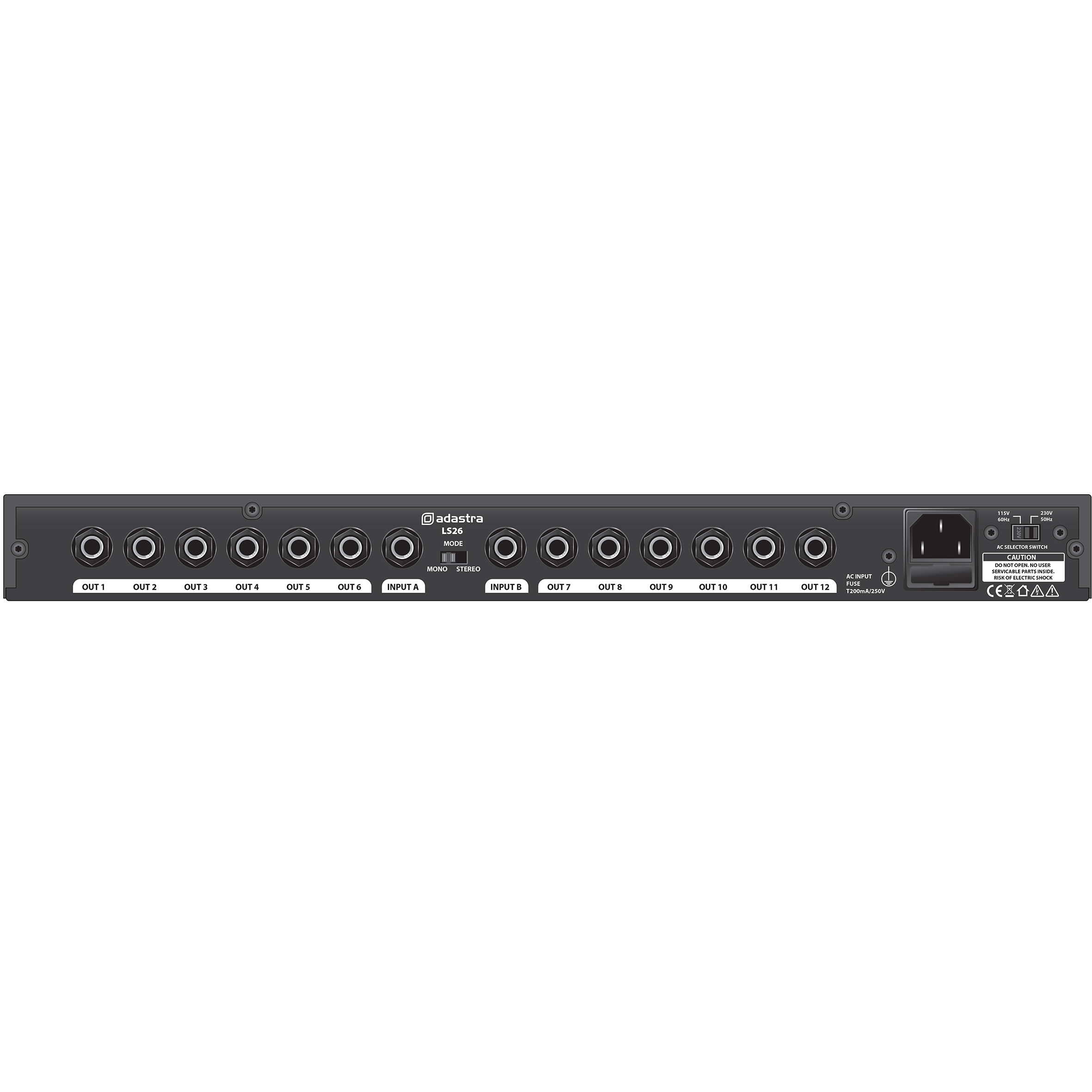

• Outputs:
  1 – 6 & 7 – 12 (6.3mm jack)
• Input impedance:
  20k Ohms
• Output impedance:
  220 Ohms
• Frequency response:
  20Hz – 20kHz, +0/-1dB
• Signal to noise ratio:
  >95dB
• THD:
  <0.008%
• Dimensions:
  483 x 44 x 170mm
• Weight:
  2.0kg
