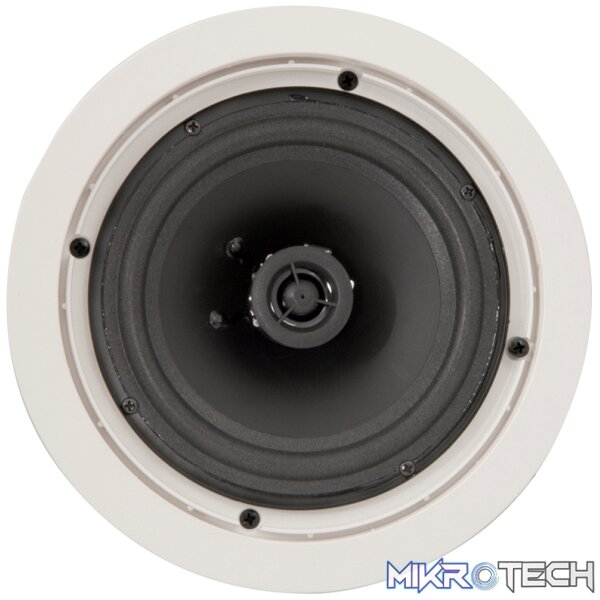

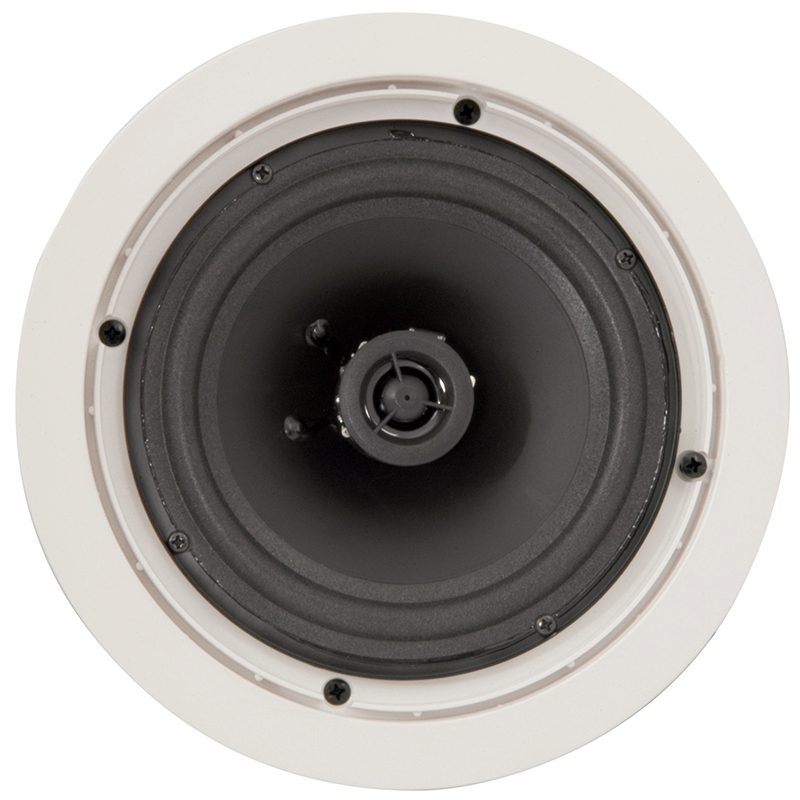

Adastra – Cc6V 2 Way 100V Ceiling Speaker

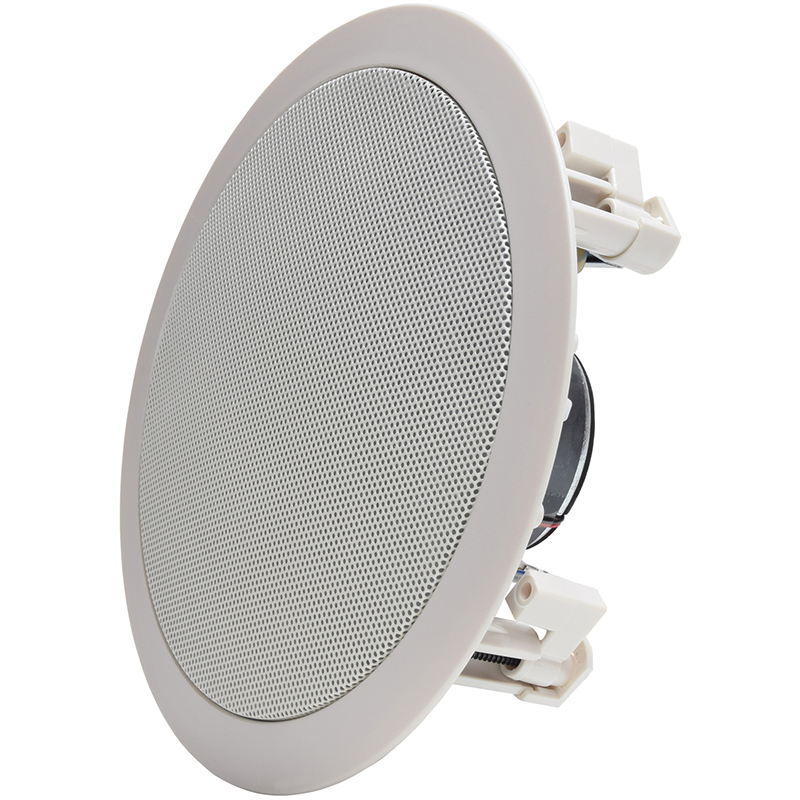

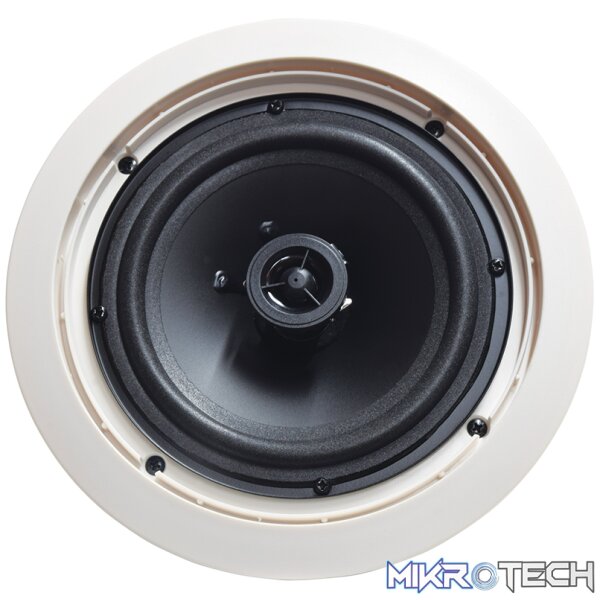

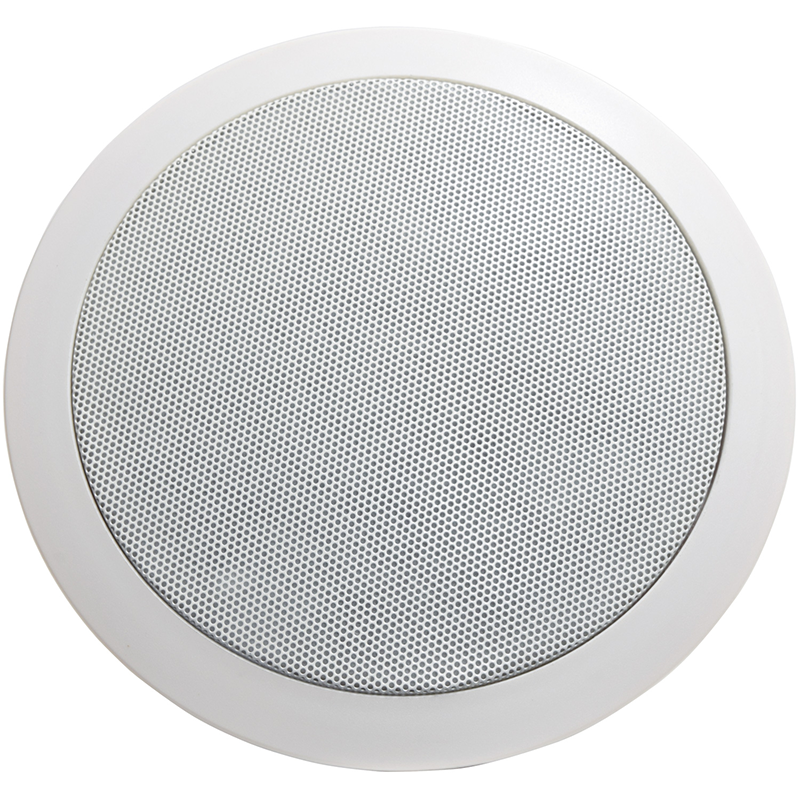

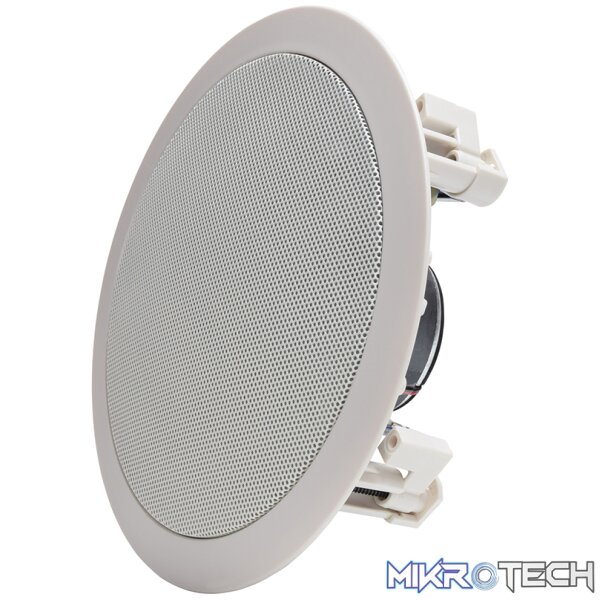

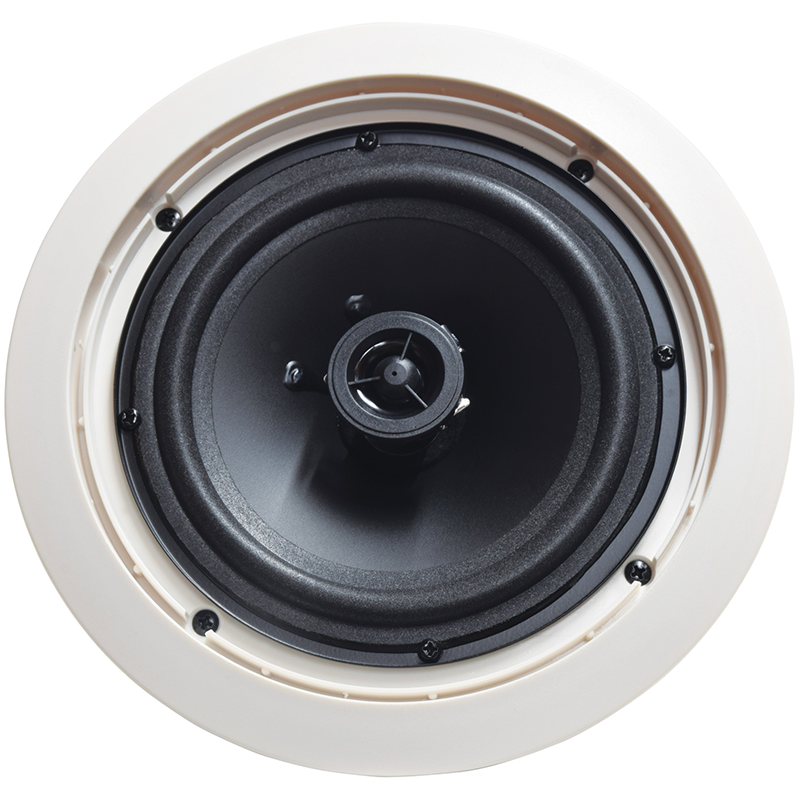

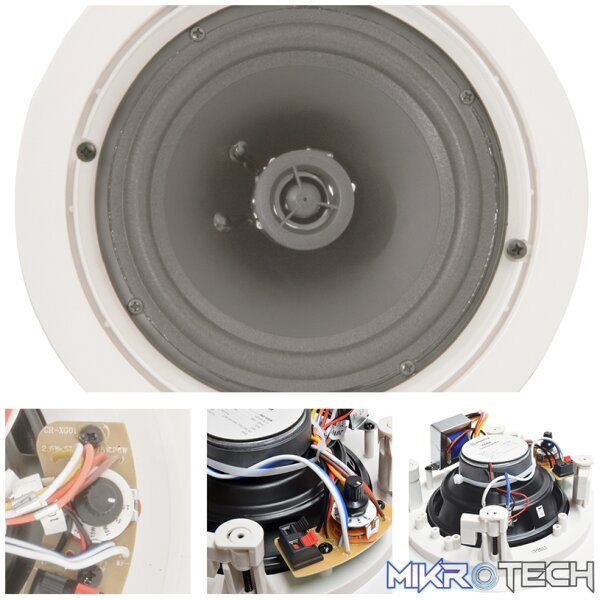

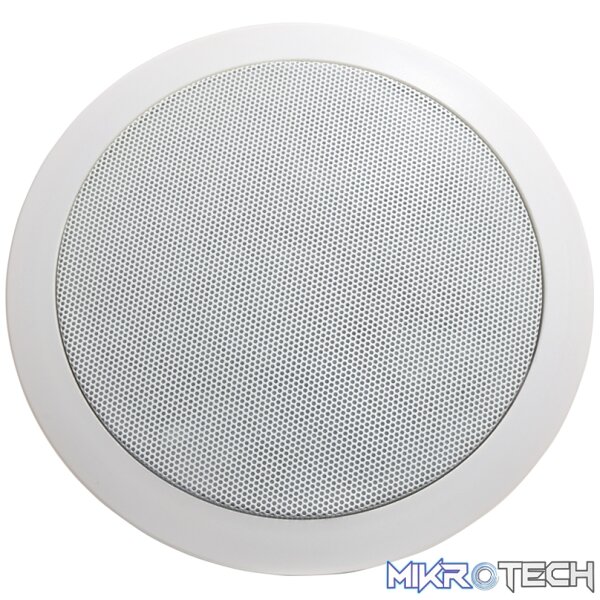

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

FEATURES:

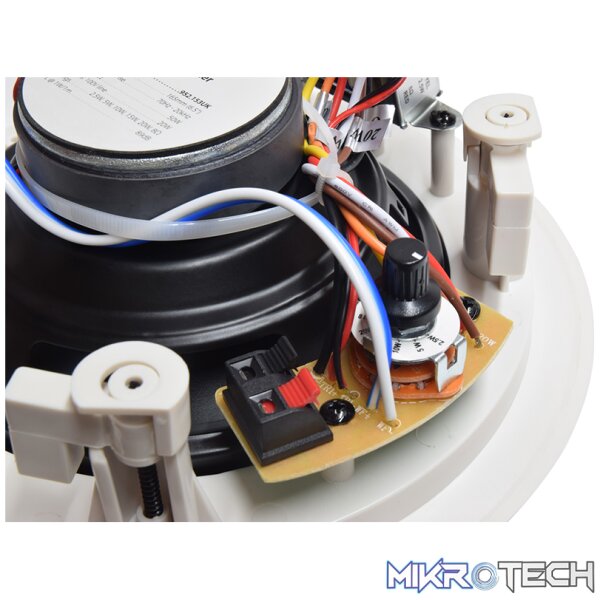

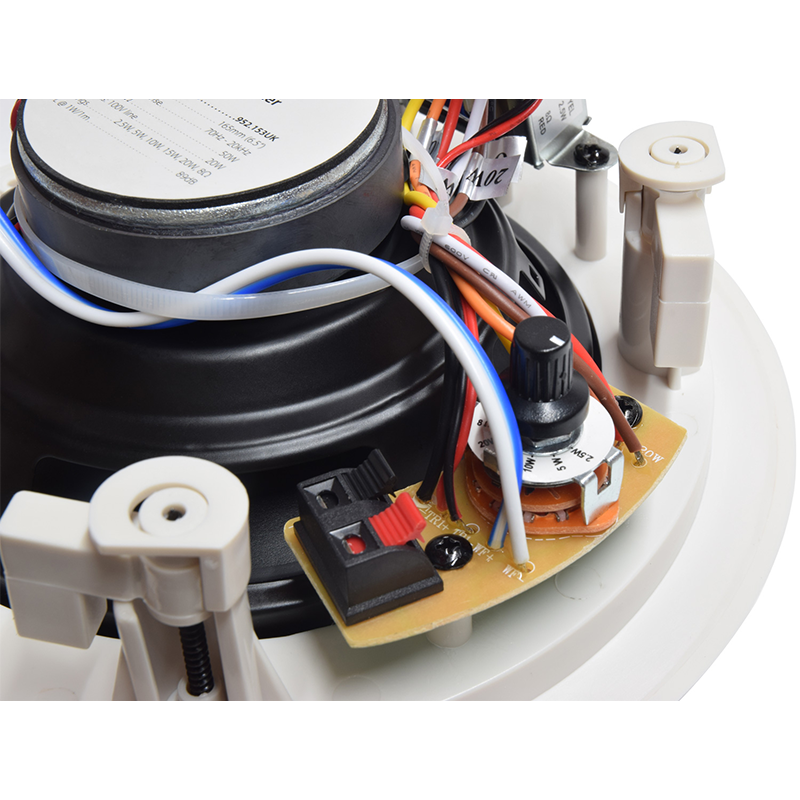

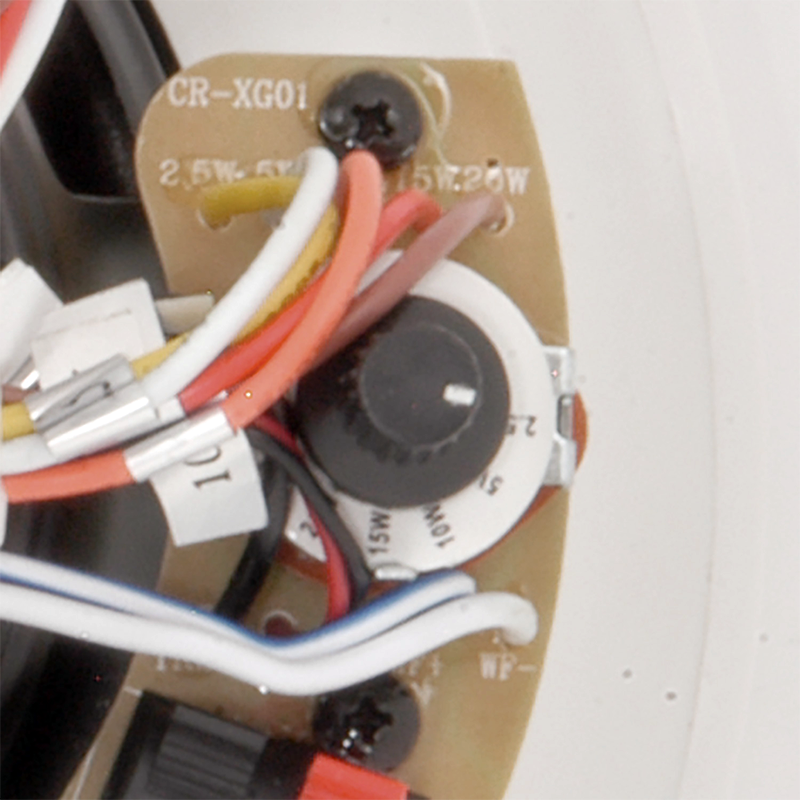

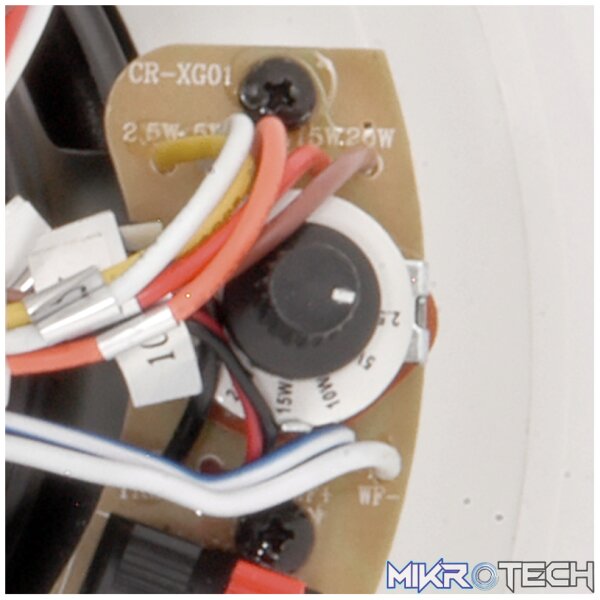

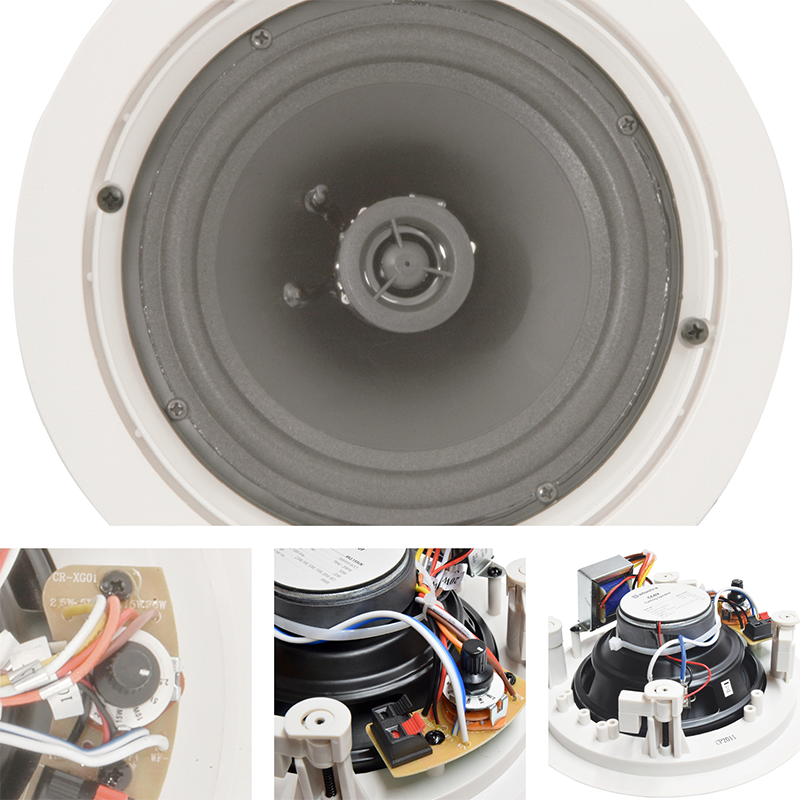

• Rotary selector switch for 100V line tappings or 8 Ohms

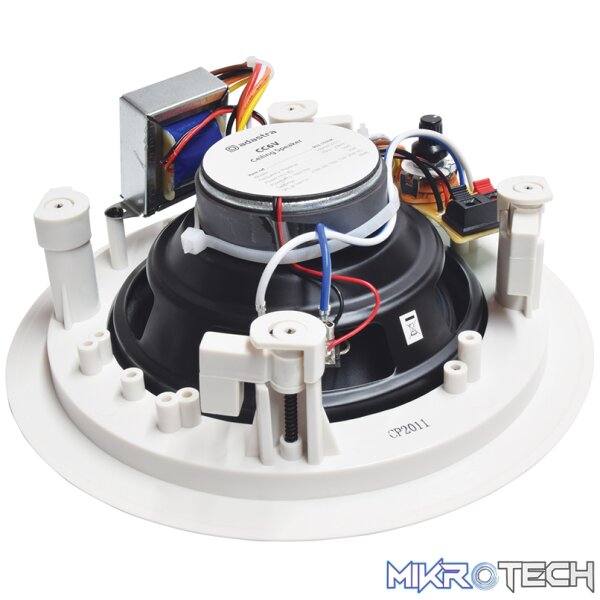

• Fitted with “dog-ear” mounts for fixing to ceiling tiles 1-20mm in thickness

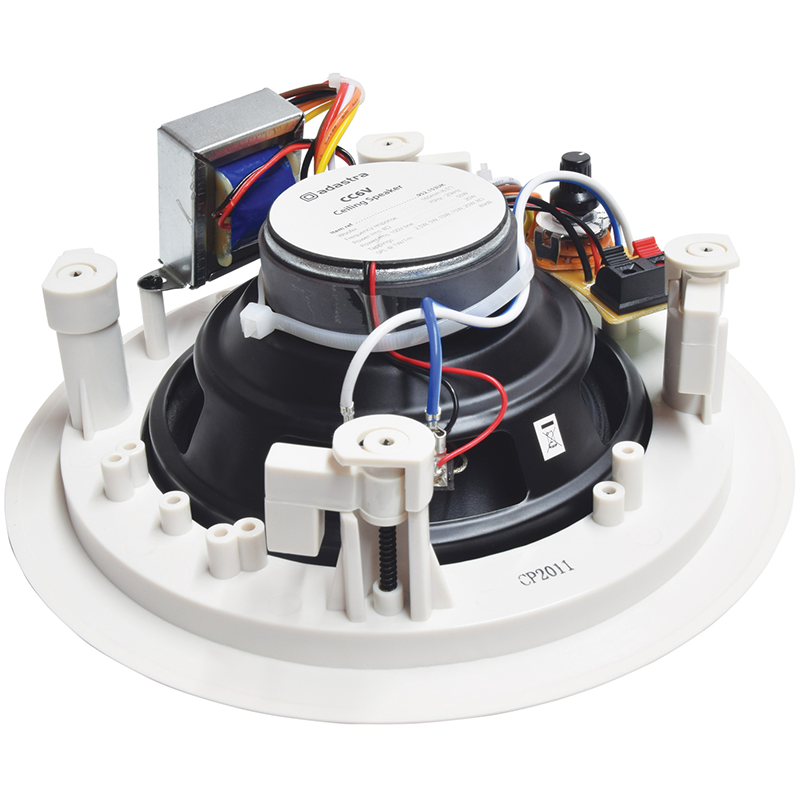

• Spring loaded terminals for easy connection

SPECIFICATIONS:

• Dispersion angle:
  160°Frequency response
• Woofer:
  165mmØ (6.5″)
• Tweeter:
  38mmØ (1.5″)
• Power rms : 100V line:
  20W
• Power rms : 8 Ohms:
  50W

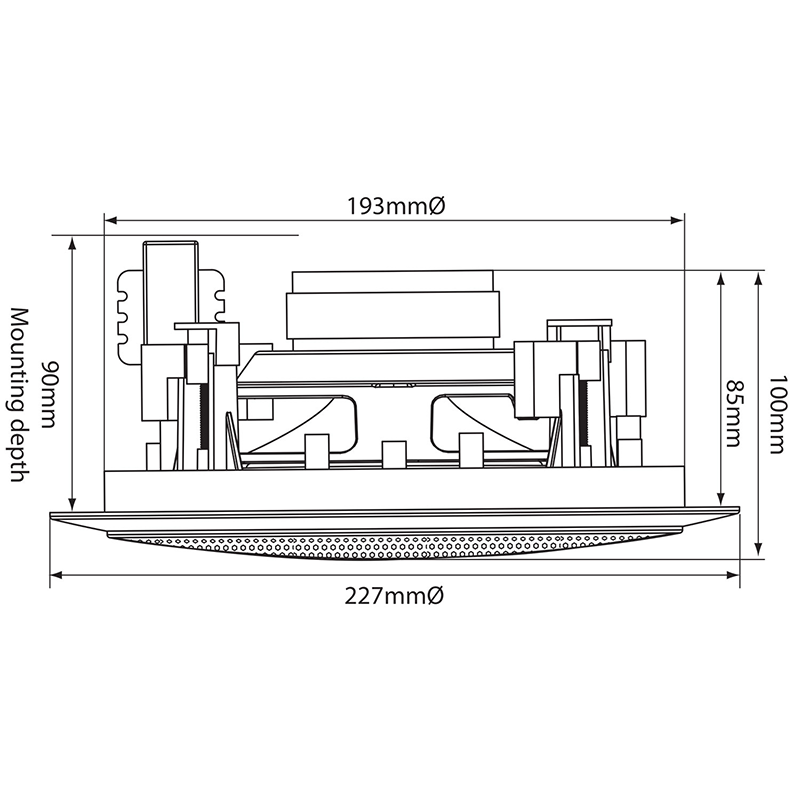

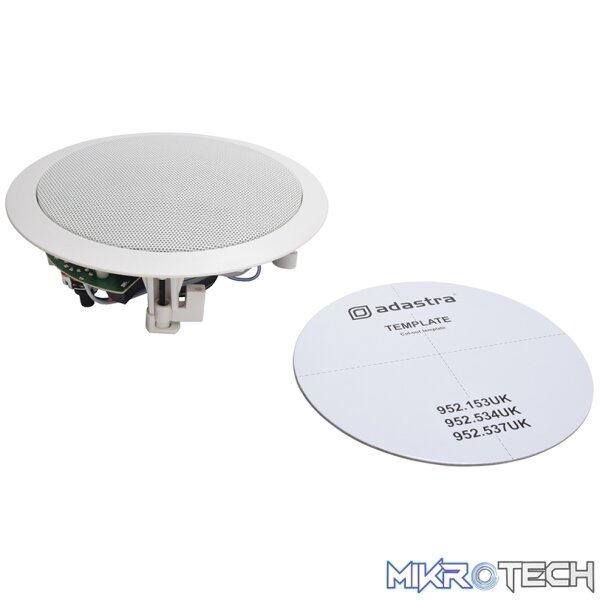

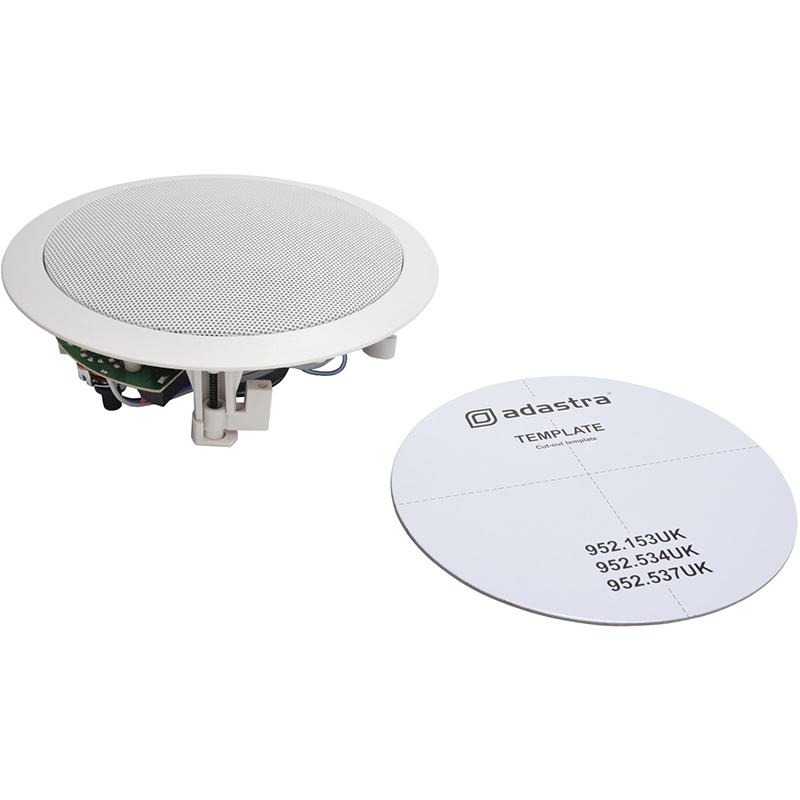

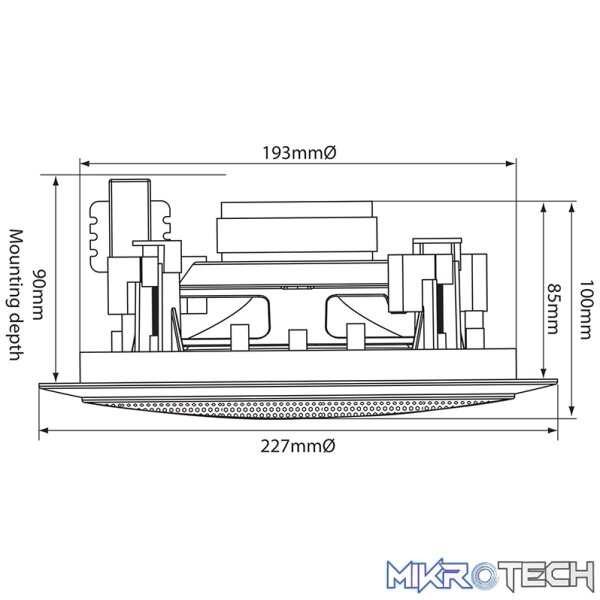

• Cutout:
  193mmØ
• Mounting depth:
  90mm
• SPL @ 1W/1m:
  87dB (±2dB)
• Tappings:
  2.5, 5, 10, 15, 20W & 8 Ohms
• Dimensions:
  100 x 227mmØ
• Weight:
  1.25kg
• Power max. : 8 Ohms:
  100W
