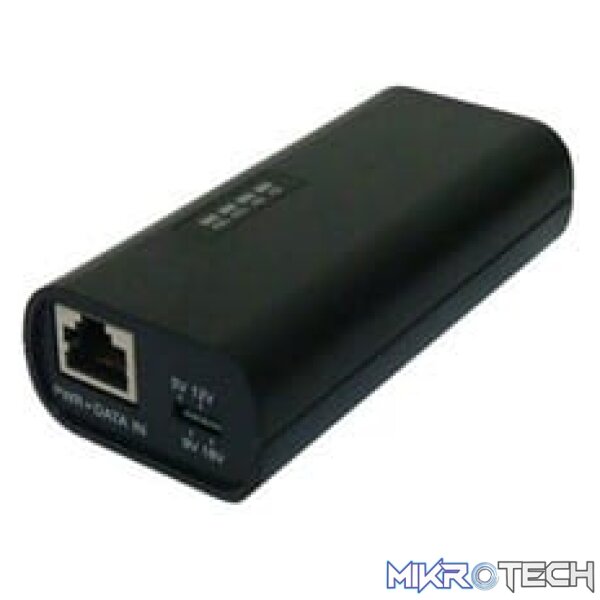

802.3at Gigabit POE Splitter
R519.99 incl. VAT
In stock
Overview:
This is the most comprehensive splitter compliant with IEEE 802.3af/at PoE standard in the market. It’s well-cover output voltage 5V, 9V, 12V, 18V range can connect with 95A% of Power Devices (PD) on the market, including Wireless AP, Camera, VoIP phone etc.
It splits data and power signal over the same Ethernet UTP cable and transfers input 48V (PoE Standards) to 4 kind of voltages to meet with each PD’s needs. The inside PoE chip can correspond to PoE impedence signal sent by PoE injector or PSE (Power Source) to handshake with PoE standard first and then to deliver 48V power to drive PD, in which it prevents the risk of burning down the PD.
Features:
- IEEE802.3af/at compliance
- 5v, 9v, 12v, 18v output adjustable by DIP
- Maximum output power up to 25W
- 10/100/1000Mbps duplex mode support
- Additional +/-15kV of Ethernet isolation for ESD/Surge Protection
- Support mid-span(one pair) and end span(second pair) PSE
- Plug-and-Play
| Weight | 0.02 kg |
|---|---|
| Dimensions | 19.000000 × 13.000000 × 4.000000 cm |
| Standard | IEEE802.3ab 1000 IEEE802.3u 10/100BASE-TX IEEE802.3af/at |
| Connector | Data and power in: 1 x RJ-45.Data pin 1,2,3,6 Power pin: 4, 5(V+), 7,8(V-) and 1, 2(V+), 3,6(V-) Data out: 1 x RJ-45, Data pin 1,2,3,6 Power out jack: 5V, 9V, 12V, 18v (Adjustable) Maximum feeding current: 5A@5V |
| Power plug diameter | 2 power cable with straight plug and a right angle plug Plug dimension: 5.5 x Ø2.5mm |
| Network cable | 10BASE-T: 2-pair UTP/STP Cat.3, 4,5 cable EIA/TIA-568 100-ohm (100m) 100BASE-TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm (100m) |
| Power input | DC 38-60V |
| Output Power | 5V/9V/12V/18V by segment DIP switch for output voltage select. |
| LED | System: power (green) |
| Operating Environment | -40 degree C~ 75 degree C 90% Humidity (non-condensing) |
| Dimension | 102*48*27 mm |
| Certification | FCC, CE |
