XBC100 SMART Battery Checker & Servo Dri

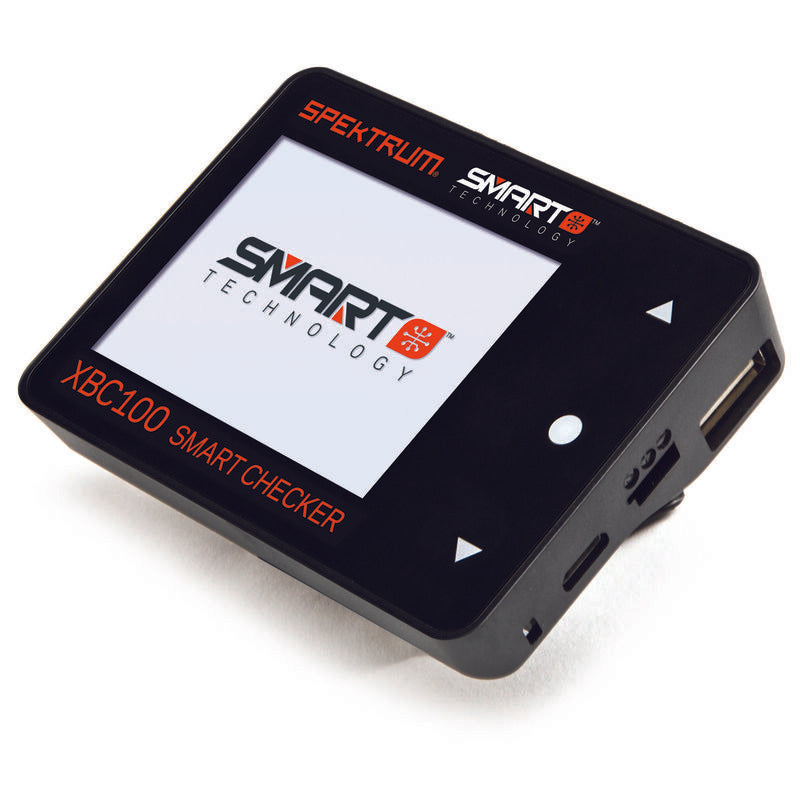

The Spektrum XBC100 Smart Battery Checker & Servo Driver is an all-in-one utility tool for RC pilots and drivers. It allows you to monitor Smart and standard batteries, balance cells, test servos and more, all from a compact device that is perfect for the field or workshop.

Features

• Smart battery connectivity through a single IC3 connection—reads cycles, temperature, alerts and usage history
• Accurate cell balancing to within ±0.005 V for 1–8S packs
• 2.4-inch (61 mm) colour IPS LCD display, easy to read in bright conditions
• Integrated servo driver/tester for PWM servos
• USB output port (QC 2.0/3.0, BC1.2) for powering or charging devices at up to 12 V / 2 A

Included

• Spektrum XBC100 Smart Battery Checker & Servo Driver
• User manual

What You’ll Need

• Compatible Smart or non-Smart battery for power input
• IC3 connector batteries or adaptor for other connector types

Specifications

• Supported batteries: 1–8S LiPo, LiHV, LiFe, LiIon; 1–10 cell NiMH/NiCd
• Input voltage: 5–36 V DC
• 1-cell mode input: 0.8–15 V; 2–8 cell mode: 0.8–4.8 V per cell
• Voltage measurement accuracy: ±0.005 V at 4.2 V per cell
• Cell balancing accuracy: within 0.005 V
• Display: 2.4-inch (61 mm) 320 × 240 IPS LCD
• Dimensions: approx. 80 × 55 × 19 mm
• Weight: approx. 59 g (2.1 oz)
• Operating temperature: 0–40 °C
• USB charging output: up to 12 V / 2 A
