Product Description

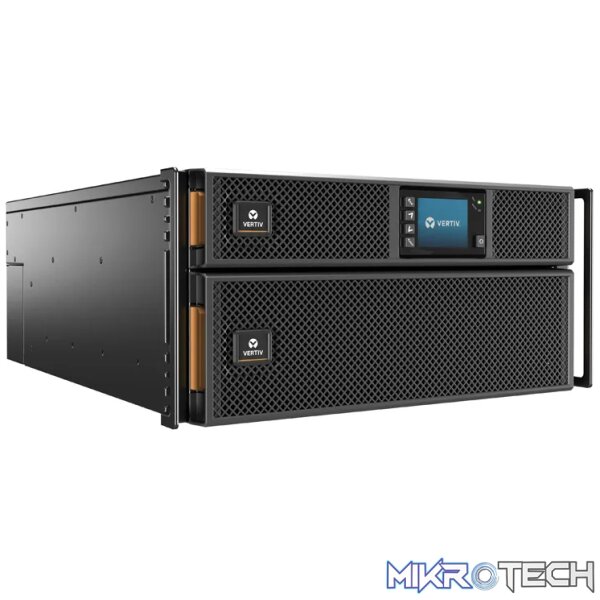

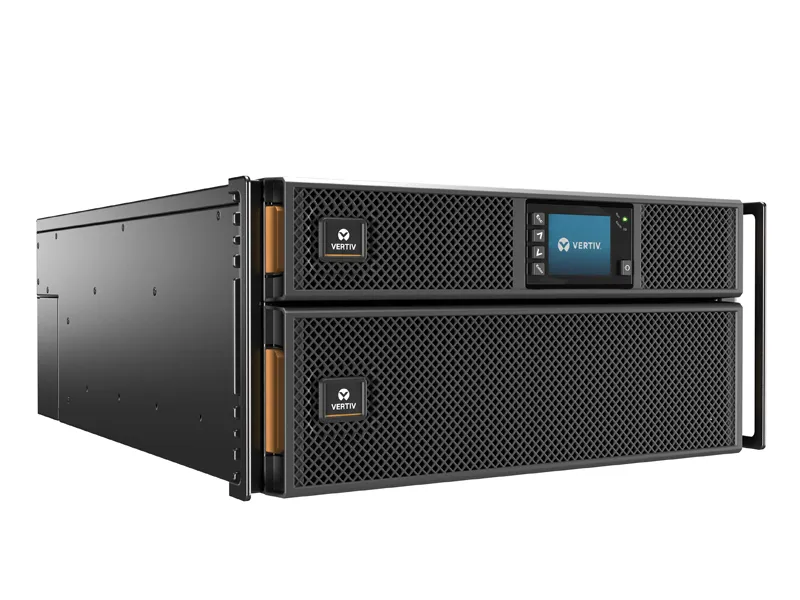

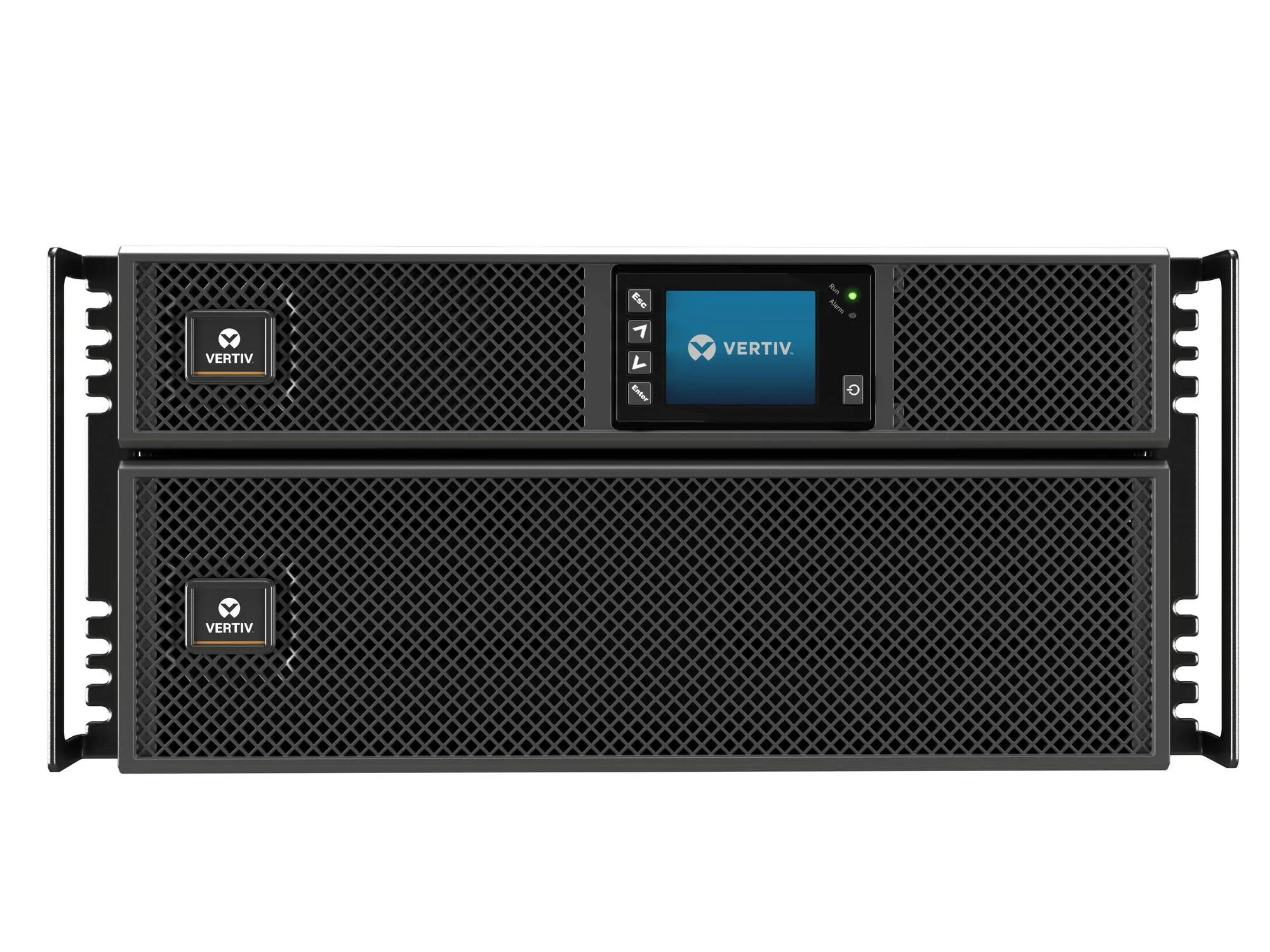

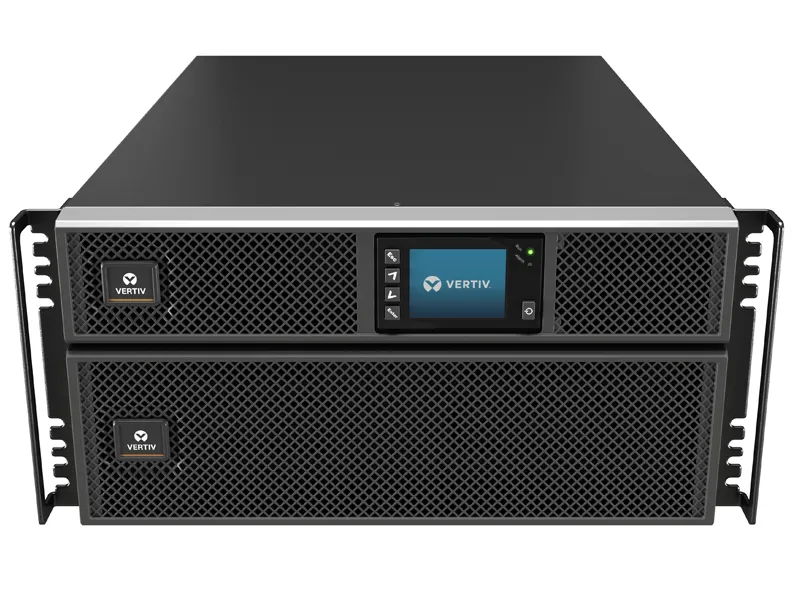

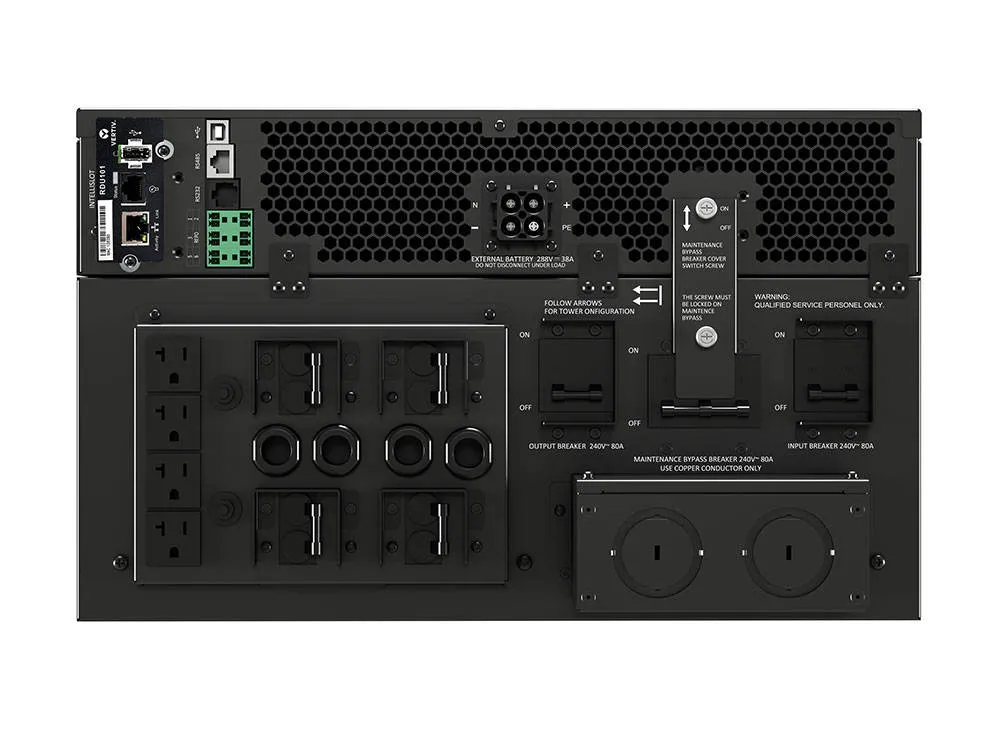

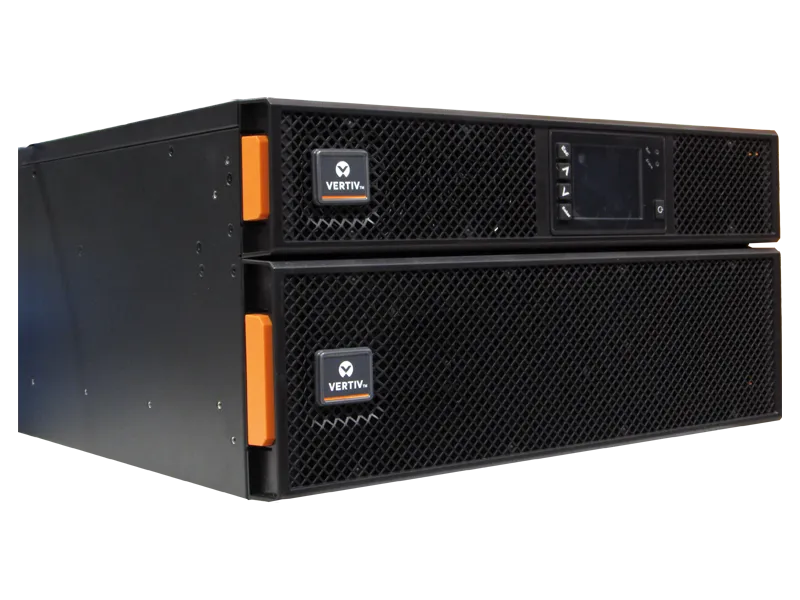

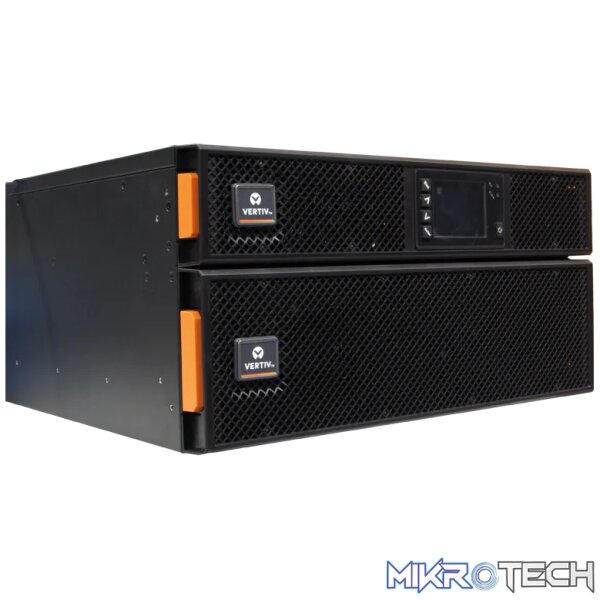

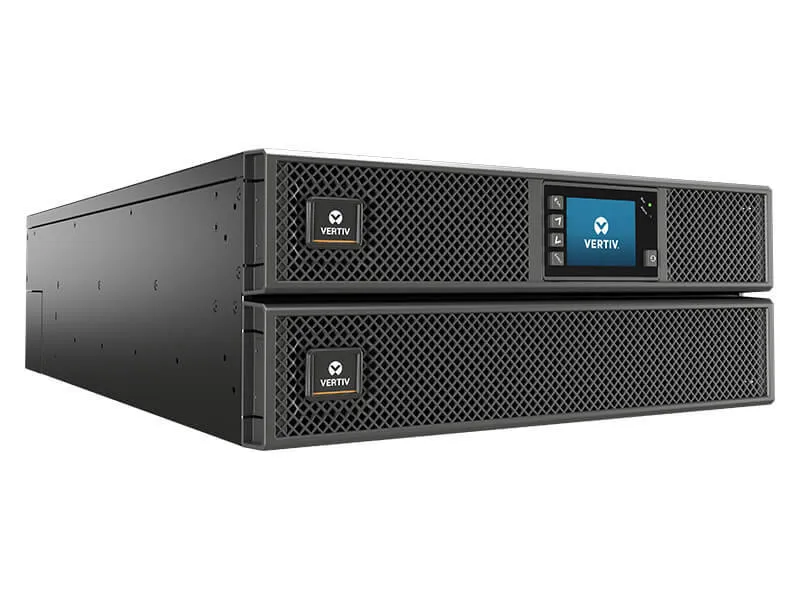

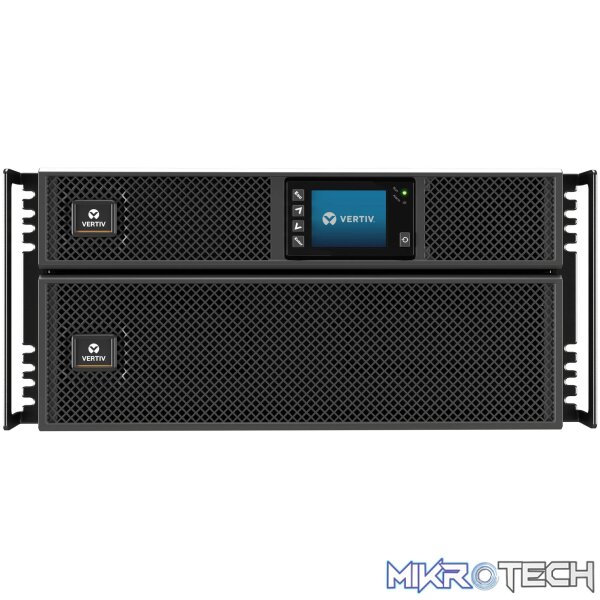

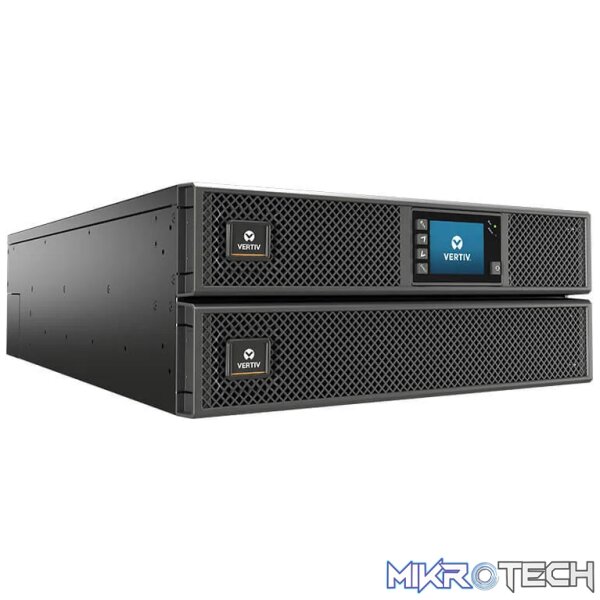

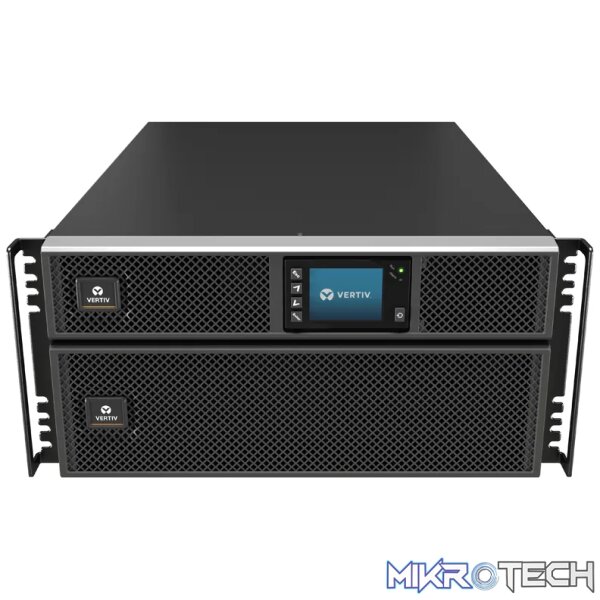

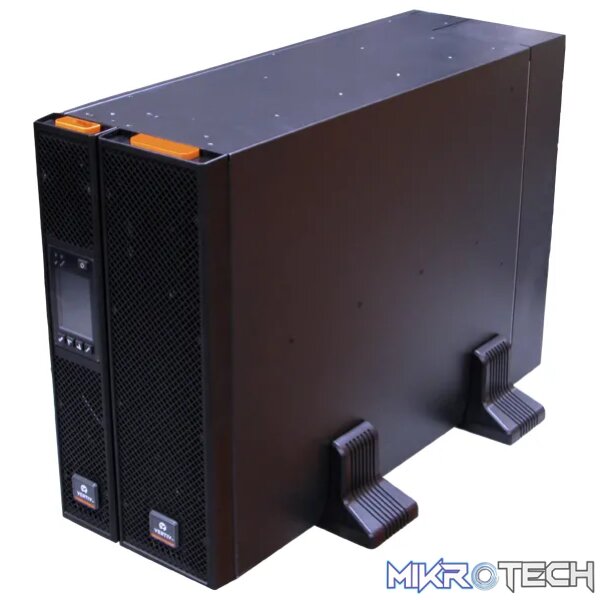

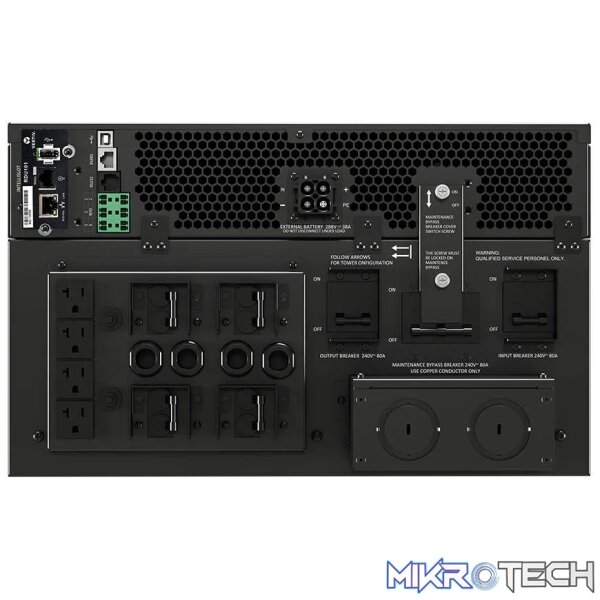

VERTIV LIEBERT GXT5 1PH UPS 8KVA INPUT PLUG – HARDWIRED 5U OUTPUT – 230V HARDWIRED OUTPUT SOCKET GROUPS (4)C13 & (4)C19
| Power factor | 1 |
|---|---|
| Battery voltage | 12 |
| Typical backup time at half load | 9.5 |
| Audible alarm(s) | Y |
| AC outlets quantity | 8 |
| Output voltage | 230 |
| Power protection features | Overload |
| Serial ports quantity | 1 |
| International Protection (IP) code | IP20 |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Output power capacity | 8 |
| Product colour | Black |
| Operating altitude | 0 – 3000 |
| Storage relative humidity (H-H) | 0 – 95 |
| Operating relative humidity (H-H) | 0 – 95 |
| Storage temperature (T-T) | -15 – 40 |
| Operating temperature (T-T) | 0 – 40 |
| Output operation voltage (max) | 240 |
| Output operation voltage (min) | 230 |
| Input frequency | 50/60 |
| Input operation voltage (min) | 176 |
| Waveform | Pure sine |
| UPS topology | Double-conversion (Online) |
| Output power | 8000 |
| Output frequency | 50/60 |
| Number of input phases | 1 |
| Display type | LCD |
| Input power factor | 0.99 |
| Efficiency | 95 |
| Number of output phases | 1 |
| RS-232 ports | 1 |
| USB port | Y |
| Noise level | 55 |
| Height | 217 |

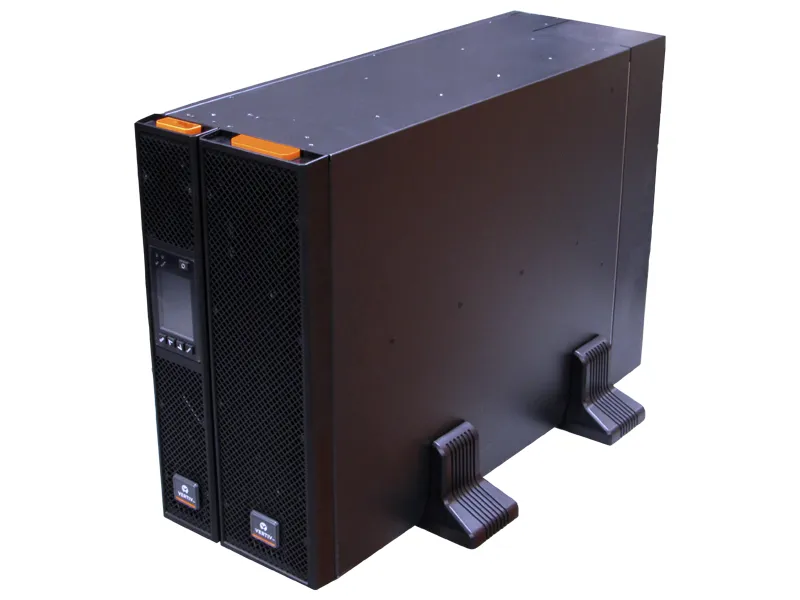

| Form factor | Rackmount/Tower |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 |
| Rack capacity | 5U |
| Output power factor | 1 |
| Cooling type | Active |
| Single-phase input voltage supported | 200,208,220,230,240 |
| Battery recharge time(90%) | 5 |
| Battery type | VRLA |
| Safety | IEC62040-1:2008 |
| Typical backup time at full load | 3.5 |
| AC outlet types | C13 coupler,C19 coupler,IEC 320,Terminal |
| Number of batteries supported | 16 |
| Efficiency (On-line mode) | 95 |
| Output voltage regulation | 3 |
| Overload capacity (1 minute) | 150 |
| Overload capacity (5 minute) | 125 |
| Depth | 630 |
| Width | 430 |
| Input operation voltage (max) | 288 |
| Package height | 520 |
| Package width | 646 |
| Package depth | 816 |
| Package weight | 93000 |
| Weight | 74500 |
| Certification | CE, EMI/EMC/C-Tick EMC, ESD |
Product Specifications
| Weight | 92.2000 kg |
|---|---|
| Dimensions | 81.0000 × 60.0000 × 53.0000 cm |
