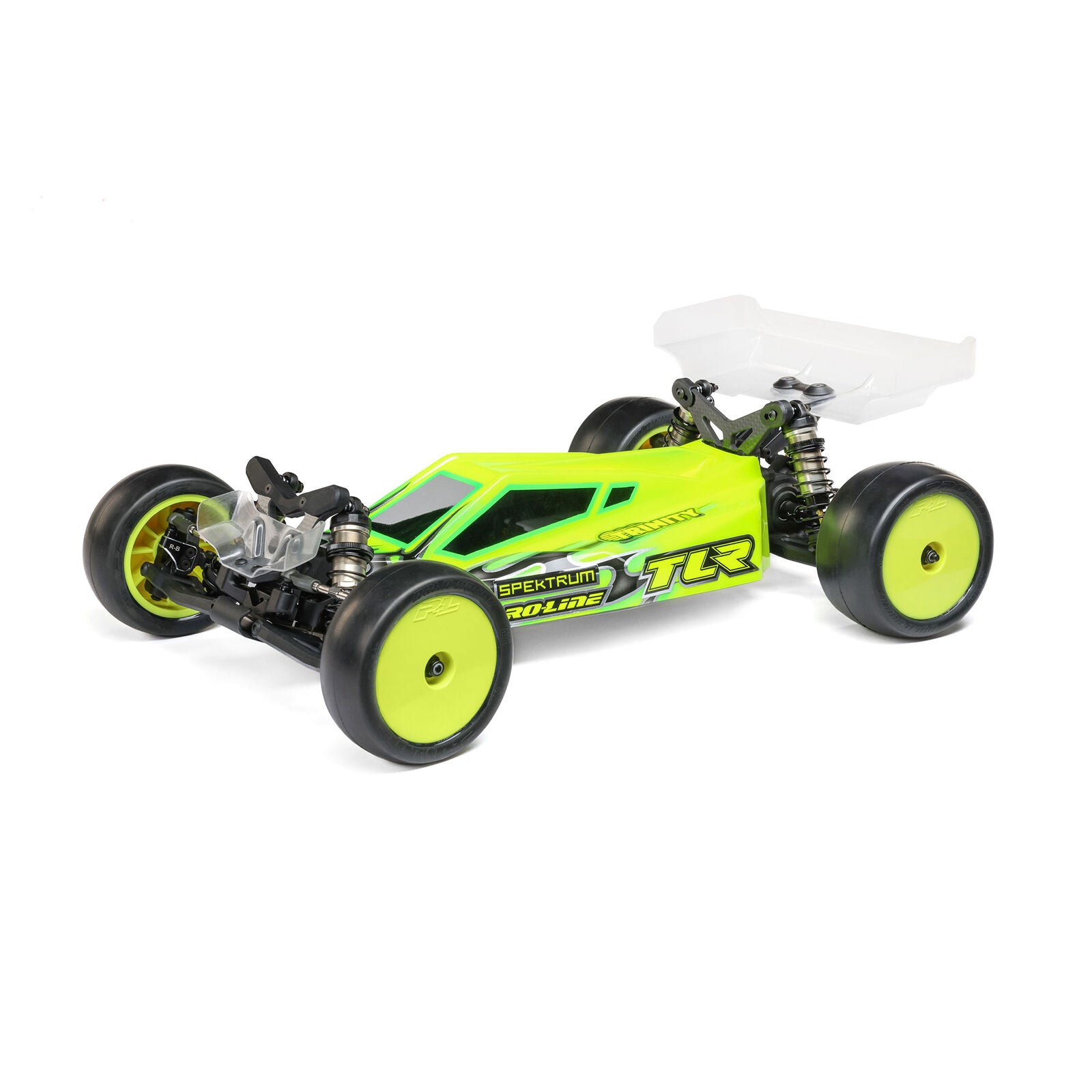

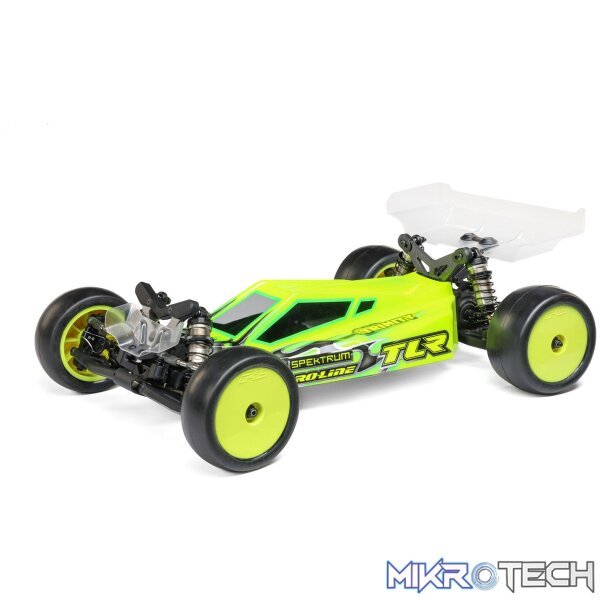

TLR 1/10 22X DC 2WD Buggy Race Kit (Dirt/Clay)

The TLR 22X DC 1/10-scale 2WD electric buggy kit (part TLR-1233) is engineered for high-grip dirt and clay racing. With a hard-anodised aluminium chassis, big-bore 13 mm shocks, and advanced adjustability, it delivers competitive performance with easy maintenance and precise handling.

Features

• Hard-anodised 2 mm milled 7075-T6 aluminium chassis, optimised for modern high-grip tracks
• Lay-down gearbox with easy-access differential and idler gear for fast servicing
• 13 mm big-bore shocks with matched springs for smoother damping and stability
• Adjustable caster blocks (?5° to 5°) and kick-up (20° to 25°) for precise steering control
• Rigid 4 mm carbon-fibre front and rear shock towers with protective covers
• Refined steering geometry with new 5.8 mm ball studs and rod ends
• Pro-Line Sector lightweight body with low-mount front wing and Air Force 7 in rear wing
• Composite parts available in multiple stiffness levels for fine-tuning
• Variable-height-axle rear hubs and adjustable rear pivots
• Built-in 30 × 30 mm motor fan mount and heavy-duty slipper system

Included

• TLR 22X DC 1/10-scale 2WD buggy kit
• Pro-Line Sector pre-cut polycarbonate body
• Air Force 7 in rear wing
• Low-mount front wing
• Product manual

What You’ll Need

• Electronic speed controller (ESC)
• 540-size electric motor
• 2S LiPo shorty battery (max approx. 25.1 × 47 × 96 mm)
• Compatible LiPo charger
• 2.4 GHz radio system with receiver
• Standard servo
• 48-pitch pinion gear
• 30 × 30 mm motor cooling fan (optional)
• 2.2 in buggy wheels and tyres (2WD fronts, buggy rears)
• Polycarbonate paint

Specifications

• Scale: 1/10
• Completion: Kit
• Chassis: 2 mm 7075-T6 aluminium plate
• Drivetrain: 2WD with ball differential
• Internal Gear Ratio: approx. 2.6:1
• Front/Rear Track: approx. 250 mm (9.8 in)
• Wheelbase: approx. 284 mm (11.2 in)
• Length: approx. 376 mm (14.8 in)
• Height: approx. 147 mm (5.8 in)
• Battery: 2S LiPo shorty (max 25.1 × 47 × 96 mm)
• Estimated Build Time: 3–5 hours
