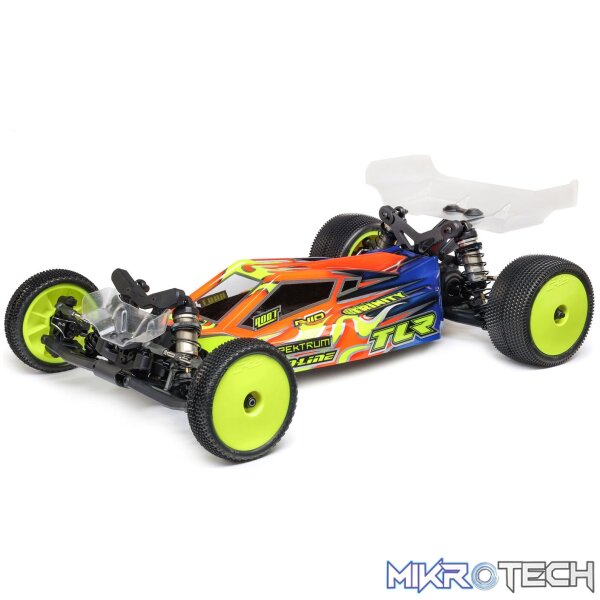

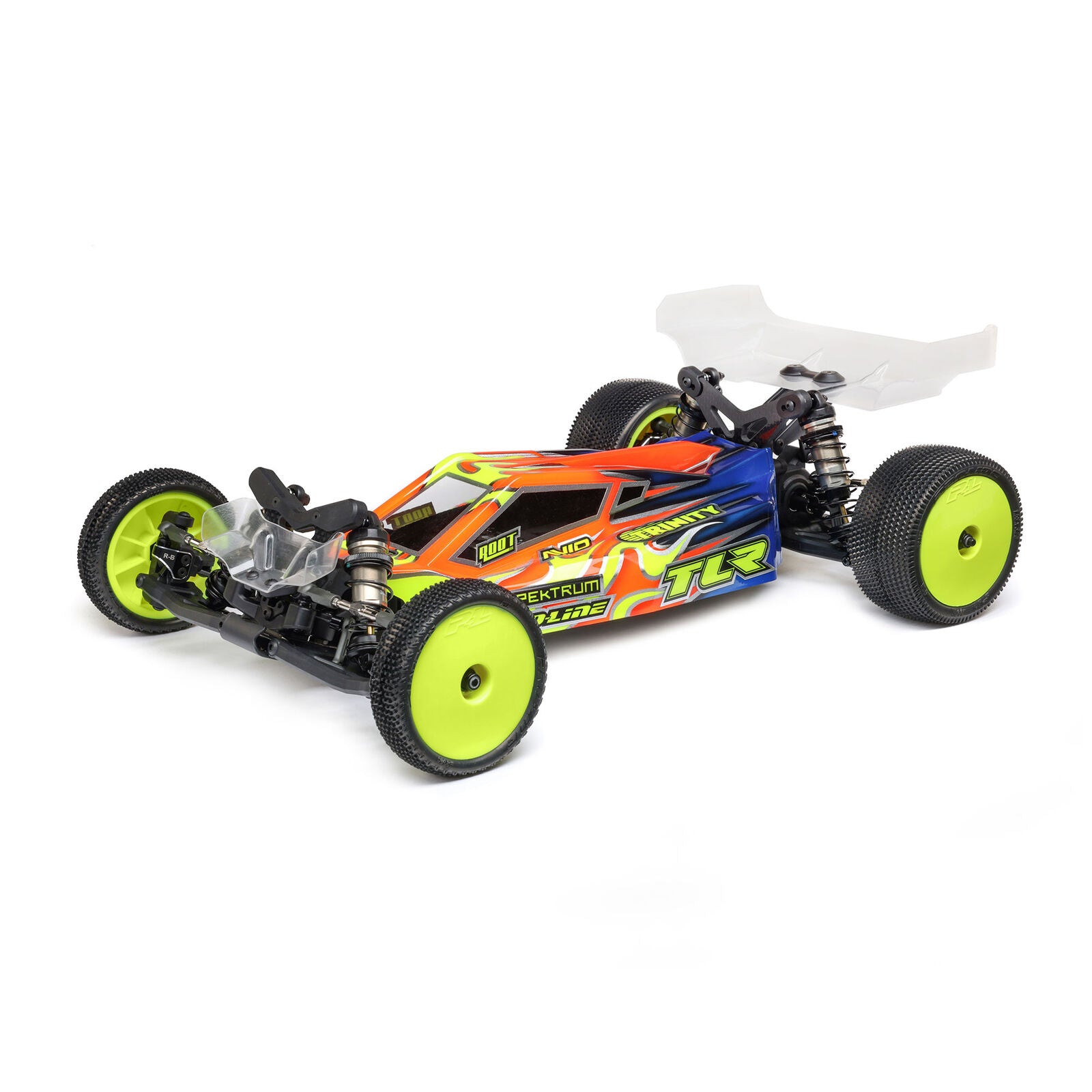

TLR 1/10 22X AC 2WD Buggy Race Kit (Astro/Carpet)

The Team Losi Racing 22X AC 1/10 scale 2WD race buggy kit (TLR-1234) is engineered for high-grip astro and carpet tracks. With a hard-anodised 7075-T6 aluminium chassis, larger 13 mm big-bore shocks, and a new laydown gearbox for quick differential access, it delivers precise handling, durability, and easy maintenance for serious racers.

Features

• Hard-anodised 2 mm 7075-T6 aluminium chassis for strength and consistent flex
• New laydown gearbox with easy-access differential and idler gear for faster servicing
• Larger 13 mm big-bore shocks with matching 13 mm springs for plush landings and cornering grip
• Adjustable caster from ?5° to 5° in 2.5° steps; kick-up adjustable from 20° to 25° in 2.5° steps
• Wide or narrow king-pin options to tune steering feel for astro or carpet
• Rigid 4 mm woven carbon-fibre shock towers with protective tower covers
• Refined steering geometry for smooth, consistent response
• New 5.8 mm ball studs and rod ends for free suspension movement and quick roll-centre changes
• Variable Height Axle (VHA) rear hubs and adjustable rear pivots for anti-squat and toe tuning
• Super Heavy Duty Slipper (SHDS) layout updated for improved vehicle balance
• Built-in mount for 30 × 30 mm motor fans
• Industry-standard 2.2 in front wheel offset for broad wheel/tyre compatibility
• Adjustable battery mount and numerous lightweight aluminium components throughout

What’s Included

• 22X AC 1/10 scale 2WD race buggy kit
• Pro-Line Sector 22X body (pre-cut)
• Pro-Line Air Force 178 mm (7 in) rear wing
• Pro-Line front wing
• Product manual

What You’ll Need

• ESC and 540-size motor
• 2S LiPo shorty battery and LiPo charger
• Receiver and transmitter
• Steering servo (25T spline horn included in kit)
• 48-pitch pinion gear
• 30 × 30 mm motor fan (optional)
• 2.2 in buggy wheels (2WD fronts and rears) and tyres
• Polycarbonate paint

Specifications

• Scale: 1/10
• Drivetrain: 2WD
• Completion Level: Kit (assembly required)
• Approximate Assembly Time: 3–5 hours
• Chassis: 2 mm 7075-T6 aluminium milled plate
• Internal Gear Ratio: 2.6:1
• Gear Pitch: 48-pitch (spur 78T)
• Wheel Hex: 12 mm (0.47 in)
• Front/Rear Track: 250 mm (9.8 in)
• Wheelbase: 290 mm (11.4 in)
• Length: 376 mm (14.8 in)
• Height: 147 mm (5.8 in)
• LiPo Compatibility: 2S
• Max Battery Size: 25.1 × 47 × 96 mm (0.99 × 1.85 × 3.78 in)
• Power Type: Electric
