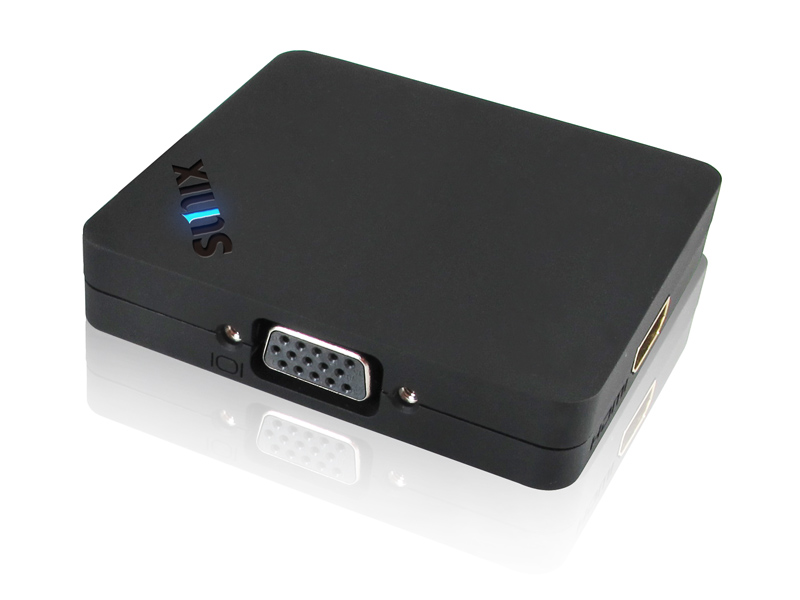

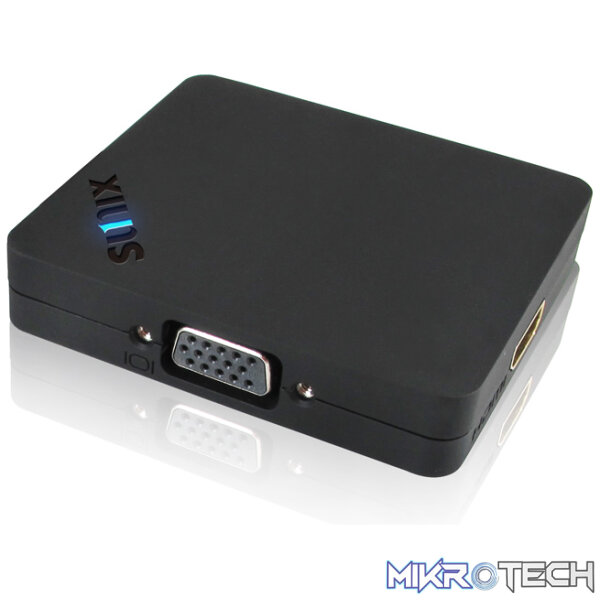

SUNIX Tiny Universal DisplayPort Graphics Splitter is an innovative, external multi-display adapter that allows end users to enjoy multiple monitors from Ultrabook single digital DisplayPort source. You can make photos and videos bigger and louder by connecting your Notebook PC’s to a TV, external display, or projector. For example, you can watch movies on a big screen by connecting SUNIX Tiny Universal Graphics Dongle to an HDTV. With flexible VGA, HDMI, and DisplayPort video output conversions, wide range of converters no longer needed.
SUNIX Tiny Universal DisplayPort Graphics Splitter adopts DisplayPort innovative technology that supports 3 video connections working simultaneously (Note 1). You can expand 3 displays at the same time for gaming, graphics design or spreadsheet analysis; or you can choose to dedicate each monitor to a separate application. With plug-n-play, simplifying configuration, driver free features, SUNIX Tiny Universal DisplayPort Graphics Splitter is a smart solution to video conversion on Microsoft Windows and Linux based computer.
Features
- Tiny design integrates DisplayPort, HDMI, and VGA (RGB) connectivity.
- Enables 3 monitors working simultaneously with video mirror or extension mode (Note 1).
- Triple monitors output resolution up to 2560X1600@60Hz/each from single DP1.2 MST source.
- 6 combined monitors up to 5760×2160 by connecting two dongles from dual DP1.2 sources (Note 2).
- Supports digital audio stream over DisplayPort or HDMI output.
- Ideal for multi-display and TV-Wall application.
- Compatiblewith DisplayPort v1.2a /1.1a, HDMI v1.4a, VESA DDM, and EDID v1.4 Std.
- Supports DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
- Supports exceptional Secured Content Protection with HDCP v1.3 for digital content.
- Drivers free under Microsoft Windows, MAC and Linux operations.
- Hot Plug & Plug-n-play feature without configuration.
Specifications:
Model: DPU3000
Video input Connectivity:
Mini DisplayPort™ Female
Video output Connectivity:
– 1-port DisplayPort™ v1.2, DP++ Female
– 1-port HDMI Ver1.4 Female
– 1-port VGA (RGB) (Note 3)
Audio output: Digital Audio output over DisplayPort or HDMI connection
Display Resolution and Maximum Number of Monitors
| Display Resolution (standard 60 frames per second refresh rate) | Maximum Number of Monitors based on DisplayPort 1.2 Bandwidth |
| 1680 x 1050 (WSXGA) | 5 |
| 1920 x 1080 (1080p) or 1920 x 1200 | 4 |
| 2560 x 1600 (WQXGA) | 2 |
| 3840 x 2160 (UltraHD, 4K) or 4096 x 2160 (4K x 2K) | 1 |
Resolution Support (Triple monitors)
DisplayPort1.2 MST source: (multi video/audio steams) max 2560x1600piex@60Hz each monitor.
DisplayPort 1.1 SST or DisplayPort1.2 SST source: Max 1920x1080piex@60Hz each monitor, 3840x1200piex@60Hz collage-display (ViewXpand mode.)
GPU dependent (Note 4).
O.S. support
Windows XP/2003/Vista/7/8/8.1, 2008/2012, (32/64-bit)
Linux 2.6.x or later
MAC Mountain Lion 10.8 or later (Note 4).
Power
Power Consumption: 1.45W, +3.3VDC DisplayPort Bus Power
Power Connector: 1-port Micro-B USB port +5VDC in (Reserved)
Notes:
1: Intel Haswell platform supports maximum 3 independent displays working simultaneously, including AIO (All-in-one) or NotebookÂ’s display panel itself.
2: 6 combined monitors support by AMD Eyefinity multi-display technology.
3: SUNIX Triple-Head DisplayPort Splitter supports DP++ protocol that actively convert the DisplayPort™ signal to the VGA, DVI or HDMI connectivity over SUNIX video dongle.
4: GPU dependent. EDID (Extended Display Identification Data) maximum resolution capabilities may differ based on GPU capability. Output pixel and format options are compatible with VESA standards.
