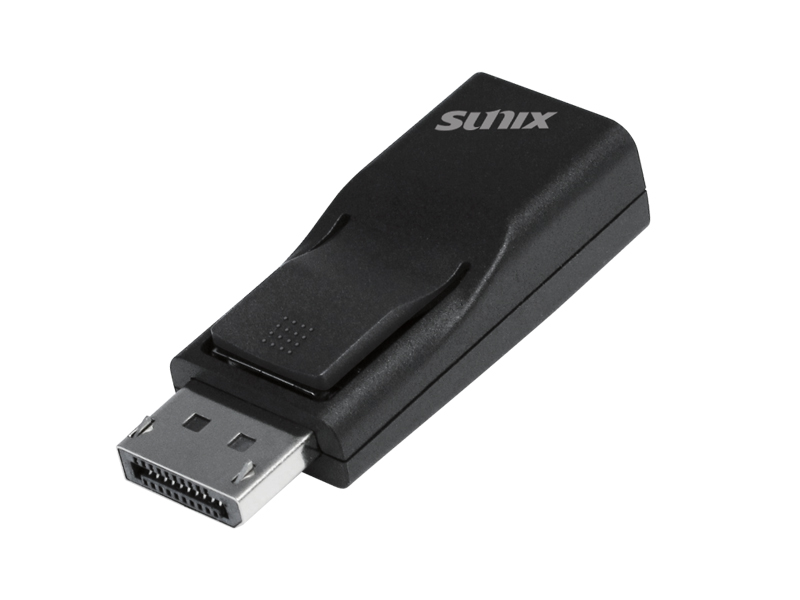

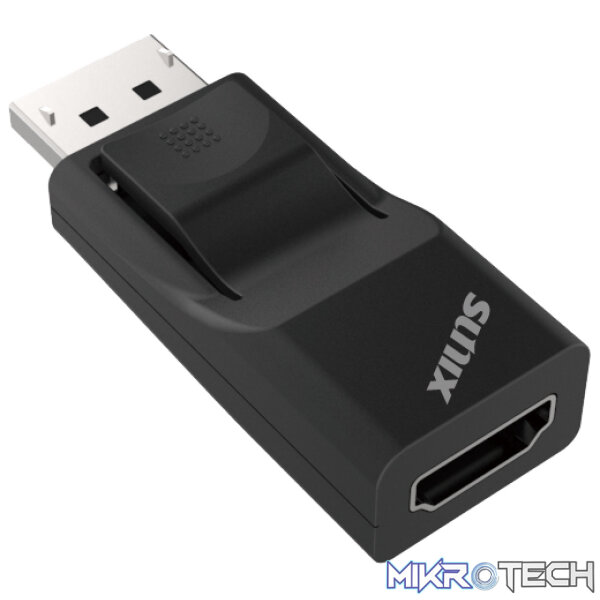

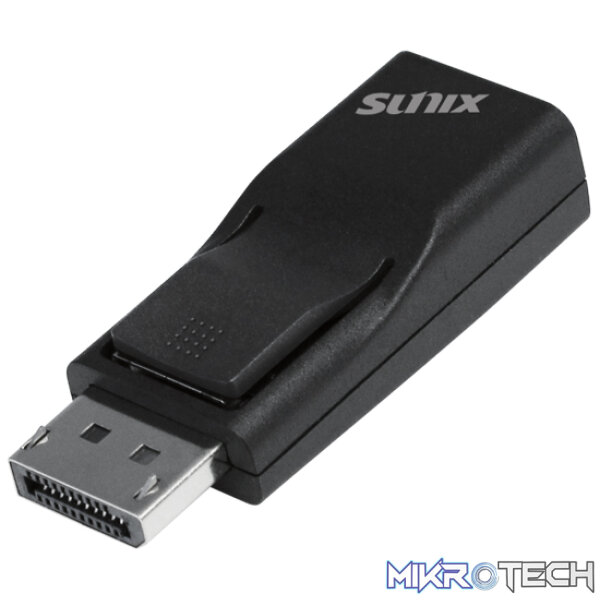

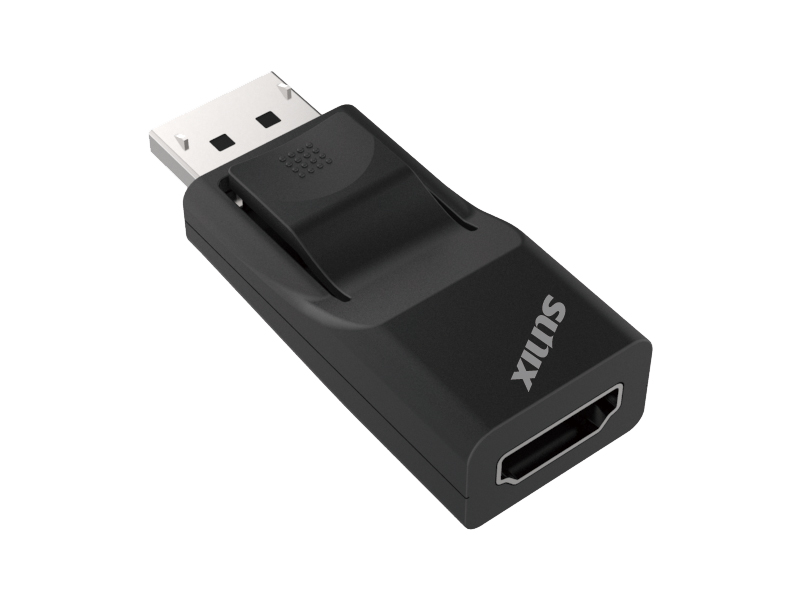

Sunix DisplayPort to 4K HDMI Adapter

SUNIX D2H13N0 DisplayPort to HDMI dongle offers a cost-effective HDMI/DisplayPort link, letting you connect an HDMI display to a device with a DisplayPort output while saving the expense of upgrading the monitor for compatibility. With portable pocket size and DisplayPort bus power source, it supports PC resolutions of up to 4K Ultra HD and HDTV up to 2160p. This high-resolution dongle
offers plug and play functionality to provide an audio and video conversion without software or drivers.

Features

• Adapts DisplayPort equipped desktop & notebook systems to work with HDMI displays.
• Converts audio and video to any device display enabled with HDMI® technology.
• Compliant with DisplayPort 1.2 Dual Mode v1.1 Type 1 SPEC.
• Compliant with HDMI 1.4b specification with HDTV 4K (2160p) resolution and stereoscopic 3D.
• Latching DP connector for a secure connection.
• Plug and play, no software to install or external power needed.
• Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.

Specifications

• Model: D2H13N0
• Description: DisplayPort to HDMI Dongle
• Input Interface
  • DisplayPort 1.2 Dual Mode / 1.1 Type1
  • Standard DisplayPort Male
• Output Interface
  • HDMI 1.4b
  • Standard HDMI Female
  • Ver2.0 Jan. 2016
• Display Resolution
  • VGA 640×480
  • SVGA 800×600
  • XGA 1024×768
  • 720p 1280×720
  • WXGA+ 1280×768
  • WXGA 1280×800
  • SXGA 1280×1024
  • WXGA+ 1366×768
  • SXGA+ 1400×1050
  • UXGA 1600×1200
  • WSXGA+ 1680×1050
  • 1080p 1920×1080
  • WUXGA 1920×1200
  • QXGA 2048×1152
  • WQXGA 2560×1600
  • 2160p 3840×2160
• Audio Yes (audio pass-through)
• Housing ABS
• Power
  • DisplayPort Bus power
  • 250mW @ 3.3VDC
• Operation temp. 0 °C ? 40 °C
• Operation humidity: < 85% non-condensing
• Dimension 56.8 x 22 x 13.2 mm (LxWxH)
• Weight 15g
• Regulatory Approvals
  • EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
  • US: FCC Part 15 Class B
  • TAIWAN: BSMI: CNS13438
  • AS/NZS: C-Tick: CISPR22
  • JAPAN: VCCI

Note

* DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must
be supported).
