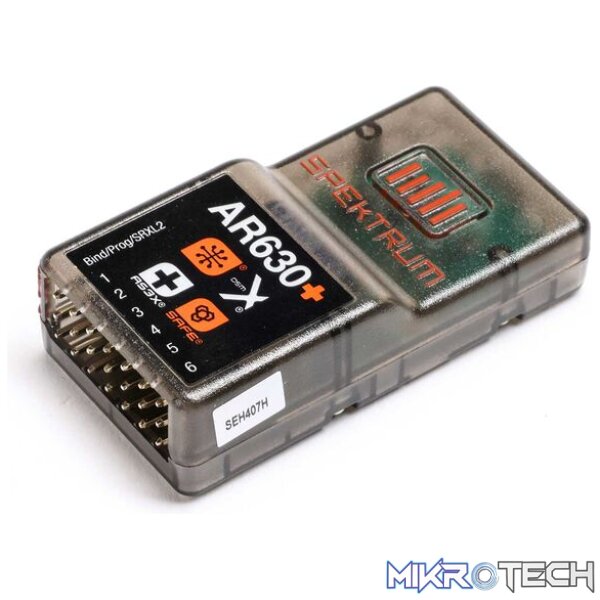

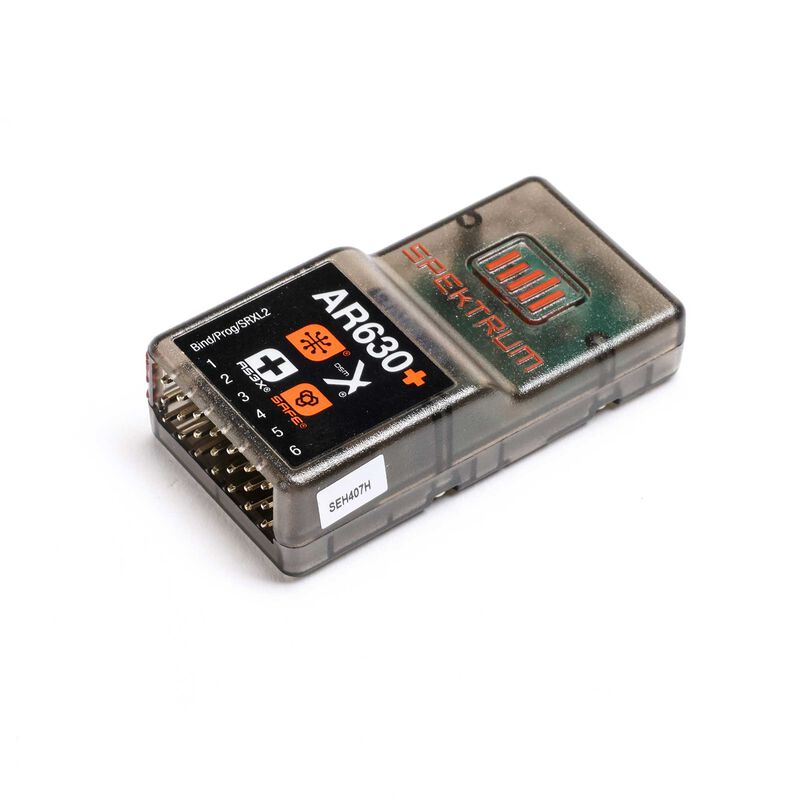

Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver

The Spektrum AR630+ is a compact 6-channel DSMX/DSM2 aircraft receiver featuring AS3X+ stabilization and SAFE flight-envelope protection. With fly-by telemetry and Smart ESC support, it’s perfect for a wide range of models—from park flyers to sport planes.

Features

• Antenna-less internal design for easier installation and enhanced durability
• Built-in AS3X+ stabilization and SAFE flight-envelope protection for smooth, intuitive control
• Forward Programming—configure settings directly from compatible Spektrum transmitters
• Smart Telemetry support with Smart ESCs—one-wire telemetry for voltage, current, temperature, and RPM
• Bind-button design—bind easily without needing a plug
• Compact, end-pin format suitable for tight installs
• DSMX protocol with DSM2 backward compatibility
• Fly-by range telemetry provides real-time flight data

What’s Included

• AR630+ 6-Channel AS3X+ & SAFE Receiver
• Product Manual

Needed to Complete

• Spektrum telemetry-capable DSMX/DSM2 transmitter
• Smart ESC (optional, for one-wire telemetry)

Specifications

• Application: Aircraft
• Band: 2.4 GHz (DSMX / DSM2)
• Channels: 6
• Input Voltage: 3.5–9 V
• Telemetry: Fly-by; integrated (no external sensors required)
• Failsafe: SmartSafe + Hold Last, with presets via Forward Programming
• Forward Programming: Yes
• Bind Method: Bind Button
• Resolution: 2048
• Range: Full
• Serial Output: SRXL2
• Dimensions (L × W × H): 1.85? × 0.98? × 0.51? (47 × 25 × 13 mm)
• Weight: ~0.34 oz (9.5 g)
• Antenna: Internal (antenna-less design)
