Overview

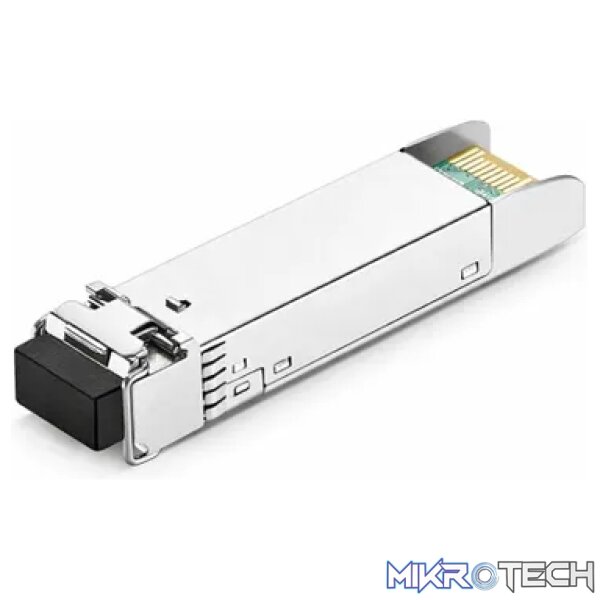

The MGB family SFP Mini-GBIC Gigabit Ethernet module can install into PLANET Switch products with SFP Mini-GBIC interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode, LC), up to 120 kilometers (Single-mode, LC).
Application
The MGB family SFP Gigabit Ethernet module can install into PLANET Switch and Media Converter products with 1000Base-SX/LX SFP interface. The distance can be extended from 550m (MM) up to 120 kilometers (Single-mode, LC).
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port without having to power down the Switch/Media Converter.
Features
Comply with the IEEE 802.3z Gigabit Ethernet standard
1 X 1000Mbps fiber port
Industry standard small form pluggable (SFP) package

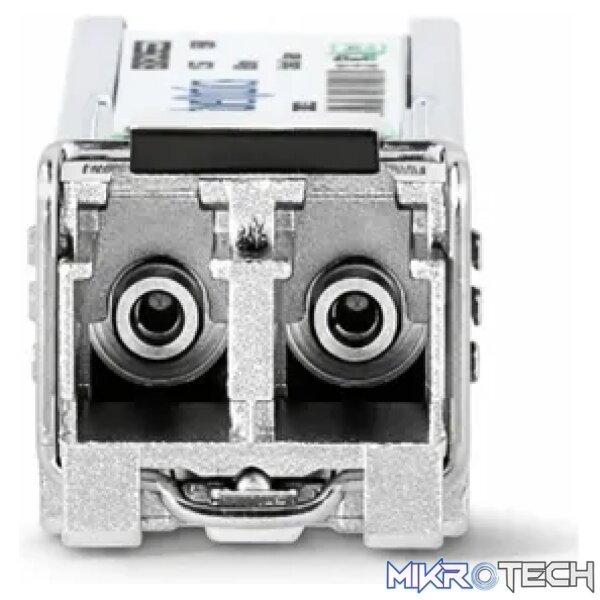

Duplex LC connector
Differential PECL inputs and outputs
Single power supply 3.3V
TTL signal detect indicator
Hot Pluggable
Class 1 laser product complies with EN 60825-1
Plug and Play Installation
Specification
Fiber Type | Single Mode |
Connector | LC |
Wavelength | 1310nm |
Maximum Distance | 10km |
Weight | 0.5 kg |
---|---|
Dimensions | 15 x 10 x 10 cm |
