Overview

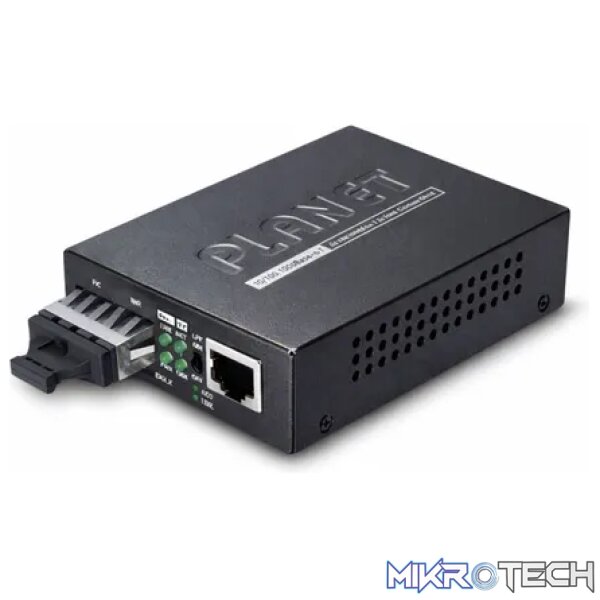

For the flexibility with all kind 10/100/1000Mbps Ethernet Media on RJ-45 port and high stable Gigabit fiber performance. The GT-802, GT-802S, GT-805A and GT-806A/B series of Media Converters supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network, there are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.
Distance Extension with High Performance and Steady Network Communication
The PLANET Gigabit Media Converter GT-80x series extends communication distance with highly Gigabit performance via fiber optical cable. The GT-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic applications.
Enhanced Smart Management Features
The GT-80x series provides Auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass Through function (LFP). The LFP function includes the Link Fault Pass Through function (LLCF/LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net, the DIP Switch provides disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converters fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converters fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net.
Moreover, Even the web UI is not available on GT-80x, the network manager still can remotely control and monitor GT-80X by OAM TS-1000 terminal function such as remote failure indication, loop back test, port status, performance monitoring and troubleshooting. The PLANET GT-90x and IGT-90xT series products provide TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) supported helps remote GT-80x device can be managed and monitored.
Easy Installation

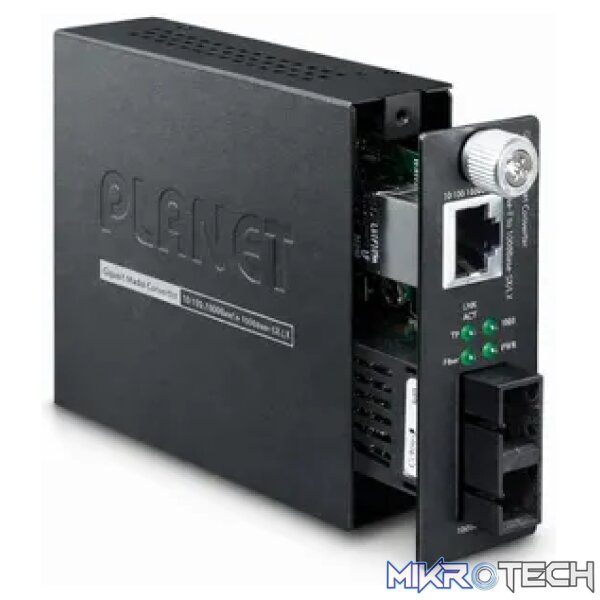

The GT-80x series allows two type segments to connect easily, the GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to the PLANET 19-inch 7/15-Slots media converter chassis (MC-700/MC-1500/ MC-1500R / MC-1500R48). These media chassis can assist in producing the power for GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit media conversion installation is quite quick and easy by simple plugging and playing feature. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss.
Application
Fiber-optic Networking for ISP, enterprise, and home
With high performance of data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building), for small office network environment of enterprises.
Key Features
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX.
TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X.
1000Base-SX: 50/125?m or 62.5/125?m multi-mode fiber cable, up to 220/550m (GT-802).
1000Base-LX: 9/125?m single-mode cable provides long distance for 10km (GT-802S).
1000Base-LX WDM interface for up to 15km (single-mode fiber 9?m/125?m) on GT-806A15/B15.
1000Base-LX WDM interface for up to 60km (single-mode fiber 9?m/125?m) on GT-806A60/B60.
1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters.
Layer 2 key Feature
IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
Support auto MDI/MDI-X function
Store-and-Forward mechanism
Non-blocking full wire-speed forwarding rate
Media conversion between 10/100/1000Base-T and 1000Base-SX/LX.
Fiber media allows:
Multi-mode fiber using SC/LC/WDM connector;
Single-mode fiber using SC/LC/WDM connector
Compacts size for working with PLANET MC family Media Chassis (MC-700/MC-1500/
MC-1500R / MC-1500R48)
Wall-mountable design

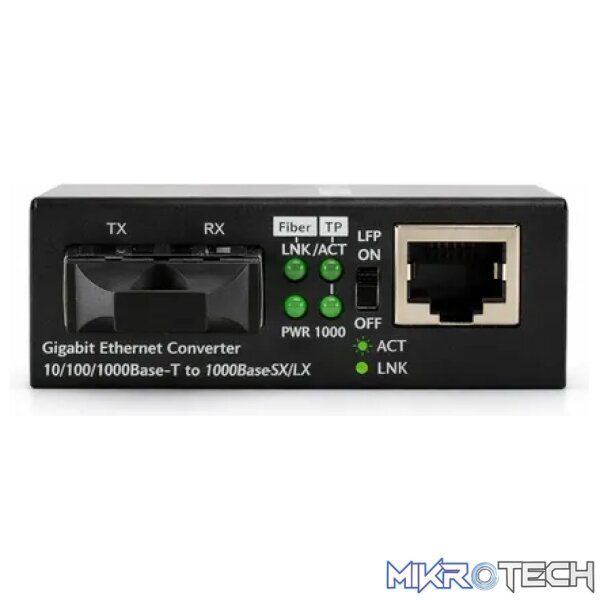

LED indicators for easy network diagnose
Provides DIP switch for LFP function (Disable / Enable) setting
OAM TS-1000 supported
9K Jumbo Frame Supported
Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for 1000Base SFP interface
Compact in size, easy installation
Specifications
Hardware Version: 3
Standards: IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX/LX
Ports: 1 x 10/100/1000Base-T port,
1 x 1000Base-SX/LX port
Copper Interface: RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
Optic Interface: SC
Fiber Maximum Distance: 220 / 550m
Optic Wavelength: 850nm
Max. Optical Launch Power: -4dBm
Min Optical Launch Power: -9.5dBm
Max Input Power: N/A
Max Input Power: -18
Optical Link Budget: 3dB(62.5/125?m)
4dB(50/125?m)
Speed: Twisted-pair
-10/20Mbps for Half/Full-Duplex
-100/200Mbps for Half/Full Duplex
-200Mbps for Full-Duplex
Fiber-optic
-2000Mbps for Full-Duplex
Cable: Twisted-pair
-10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m
-100Base-TX: 2-pair UTP Cat. 5, up to 100m
-1000Base-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
-50/125?m or 62.5/125?m multi-mode fiber cable, up to
-220/550m.
-9/125?m single-mode cable, provides long distance for
-10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP module)
LED Indicator:
-PWR
-TP LINK/ACT, 1000
-Fiber LINK/ACT
DIP switch: LFP function (Disable / Enable) setting
OAM: TS-1000 and IEEE 802.3ah Terminal mode supported
Jumbo Packet Size: 9K
Power Consumption: 4.6 Watts / 15 BTU (maximum)
Power Input: DC 5V / 2A
Dimensions (W x D x H): 26 x 70 x 97 mm
Weight: 0.2kg
Operator Environment: Operating temperature: 0 to 50 Degree C; Humidity: 5~95% non-condensing
Storage Environment: storage temperature: -10 to 70 Degree C; Humidity: 5~95% non-condensing
Emissions: FCC Class A, CE Class A
Weight | 2 kg |
---|---|
Dimensions | 30 x 10 x 20 cm |
