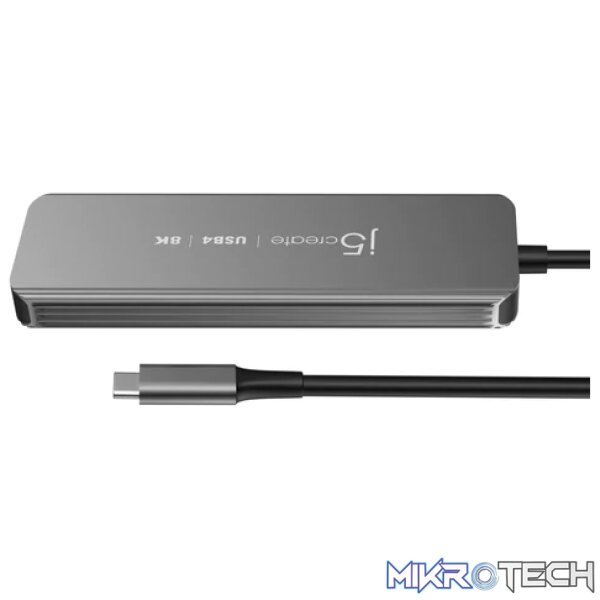

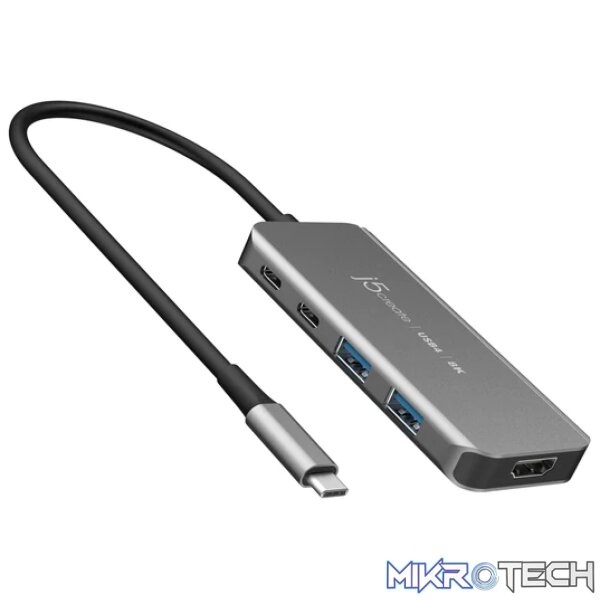

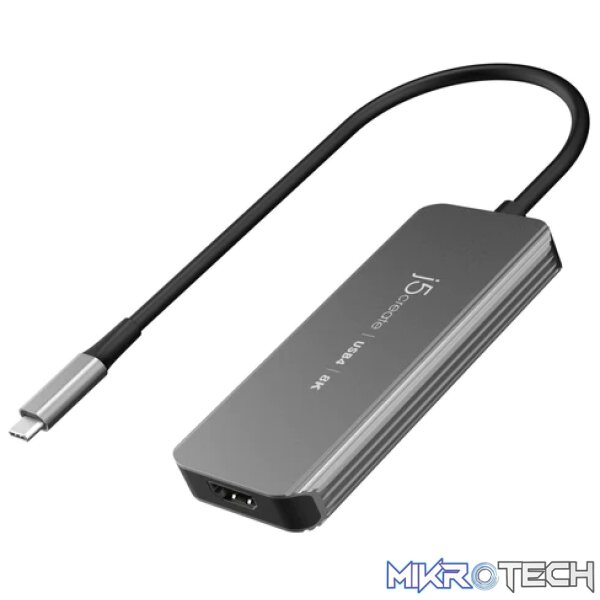

J5 Create USB4 8K60 Slim Hub

A USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has four USB™ SuperSpeed+ 10Gbps ports (2 USB-C® and 2 Type-A) for charging, connecting peripherals and high-speed data storage devices. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

Features

• Supports resolutions up to 8K @ 60Hz and 4K @ 144Hz
• Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
• Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate modern peripherals
• Two USB-C® port supports up to 10Gbps data transmission
• Power Delivery 3.0 offers up to 100W of pass-through charging
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance
• Wide compatibility with various operating systems and devices
• Plug-and-play, no driver installation required

Specifications

• Audio Supported: Yes
• Host Connector: 1 – USB4® Male
• Ports
  • 1- USB-C® 3.2 Gen2 10Gbps data transmission
  • 1- USB-C® power delivery 3.0 100W with 10Gbps data transmission
  • 2- USB™ Type-A 3.2 Gen2 10Gbps data transmission
  • 1- 8K HDMI™
• Power Source: Bus-powered or self-powered
• Video Output: 1 – HDMI™ Female
• Displays Supported: 1
• Max Data Transfer Rate: 10Gbps
• Max Display Refresh Rate
  • 144Hz @ 1920 x 1080
  • 144Hz @ 2560 x 1440
  • 60 Hz @ 3840 x 2160
  • 144 Hz @ 3840 x 2160 (* Only for DSC host)
  • 30 Hz @ 7680 x 4320
  • 60 Hz @ 7680 x 4320 (* Only for DSC host)
• Max Display Resolution: 7680 x 4320

Manufacturer’s link
