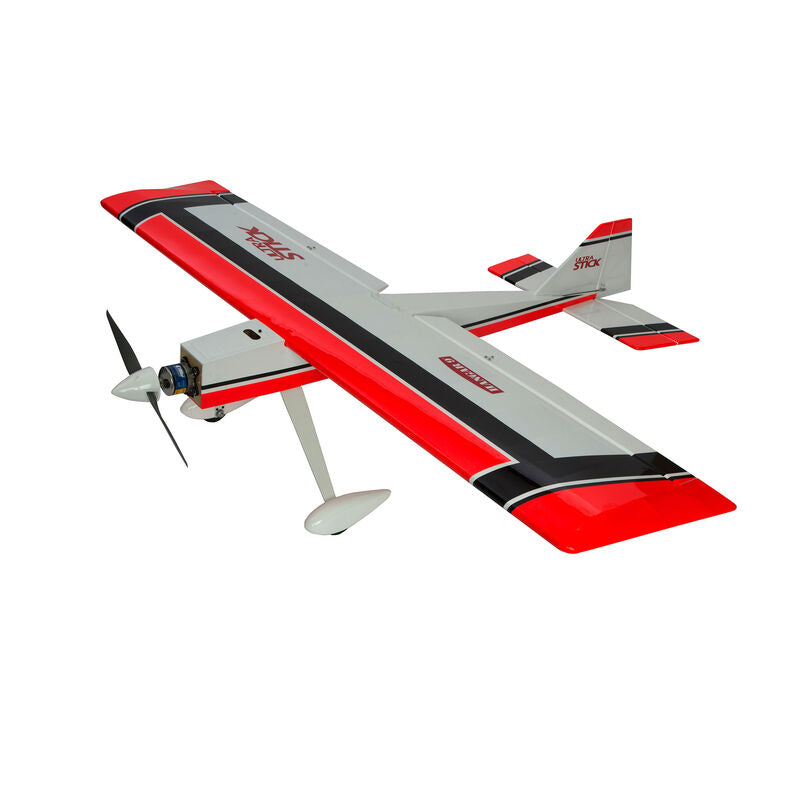

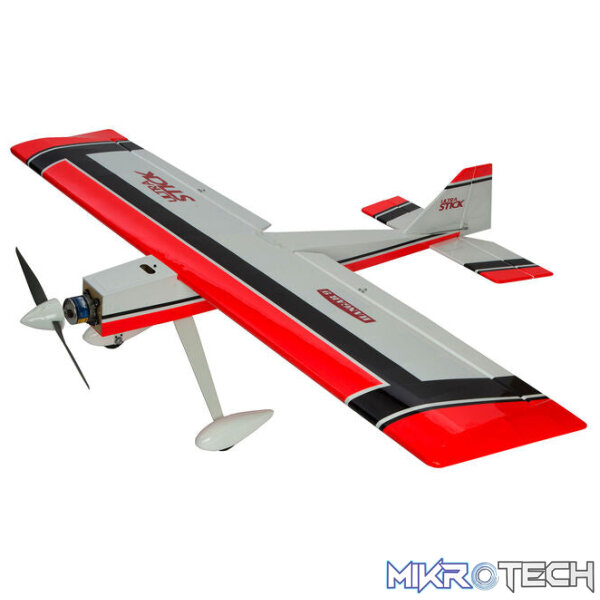

Hangar 9 Ultra Stick 10cc ARF 60″

The Hangar 9® Ultra Stick™ 10cc ARF offers incredible versatility, excelling in 3D flight, aerobatics, and touch-n-go practice. With durable construction, quad-surface controls, and float-ready options, it’s the ultimate sport plane for any pilot.

In The Box

• (1) Hangar-9 Ultra Stick 10cc ARF
• (1) User Manual

Needed to Complete

• (1) 10cc two- or four-stroke gas/petrol engine or equivalent electric motor system
• (1) Full-range, 6+ channel transmitter and receiver
• (7) Standard-size servos (6 for the electric power option)
• (2) Batteries for receiver and engine ignition (for the gas power option)
• (1) Prop: 12 x 6 – 14 x 8.5

Downloads

Instruction Manual
Ultra Stick 10cc Manual – Multilingual



Features

Lightweight Construction

Laser-cut, lightweight balsa and plywood construction that’s expertly built to exacting standards gives the simple Ultra Stick design exceptional durability. Genuine Hangar 9® UltraCote® covering, factory applied with precision, provides an easy-to-maintain finish that’s vivid no matter how you look at it.

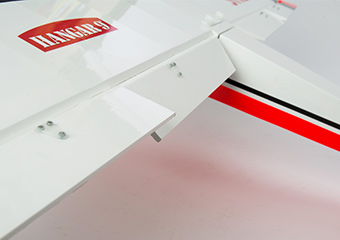

Wide Flight Envelope

Its low wing load and practical design combine with large control surface areas that can be setup with long surface deflections making the Ultra Stick an ideal airplane for growing your pilot skills. Operational flaps allow its versatile flight envelope to open even wider, plus you can create radio program mixes and maneuvering capability impossible to do with standard sport models.

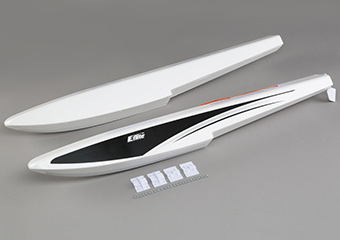

Ready for Floats

The optional Carbon-Z® float set and wire mounting strut set exactly fit into the factory installed hard points located in the belly of the Ultra Stick 10cc. Once assembled, conversion from wheels to floats takes only minutes to complete.

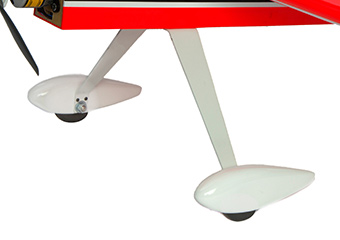

Dressed to Impress

You might not think to put wheel pants on a sport airplane, but the Ultra Stick simply deserves it. Big wheels handle just about any flying field condition, plus there’s nothing like having an airplane that does it all and looks great while doing so.

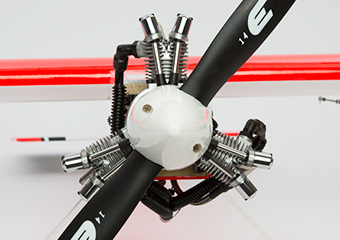

Power It the Way You Want It

The Ultra Stick 10cc is designed to accept the Evolution® 10GX, 10cc gas engine, an 11cc four-stroke or brushless electric power plant equivalents. Hardware for either of those options is included along with an electric motor mount so you can get in the air faster.



Specifications

Airfoil Shape: Symmetrical

Approximate Assembly Time: 7-10 Hours

Approximate Flight Time: 6-8 mins

CG (Center of Gravity): 3-1/2″- 4-1/4″ Inches (89mm-108mm) back from the leading edge of wing

Completion Level: Almost Ready-To-Fly

Engine Size: 10cc (sold separately)

Flaps: Yes

LiPo Compatibility: 6S

Minimum Required Radio: 4+ Channel (sold separately)

Motor Size: Power 52 (sold separately)

Power Type: Electric/Gas

Product Length: 57″ (1448mm)

Receiver: Sold Separately

Recommended Motor Battery: 14.8V 4000mAh 30C 4S LiPo (sold separately)

Skill Level: Level 3

Speed Control: Sold Separately

Spinner Size: 2.25″ ( 57mm)

Trim Scheme Colors: White (HANU870), Flourescent Red (HANU890), Black (HANU874)

Wing Area: 810 sq inches

Wing Loading: 19.9oz/sq ft

Wingspan: 60″ (1524mm)
