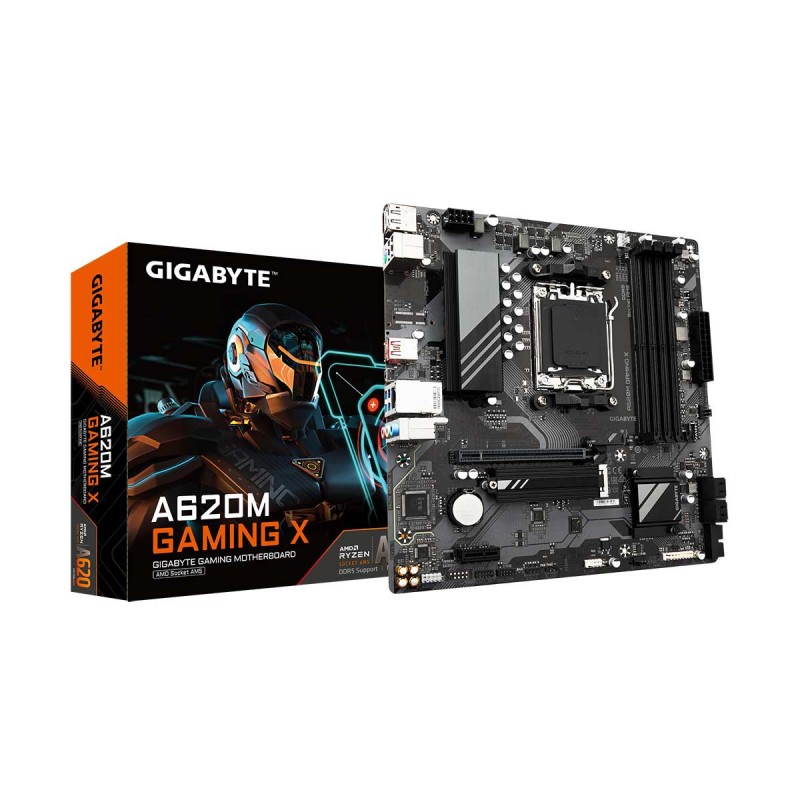

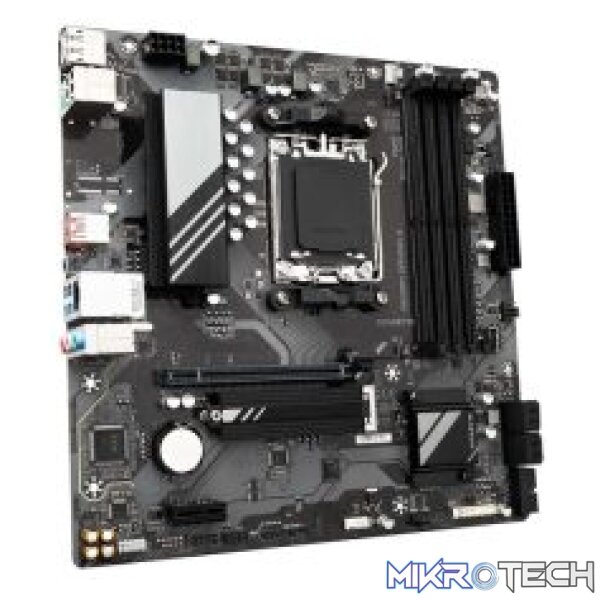

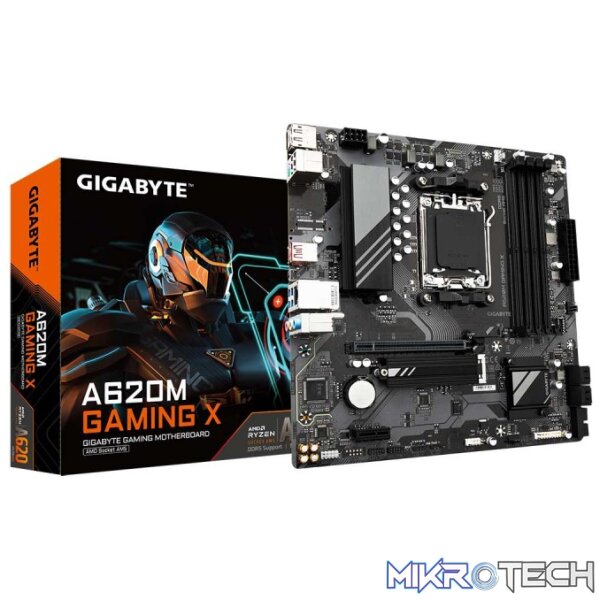

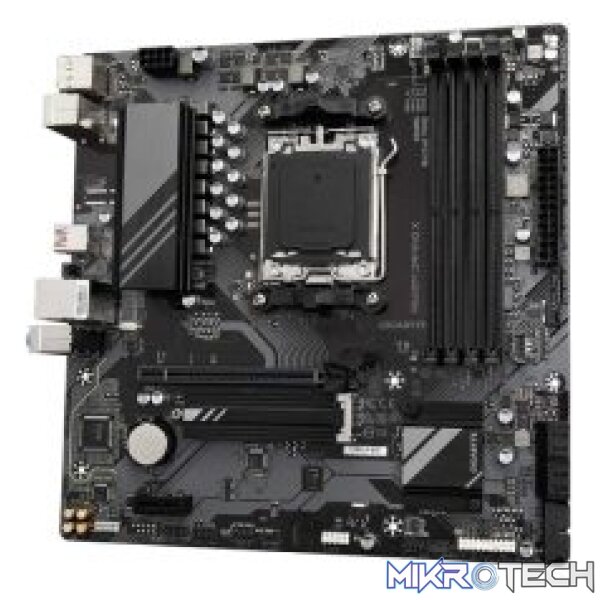

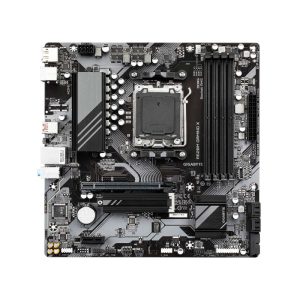

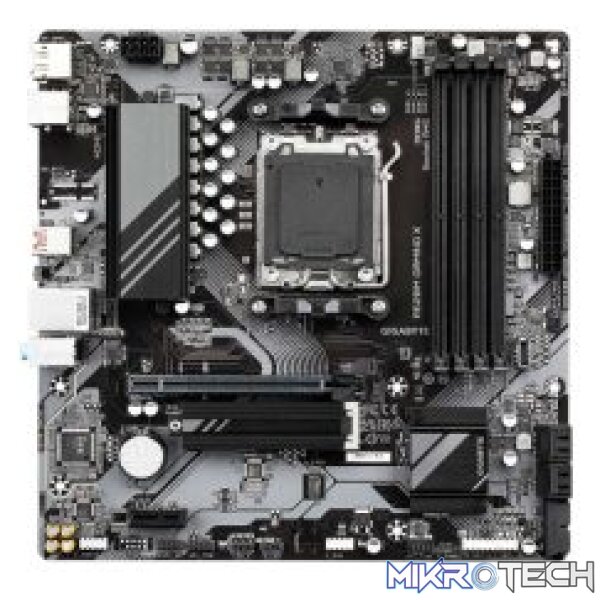

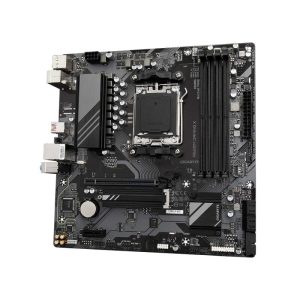

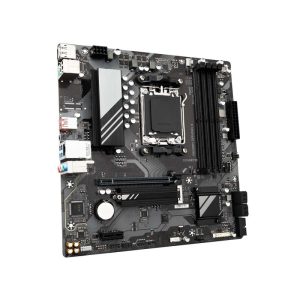

GIGABYTE A620M GAMING X AM5 AMD A620 Micro-ATX AMD Motherboard
R3,189.99 incl. VAT
Micro-ATX Form Factor
AMD A620 Chipset
Socket AM5
Supports Ryzen 7000-Series Processors
Q-Flash Plus BIOS Flash Supports Future Processors
Supports USB 5Gb/s Type-C Front-Panel Header
4x DDR5 DIMM Slots, Supports Up to 128GB
Supports up to DDR5-6400 (OC)
Supports AMD EXPO Memory
1x PCIe 4.0 x16 Slot
1x PCIe 4.0 x1 Slot
1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
4x SATA 3.0 Ports
1x USB 5Gb/s Type-C Port
1x USB 10Gb/s Type-A Port
2x USB 5Gb/s Type-A Ports
2x USB 2.0 Type-A Ports
1x HDMI 2.1 TMDS, 1x DisplayPort 1.4 Port
1x PS/2 Combo Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
1x Q-Flash Plus button
Realtek Gigabit Ethernet RJ-45 LAN Port
Realtek High-Definition Audio Codec
8+2+1 Digital VRM Solution
Gigabyte M.2 Thermal Guard
Gigabyte RGB Fusion Software
Gigabyte Smart Fan 6 Utility
Supports Windows 10, Windows 11 64-bit
3 Year Warranty
Out of stock
GIGABYTE A620M GAMING X AM5 AMD A620 Micro-ATX AMD Motherboard
GA-A620M-GAMING-X
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X Series |
| Model | A620M GAMING X |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD A620 |
| Memory Support | |
| AMD Ryzen 7000 Series | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160@60 Hz, Supports HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840×2160@144 Hz, Support for HDCP 2.3 |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot (PCIE1) |
| AMD A620 Chipset | 1 x PCIe 4.0 x1 Physical Slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) |
| AMD A620 Chipset | 4 x SATA3 6.0 Gb/s Connectors |
| Supports RAID 0 and RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek Gigabit LAN Port 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Connectivity | |

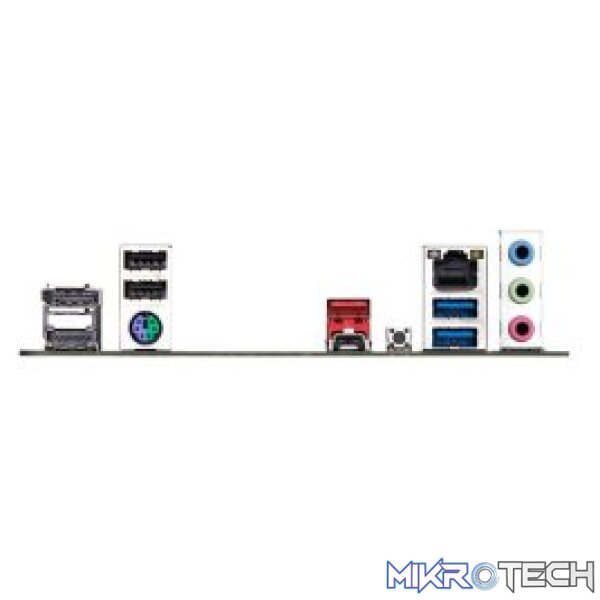

| Ports | 1x USB 5Gb/s Type-C Port |
| 1x USB 10Gb/s Type-A Port | |
| 2x USB 5Gb/s Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4 Port | |
| 1x PS/2 Combo Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Q-Flash Plus button | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x addressable LED strip header | |
| 1x RGB LED strip header | |
| 1x M.2 Socket 3 connector | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x Clear CMOS jumper | |
| LED Displays | Gigabyte Q-Flash LED |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
