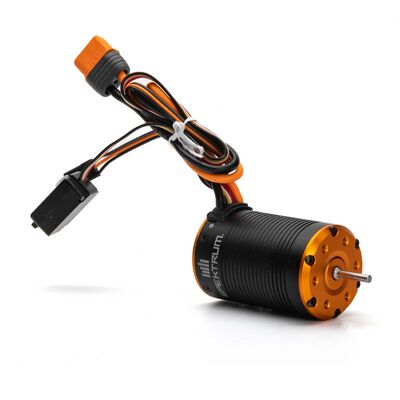

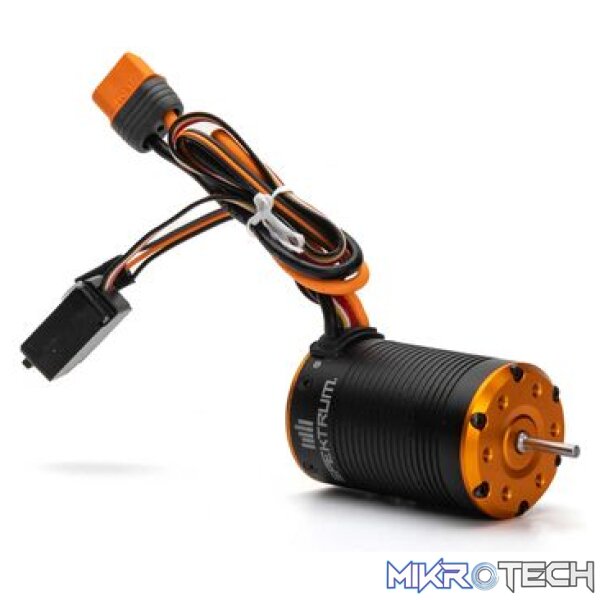

Firma 2-in-1 Brushless Crawler Motor/ESC 2300Kv

The Firma 2-in-1 2300Kv Brushless Crawler Motor/ESC combo from Spektrum is a compact, waterproof solution designed for 1/10-scale crawlers. It combines precise throttle control, powerful drag brake tuning, and sensored brushless efficiency in a single unit.

Features

• All-in-one sensored brushless motor and ESC design
• 2300Kv motor ideal for trail and rock crawling applications
• Field-oriented control (FOC) for smooth, precise throttle response
• Fully adjustable drag brake up to 200%
• Waterproof and dustproof for all-weather performance
• Compact size fits standard 550-size motor mounts
• Pre-wired with IC3 connector for quick installation

What’s in the box

• Spektrum Firma 2-in-1 Brushless Crawler Motor/ESC 2300Kv
• Instruction manual

Needed to complete

• Spektrum-compatible transmitter
• Spektrum-compatible receiver
• 2S or 3S LiPo battery with EC3 or IC3 connector

Specifications

• Type: 2-in-1 sensored brushless motor and ESC
• Kv rating: 2300Kv
• Input voltage: 2S–3S LiPo
• Continuous current: 40A
• Peak current: 160A
• Drag brake: Adjustable up to 200%
• Waterproof: Yes
• Connectors: IC3 battery connector
• Motor size: 550-can compatible
