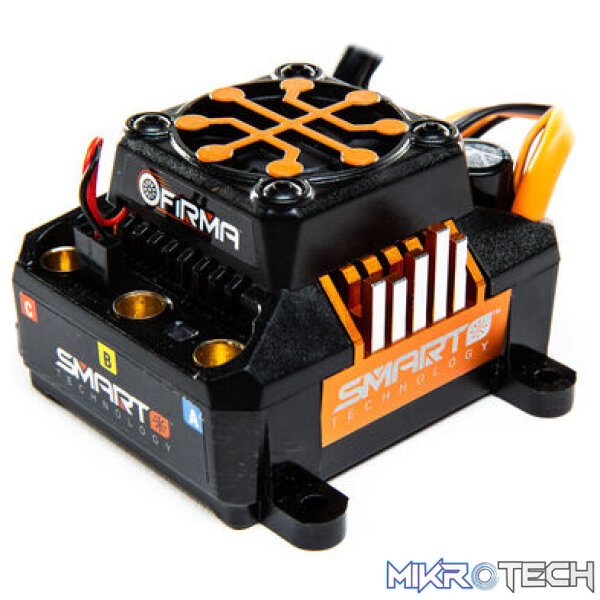

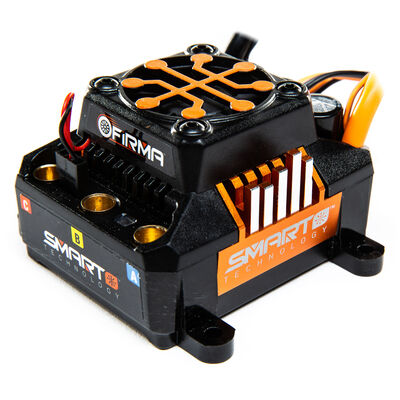

Firma 160A Smart ESC with Capacitor 3S-8S

The Spektrum Firma 160A Smart ESC with integrated capacitor is a high-performance solution for 1/8-scale surface vehicles. Designed to handle up to 8S LiPo power, it offers reliable protection, waterproof durability, and Smart telemetry for advanced control and monitoring.

Features

• Integrated capacitor for improved power handling and ESC protection
• Smart telemetry provides real-time voltage, current, temperature, and RPM data
• Fully waterproof (IP67 rated) for use in all conditions
• Adjustable BEC output – 6.0V or 8.4V @ 5A (8A burst)
• Multiple programming options – button, Smart ESC Programming Box, or SmartLink app
• Includes dual IC5 battery input connectors and 6.5mm bullet motor outputs
• Rugged case with integrated cooling fan and aluminium heat sink
• Protection features: over-current, thermal shutdown, low-voltage cutoff, and failsafe

What’s in the box

• Spektrum Firma 160A Smart ESC with capacitor (IC5 connectors)
• Instruction manual

Needed to complete

• Spektrum-compatible surface receiver
• Spektrum-compatible transmitter
• 3S–8S LiPo battery with IC5 or EC5 connector
• Brushless motor with 6.5mm bullet connectors

Specifications

• Type: Smart sensorless brushless ESC with capacitor
• Input voltage: 3–8S LiPo
• Max continuous current: 160A
• Max burst current: 1050A
• Connectors: Dual IC5 battery input, 6.5mm bullet motor output
• Programmable: Yes
• Waterproof: Yes (IP67 rated)
• Dimensions: 70 × 77 × 44 mm
• Weight: 280 g
• BEC output: 6.0V or 8.4V @ 5A (8A burst)
• Telemetry: Compatible with SRXL2 receivers and Smart transmitters
