Description

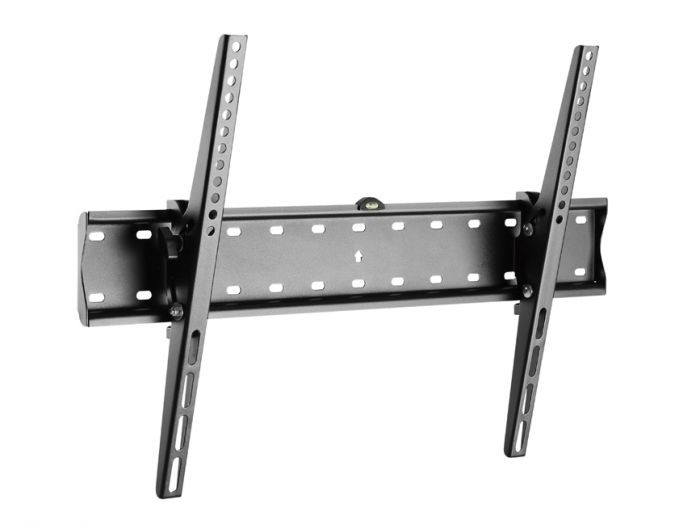

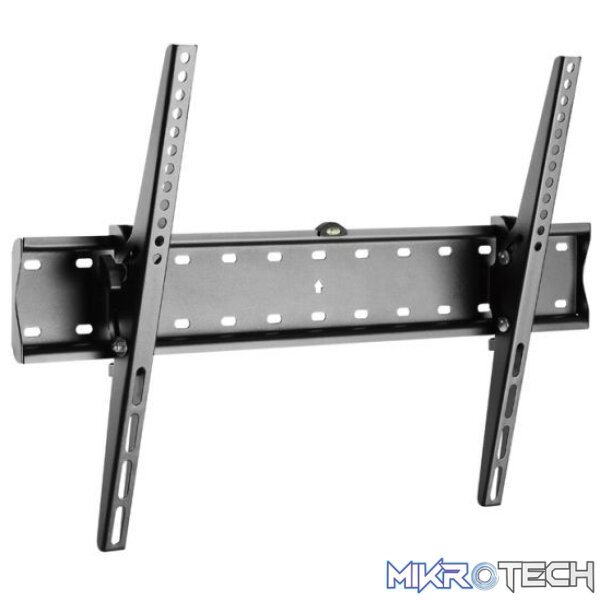

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Model Number 650332
SKU 65033207101
Max. Load Capacity: 40Kg
Max. VESA: 600×400
Slide-in wall plate provides easy access for attachment and detachment
Integrated bubble level assures easy installation alignment
VESA standards compliant
Free-tilting design for multiple monitor viewing angles

General
Color Black
EAN 4015867225417
Model Number 650332
Others
Approval and Compliance ROHS
Compatible display size 37?-70?
Package Contents 650332
Manual
screws kits
Physical Specifications
Dimensions (W x D x H) 425 x 53 x 643 mm
Product weight (kg) 1.82
System specifications
Cable management No
Mounting hole pattern Standard VESA
Bracket type Tiltable
Installation Double Stud(406mm/450mm/600mm),Solid Wall
Distance to wall 53mm
Load Capacity (kg) 40kg
Material Stainless Steel
Screens support quantity 1
Support Curved TV (Monitors) Yes
Tilt range +12°~-12°
VESA compatibility 200×200,300×200,300×300,
400×200,400×300,400×400,
600×400
Mount Wall mount
