Description

Overview

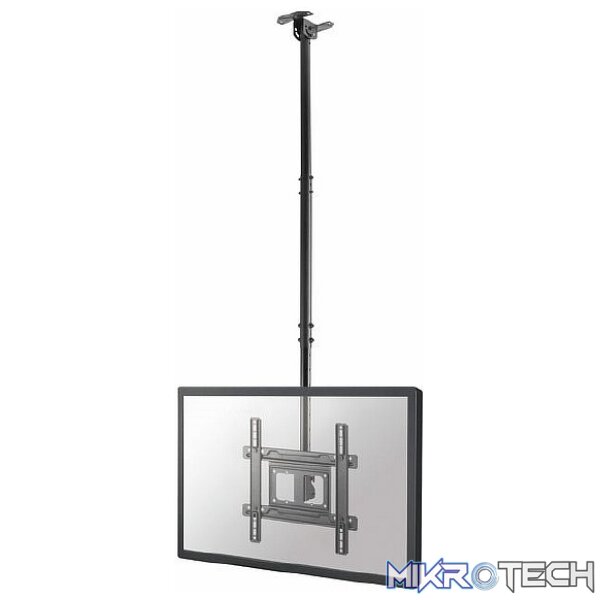

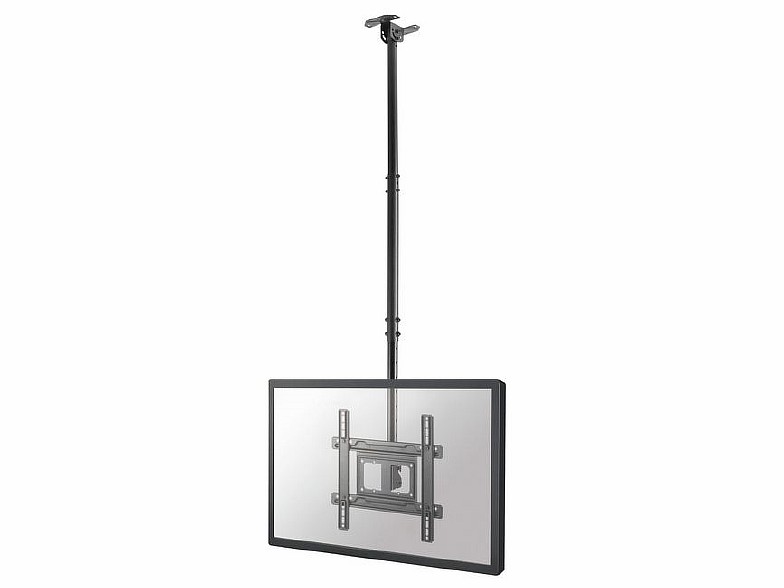

The equip® TV mount offers the strong support for commercial mounting. Tilt ceiling plate contributes
to the flexibility for applying in flat and pitched ceiling, special design also allows for single wood stud
and roof beam installation. It is effortless to adjust the height by telescopic design of the pole. The
VESA plate can swivel and tilt for the optimal viewing angle. Also, the inside cable management keeps
an elegant appearance.

l Key Features
Telescoping height adjustment
Free-tilting & swiveling design for multiple TV viewing angles
Built in Cable management
VESA standards compliant
l Specification
Material Steel, Plastic
Surface Finished Powder Coating
Color Black
Dimension 1792x450x185mm
Suggested Screen Size 32? 70?
Support Curved TV No
Load Capacity 50KG
VESA Mount Standard
100×100, 200×100, 100×200, 200×200,
300×200, 300×300, 400×200, 400×300,
400×400
Max. VESA 425x400mm
Mounting Hole Pattern Standard VESA, Universal
Distance to Wall 707 ~ 1577mm
Screen Freely Tilting No
Tilt Range +5° ~ -25°
Swivel Range +30° ~ -30°
Installation Single Stud, Ceiling
Wall Plate Type Fixed Wall Plate
Anti-Theft No
Cable Management Yes
l Package Contents
1 x Wall Mount Bracket
1 x Screw Pack
1 x Quick Installation Guide
